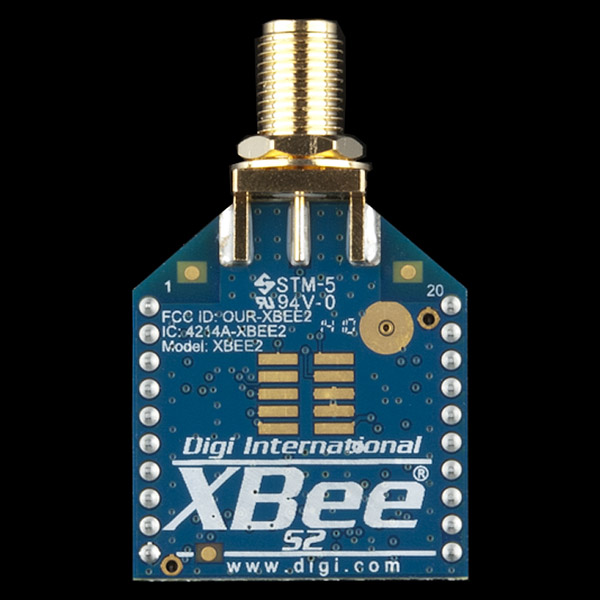

XBee 2mW RPSMA - Series 2 (ZigBee Mesh)

Description:

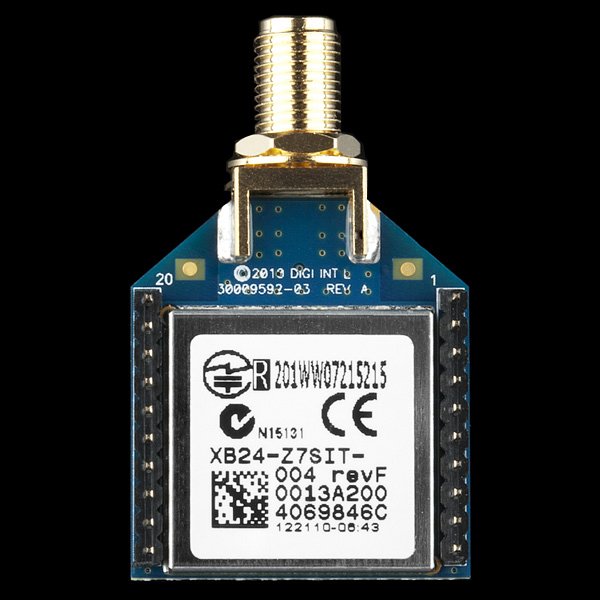

This is the XBee XB24-Z7SIT-004 module from Digi. Series 2 improves on the power output and data protocol. Series 2 modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead. The Series 2 requires considerable setup and configuration. We highly recommend Building Wireless Sensor Networks as a guide for setting up mesh networks.

Features:

• 3.3V @ 40mA
• 250kbps Max data rate
• 2mW output (+3dBm)
• 400ft (120m) range
• RPSMA antenna connector
• Fully FCC certified
• 6 10-bit ADC input pins
• 8 digital IO pins
• 128-bit encryption
• Local or over-air configuration
• AT or API command set
• External Antenna Required

Documents:

• Digi XBee Series 2 Page
• Datasheet
• Dimensional Drawings
• X-CTU Software
