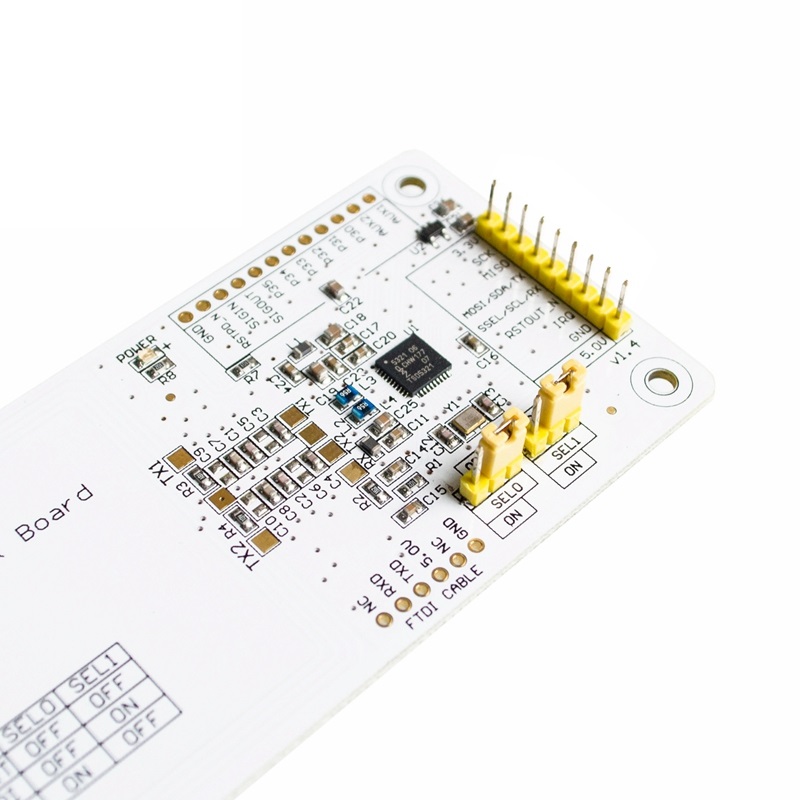

RFID / NFC Module (PN532) - White PCB + Free 1 Tag (M1) and 1 Card (S50)

Shield RFID/NFC ความถี่ 13.56 MHz มาพร้อมกับไลบารีมาตรฐานใช้งานง่าย เพียงเท่านี้ Arduino ก็สามารถอ่านแท็ก RFID/NFC ได้แล้ว

หมายเหตุ: RFID Tag M1 อาจะมีลักษณะ (สี หรือ รูปร่าง) แตกต่างกัน ขึ้นกับ โรงงานผู้ผลิต ทั้งนี้ฟังชั่นการทำงานยังคงเหมือนเดิม

PN532 is a highly integrated contactless reader chip, comprising 80C51 microcontroller core integrated 13.56MHz various active under / passive contactless communication methods and protocols.

PN532 transmission module supports 6 different operating modes:

1. Reader mode, supports ISO / IEC 14443A / MIFARE? Mechanism
2. Reader mode support  FeliCa mechanism
3. Reader mode, supports ISO / IEC 14443B mechanism
4. Card mode of operation, supports ISO 14443A / MIFARE? Mechanism
5. Card mode of operation, FeliCa mechanism
6. The ISO / IEC18092 , ECM340 point

• 40 kB ROM and 1 kB RAM of the 80C51 microcontroller core
• Highly integrated analog circuits, demodulation and decoding response
• An output buffer driver connected to the antenna through a minimum of external passive components
• Integrated RF field detector
• It integrates the data pattern detector
• Supports ISO / IEC 14443A / MIFARE?
• Supported only in the reader mode ISO / IEC 14443B
• In the reader mode typical working distance exceeds 50mm , the distance is determined by the particular size of the antenna tuning and power
• In NFCIP-1 mode a working distance of up to 50mm , depending on the size of the antenna, and the power supply may be tuned
• In a typical mode of operation card working distance of about 100mm , the distance is determined by the particular size of the antenna tuning and external field strength
• In the reader mode, supporting Mifare Classic encryption supports 212 kbit/s and 424 kbit/s two kinds of higher data transmission speeds
• FeliCa mode, support 106kbit/s  , 212kbit/s and 424kbit/s communication baud rate
• Integrated NFCIP-1 of the RF interface, transfer rate up to 424kbit / s
• Host Interface Support: SPI Interface, I2C Interface, Serial UART
• Flexible interrupt mode
• Low-power mode a hardware power-down mode is a software power-down mode
• When the device is powered-down through the I2C , the HSU and SPI interfaces automatic wakeup
• Programmable Timer
• Crystal Oscillator
• 2.7V ~ 5.5V power supply
• Power for external use encryption chip switching
• The external control apparatus dedicated I / O pins
• For product testing integrated antenna detector
• Encrypted with the external IC connection ECMA 373 NFC-WI Interface

Packing size : 150 * 80 * 10 mm

Package weight: 34g

Packing List

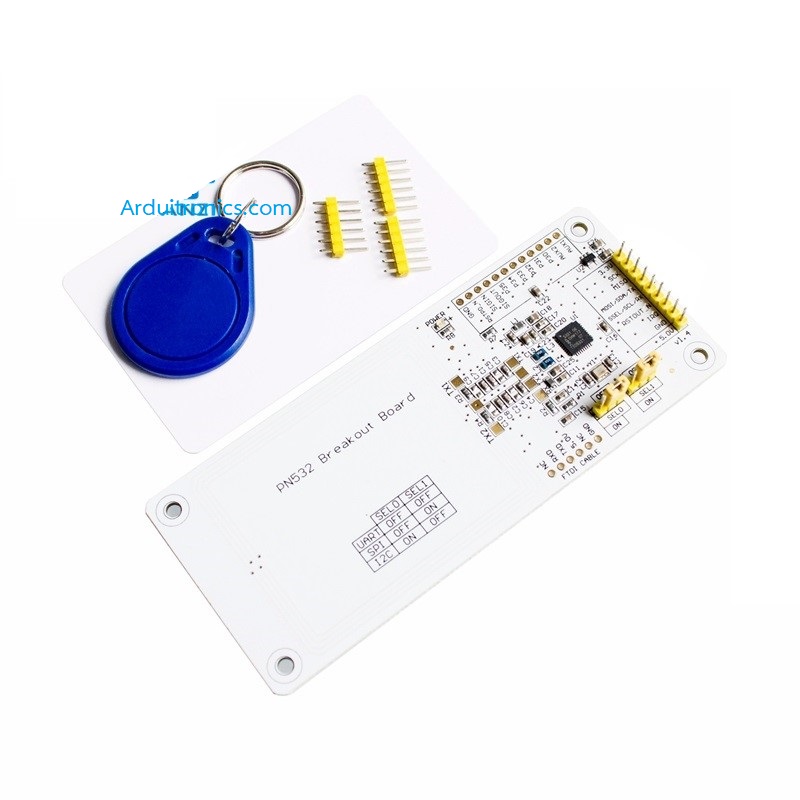

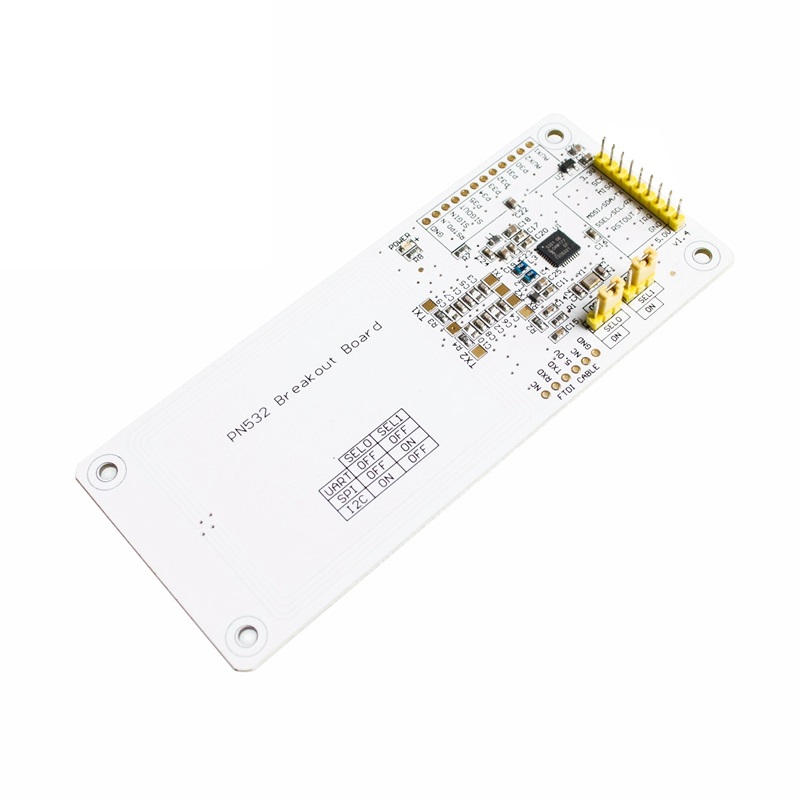

1pcs PN532  development board

1pcs M1 card

1pcs S50 white card
