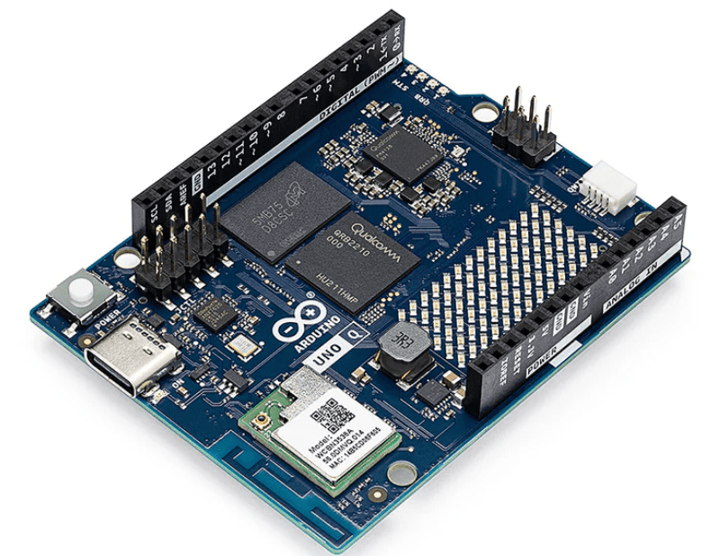

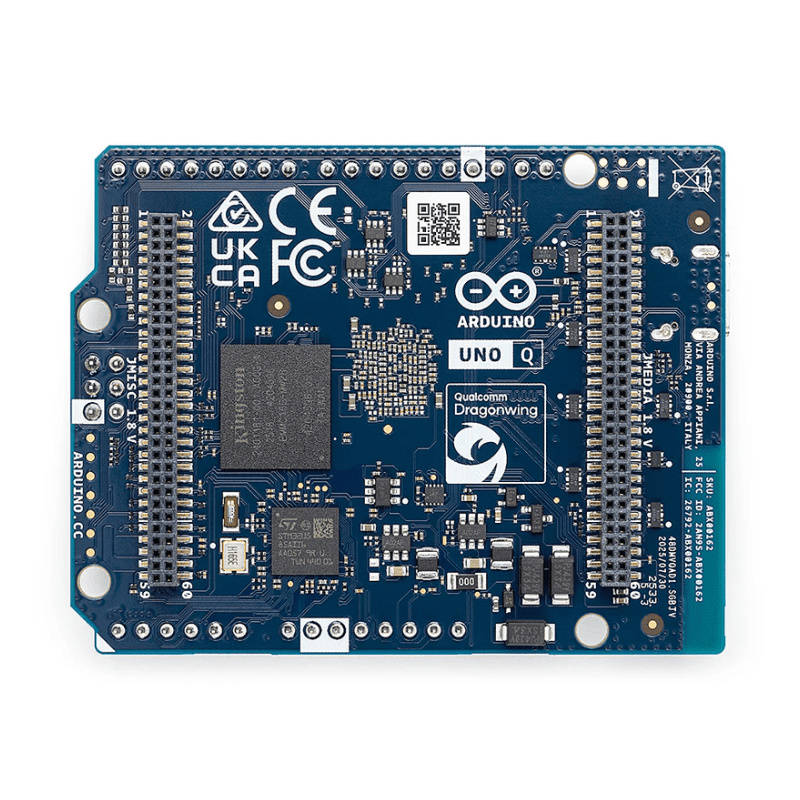

Arduino UNO Q - 2GB RAM (แท้จาก Italy)

Arduino UNO Q – 2GB

UNO Q คือบอร์ดเดียวที่รวมโลกของ การพัฒนาแอปพลิเคชัน Linux เข้ากับการควบคุมไมโครคอนโทรลเลอร์ อย่างลงตัว เหมาะสำหรับนักพัฒนา ครูผู้สอน และ Maker ที่ต้องการสร้างสิ่งใหม่ได้มากกว่าเดิม

A quick product overview by Jeff Geerling:

Resources and Downloads:

• Arduino Uno Q - 2GB Datasheet

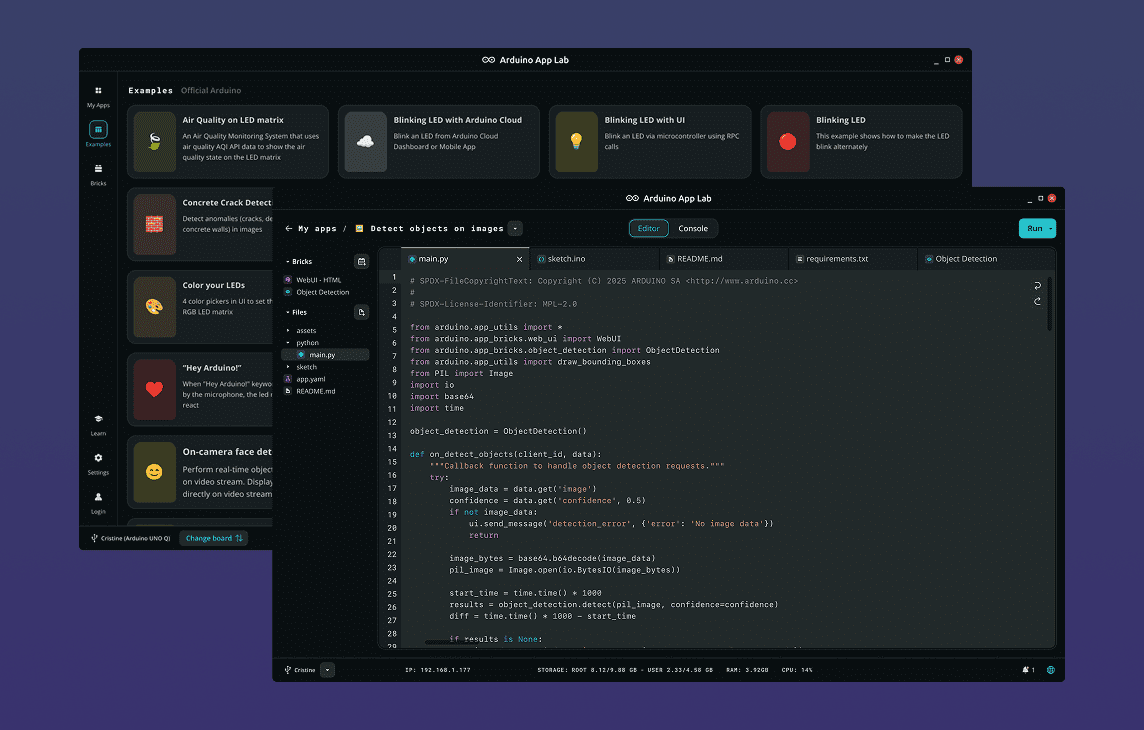

• Arduino App Lab Download
• Arduino Uno Q - 2GB Blogpost
• Arduino Uno Q Arcade Cabinet Machine Project

Package Include:

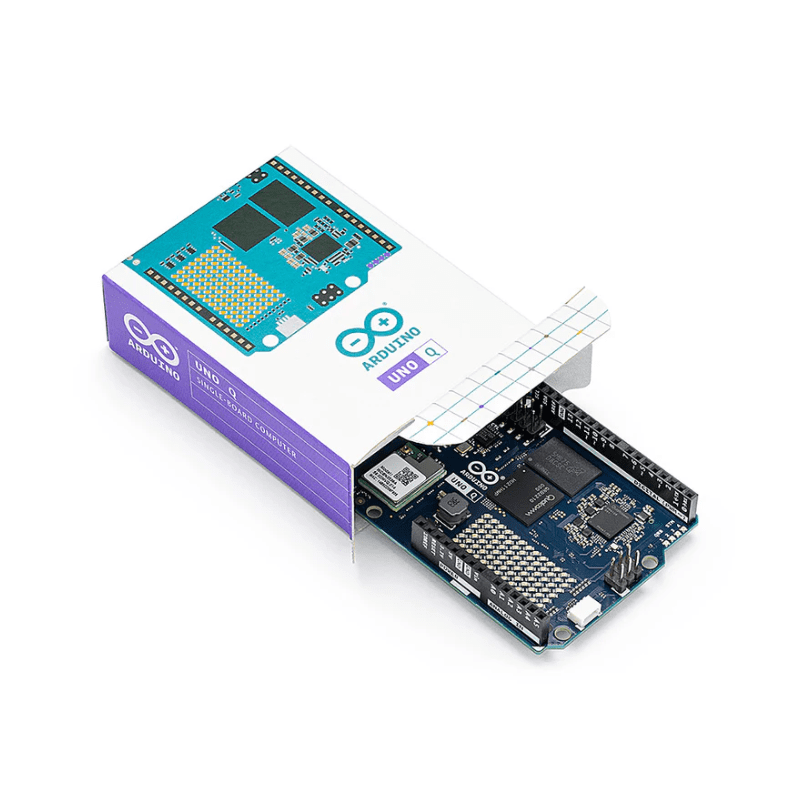

• 1 x Arduino Uno Q - 2GB

Overview:

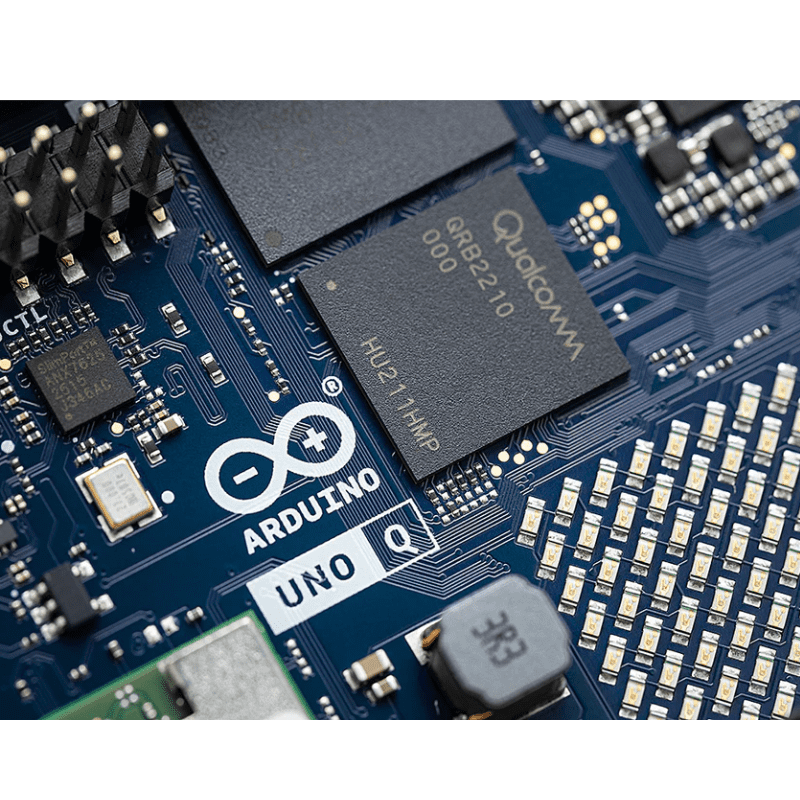

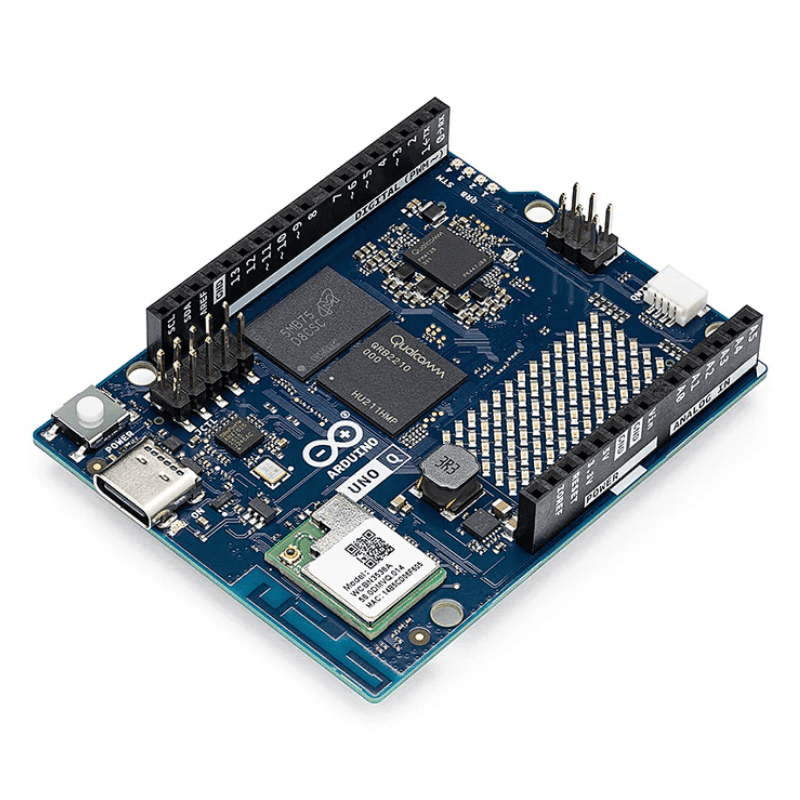

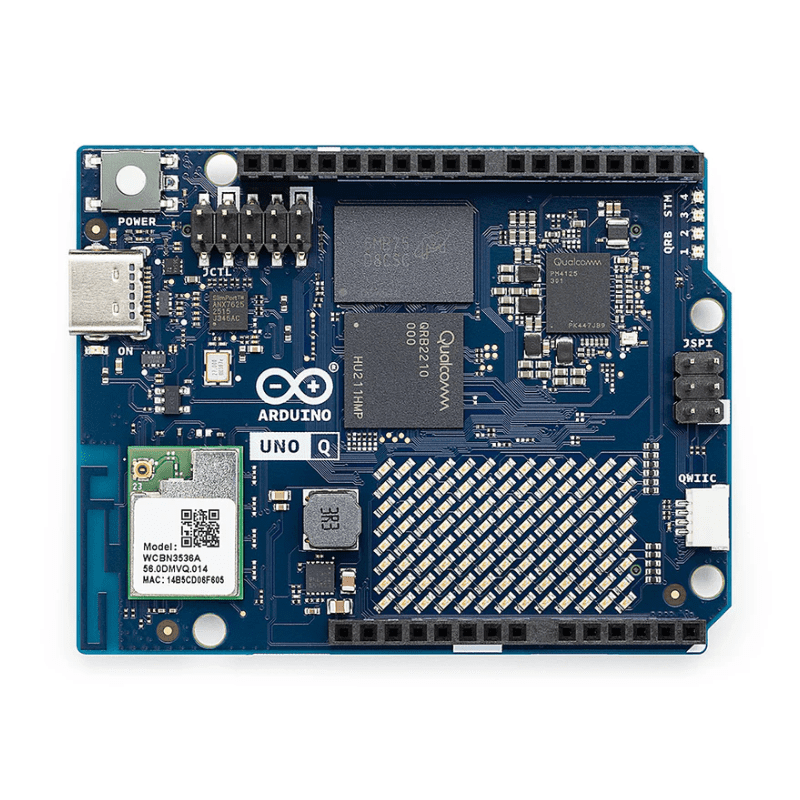

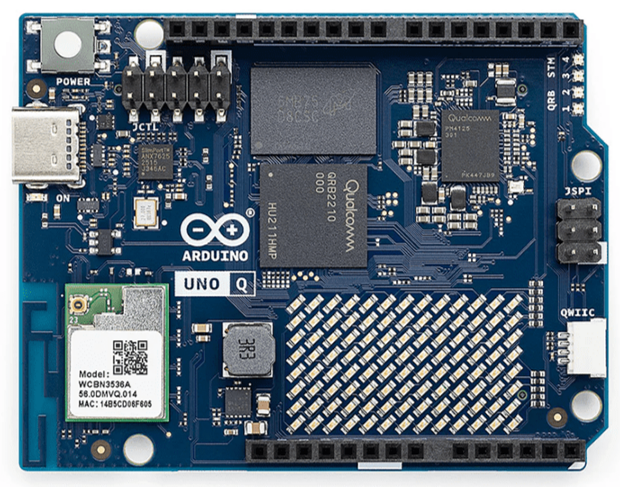

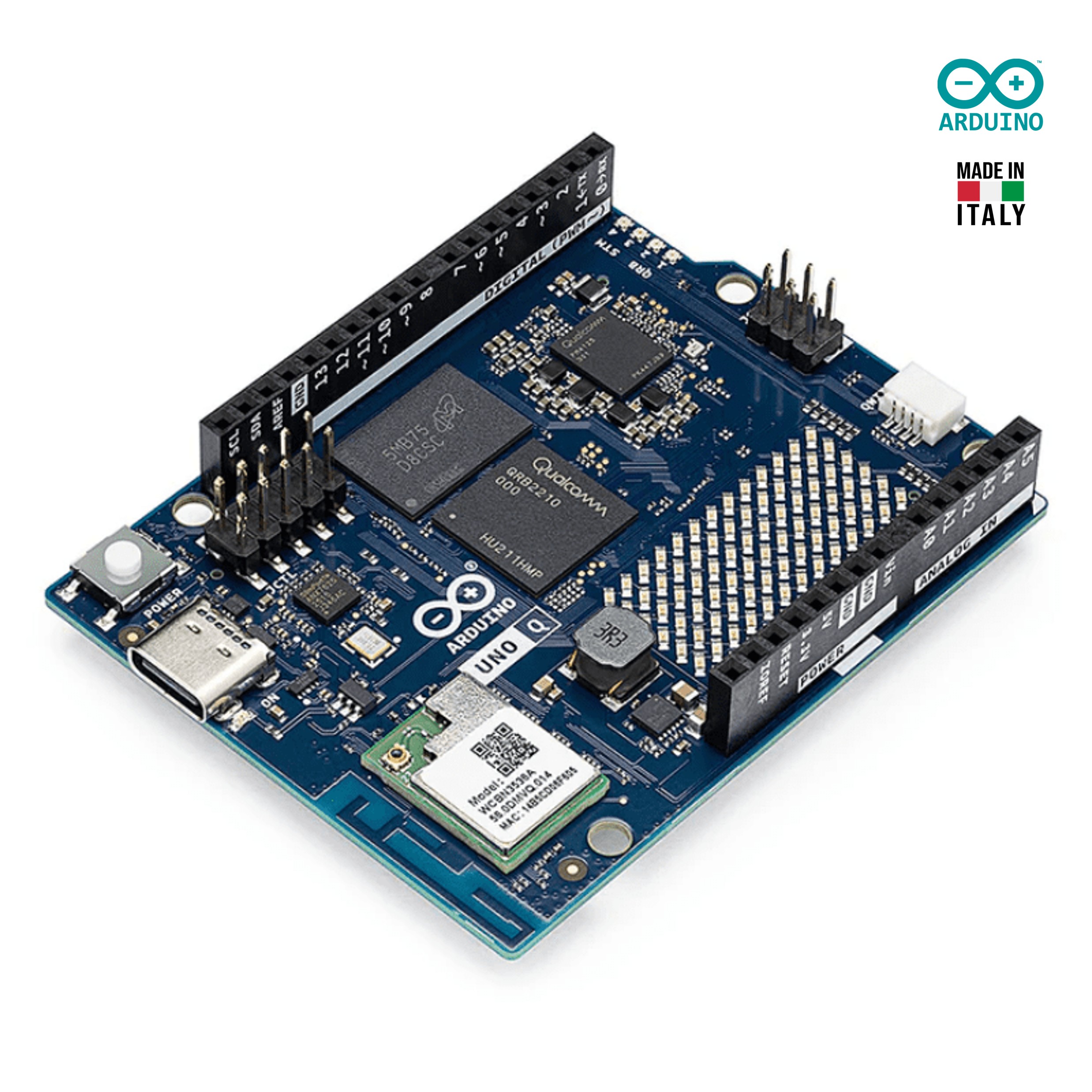

The Arduino UNO Q – 2GB represents a major step forward in the UNO family, combining the simplicity and compatibility of the classic Arduino board with the power of a Linux-capable processor. Designed for developers, educators, and advanced makers, it merges a Qualcomm® QRB2210 quad-core Arm® Cortex®-A53 processor with a real-time STM32U585 microcontroller, creating a seamless bridge between high-level computing and precise hardware control.

This hybrid design allows developers to run full Linux applications, AI workloads, and graphical interfaces while simultaneously managing low-level operations such as sensors, motors, and real-time feedback. It’s an ideal solution for IoT gateways, robotics, smart vision systems, and AI-driven prototypes.

The UNO Q retains full compatibility with the standard Arduino UNO form factor, allowing you to reuse most existing shields and accessories. With built-in WiFi 5, Bluetooth 5.1, a USB-C port supporting power, data, and video output, and a Qwiic connector for I²C expansion, the UNO Q is both familiar and significantly more capable.



Preloaded with Debian Linuxand compatible withArduino IDE,App Lab, andPython, it offers a unified workflow for both embedded and application-level programming. Its integrated8×13 LED matrix,RGB status LEDs, and onboard sensors make it a flexible platform ready for development right out of the box.

Whether you’re designing your first smart product or developing a complex automation system, the Arduino UNO Q delivers the performance, flexibility, and reliability to bring your ideas to life.

• Hybrid architecture combining a high-performance MPU and real-time MCU for seamless Linux + hardware control.
• 2 GB LPDDR4 RAM and 16 GB eMMC onboard storage.
• Retains the classic UNO shield footprint, enabling reuse of Arduino shields and headers.
• Wireless connectivity with dual-band WiFi 5 and Bluetooth 5.1.

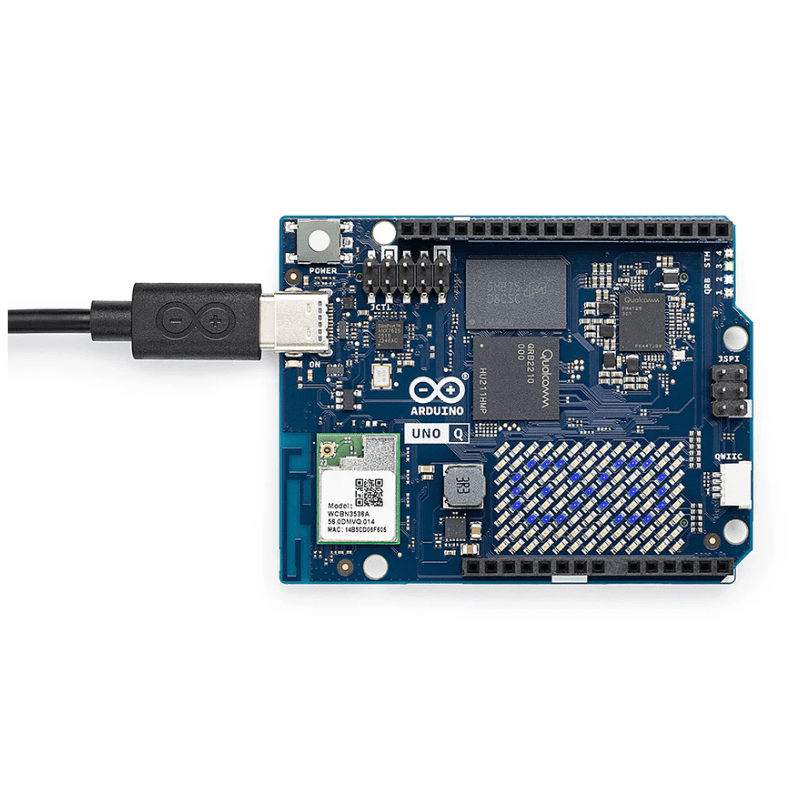

• USB-C port supporting host/device mode, power delivery and video output.
• Onboard 8×13 LED-matrix and 4 user-controllable RGB LEDs for user interface and feedback.Qwiic connector (I²C) for easy expansion with compatible modules.
• Compatible with Arduino IDE, App Lab, Python, and Debian-based Linux OS on the MPU.
• Dual-power input options (USB-C or VIN) for flexibility in prototyping.

• Quad-core Arm® Cortex®-A53 @ 2.0 GHz
• Adreno GPU with 3D graphics acceleration
• Dual ISP (supports up to 25 MP @ 30 fps)

• Arm® Cortex®-M33 @ 160 MHz
• 2 MB Flash, 786 KB SRAM

• 2 GB LPDDR4 RAM
• 16 GB eMMC storage

• WiFi 5 (2.4 GHz / 5 GHz)
• Bluetooth 5.1
• USB-C (host/device/power/video)
• Qwiic I²C connector

• Standard UNO header layout (digital I/O, PWM, SPI, I²C, UART, CAN)
• Onboard 8×13 LED matrix + 4 RGB LEDs
• Audio interface (mic in / headphone out / line out) via header

• USB-C: 5 V up to 3 A
• VIN: 7–24 V input

• Debian Linux on MPU
• Real-time OS (Zephyr) on MCU
• Compatible with Arduino IDE, App Lab, Python

• Dimensions: 68.85 mm × 53.34 mm
