reTerminal E10-1 - Expansion Board supports DC Jack/PoE/UPS, Gigabit Ethernet, LTE/4G/5G/LoRaWAN, RS485/232, CAN, SATA 2.0 (แท้จาก SeeedStudio)
| รหัสสินค้า | BA10263 |
| หมวดหมู่ | reTerminal (seeed) |
| ราคา | 8,980.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| จำนวน | 1 |
รายละเอียดสินค้า

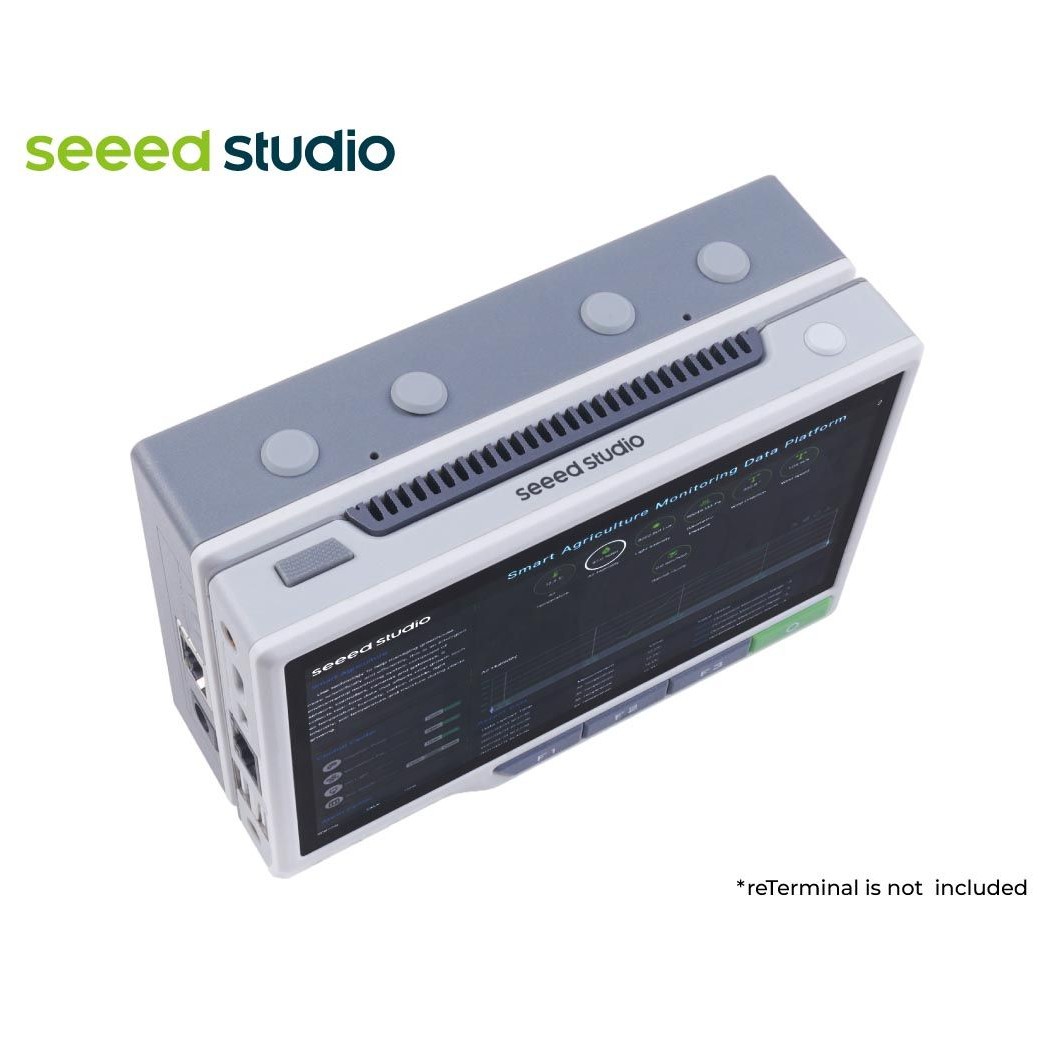

reTerminal E10-1 ใช้คู่กับ reTerminal

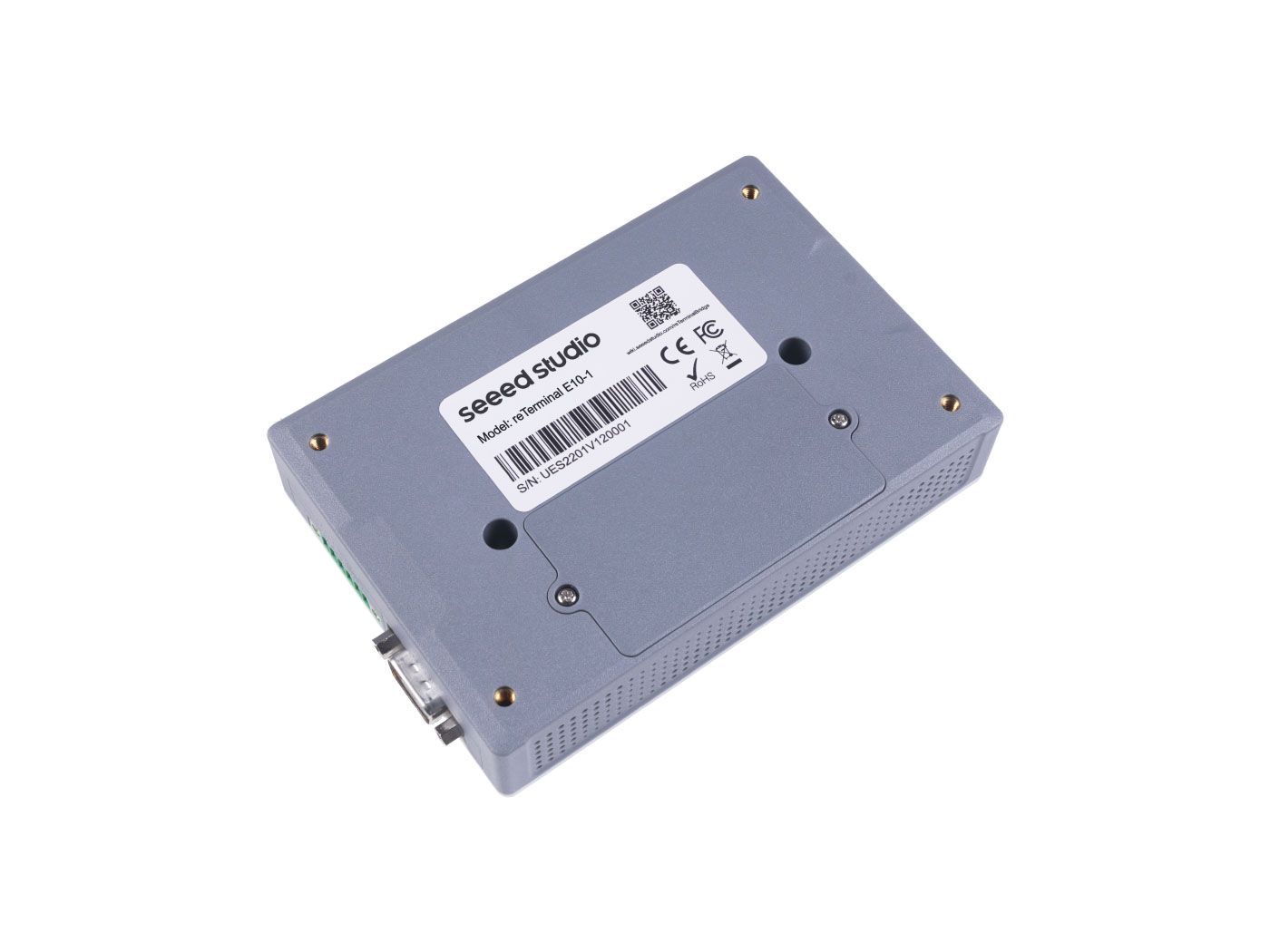

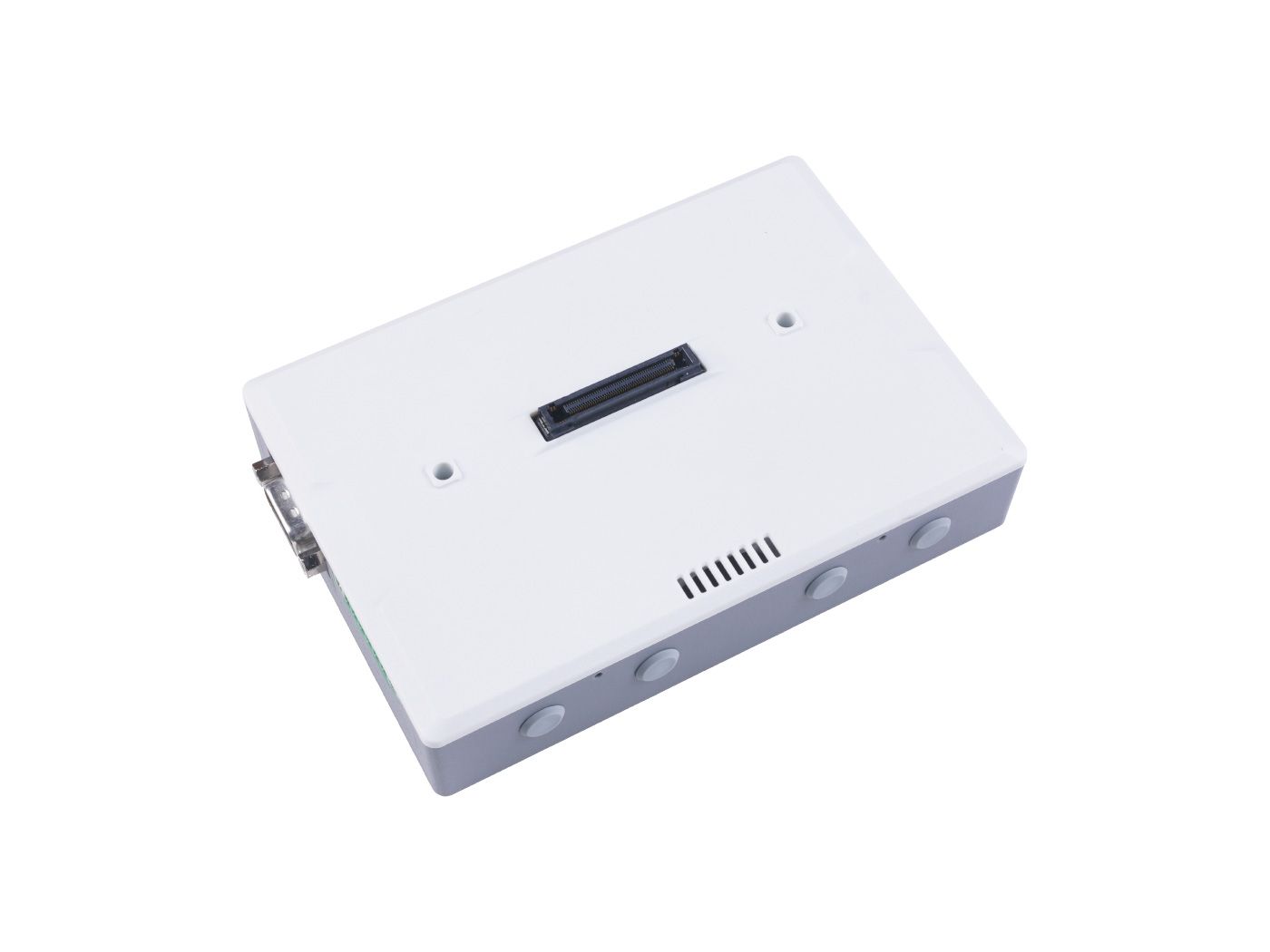

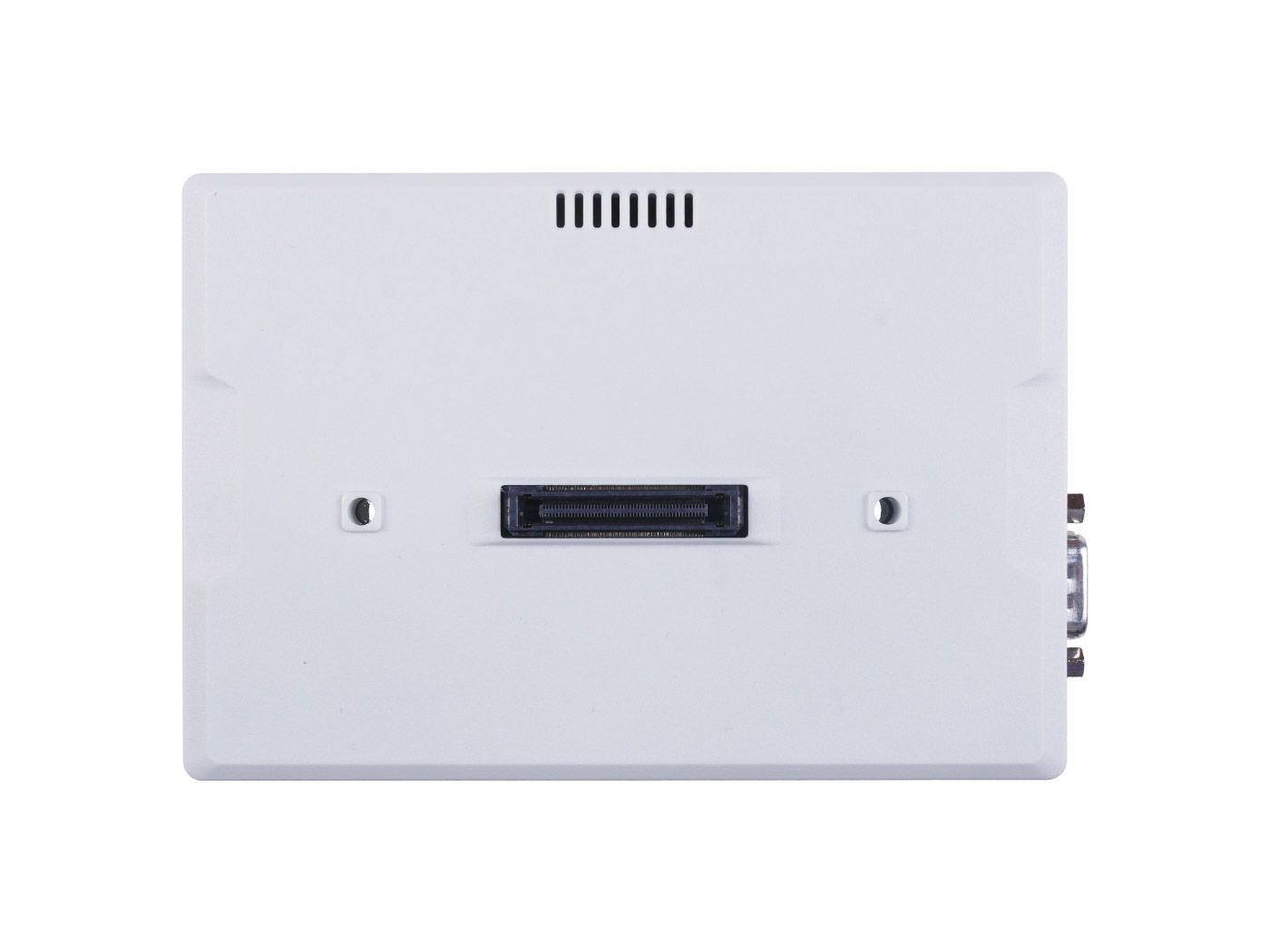

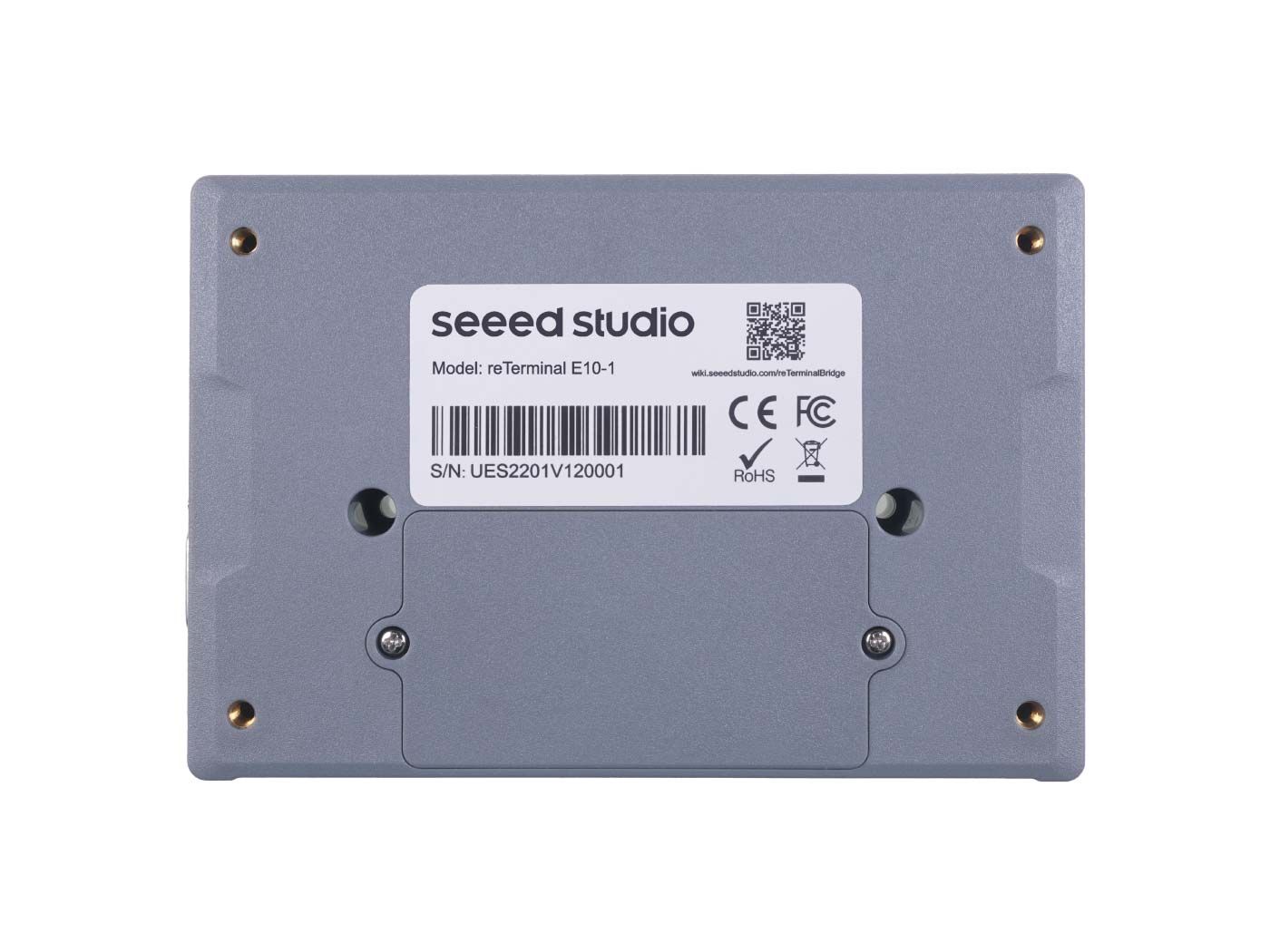

The reTerminal E10-1 is an expansion board for the reTerminal which empowers it rechargeable and portable functions, enhanced wireless communication and industrial data transmission along with audio capability. It ensures the reTerminal is even stronger and allows it to be deployed in more scenarios like high-speed industrial, agriculture applications, or enhanced wireless home, individual usages.
Feature
- Alternative Charging Modes: Supply by UPS-18650 dual chargeable battery, DC jack, and PoE function
- Multiple Wireless Communication: Provide LoRaWAN/LTE/4G/5G all four data transmission abilities with antennas
- Onboard Industrial Interface: Support RS-485, RS-232, and CAN Bus high-speed connection
- Onboard Massive Storage: Available card slot supporting SSD with M.2 B KEY, SATA 2.0
- Onboard Audio Capability: Equip with two microphones and one speaker for expandable Al-powered capabilities
Hardware Overview
Application
- Industrial: Machine monitoring, security alarm, industrial-level data transmitting and storing
- Agriculture: Crop monitoring, insect alarm, LoRa/LTE/5G wireless communication
- Home: Home monitoring, security alarm, power-off supported
- Individual: Mobile-Human Machine Interaction computer
- Getting Started with reTerminal E10-1
- DSN format schematic file
- PCB Board Design file
- Schematic PDF version
The reTerminal is a Human-Machine Interface facility, designed in modularization, offered multiple interfaces and components. It is your hand-size, powerful, Raspberry Pi-based all-in-one board, assisting you to develop individual IoT & AI projects and being ready to materialize industrial-level monitor and control functions.
Key Features
- Raspberry Pi All in One Board: Powered by RPi CM4 32GB, integrated with IPS multi-touch screen, dual-band Wi-Fi & Bluetooth, pre-installed compatible Linux system
- Modular Design: Featuring industrial high-speed expansion interface and 40-Pin Raspberry Pi compatible header
- Rich Interfaces & Components: Equipped USB Type-A ports, Gigabit Ethernet, micro-HDMI, micro-SD card slot, MIPI camera interface, light sensor, accelerometer, buzzer, RTC and programmable buttons
- Neat Personal Assistance: Enjoy yourself in multiple interested Dashboard or AI projects by Seeed and communities while utilizing built-in sensors and components
- Great Industrial Facility: Benefit from stable Raspberry Pi-based operating system, multiple expanded industrial-level connectors, cryptographic co-processor, and official Seeed expansion board reTerminal E10-1
- Grafana Weather Dashboard
- Robot Control
- AI Applications
- Design Your Own User Interfaces with different languages
- The reTerminal-based Contest in Japan(Results of Participants)
And yet what about Industrial Internet of Things(IIoT) applications? It can be even amazed that reTerminal has equipped a cryptographic co-processor. That is to say, the reTerminal assembles a stable Linux operating system, high-speed expansion connector, multiple types of universal I/O, and hardware security, all of which make it hardware-ready for industrial equipment monitor and control.
Seeed Proficient Customization Service
With over 10 years of ODM & OEM experience and in-depth understanding of popular open-source hardware, we promise you the professional and flexible customization service for the reTerminal, as well as helping your creative ideas come into reality based on Raspberry Pi CM4.
Application
Practical Tools Utilization
We here publish some widely useful tools that can be used in reTerminal, for your convenience.
Home Assistant
Home Assistant allows you to get on top of your energy use with its home energy management feature. It keeps your data local, managed all your devices automatically, controlled by Companion Mobile Apps.
Check our Home Assistance wiki application here.
Remote Management for reTerminal
Want remotely control the reTerminal?
Follow our wiki to setup Mender Client on a reTerminal to access OTA updates from a Hosted or Self-Hosted Mender Server.
Mount Options for reTerminal
Seeed provides a wiki containing several mount options for reTerminal form the community.
Specifications
| Specification | Details | |
|---|---|---|
| Platform | Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) |
| Frequency | 64-bit SoC @ 1.5GHz | |
| Memory | Capacity | 4GB |
| Technology | LPDDR4 with on-die ECC | |
| eMMC | Capacity | 32GB |
| Wireless | Wi-Fi | 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE | |
| Display | LCD | 5-inch 720x1280 LCD |
| Touch Panel | Capacitive touch panel (support multi-touch) | |
| Video | HDMI | 1 x Micro HDMI output (up to 4Kp60 supported) |
| CSI | 1 x 2-lane MIPI CSI camera interface | |
| Multimedia | H.265 (4Kp60 decode) | |
| H.264 (1080p60 decode,1080p30 encode) | ||
| OpenGL ES 3.0 graphics | ||
| Built-In Modules | Real-Time Clock | NXP Semiconductors PCF8563T |
| Low backup current; typical 0.25μA at VDD = 3.0 V and Temperature = 25 ℃ | ||
| Accelerometer | STMicroelectronics LIS3DHTR | |
| 16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale | ||
| Encryption | Microchip ATECC608A | |
| Secure Hardware-Based Key Storage, Asymmetric Sign, Verify, Key Agreement | ||
| Light Sensor | Levelek LTR-303ALS-01 | |
| Digital light sensor | ||
| Internal IO Expansion |
Microchip MCP23008-E | |
| Buzzer | ≥85dB @10cm 2700±300Hz | |
| External I/O | GPIOs | Up to 5 × UART |
| Up to 5 × I2C | ||
| Up to 5 × SPI | ||
| 1 × SDIO interface | ||
| 1 × DPI (Parallel RGB Display) | ||
| 1 × PCM | ||
| 1 × PWM channel | ||
| Up to 3× GPCLK outputs | ||
| Vertical expansion interface |
1 × PCIe 1-lane Host, Gen 2 (5Gbps) | |
| 1 × USB 2.0 port (highspeed) | ||
| 26 x GPIOs | ||
| POE | ||
| Power | Voltage | 5V DC |
| Current | 3A(Minimum) | |
| Temperature | Operating Temperature | 0 - 70°C( For the LCD Screen: 0 - 60°C) |
| Mechanical | Dimensions | 140mm x 95mm x 21mm |
| Weight | 285g | |
|
Certification |
Certificates | CE, FCC, TELEC(211-210815) |
Hardware Overview
If you want to check the GPIO pin you can refer to the GPIO Pin Schematic Diagram.
Note: Before you attach a camera with the CSI 22 Pin cable to the board, please double-check the FFC contact pins are facing up.

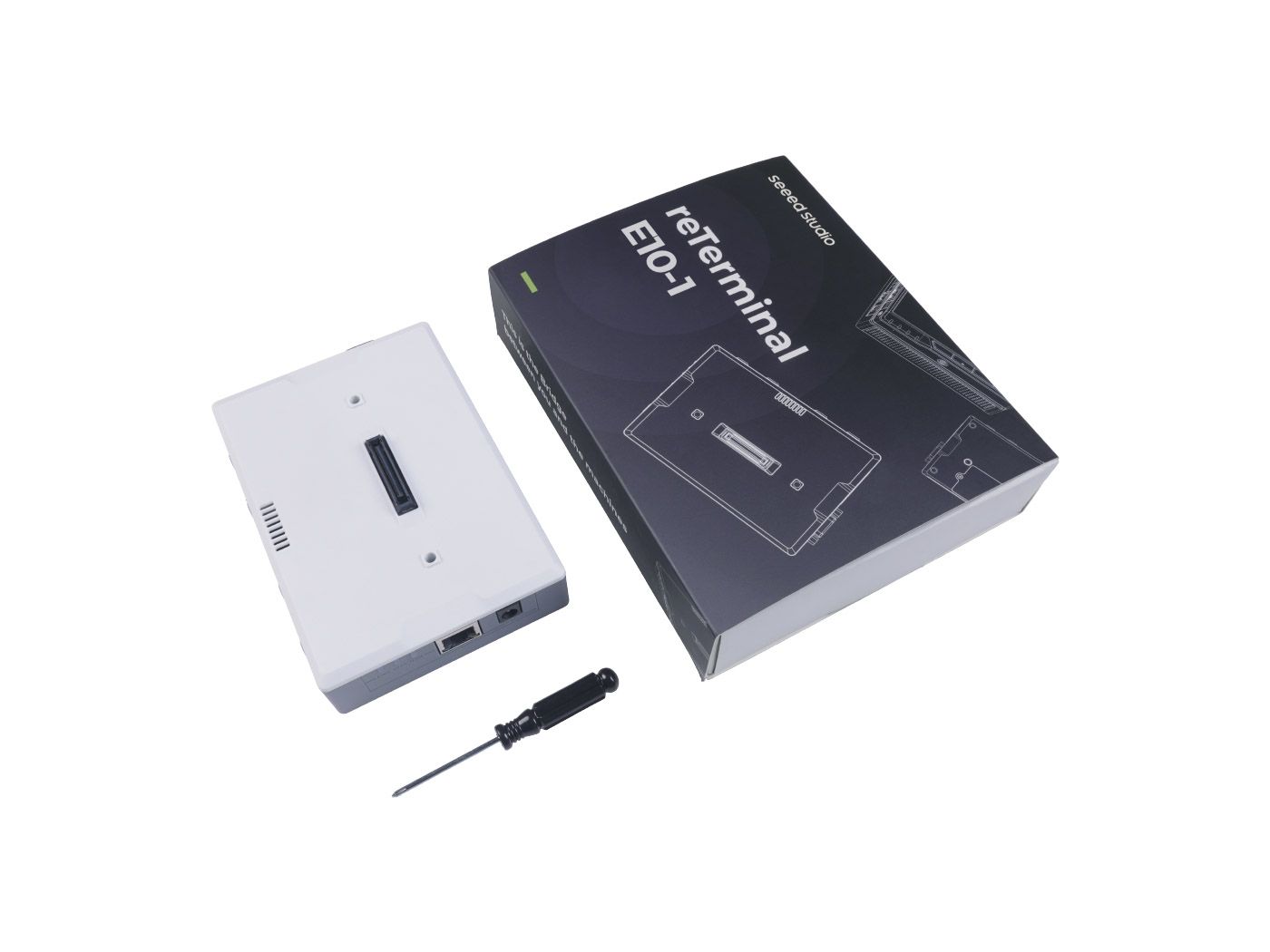

Part List
| reTerminal CM4 | x1 |
| Screw Driver | x1 |
