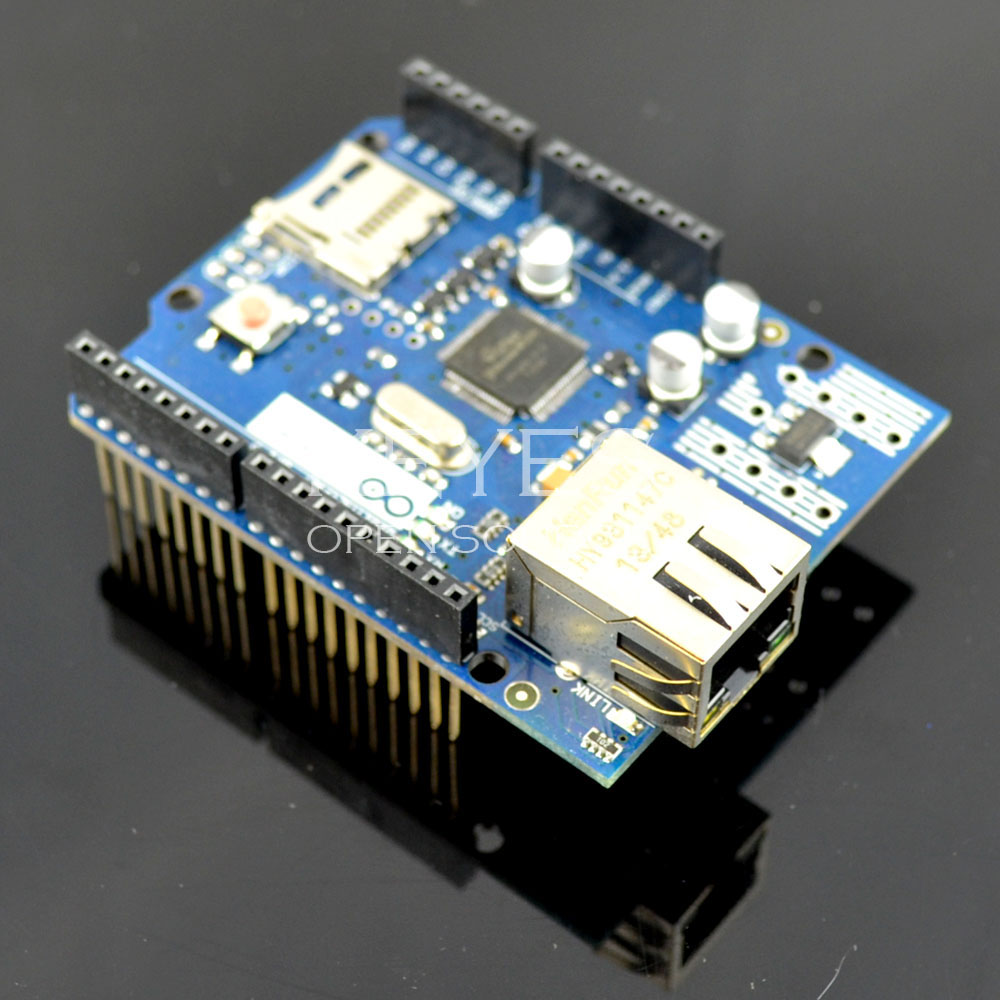

Arduino Ethernet Shield W5100 R3

New Arduino Ethernet Shield W5100 R3
Ethernet Shield รุ่นใหม่ใช้งานได้กับ Arduino UNO R3, Arduino Mega 2560 และ Arduino Duemilanove

http://arduino.cc/en/Main/ArduinoEthernetShield

Arduino Ethernet expansion board allows the Arduino controller connected to the network. It is a built-in WizNet W5100 TCP / IP microprocessor expansion boards. The board is connected arduino board through the long row pin female (wire-wrap header). Arduino IDE using the Ethernet library programs can easily use this expansion board is connected to the network. The expansion board supports four simultaneous socket connections.

And R3 version which expansion board also added 1.0 Standard Edition outputs from four additional ports consisting of: two located on the edge ARFF, two located on the edge RESET. RESET edge of two ports, one is IOREF, used to adapt the motherboard expansion board. Another empty port reserved for possible future expansion.

The latest version of the new section of the micro-SD card slot, has a network storage.In addition, it and the Arduino Duemilanove, Mega series is also fully compatible. It also has a separate PoE (power-over-Ethernet) modules. The module can be soldered to the motherboard, so to transmit power over twisted pair. This is in line with IEEE802.3af standard, and with existing PoE module compatible.

Technical Specifications

/ Uno rev3 standard output port is compatible with the Arduino Mega2560

Micro-SD card connector has active voltage converter features PoE reset controller

Is compatible with the Arduino MEGA board

The network expansion board and supporting development board
