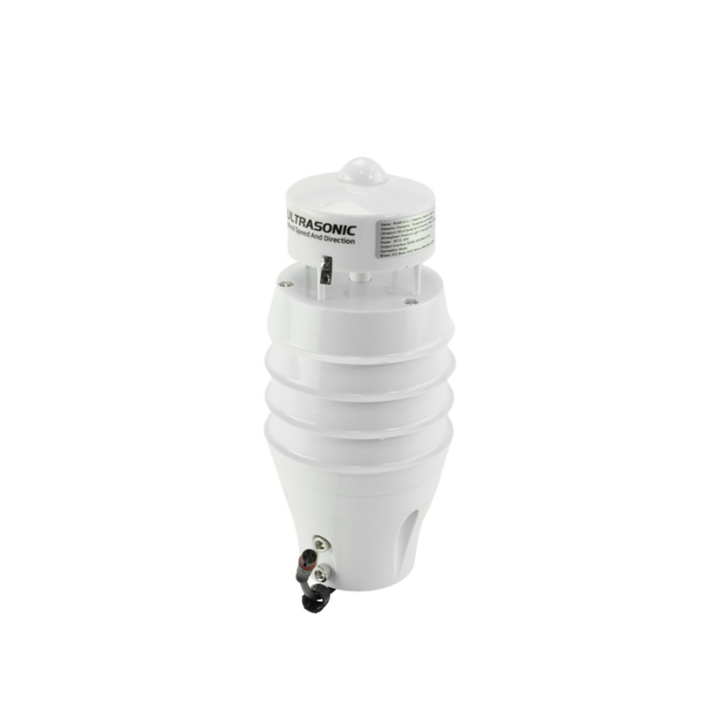

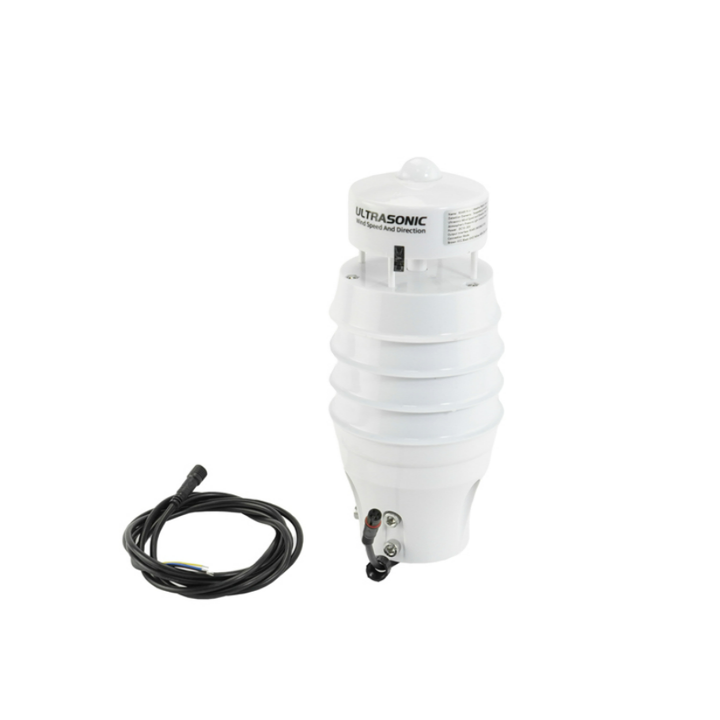

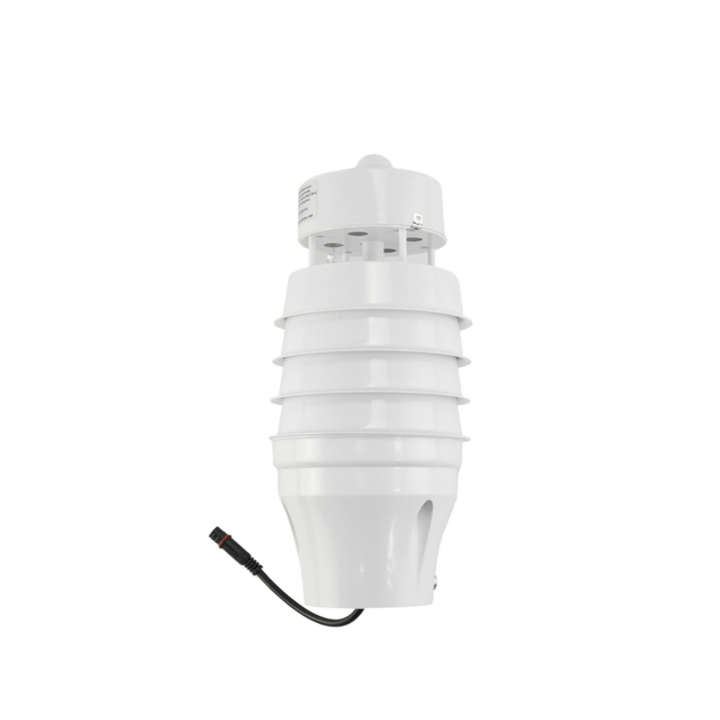

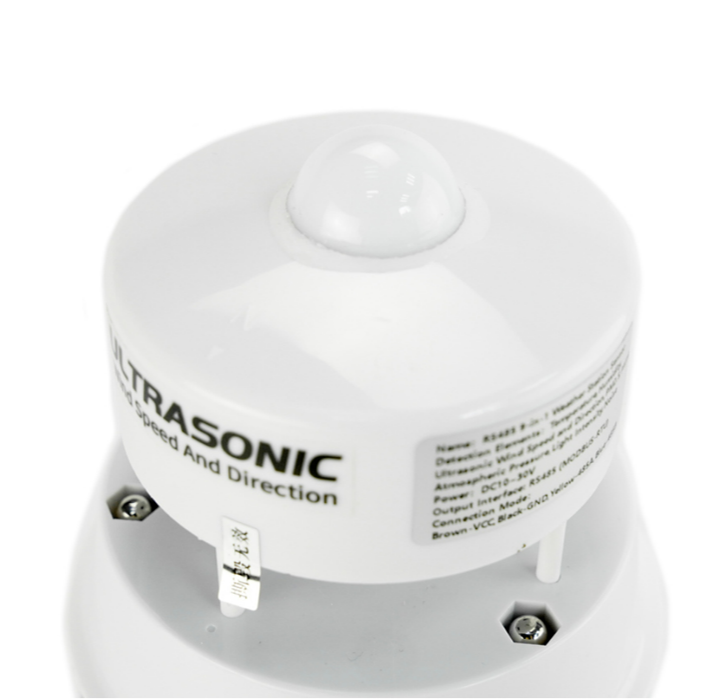

Ultrasonic 9-in-1 RS485 Weather Sensor for Arduino (Wind Speed, Wind Direction, Temp, Humidity, Pressure, Light, Noise, PM2.5, PM10) - DFRobot

#include <SoftwareSerial.h>
SoftwareSerial mySerial(2, 3);
uint8_t Com[8] = { 0x01, 0x03, 0x01, 0xF4, 0x00, 0x04, 0x04, 0x07 }; //Wind speed and direction
uint8_t Com1[8] = { 0x01, 0x03, 0x01, 0xF8, 0x00, 0x03, 0x85, 0xC6 }; //Temperature, humidity, noise
uint8_t Com2[8] = { 0x01, 0x03, 0x01, 0xFE, 0x00, 0x02, 0xA4, 0x07 }; //Light
uint8_t Com3[8] = { 0x01, 0x03, 0x01, 0xFB, 0x00, 0x03, 0x75, 0xC6 }; //PM2.5, PM10, atmospheric pressure
float tem, hum, ws, ap, db;
int wd, wdangle, pm2_5, pm10;

void setup() {
Serial.begin(9600);
mySerial.begin(4800);
}
void loop() {
readHumiture_Noise();
Serial.print("TEM = ");
Serial.print(tem, 1);
Serial.print("°C ");
Serial.print("HUM = ");
Serial.print(hum, 1);
Serial.print("%RH ");
Serial.print("dbValue = ");
Serial.print(db, 1);
Serial.print("dB ");
uint32_t lux = readLight();
Serial.print("Lux = ");
Serial.print(lux);
Serial.println("(lux) ");

readPM2_5_10_AtmosphericPressure();
Serial.print("PM2.5 = ");
Serial.print(pm2_5);
Serial.print("ug/m³ ");
Serial.print("PM10 = ");
Serial.print(pm10);
Serial.print("ug/m³ ");
Serial.print("AP = ");
Serial.print(ap, 1);
Serial.println("kPa ");

readWindSpeed_WindDirection();
Serial.print("Wind Speed = ");
Serial.print(ws, 1);
Serial.print("m/s ");
Serial.print("Wind Direction = ");
Serial.print(wd);
Serial.print(" WindDirection_Angle = ");
Serial.print(wdangle);
Serial.println("° ");
Serial.println(" ");
delay(2000);
}

void readWindSpeed_WindDirection(void) {
uint8_t Data[12] = { 0 };
uint8_t ch = 0;
bool flag = 1;
long timeStart = millis();
long timeStart1 = 0;
while (flag) {

if ((millis() - timeStart1) > 100) {
while (mySerial.available() > 0) {
mySerial.read();
}
mySerial.write(Com, 8);
timeStart1 = millis();
}

if ((millis() - timeStart) > 1000) {
Serial.println("Time out");
return -1;
}

if (readN(&ch, 1) == 1) {
if (ch == 0x01) {
Data[0] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x03) {
Data[1] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x08) {
Data[2] = ch;
if (readN(&Data[3], 10) == 10) {
if (CRC16_2(Data, 11) == (Data[11] * 256 + Data[12])) {
ws = (Data[3] * 256 + Data[4]) / 100.00;
wd = Data[7] * 256 + Data[8];
wdangle = Data[9] * 256 + Data[10];
flag = 0;
}
}
}
}
}
}
}
}
}
}


void readHumiture_Noise(void) {
uint8_t Data[12] = { 0 };
uint8_t ch = 0;
bool flag = 1;
long timeStart = millis();
long timeStart1 = 0;
while (flag) {

if ((millis() - timeStart1) > 100) {
while (mySerial.available() > 0) {
mySerial.read();
}
mySerial.write(Com1, 8);
timeStart1 = millis();
}

if ((millis() - timeStart) > 1000) {
Serial.println("Time out1");
return -1;
}

if (readN(&ch, 1) == 1) {
if (ch == 0x01) {
Data[0] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x03) {
Data[1] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x06) {
Data[2] = ch;
if (readN(&Data[3], 8) == 8) {
if (CRC16_2(Data, 9) == (Data[9] * 256 + Data[10])) {
hum = (Data[3] * 256 + Data[4]) / 10.00;
tem = (Data[5] * 256 + Data[6]) / 10.00;
db = (Data[7] * 256 + Data[8]) / 10.00;
flag = 0;
}
}
}
}
}
}
}
}
}
}


uint32_t readLight(void) {
uint8_t Data[15] = { 0 };
uint8_t ch = 0;
long timeStart = millis();
long timeStart1 = 0;
bool flag = 1;
uint32_t data = 0;
while (flag) {

if ((millis() - timeStart1) > 100) {
while (mySerial.available() > 0) {
mySerial.read();
}
mySerial.write(Com2, 8);
timeStart1 = millis();
}


if ((millis() - timeStart) > 1000) {
Serial.println("Time out2");
return -1;
}

if (readN(&ch, 1) == 1) {
if (ch == 0x01) {
Data[0] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x03) {
Data[1] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x04) {
Data[2] = ch;
if (readN(&Data[3], 6) == 6) {
if (CRC16_2(Data, 7) == (Data[7] * 256 + Data[8])) {
data = Data[3] << 24 | Data[4] << 16 | Data[5] << 8 | Data[6];
flag = 0;
}
}
}
}
}
}
}
}
}
return data;
}

float readPM2_5_10_AtmosphericPressure(void) {
uint8_t Data[12] = { 0 };
uint8_t ch = 0;
long timeStart = millis();
long timeStart1 = 0;
bool flag = 1;
float data;
while (flag) {

if ((millis() - timeStart1) > 100) {
while (mySerial.available() > 0) {
mySerial.read();
}
mySerial.write(Com3, 8);
timeStart1 = millis();
}


if ((millis() - timeStart) > 1000) {
Serial.println("Time out3");
return -1;
}

if (readN(&ch, 1) == 1) {
if (ch == 0x01) {
Data[0] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x03) {
Data[1] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x06) {
Data[2] = ch;
if (readN(&Data[3], 8) == 8) {
if (CRC16_2(Data, 9) == (Data[9] * 256 + Data[10])) {
pm2_5 = Data[3] * 256 + Data[4];
pm10 = Data[5] * 256 + Data[6];
ap = (Data[7] * 256 + Data[8]) / 10.00;
flag = 0;
}
}
}
}
}
}
}
}
}
}



uint8_t readN(uint8_t *buf, size_t len) {
size_t offset = 0, left = len;
int16_t Tineout = 500;
uint8_t *buffer = buf;
long curr = millis();
while (left) {
if (mySerial.available()) {
buffer[offset] = mySerial.read();
offset++;
left--;
}
if (millis() - curr > Tineout) {
break;
}
}
return offset;
}

unsigned int CRC16_2(unsigned char *buf, int len) {
unsigned int crc = 0xFFFF;
for (int pos = 0; pos < len; pos++) {
crc ^= (unsigned int)buf[pos];
for (int i = 8; i != 0; i--) {
if ((crc & 0x0001) != 0) {
crc >>= 1;
crc ^= 0xA001;
} else {
crc >>= 1;
}
}
}

crc = ((crc & 0x00ff) << 8) | ((crc & 0xff00) >> 8);
return crc;
}
