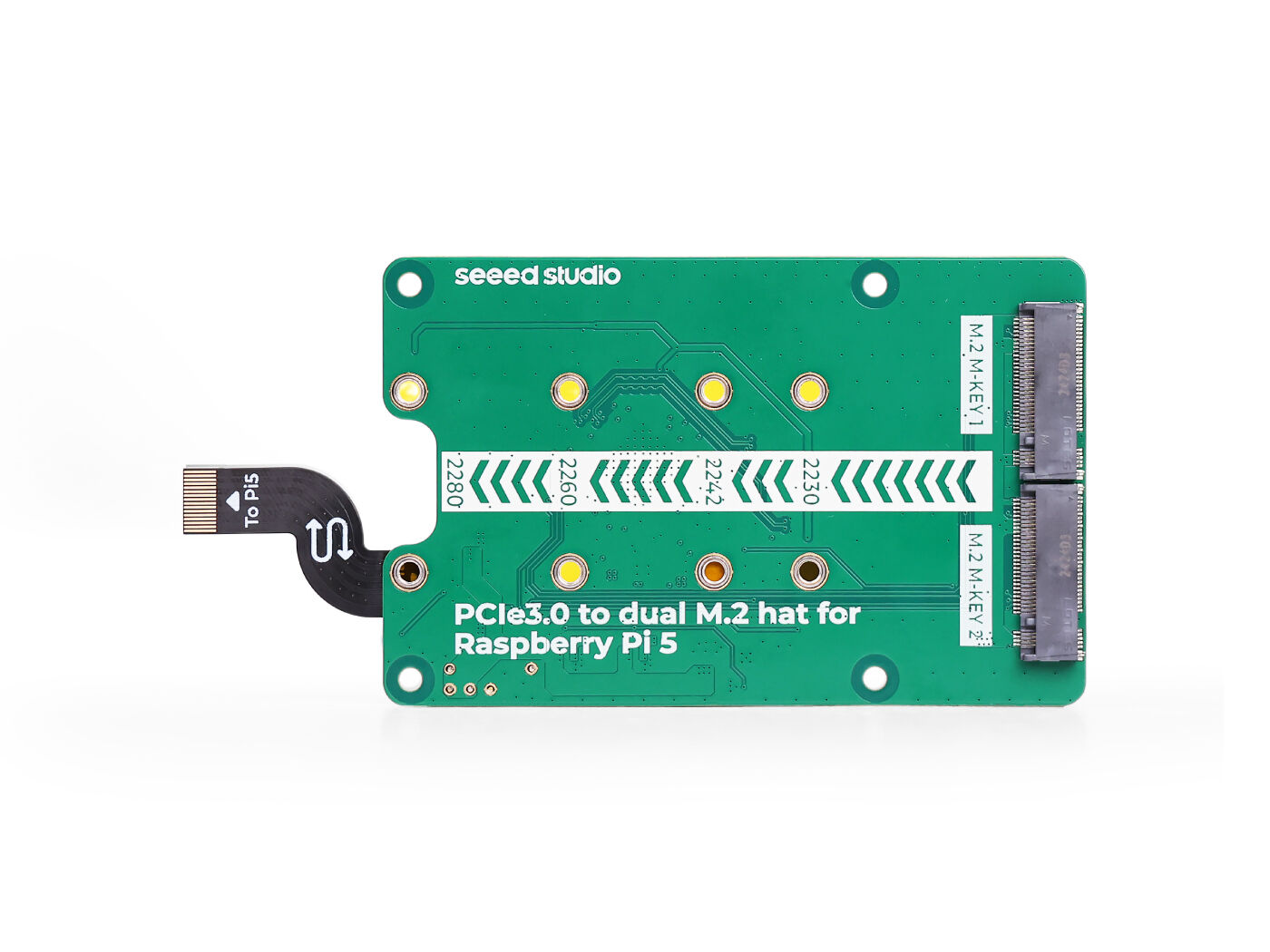

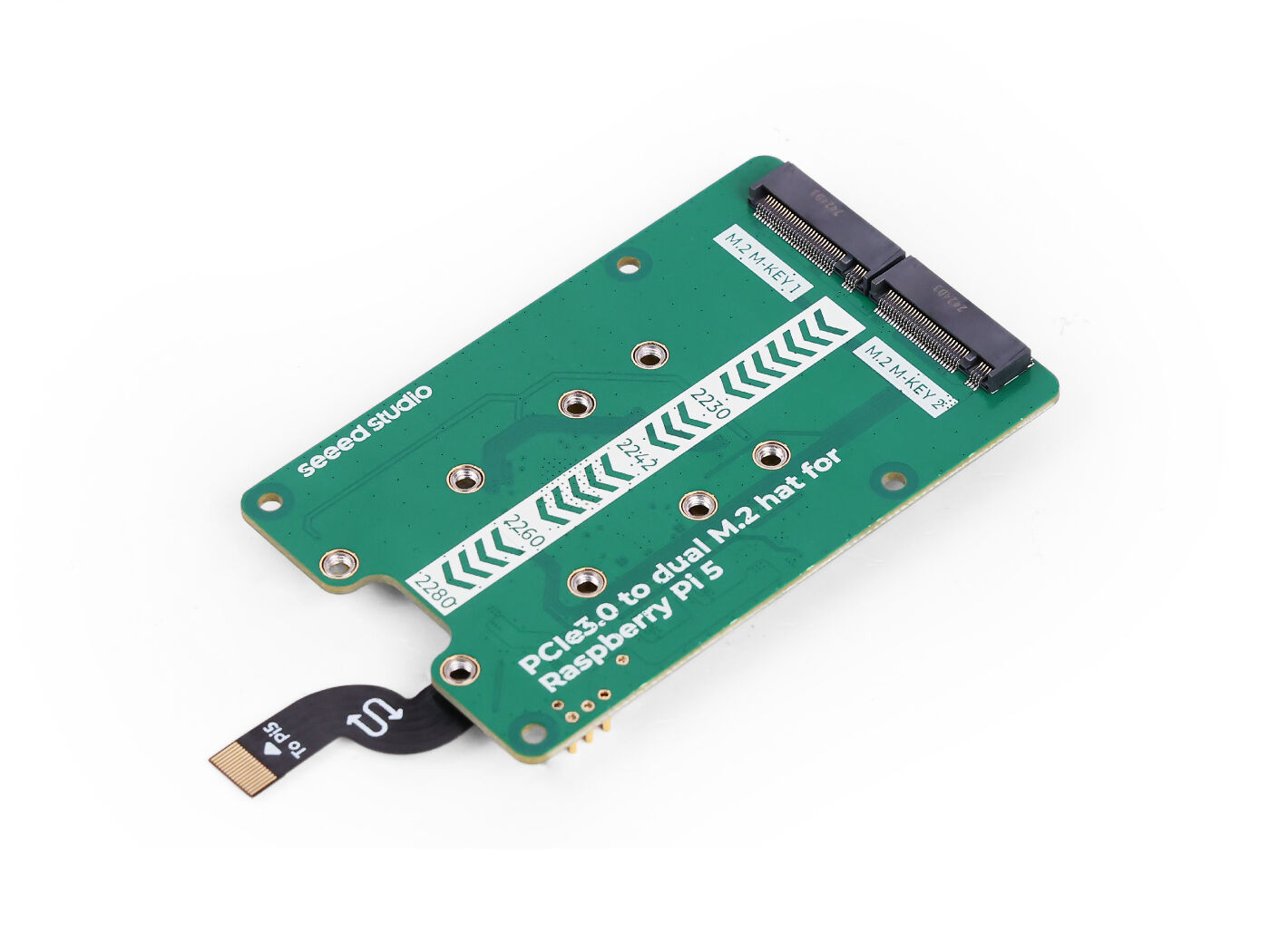

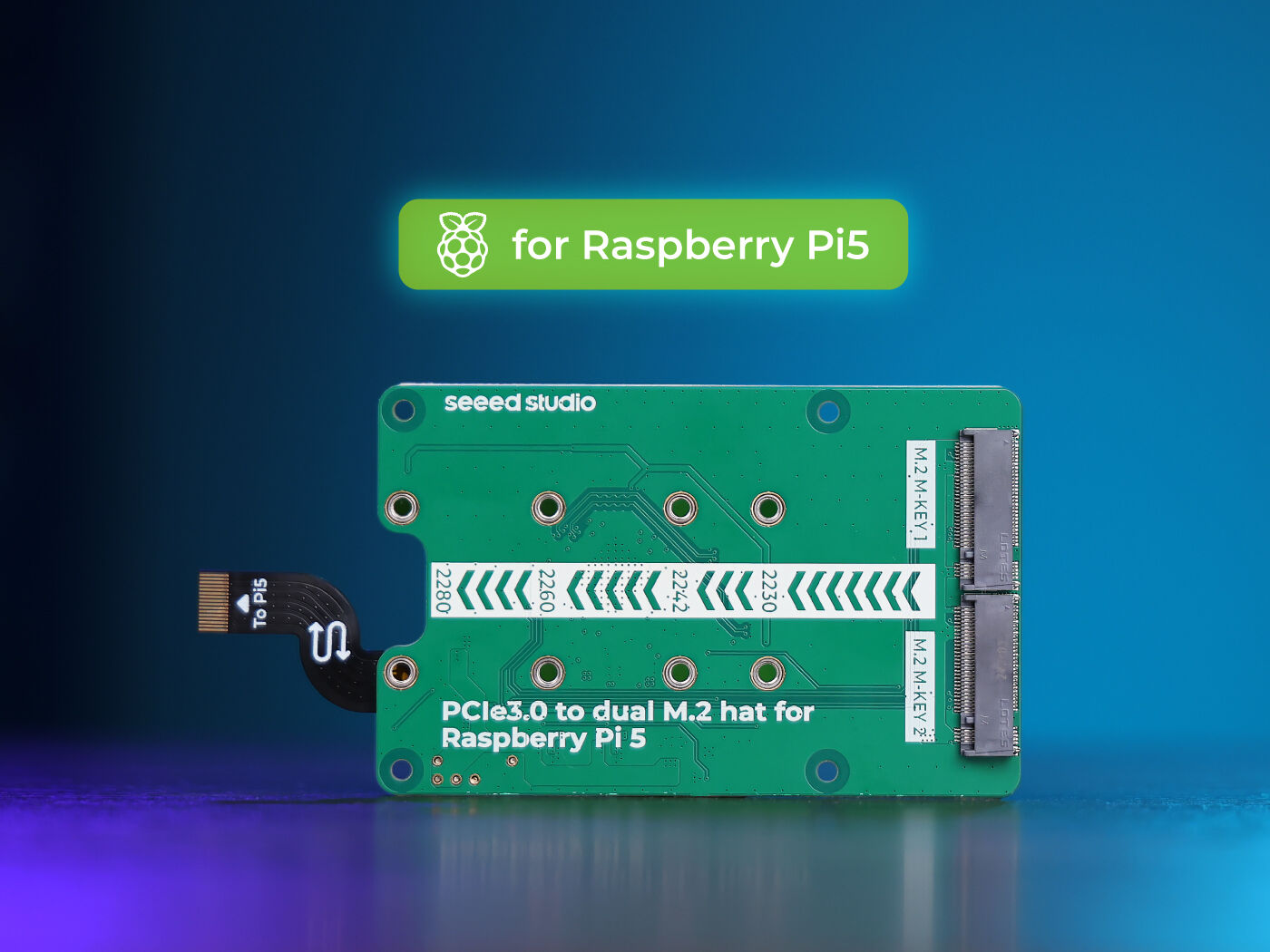

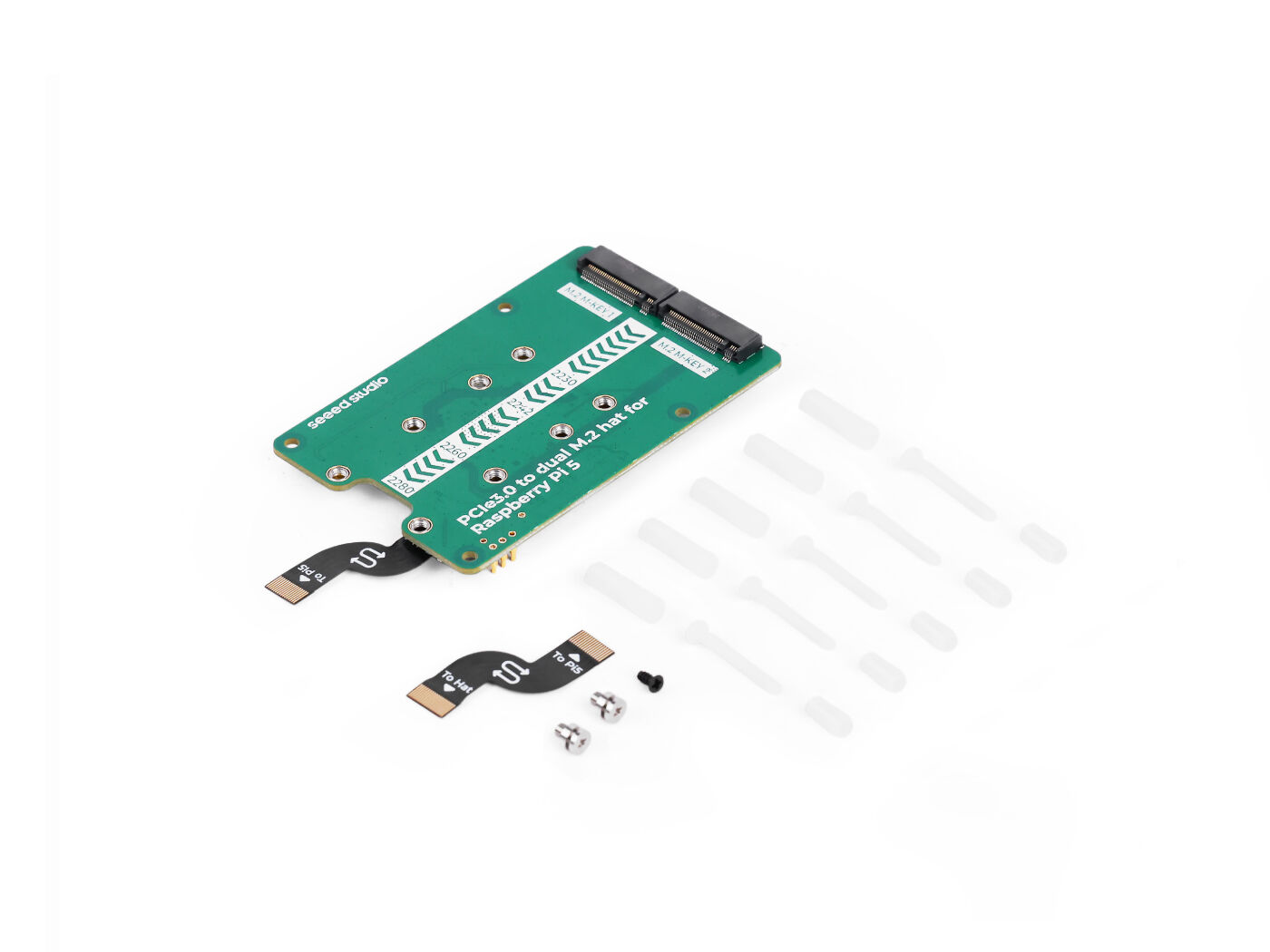

PCIe3.0 Switch to Dual M.2 Hat for Raspberry Pi 5, Support NVMe SSD, Support Hailo8/8L (แท้จาก SeeedStudio)

ดูรายละเอียดการใช้งานได้ที่ Click

Feature

• Dual M.2 Slot with PCIe3.0 Speed: Utilizing the ASMedia ASM2806 PCIe 3.0 switch chip, ensures optimal performance, overcoming PCIe 2.0 limitations.
• Stable Power Supply: Additional Pogo Pins for extra power supply to ensure a stable high-speed connection.
• Multiple Size Support: 2230/2242/2260/2280 M.2 standard size compatible.
• Back-mounted Design: 40-pin GPIO free to use, compatible with other Pi hats
• User-friendly Design: S-shaped FPC cable design that does not obstruct the micro SD card.
• Open source case: Seeed M.2 hats aren't compatible with Raspberry Pi official case, so we provide adapted 3D printing case stp file. Click to download

Due to compatibility issues with Raspberry Pi's PCIe, not all NVMe SSDs are supported. Raspberry Pi's official developers are continuously updating the system to support more NVMe SSD controllers and models. Especially if booting from an SSD is required, we strongly recommend updating to the latest Raspberry Pi firmware and bootloader. For detailed instructions, please refer to the Seeed wiki.

Note: SATA SSD is not compatible with this hat.

Many excellent suppliers, such as Pimoroni, provide detailed compatibility lists. We are sorry that at this stage we have not tested enough SSD models to provide a detailed SSD compatibility list. Currently, on the Seeed homepage of pibenchmarks, there are several verified SSDs that can be used for storage and system boot disks. We will try to improve this list as much as possible in the future. Users are also welcome to share compatibility information in the comments section or via email. For now, you can refer to the compatibility lists of other SSD with Raspberry Pi 5 in the community. If you are unsure which SSDs are compatible, you can purchase SSDs sold on the Seeed website, all of which are verified. Among them, 128GB, 256GB, and 512GB are from Foresee, and 1TB is from Kioxia.

• NVMe M.2 2280 SSD 1TB-Seeed Studio
• 512GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
• 256GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
• 128GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio

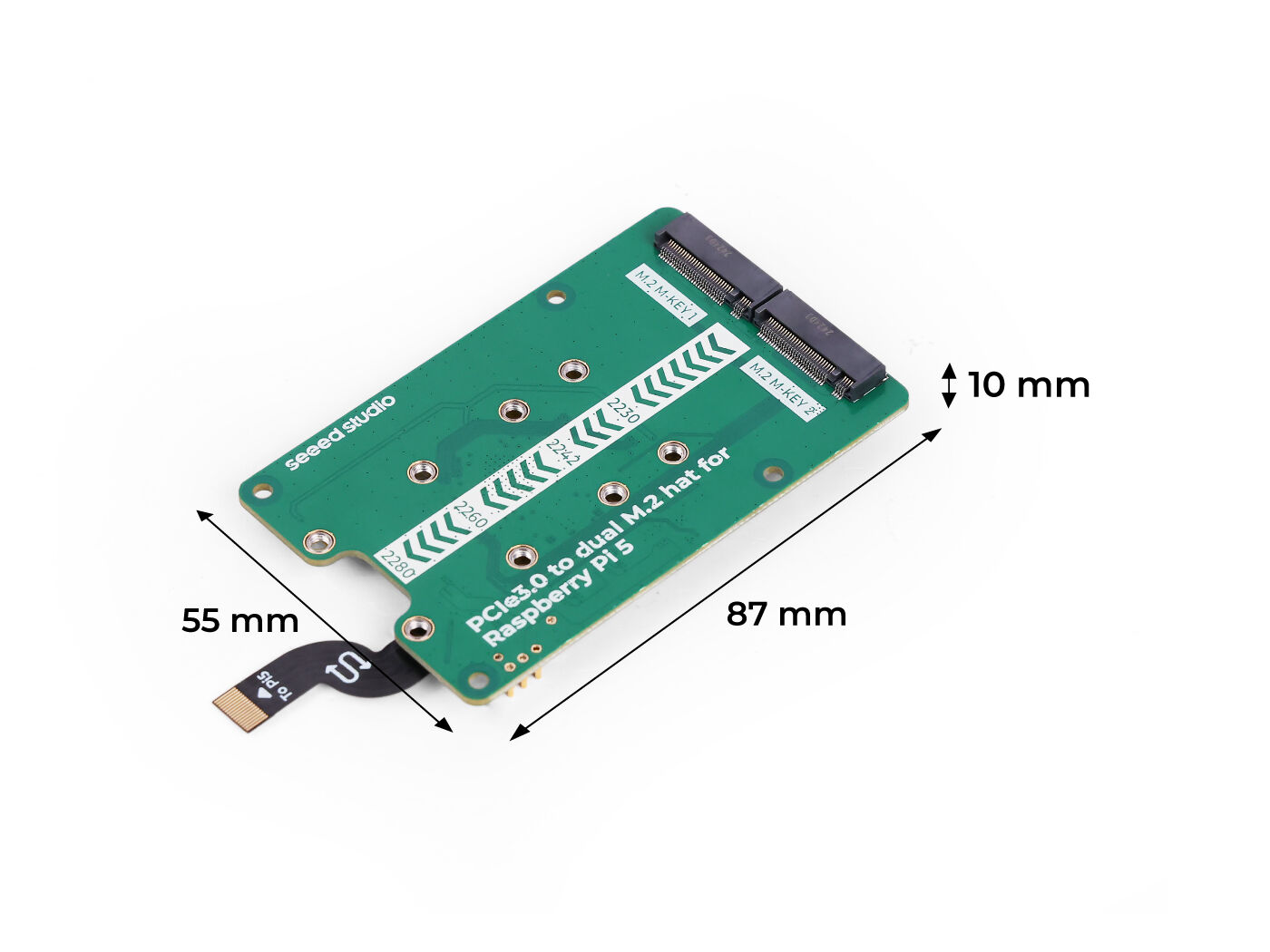

Specification

M.2 Slot	2
Max. PCIe Speed	PCIe gen3.0
PCIe Switch Chip	ASM2806
M.2 Size Support	2280/2260/2242/2230
Max. Power Supply	5V/3A (max 3A: Pogo pin 2A+PCIe connector 1A)
Cable	FPC
Assembly Method	Back installation

Application

• Simultaneously supports AI acceleration and high-speed SSD storage
• Connects dual NVMe SSDs for large storage capacity
• Booting a Raspberry Pi from the SSD

Note: SATA SSD is not compatible with this hat.
