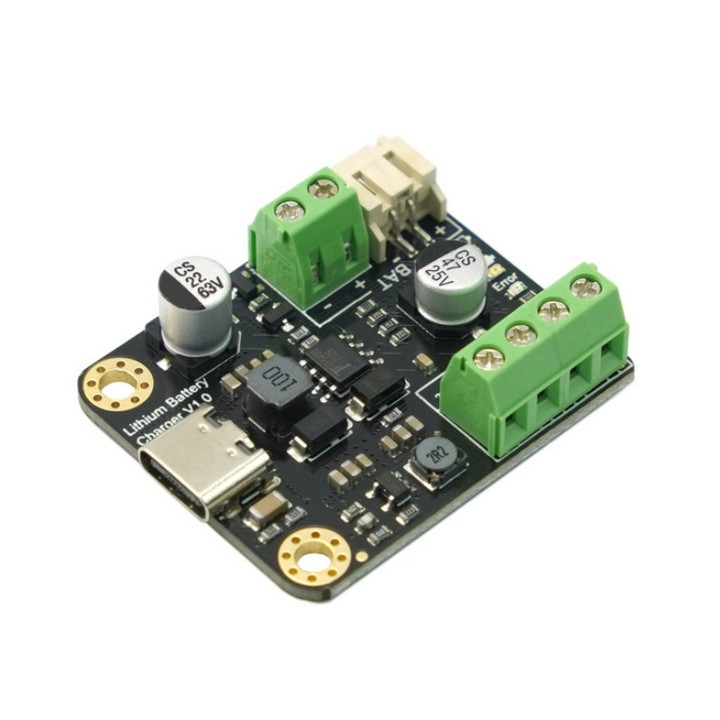

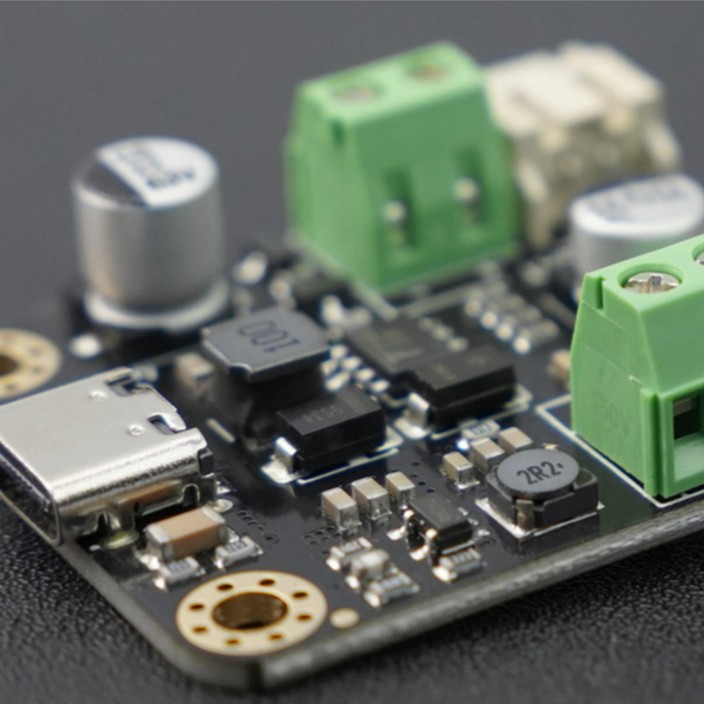

Lithium Battery Charger V1.0 (แท้ DFRobot)

Introduction

V1.0 update content:

1. PCB silk screen printing is upgraded from V0.2 to V1.0

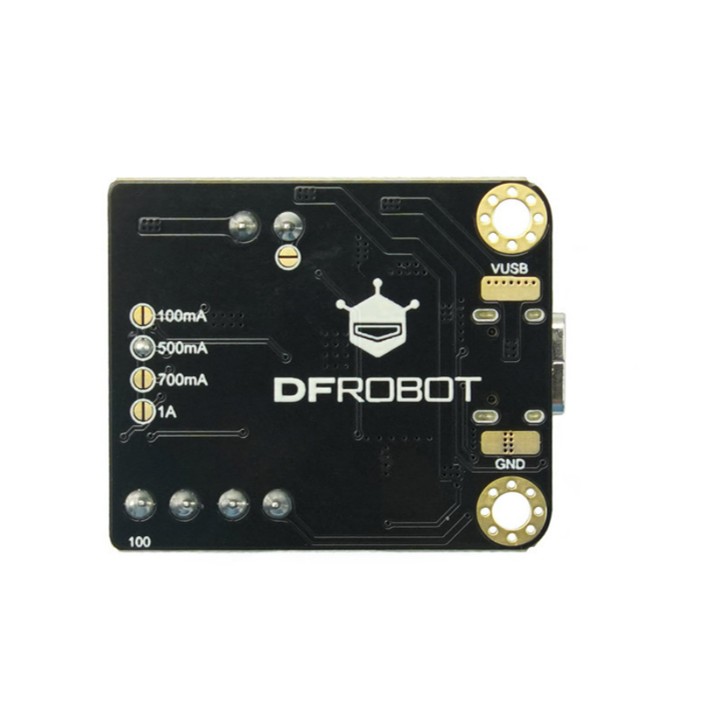

2. Add current pad selection on the back of the PCB and select the appropriate charging current by shorting the pad (100mA, default 500mA, 700mA, 1000mA)

3. The charging interface Micro usb port is updated to Type-c port, which is more convenient to use.

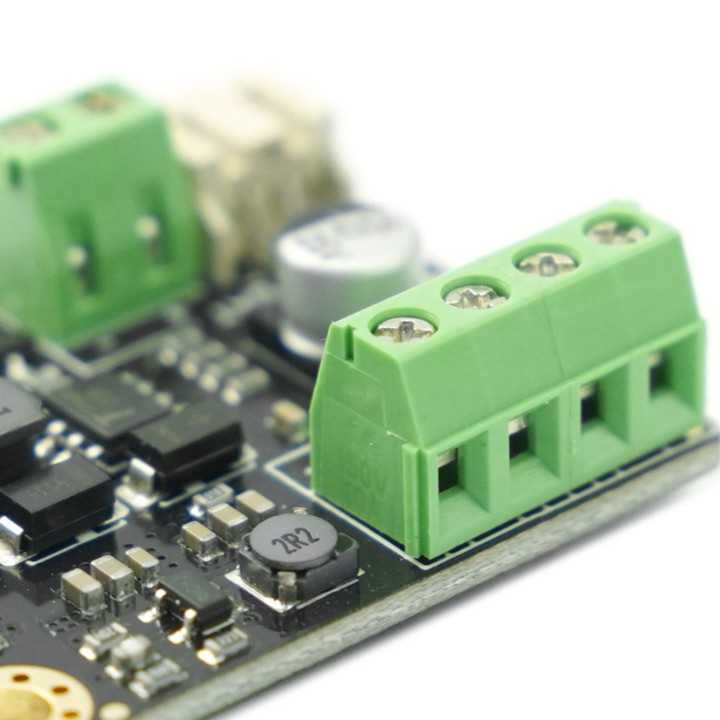

4. Add two output interface terminals, 3.3V and 5V, which can be used to power other devices.

5. Added reverse connection protection pad function, mainly used when the battery is completely discharged, the charging indicator light and the full power indicator light will light up, and normal charging cannot be performed. After the reverse connection protection pad is welded, normal charging can be performed, but the module will lose the reverse connection protection; after the short-circuit protection pad is disconnected, the reverse connection protection function can be restored.

Figure: Interfaces of Lithium Battery Charger

Specification

• Charging current: 100mA, 500mA (default), 700mA, 1000mA optional
• DC/constant voltage
• Battery model: single-cell lithium-ion or polylithium-ion battery
• Interface:
           Charging from Type-c usb
           JST type or terminal access battery
• With three status indicators
• Accuracy: 1.5% (pre-adjusted to 4.2V charging voltage) C/10 charge termination
• Operating environment temperature: -40℃～85℃

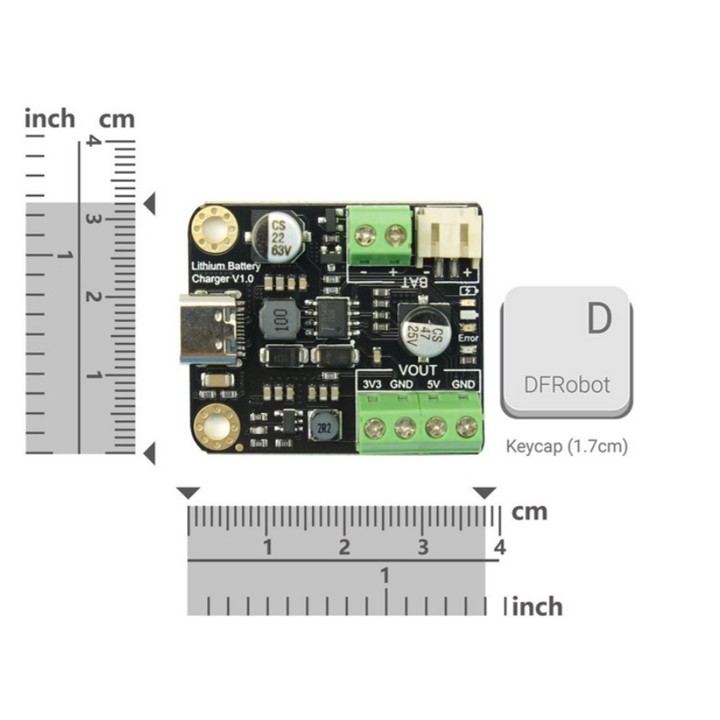

• Size: 38x32x1.6mm

Documents

• V1.0 Schematic diagram and PCB size diagram

Shipping List

• Lithium Battery Charge x1
