[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ

[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ
[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ[Upgraded Version] LoRa 863 - 928MHz V3 SX1262 LoraWAN for Arduino + WiFi ESP32 ESP32S3FN8 + BLE - พร้อมสายอากาศ
รหัสสินค้า BA10077
หมวดหมู่ LoRa / LoRa+WiFi
ราคา 1,250.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : CH340, lora, Uno Lora, SX1278, TTGO, OLED, esp32, WIFI

รายละเอียดสินค้า

Summary

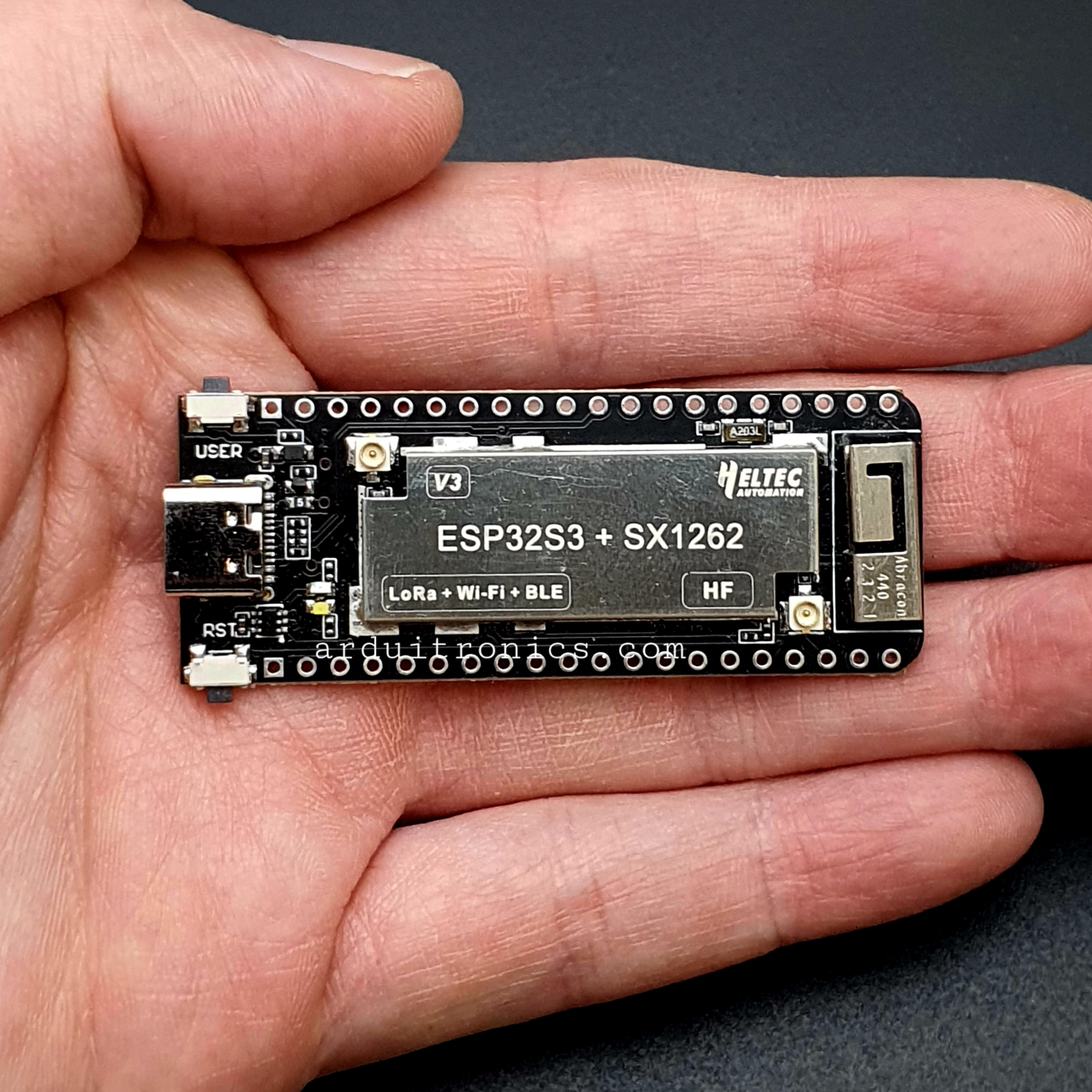

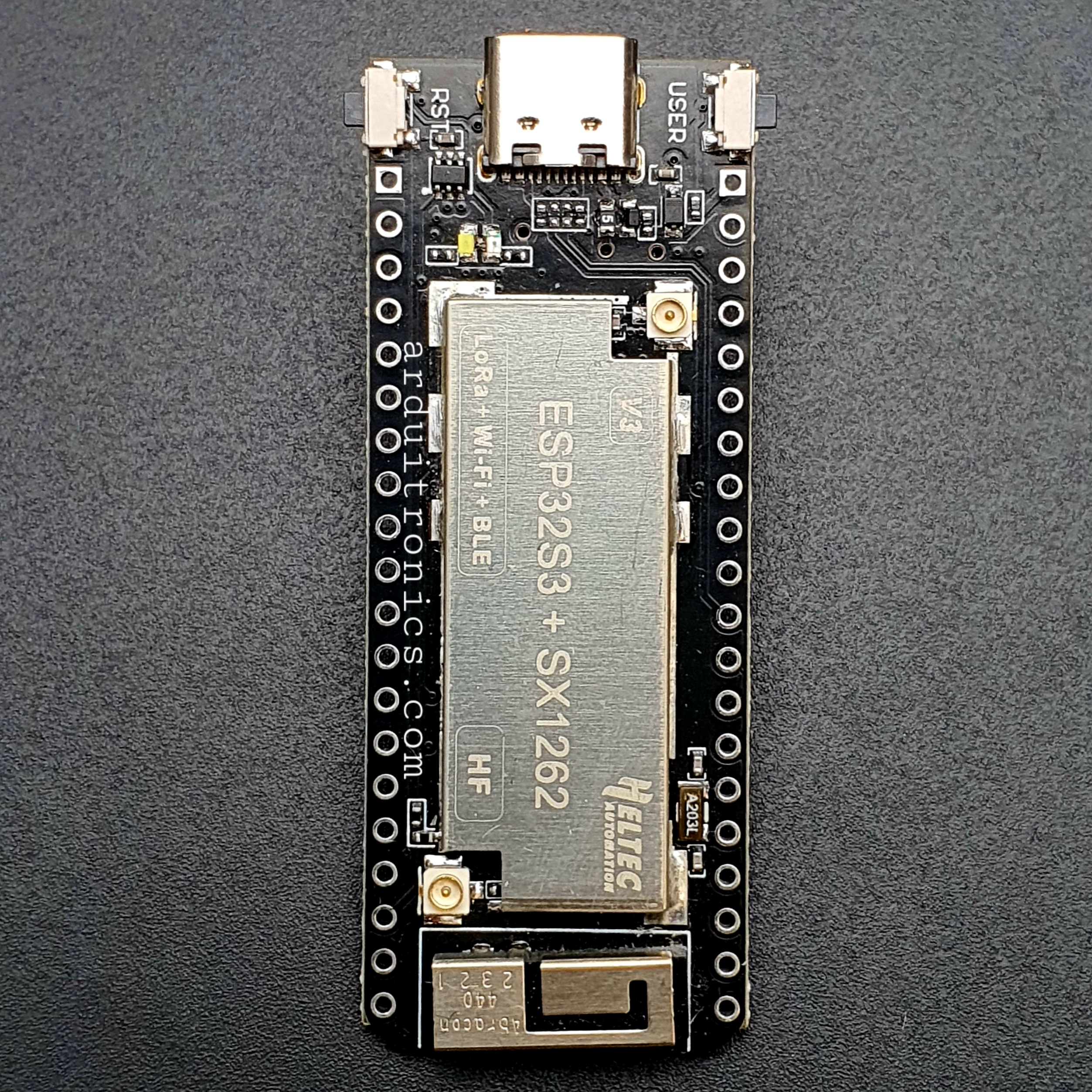

HTIT-WSL is a development board for Wi-Fi, Bluetooth and LoRa. Because some customers do not need OLED screen when using WiFi Lora32, we launched this product.

The HTIT-WSL is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262), perfectly support Arduino®. Users can easily carry out secondary development and application.



Main Features


  • Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz).
  • SX1262 LoRa node chip.

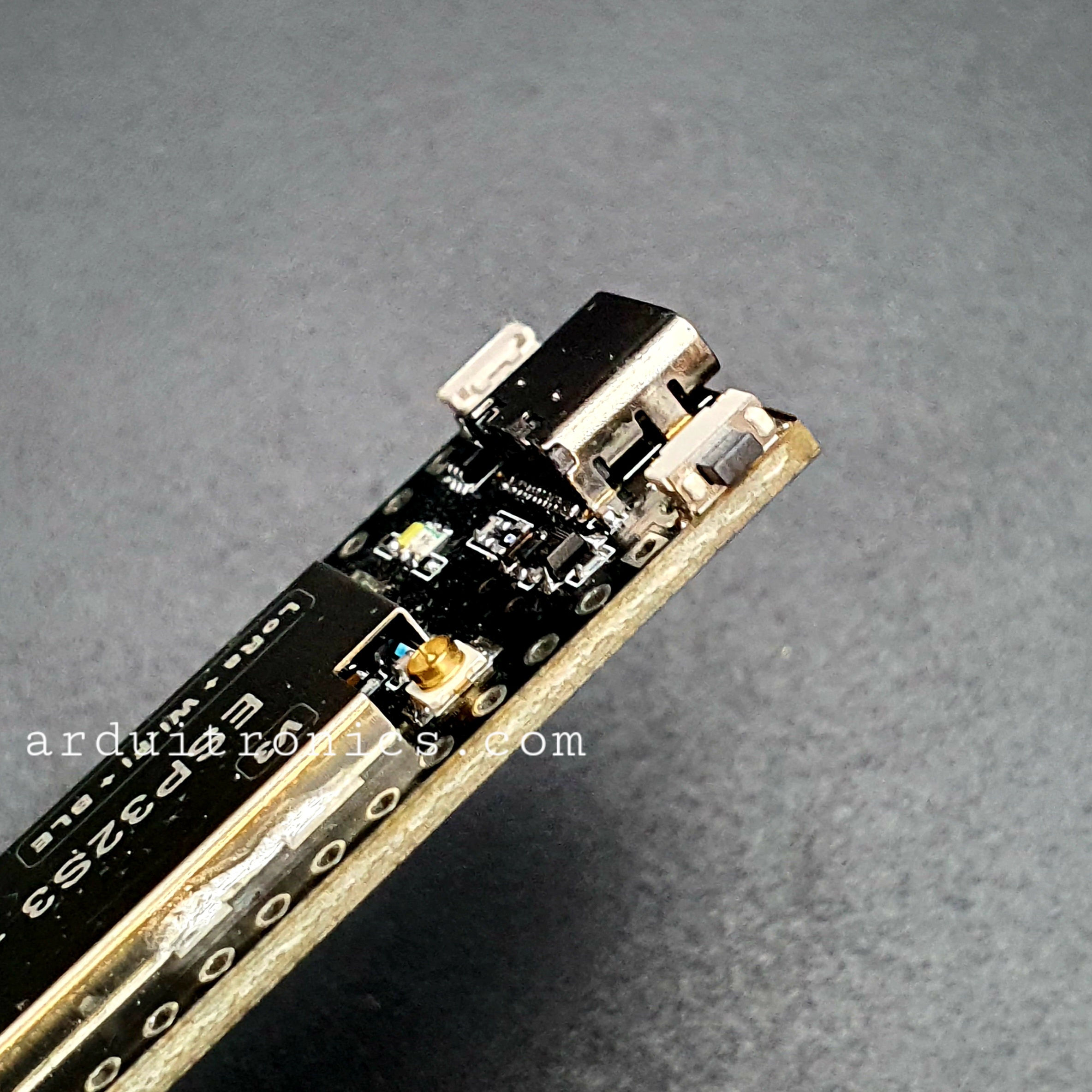

  • Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection
  • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
  • Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa
  • Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
  • Support the Arduino development environment;
  • With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications.

Specifications



Parameters Description
Master Chip ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Chipset SX1262
USB to Serial Chip CP2102
Frequency 470~510MHz,
863~928MHz
Max. TX Power 21d B ± 1d B
Max. Receiving sensitivity -134dBm
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth LE Bluetooth 5, Bluetooth mesh
Hardware Resource 7*ADC1 + 9*ADC2;
8*Touch;
3*UART;
2*I2C;
2*SPI; etc.
Memory 384KB ROM;
512KB SRAM;
16KB RTC SRAM;
8MB SiP Flash
Battery 3.7V lithium battery power supply and charging
Operating temperature -20 ~ 70 ℃

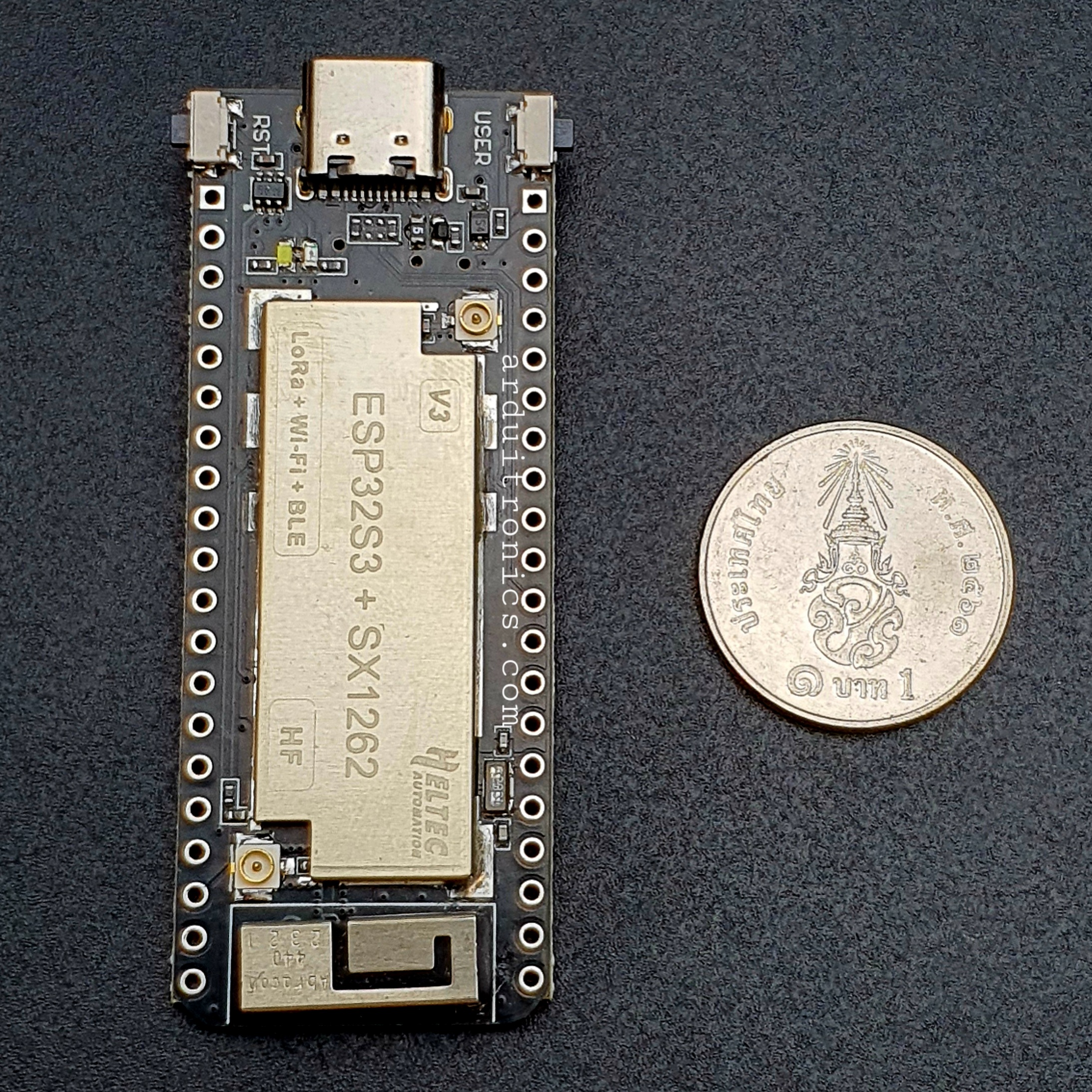

Dimensions 58.08 * 22.6* 8.2 mm
Interface Type-C USB;
2*1.25 lithium battery interface;
LoRa ANT(IPEX1.0);
2.4G ANT(IPEX1.0);
2*20*2.54 Header Pin

Description

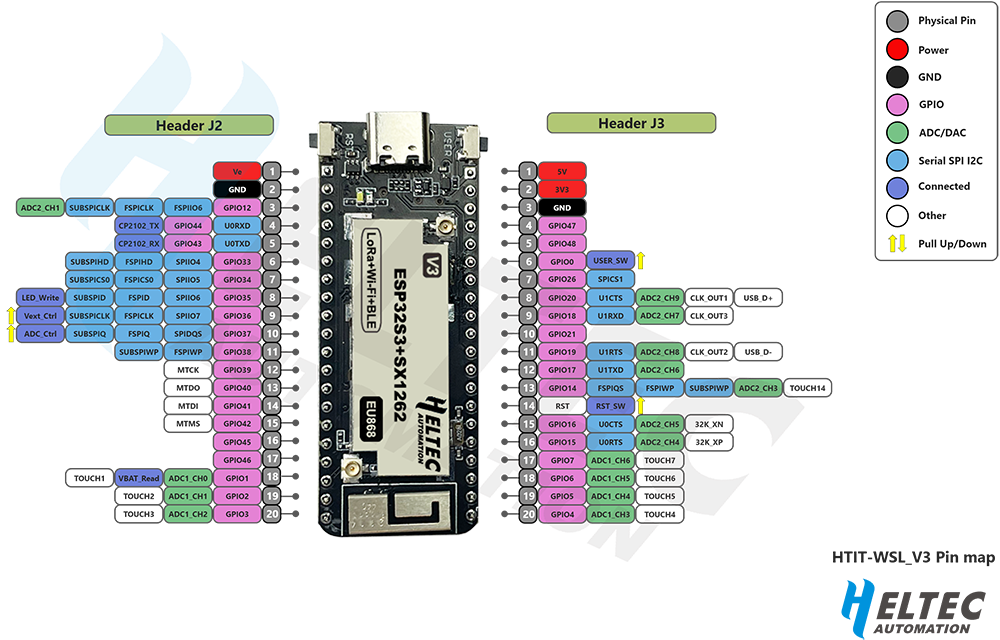

Pin Map

FAQ



If you want to use the new ESP32-S3 processor and the SX1262 LoRa chip, you may need to use new libraries that support them. You should check that the libraries you are using are compatible with these new components.

As far as my experience with the Wireless Stick Lite is concerned, the only library I had to change when switching from V1 to V3 was the LoRa library. The Sandeep Mistry LoRa library that I used earlier doesn’t work with the new SX1262 LoRa chip. To make my code work with the V3, I had to migrate to the Heltec LoRaWan_APP library. This was a true migration because the two libraries don’t use identical calls.


Imagine that you want to measure the moisture in your field. Although, it is not far from your house, it probably doesn’t have Wi-Fi coverage. So, you can build a sensor node with an ESP32 and a moisture sensor, that sends the moisture readings once or twice a day to another ESP32 using LoRa.The later ESP32 has access to Wi-Fi, and it can run a web server that displays the moisture readings.This is just an example that illustrates how you can use the LoRa technology in your ESP32 projects.


Docs & Resource


Heltec ESP32 framework and lib installation
Hardware Update Logs
Datasheet
Schematic_Diagram
User Manual Document
Heltec LoRaWAN test server based on SnapEmu

Packing list



The default packing list without selecting any accessories is as follows:


Item Quantity
Wireless Stick Lite x1

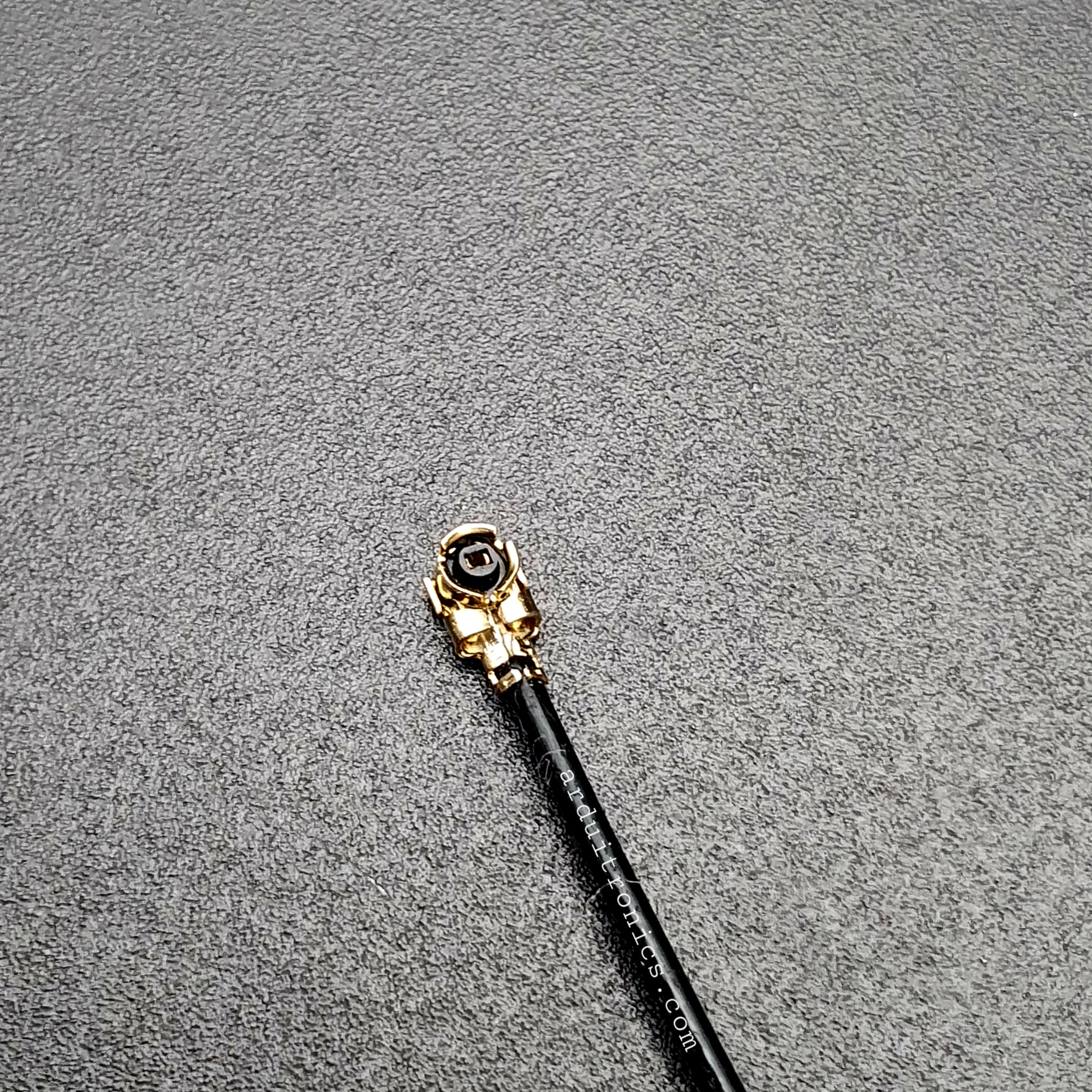

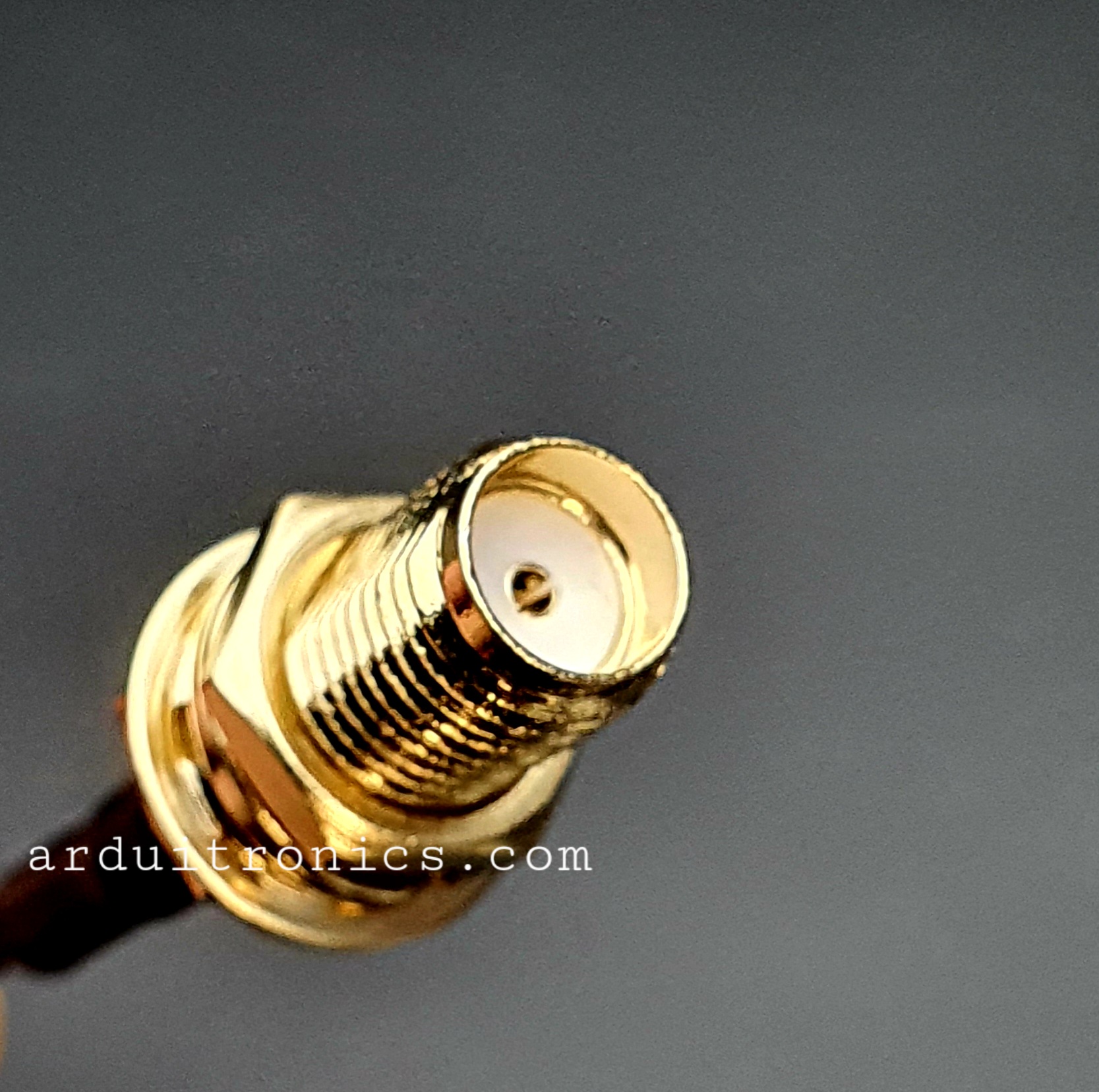

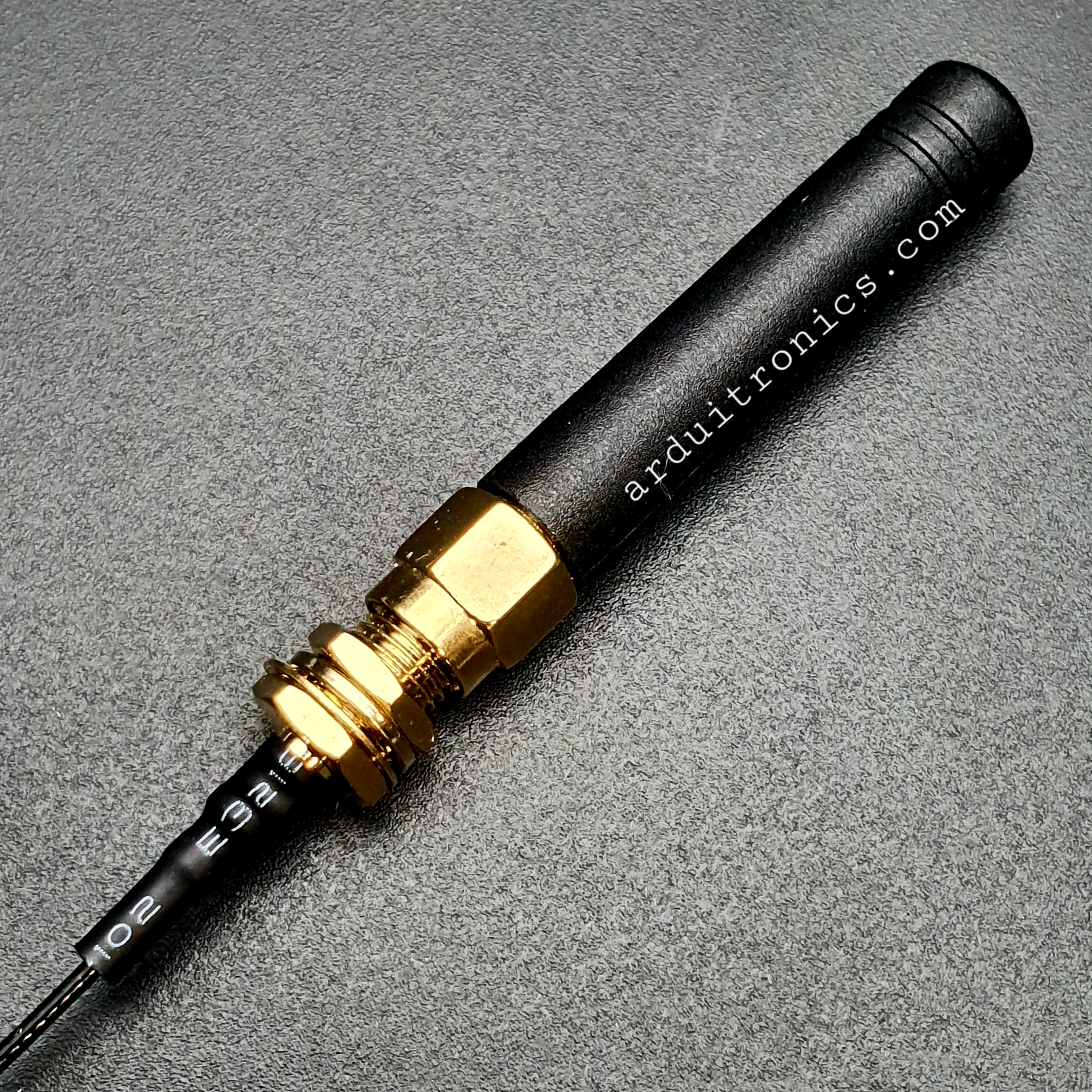

LoRa Antenna x1
SH1.25×2 Battery Connector x1
