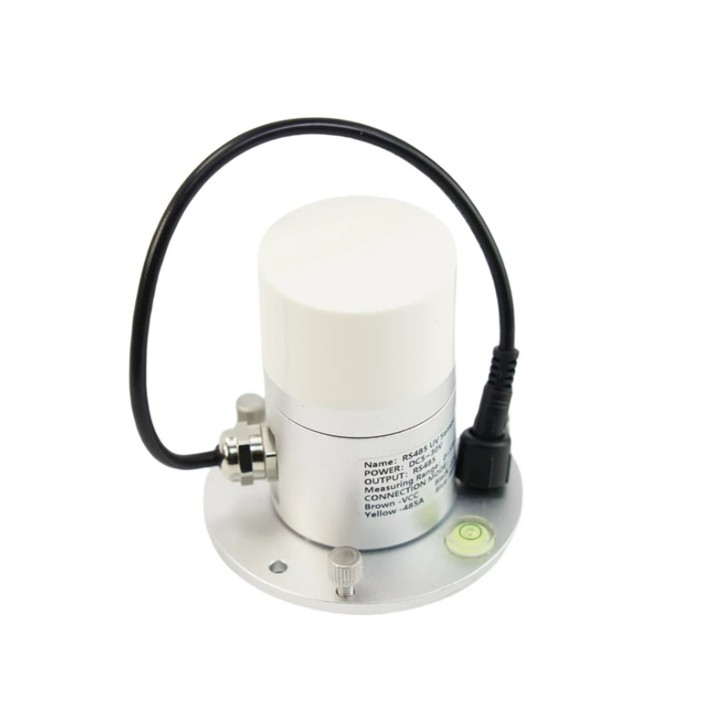

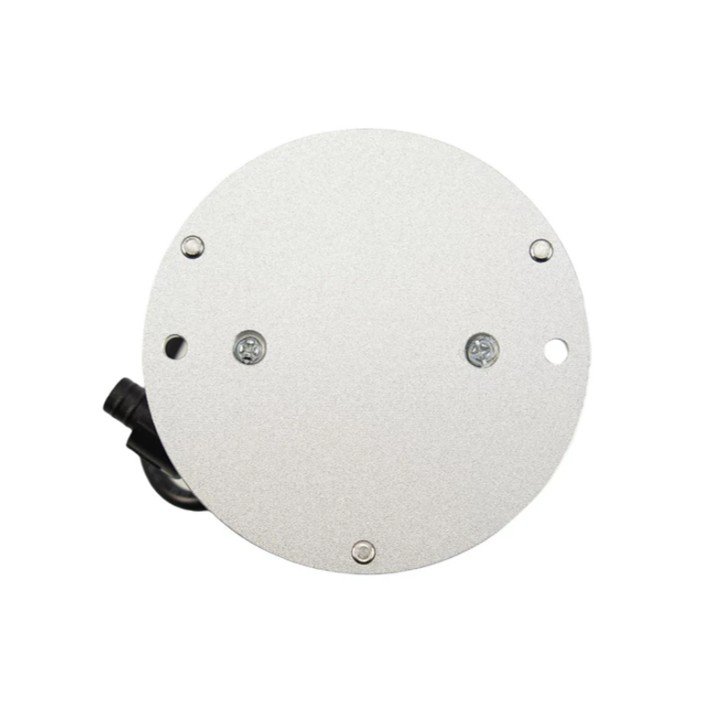

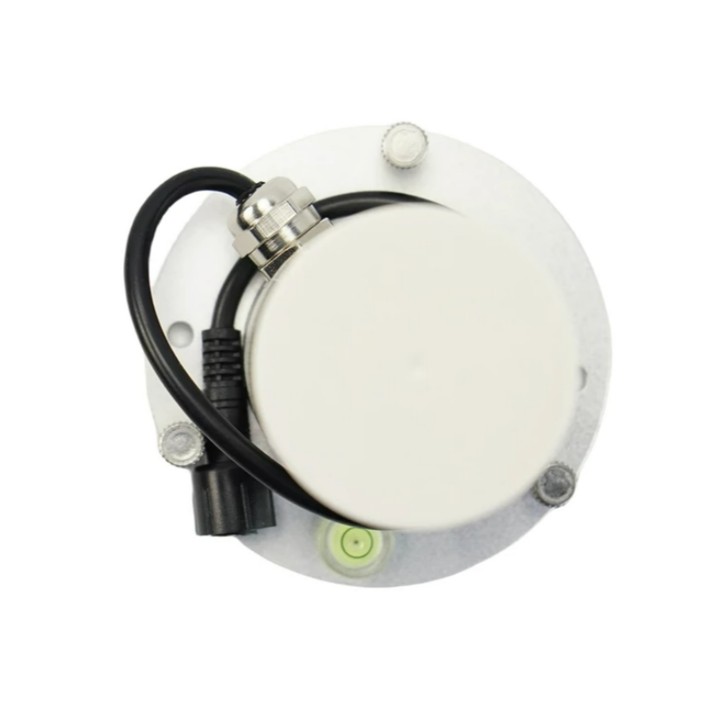

RS485 Ultraviolet (UV) Intensity Measure Sensor (290-390nm, UVA, UVB) - แท้ DFRobot

ดูการใช้งานอย่างละเอียดและตัวอย่าง code ได้ที่ Product WiKi

The RS485 UV Sensor is designed to measure ultraviolet (UV) intensity and index values within the wavelength range of 290-390nm. Utilizing a photoelectric detector and an industrial-grade microprocessor, ensures reliable and stable performance. The sensor operates on a DC 5-30V wide voltage power supply and employs the Modbus-RTU 485 communication protocol, making it compatible with Arduino and other microcontroller platforms through expansion boards like the TTL to RS485 module. With an IP67-rated metal aluminum shell, it is suitable for environmental monitoring, health protection, crop growth monitoring, photovoltaic systems, and laboratory research.

High Precision and Wide Measurement Range

The sensor accurately measures UV intensity (0-15mW/cm²) and UV index (0-15) with a resolution of 0.01mW/cm² and an accuracy of ±10%FS. Its ability to detect UV wavelengths from 290-390nm ensures precise monitoring across various applications, from environmental studies to health protection.

Industrial-Grade Durability

Built with a metal aluminum shell and an IP67 protection rating, the sensor is resistant to dust, water, and harsh environmental conditions. This robust design ensures long-term reliability in demanding outdoor and industrial settings.

Easy Integration and Compatibility

The sensor supports the Modbus-RTU 485 protocol and can be seamlessly integrated with Arduino and other systems using compatible expansion boards. Its wide voltage power supply (DC 5-30V) and simple wiring make it user-friendly and adaptable to diverse setups.

Overview of RS485 UV Sensor

Applications

• Environmental Monitoring: Track UV levels for climate and ecosystem studies.
• Health Protection: Monitor UV exposure to prevent skin and eye damage.
• Crop Growth Monitoring: Optimize plant health by measuring UV intensity in agricultural settings.
• Photovoltaic Systems: Assess UV impact on solar panel efficiency.
• Laboratory Research: Conduct precise UV-related experiments and analyses.

Specification

• Power Supply: DC 5-30V
• Working Current: ＜10mA
• Output Mode: RS485 (Modbus-RTU protocol)
• UV Intensity Range: 0-15mW/cm²
• Resolution: 0.01mW/cm²
• Accuracy: ±10%FS (@365nm, 60%RH, 25°C)
• UV Index Range: 0-15
• Wavelength Range: 290-390nm
• Response Time: 0.2s
• Operating Temperature: -25°C to +60°C
• Protection Level: IP67
• Cable Lengths: Sensor cable (20cm), Adapter cable (70cm)

Documents

• Product wiki
• Dimensional Drawing
• Communication Protocol
• Tutorial
• FAQ

Shipping List

• RS485 UV Sensor x1

• Adapter cable x1

• Screw package x1

Tutorial

Requirements

• Hardware
  • DFRduino UNO R3 (or similar) x 1
  • Gravity: Active Isolated RS485 to UART Signal Adapter Module x1
  • RS485 UV Sensor x1

• Software
  • Arduino IDE

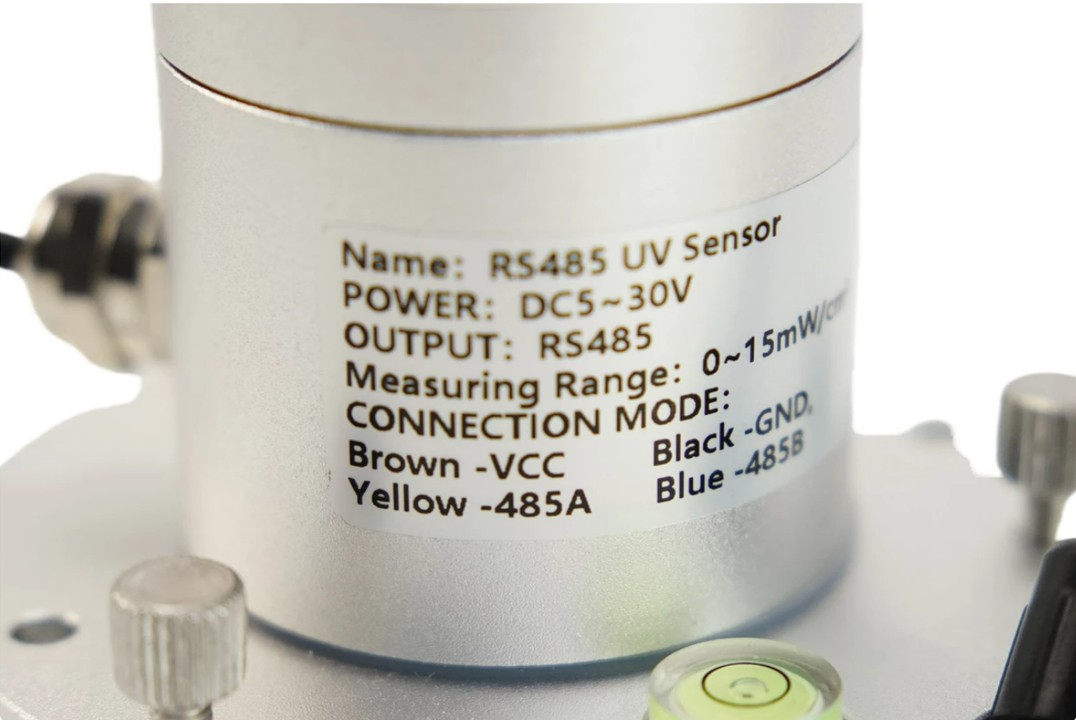

Connection Diagram

If the power of the RS485 device is small and the required current is less than 12V-160mA, the RS485 to UART signal conversion module does not require a 12V external power supply, making wiring more convenient.

Sample Code

#include <SoftwareSerial.h>
SoftwareSerial mySerial(2,3);
uint8_t Com[8] = { 0x01, 0x03, 0x00, 0x00, 0x00, 0x01, 0x84, 0x0A };
uint8_t Com1[8] = { 0x01, 0x03, 0x00, 0x01, 0x00, 0x01, 0xD5, 0xCA };
void setup() {
Serial.begin(9600);
mySerial.begin(4800);
}
void loop() {
float UV = readUV();
Serial.print("UV = ");
Serial.print(UV);
Serial.print(" mW/cm² ");
uint16_t UVI = readUVI();
Serial.print("UVI = ");
Serial.println(UVI);
delay(1000);
}

float readUV(void) {
uint8_t Data[10] = { 0 };
uint8_t ch = 0;
float data;
bool flag = 1;
while (flag) {
delay(100);
mySerial.write(Com, 8);
delay(10);
if (readN(&ch, 1) == 1) {
if (ch == 0x01) {
Data[0] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x03) {
Data[1] = ch;
if (readN(&ch, 1) == 1) {
if (ch == 0x02) {
Data[2] = ch;
if (readN(&Data[3], 4) == 4) {
if (CRC16_2(Data, 5) == (Data[5] * 256 + Data[6])) {
data= (Data[3] * 256 + Data[4]) / 100.00;
flag = 0;
}
}
}
}
}
}
}
}
mySerial.flush();
}
return data;
}

int readUVI(void) {
uint8_t Data1[10] = { 0 };
int16_t data1;
uint8_t ch1 = 0;
bool flag1 = 1;
while (flag1) {
delay(100);
mySerial.write(Com1, 8);
delay(10);
if (readN(&ch1, 1) == 1) {
if (ch1 == 0x01) {
Data1[0] = ch1;
if (readN(&ch1, 1) == 1) {
if (ch1 == 0x03) {
Data1[1] = ch1;
if (readN(&ch1, 1) == 1) {
if (ch1 == 0x02) {
Data1[2] = ch1;
if (readN(&Data1[3], 4) == 4) {
if (CRC16_2(Data1, 5) == (Data1[5] * 256 + Data1[6])) {
data1 = Data1[3] * 256 + Data1[4];
flag1 = 0;
}
}
}
}
}
}
}
}
mySerial.flush();
}
return data1;
}

uint8_t readN(uint8_t *buf, size_t len) {
size_t offset = 0, left = len;
int16_t Tineout = 500;
uint8_t *buffer = buf;
long curr = millis();
while (left) {
if (mySerial.available()) {
buffer[offset] = mySerial.read();
offset++;
left--;
}
if (millis() - curr > Tineout) {
break;
}
}
return offset;
}

unsigned int CRC16_2(unsigned char *buf, int len) {
unsigned int crc = 0xFFFF;
for (int pos = 0; pos < len; pos++) {
crc ^= (unsigned int)buf[pos];
for (int i = 8; i != 0; i--) {
if ((crc & 0x0001) != 0) {
crc >>= 1;
crc ^= 0xA001;
} else {
crc >>= 1;
}
}
}

crc = ((crc & 0x00ff) << 8) | ((crc & 0xff00) >> 8);
return crc;
}

Expected Results

Print the collected UV intensity and index values, which cannot be collected by ordinary indoor light sources.

FAQ

Possible reasons for no output or output errors:

1. The sensor is a precision device. Please do not disassemble it by yourself when using it to avoid damage to the product.
2. If the reading value is 0, check whether there is a light source and whether the product protective cover is removed.
3. The 485 bus is disconnected, or the A and B lines are connected in reverse.
4. Check whether the power supply meets the marking.
