Infrared Laser Distance Sensor (50m/80m) - แท้ DFRobot

This is a cost-effective IR laser distance sensor that features high accuracy, long-distance detection, visible IR laser, and small FOV. It offers the measuring ranges 0.05~80m for indoor use and 0.05~50m outdoor. With serial port output, it is compatible with all kinds of controller boards like Arduino. The sensor can be used in applications like UAV automatic landing, electronic scale, barn material level monitoring, etc.

Visible Infrared Laser, Small FOV

The sensor will emit infrared laser to point to an object, then there will be an IR laser dot on that object. It can measure objects of size 5x5cm within 80m when used indoors. Long-distance detection of small objects, more accurate and easier to use.

High Accuracy, Long Distance

Measuring Range 80m for using indoor, 50m outdoor. 0.05m Blind zone

Easy to Get Started

3.3~5V power supply, UART communication port, compatible with Arduino.

Note:

For different objects and operating environments, the measurement range of the sensor may be shortened or its performance may be affected due to factors like excessive intensity of ambient light, too high or too low operating temperature, rough surface of target, and too weak or strong light reflection of target object.

Features

• High accuracy
• Small size
• Long-distance measurement

Specification

• Power Supply: DC3.3V~5V
• Measuring Range: 0.05~50m(outdoor), 0.05~80m(indoor)
• Accuracy(Standard Deviation): ±1.0mm
• Laser Type: 620~690nm
• Laser Class: II, <1mW
• Spot Diameter at Distance M: 6mm@10m，30mm@50m
• Single Measurement Time: 0.05~1s
• Protection Level: IP40
• Operating Temperature: -10~+60℃
• Storage Temperature: -20~+80℃
• Weight: about 60g
• Dimension (L*W*H): 48×42×18mm/1.89×1.65×0.71”

• Product wiki
• FAQ about LiDAR
• Library

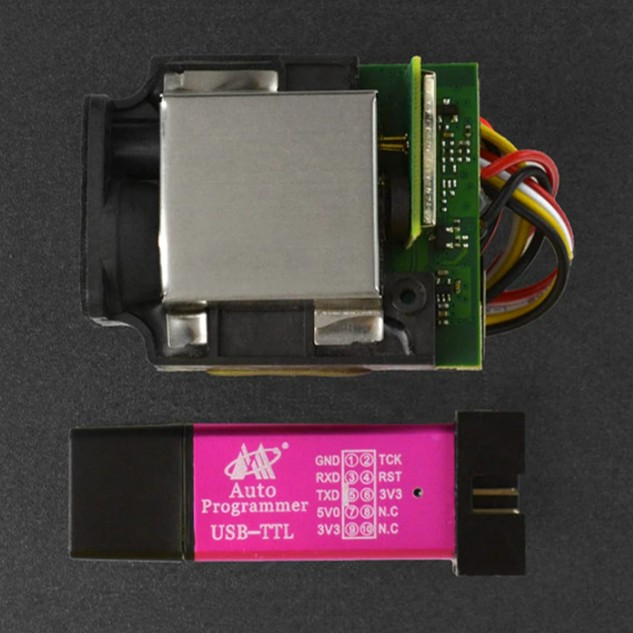

• Infrared Laser Distance Sensor (50m/80m) ×1
• USB to TTL Converter ×1

Board Overview

Tutorial

Requirements

• Hardware
  • DFRduino UNO R3 (or similar) x 1
  • Infrared Laser Distance Sensor（50m/80m） x1
  • Wires

• Software
  • Arduino IDE

Connection Diagram

Sample Code

SEN0366 Communication Protocol.pdf

/*!
* @File DFRobot_IraserSensor.ino
* @brief In this example, the infrared laser ranging sensor is used to measure the distance, and the sensor data is processed to obtain the measured distance
* @copyright Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
* @licence The MIT License (MIT)
* @author [liunian](nian.liu@dfrobot.com)
* @version V1.0
* @date 2020-08-13
*/
#include <SoftwareSerial.h>
SoftwareSerial mySerial(2,3);//Define software serial, 3 is TX, 2 is RX
char buff[4]={0x80,0x06,0x03,0x77};
unsigned char data[11]={0};
void setup()
{
Serial.begin(115200);
mySerial.begin(9600);
}

void loop()
{
mySerial.print(buff);
while(1)
{
if(mySerial.available()>0)//Determine whether there is data to read on the serial
{
delay(50);
for(int i=0;i<11;i++)
{
data[i]=mySerial.read();
}
unsigned char Check=0;
for(int i=0;i<10;i++)
{
Check=Check+data[i];
}
Check=~Check+1;
if(data[10]==Check)
{
if(data[3]=='E'&&data[4]=='R'&&data[5]=='R')
{
Serial.println("Out of range");
}
else
{
float distance=0;
distance=(data[3]-0x30)*100+(data[4]-0x30)*10+(data[5]-0x30)*1+(data[7]-0x30)*0.1+(data[8]-0x30)*0.01+(data[9]-0x30)*0.001;
Serial.print("Distance = ");
Serial.print(distance,3);
Serial.println(" M");
}
}
else
{
Serial.println("Invalid Data!");
}
}
delay(20);
}
}
