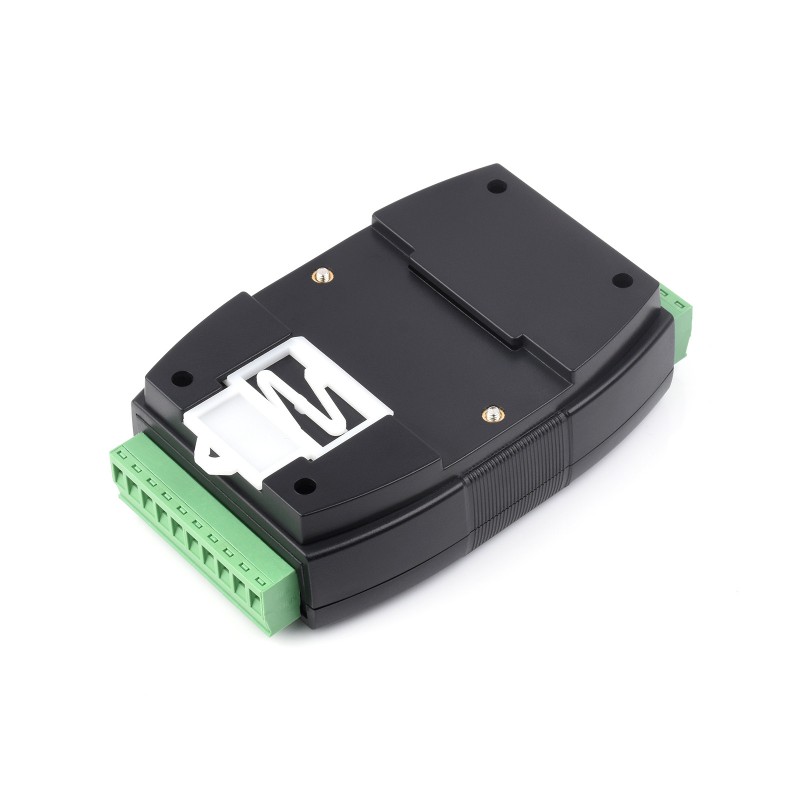

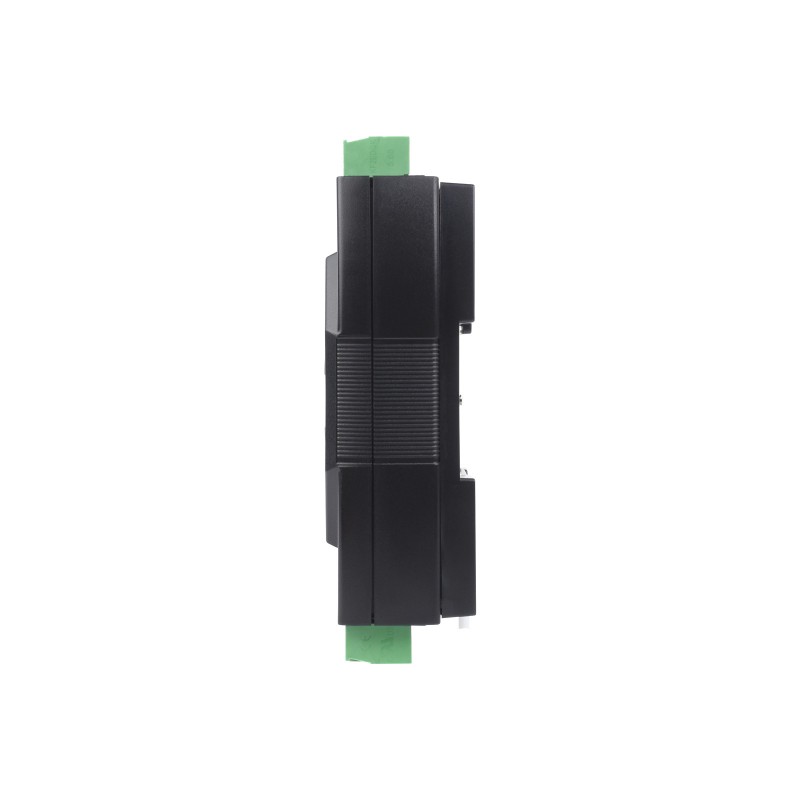

Industrial 8-Ch Analog Acquisition Module, 12-bit High-precision, Supports Voltage And Current Acquisition (Default Voltage Mode 0~10V) (ของแท้จาก Waveshare)

12-bit High-precision

Supports Voltage and Current Acquisition

DC 7~36V Wide Voltage

Modbus RTU Protocol

Multiple Isolation Protection

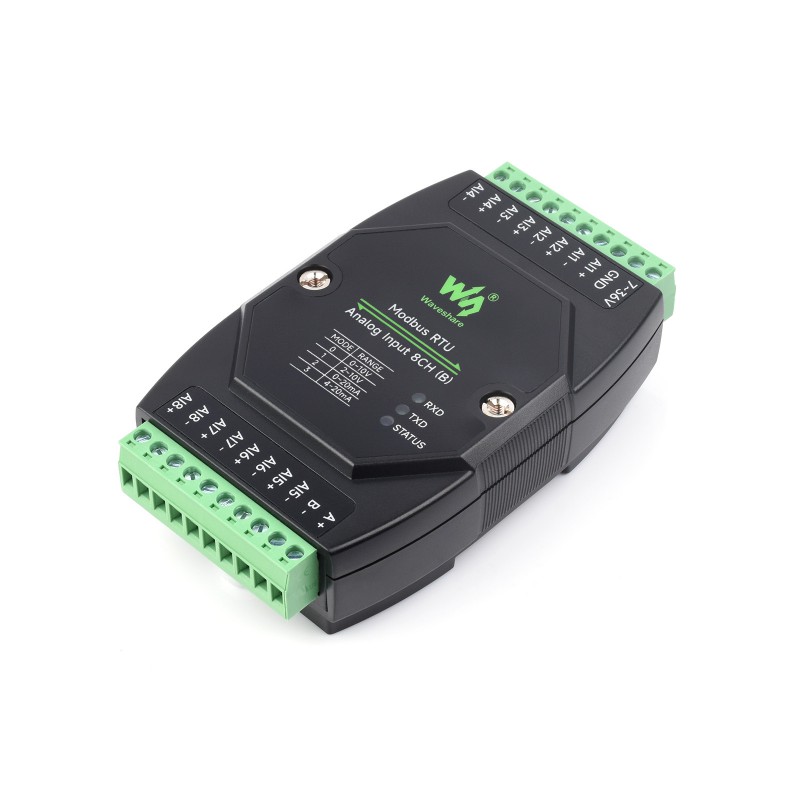

Modbus RTU Analog Input 8CH is an industrial standard analog acquisition module, supports multiple ranges and 8-ch simultaneous acquisition. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus
• Onboard voltage regulator, supports 7~36V wide range power supply
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
• Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
• Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
• Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing
• Rail-mount case design, support stacking combination, easy to install and safer to use
• 3x LEDs for indicating the MCU status and signal transceiving status

Supports sending Modbus RTU protocol commands via RS485
to acquire data from 0~20mA/0~10V sensor

Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for the industrial environments with high requirement.

8-ch analog acquisition interfaces, voltage and current acquisition is switchable via jumper. Multiple Ranges Configurable via Software

Supports setting device address (1~255) for Multi-Device Cascading, supports single-ended/differential input, supports voltage and current simultaneous acquisition

Built-in fuse and anti-reverse protection, with ESD protection for analog input

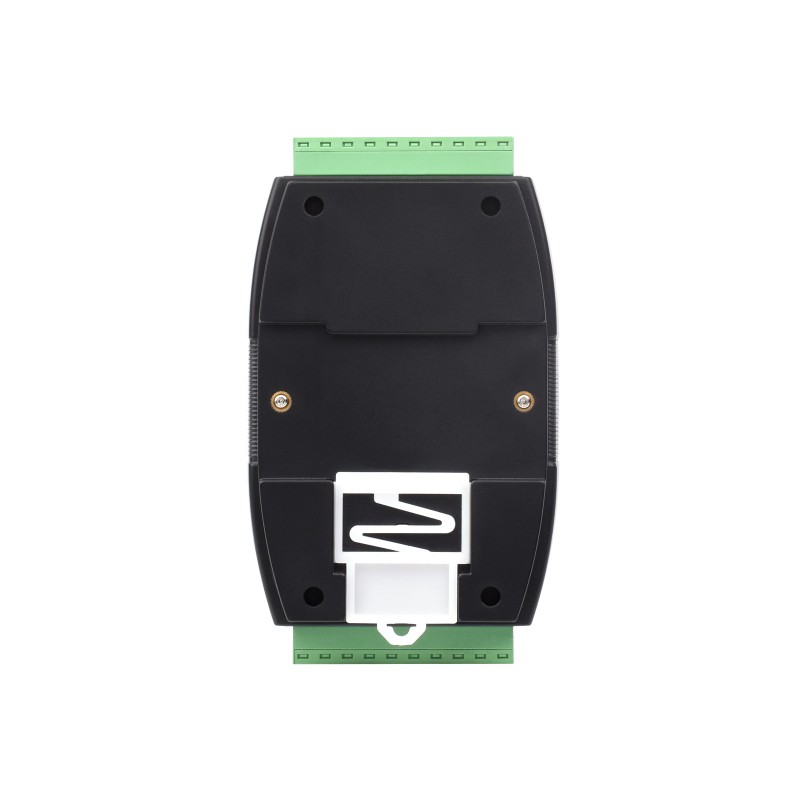

Supports 35mm standard guide rail, with rail-mount buckle, easy to install.
