Lorlin Key Switch, SP-CO, 1 A @ 24V ac dc / 115V ac 2-Way Common-Key

Lorlin Key Switch

The Lorlin 2-position key switch is a miniature, key-operated lock switch. It is suitable for many low voltage applications. The spare keys are available for common profiles, but not for random profiles, for security reasons. It has single-pole and can be easily assembled through the front of the equipment panel.

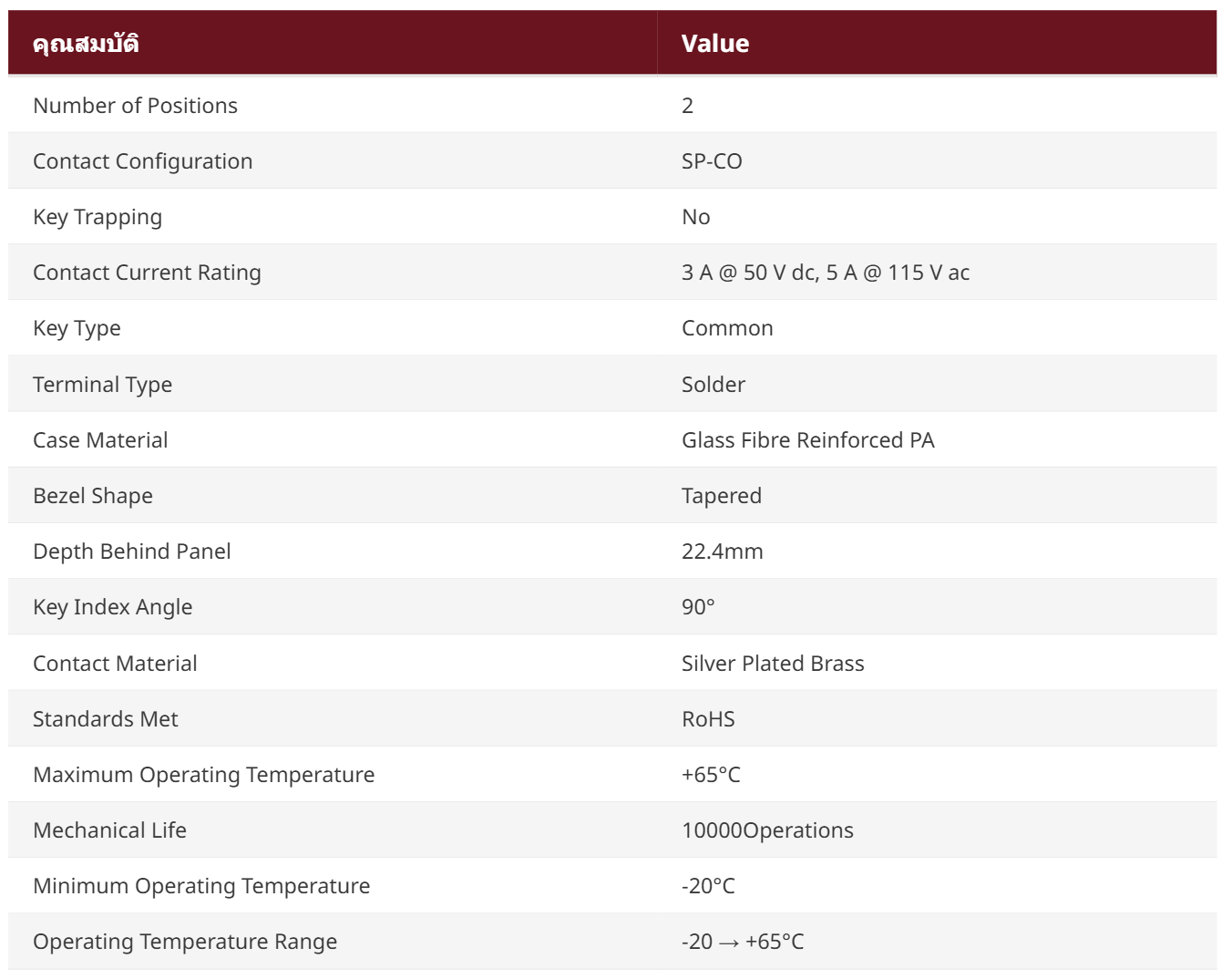

Features and Benefits

• Up to 200 key combinations
• Keys are double entry (they can be inserted into the lock either way up)
• Occupies small panel area
• Rear projection less than 30mm from the panel
• Number of positions are 2
• Contact configuration is SP-CO
• Contact current rating is 1 A @ 24V ac dc / 115V ac
• Solder terminal
• Case material is glass fibre reinforced PA
• Bezel shape is tapered
• Depth behind panel is 22.4mm

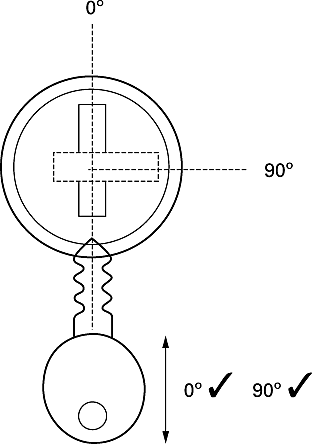

• Key index angle is 90°
• Contact material is silver plated brass
• Operating temperature ranging between -20°C and 65°C
• Mechanical life is 10,000 operations

Applications

• Control panels
• Alarms
• Lighting controls
