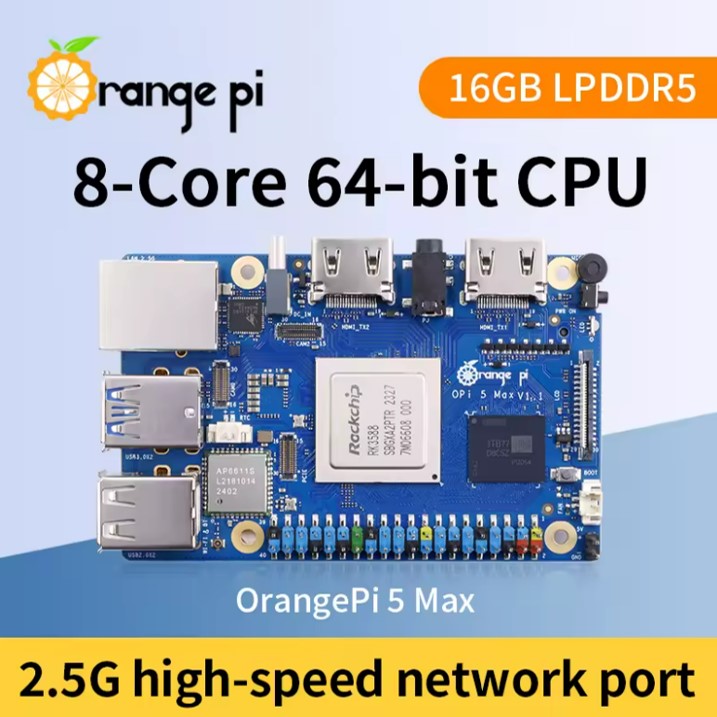

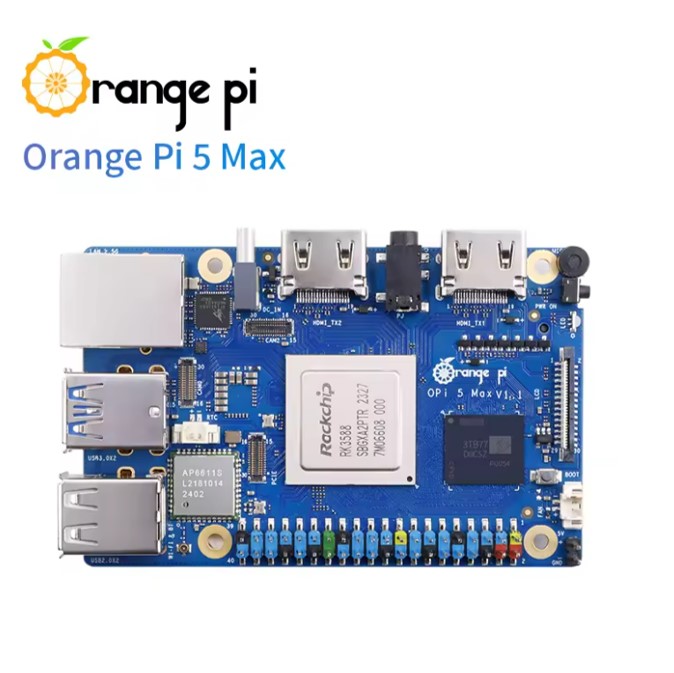

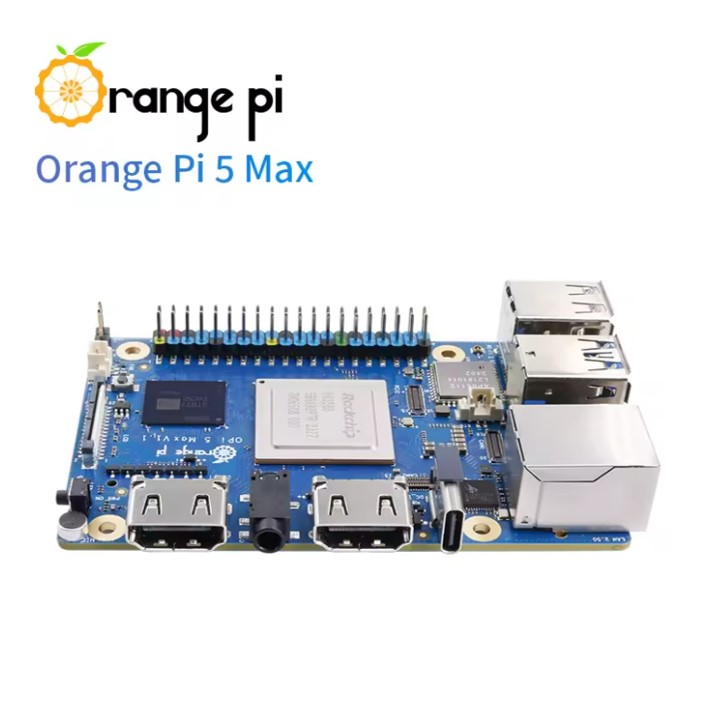

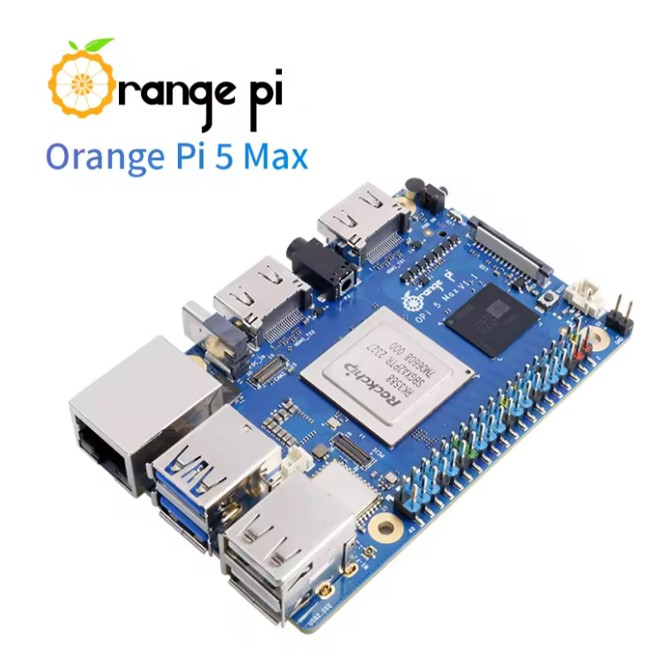

Orange Pi 5 Max (16GB RAM) - Orange Pi

Orange Pi 5 Max (16GB RAM)

Description

OrangePi 5 Max uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; the embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices; it has 4GB/8GB/16GB LPDDR5, with up to 8K display processing capability, supports eMMC socket and onboard eMMC (either one ), and has Wi-Fi 6E+BT 5.3 with BLE support.

OrangePi 5 Max provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.

OrangePi 5 Max is compact, PCB measuring only 89mmX57mmX1.6mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Max supports Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS (OH), Ubuntu, Debian, Android13 operating system.

• OpenWRT Image
• Orange Pi OS (Arch)
• Orange Pi OS (Droid)
• Ubuntu Image
• Debian Image
• Android Image
• Android Source Code
• Linux Sorce Code
