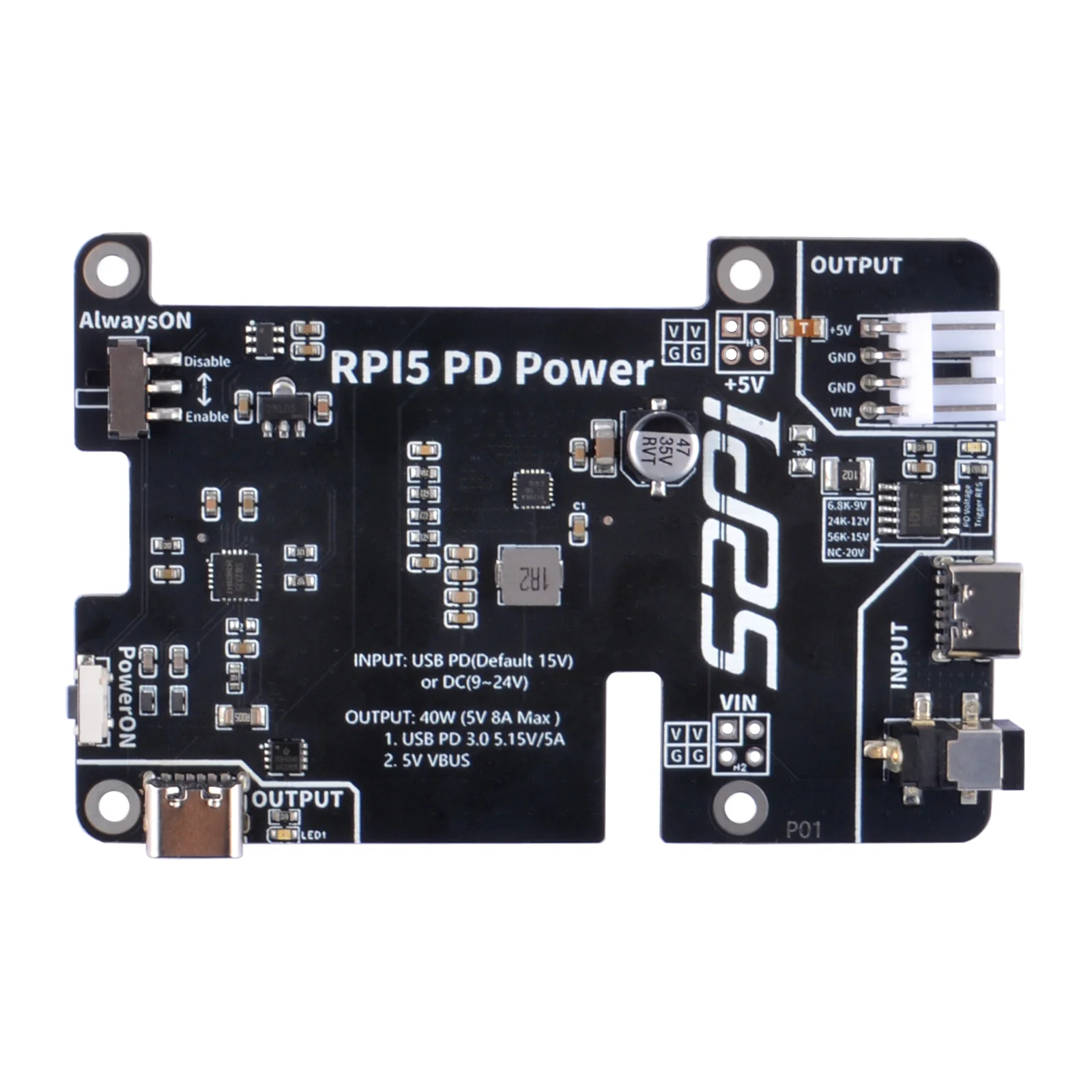

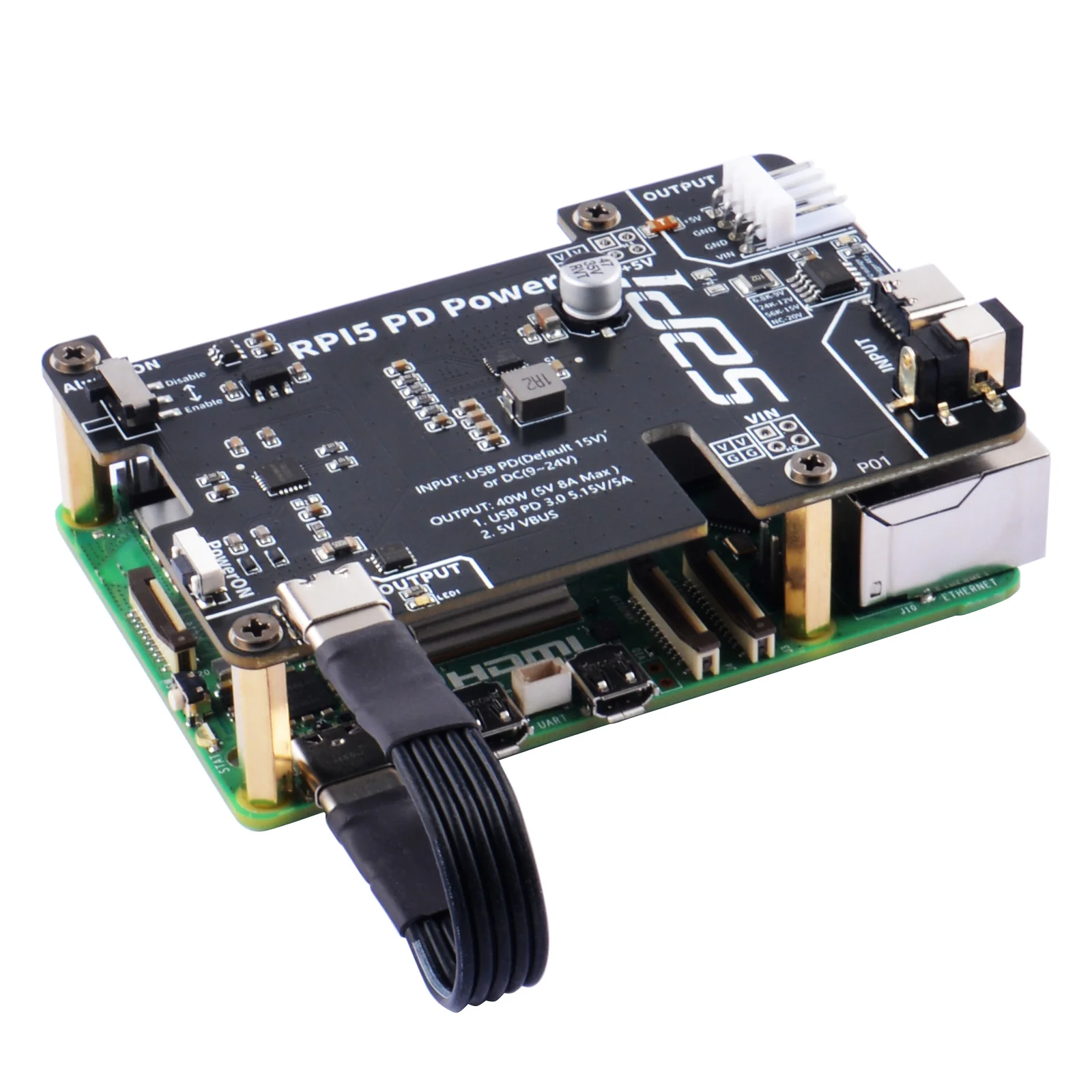

52Pi PD Power Expansion Board for Raspberry Pi 5 8GB 4GB, with Always-ON switch, Automatic Startup and Manual Power Control Function

ดูรายละเอียดการใช้งานได้ที่ Click

Description:

The RPi 5 PD Power expansion board is designed to enhance the functionality of the Raspberry Pi 5 by providing Power Delivery (PD) capabilities. Named "RPi 5 PD Power," this expansion board supports an Always-ON switch, enabling automatic startup of the Raspberry Pi upon power restoration. Additionally, it offers the convenience of manual power control through a push-button mechanism.

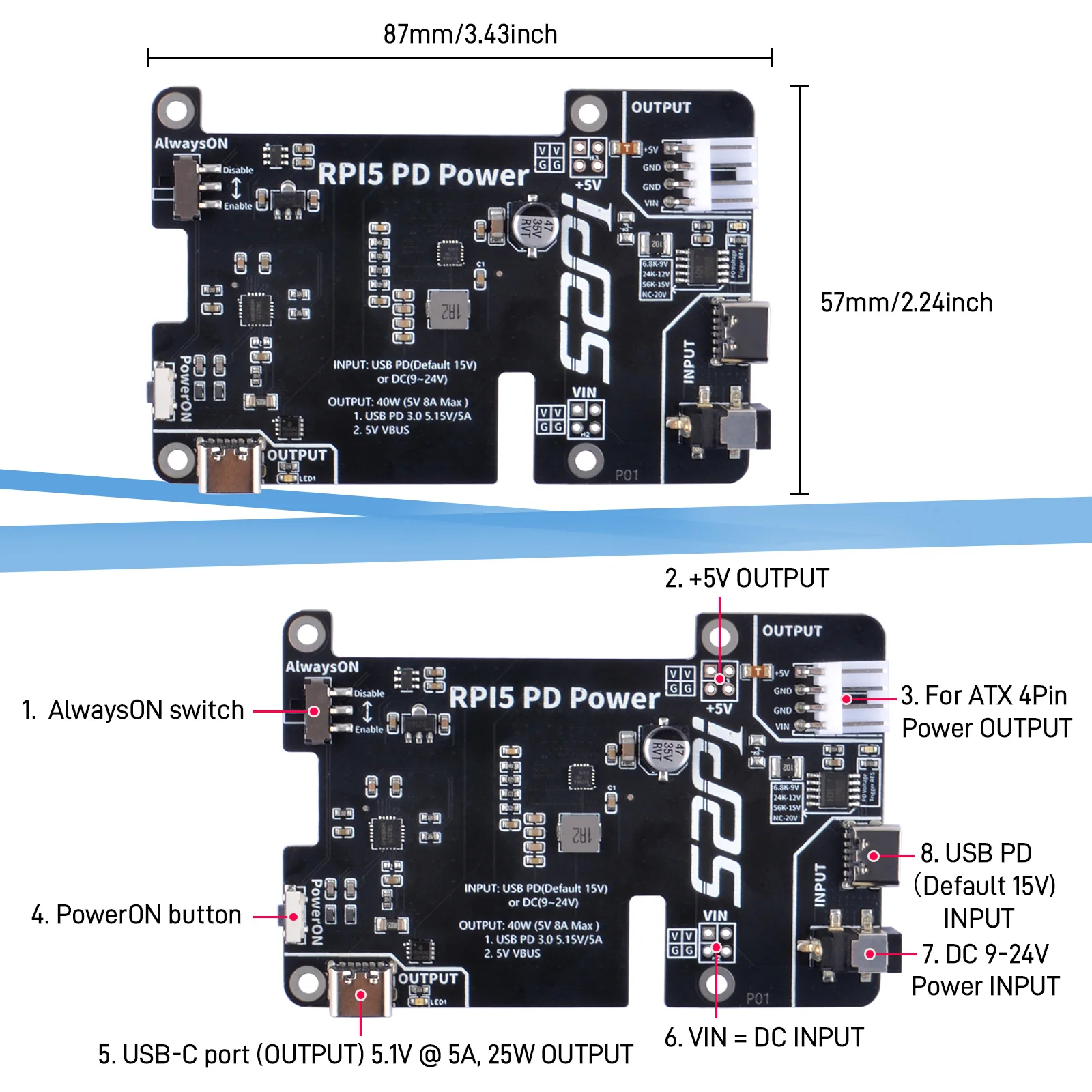

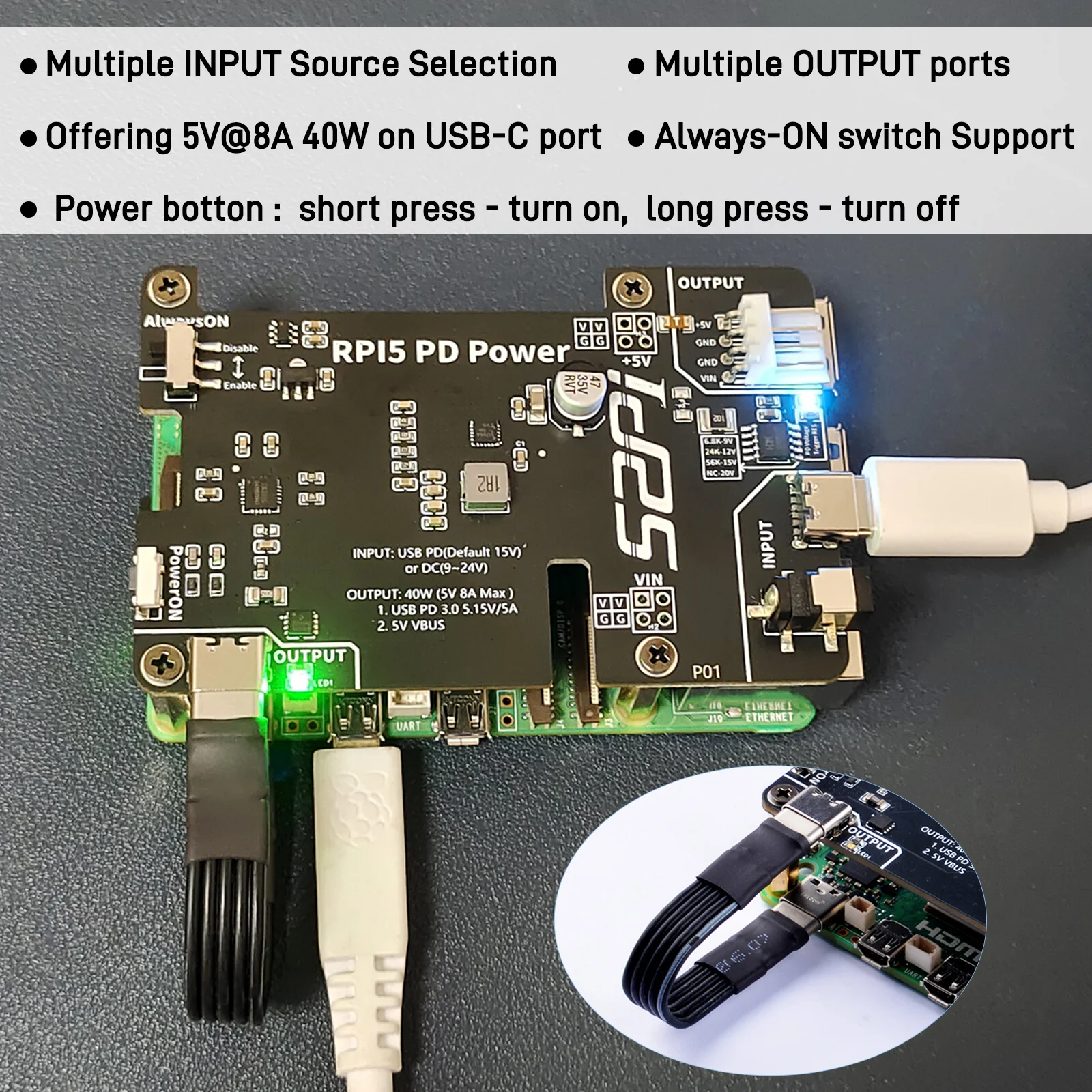

Features

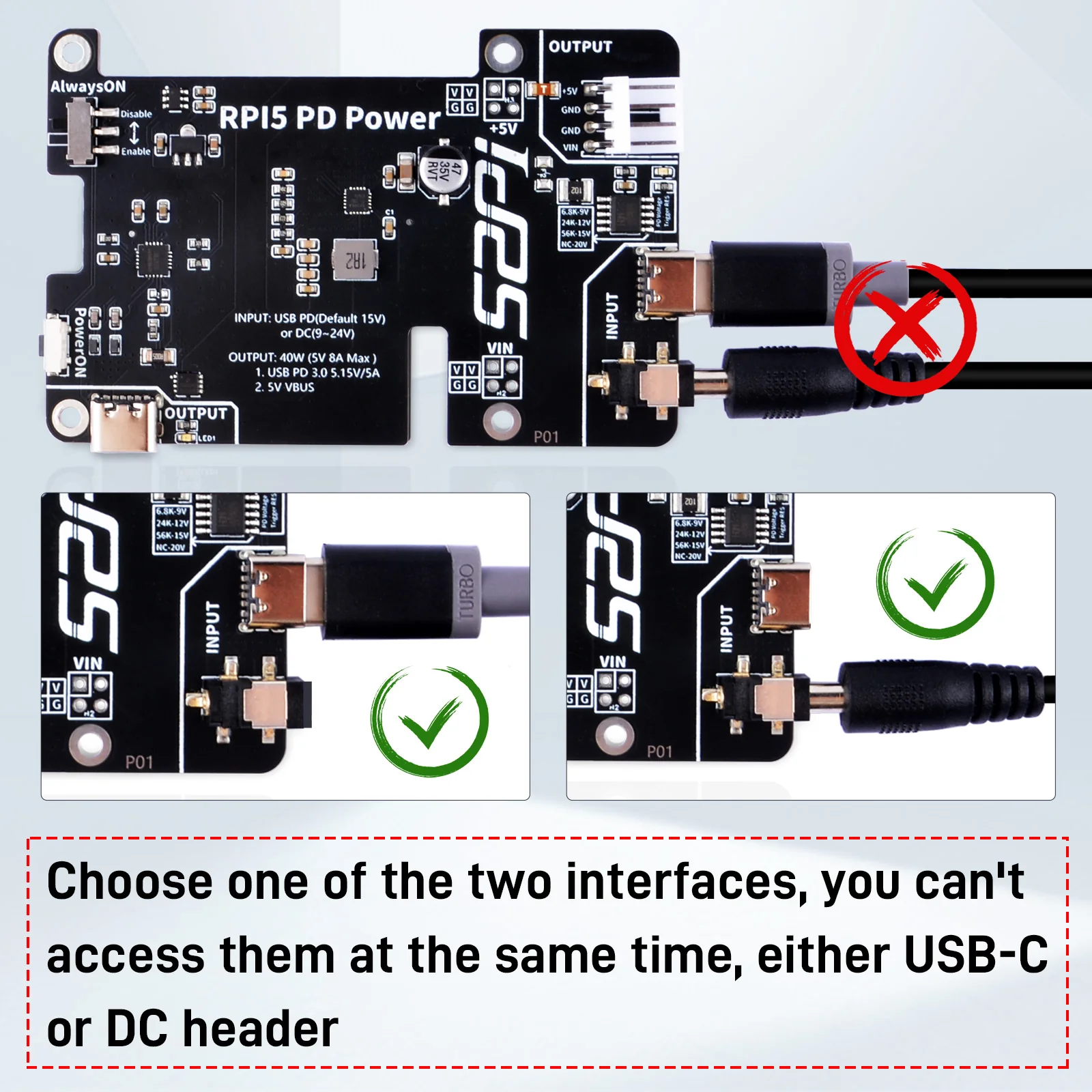

• Power Input Options:
  • USB PD: Default 15V input for Power Delivery.
  • DC Interface: 9-24V input through a dedicated DC interface.
  • DC Interface size: 1.3mm x 4.2 mm
• Power Output Options:
  • USB-C Output: Delivers 40W power at 5V/8A MAX via a USB-C port.
  • USB PD 3.0 Interface: Provides 5.15V@5A output through Power Delivery 3.0.
• 5V VBUS Output: Alternate output option for 5V power supply.
• Always-ON Switch:
  • Default State: Disabled.
  • Functionality: Requires manual activation by pressing the PowerON button for power supply during each startup.
• Automatic Startup: Supports automatic startup of the Raspberry Pi upon power restoration, enhancing user convenience.

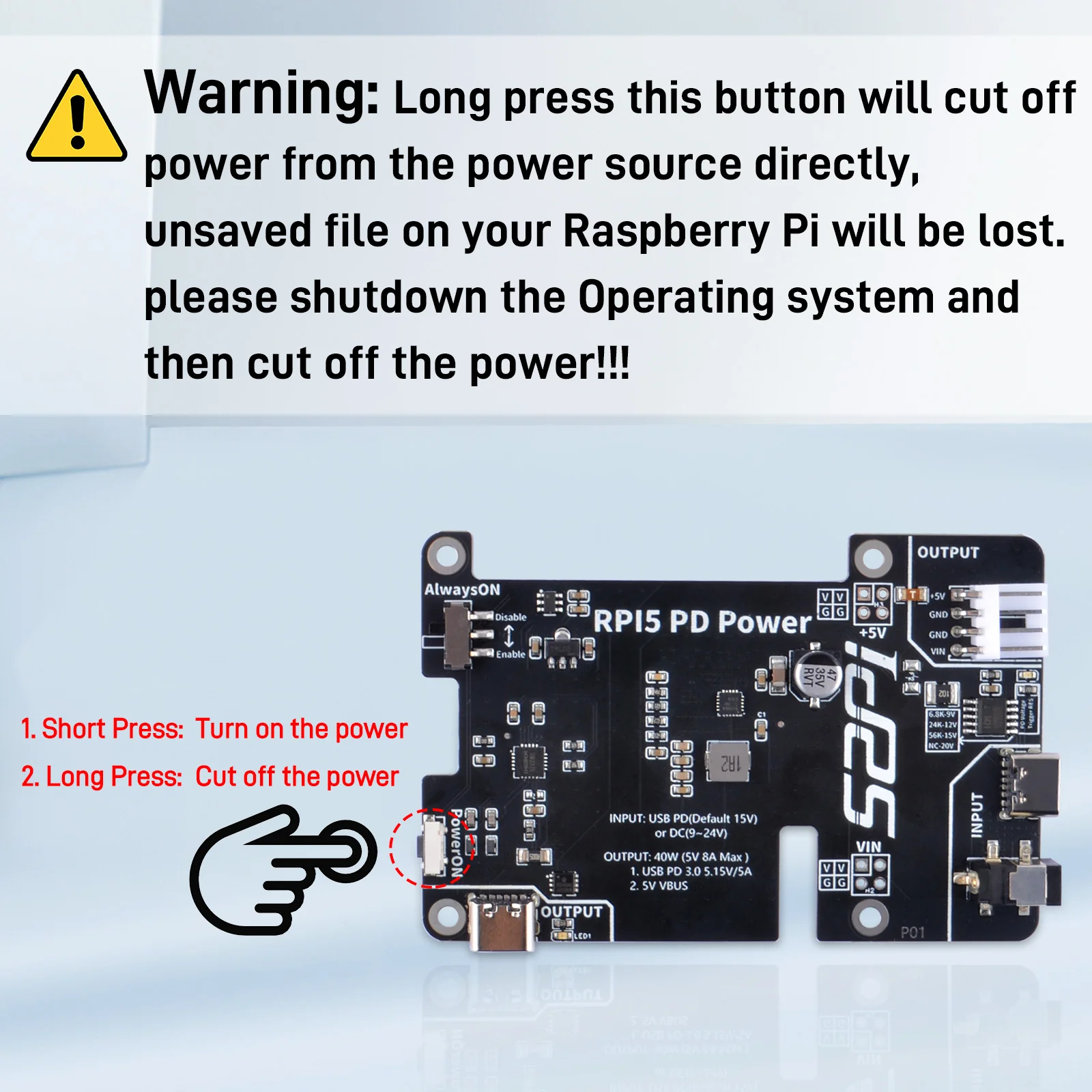

• Manual Power Control: Long-press the PowerON switch for shutdown when the Raspberry Pi is in a powered-on state.
• Versatile Power Management: Flexibility in choosing power input sources and output options for diverse applications.
• Compact and Compatible: Designed specifically for the Raspberry Pi 5, ensuring seamless compatibility and a compact form factor.
• User-Friendly Operation: Intuitive push-button controls for both manual and automatic power management, enhancing user experience.

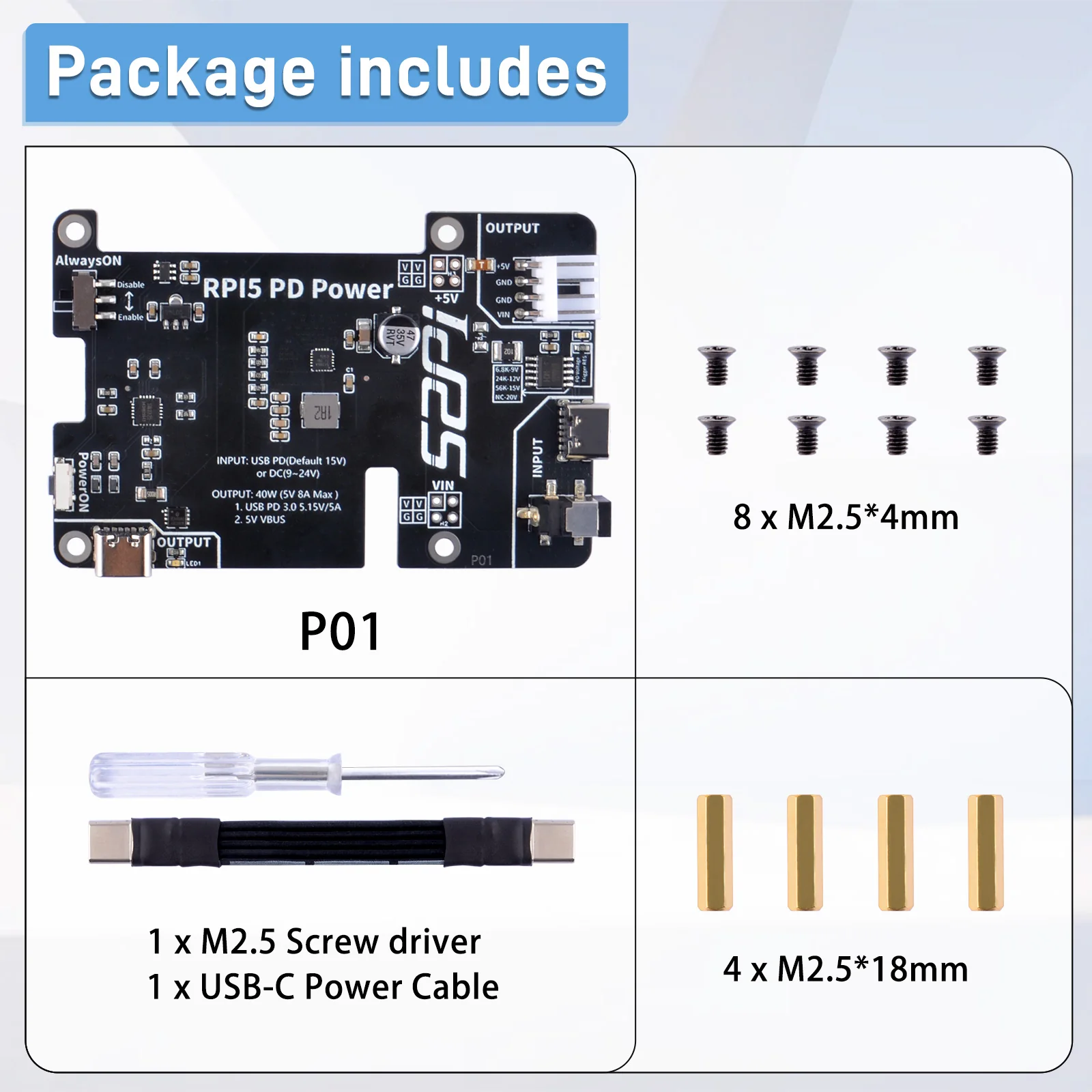

Package Includes

• 1 x RPi5 PD Power Board
• 8 x M2.5x4mm Black flat head screw
• 4 x M2.5x18mm Copper pillar
• 1 x USB-C to USB-C Power cable
