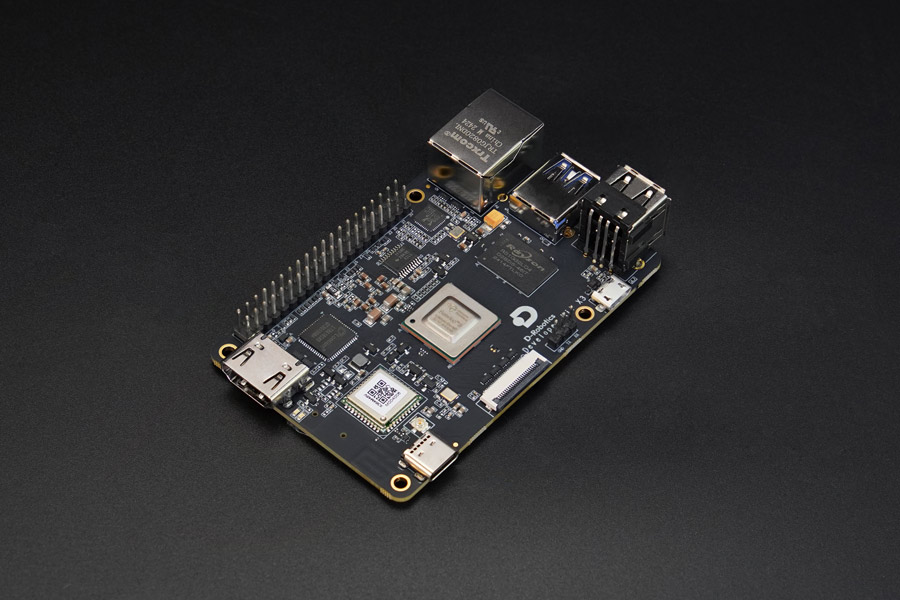

RDK X3 ROS2 AI Board (4GB, 5Tops)

• Download RDK Studio
• Datasheet
• Quick Start
• Download Center
• Algorithm Development
• Robot Development
• Linux Development
• Multimedia Development
• Hardware Development
• FAQ

Introduction

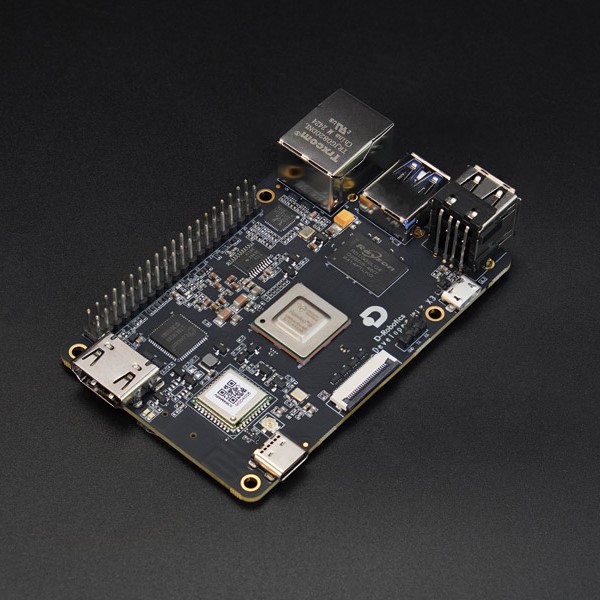

The RDK X3 is an Intelligence-Native Development Board with 5Tops of edge inference capability, designed for tasks demanding computing capabilities such as multimedia tasks. It integrates seamlessly with Raspberry Pi 4B accessories via its 40-pin interface, making it a versatile tool for robot and multimodal devices development, smart home projects, and educational applications. RDK X3 is an all-in-one robotic development kit for developers to build robot prototypes, develop robotic products, and conduct rigorous performance evaluations and related verifications.

5Tops Edge Inference Capability

The RDK X3 boasts a remarkable computing power of 5Tops, driven by a dual-core Bernoulli architecture, enabling efficient and fast edge-based cognitive analyses. This high-performance processing unit is purposefully designed to expedite cognitive tasks, making it highly compatible with real-time applications like robot control, smart home automation, and intelligent monitoring systems.

Multicore Heterogeneous Architecture

The development board is equipped with a quad-core ARM® Cortex® A53 CPU, paired with a dual-core BPU (Bernoulli Processing Unit). It can significantly enhance computing power.

High-Definition Multimedia Processing

Supporting up to 4K@60fps video streams, the RDK X3 excels in multimedia applications. It provides comprehensive support for H.264 and H.265 (HEVC) encoding and decoding, making it suitable for high-quality video processing, surveillance systems, and multimedia streaming.

Extensive Interface Compatibility

The 40-pin GPIO interface is compatible with Raspberry Pi 4B, allowing developers to easily integrate a wide range of accessories and expand the board's capabilities. Additionally, the board includes USB 3.0, USB 2.0, HDMI, and Gigabit Ethernet ports, ensuring versatile connectivity options for various peripherals.

Interface Diagram

RDK X3 40Pin Pinout Diagram

Features

• 5T computing power
• Multicore isomerism
• Operator acceleration
• Memory optimization

Applications

• Building Autonomous Robots
• Higher Education
• Maker Education: Robotics, and Smart Home Projects
• Developing an Intelligent Home Automation System

Specification

• Processor: 1.5GHz Quad-core ARM Cortex A53
• BPU: 5 TOPs Dual-core Bernoulli
• Multimedia: 4K H.265/JPEG (up to 16MP)
• Memory: 4GB LPDDR4
• Storage: Micro SD
• Sensors: 2x MIPI CSI
• USB Host: USB 3.0 x1, USB 2.0 x2
• USB Device: Micro USB 2.0
• Debug: 1x UART
• Display: HDMI 1.4 (1080p60)
• Wireless: Wi-Fi 2.4/5GHz, Bluetooth 4.2
• Ethernet: RJ45
• I/O: 40-pin (GPIO, I2C, UART, SPI, I2S, PWM)
• Power: 5V/3A
• OS: Ubuntu 20.04/22.04

Documents

• RDK X3 Documentation
• RDK Official Website

Shipping List

• RDK X3 ROS2 AI Board 4GB ×1
