INTRODUCTION

At the beginning, the inertial measurement unit is an electronic device that measures and reports on a craft's velocity, orientation, and gravitational forces, using a combination of accelerometers,gyroscopes, and magnetometers. Now IMU sensor are commonly used in the Human-computer interaction(HCI), navigational purposes and balancing technology used in the Segway Personal Transporter as we all known.

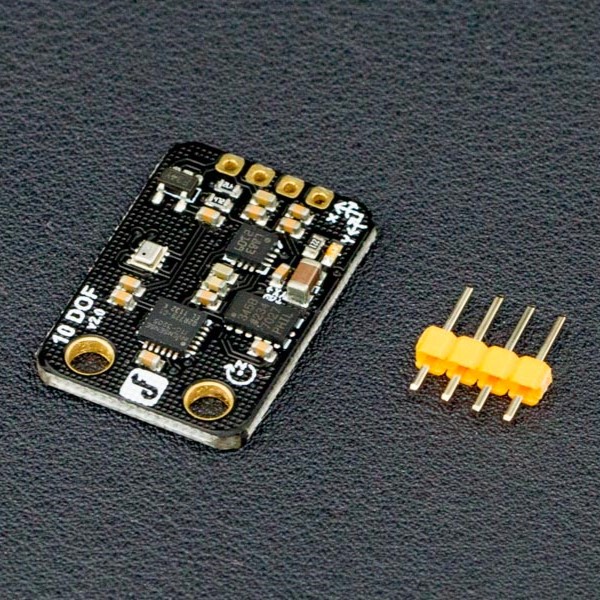

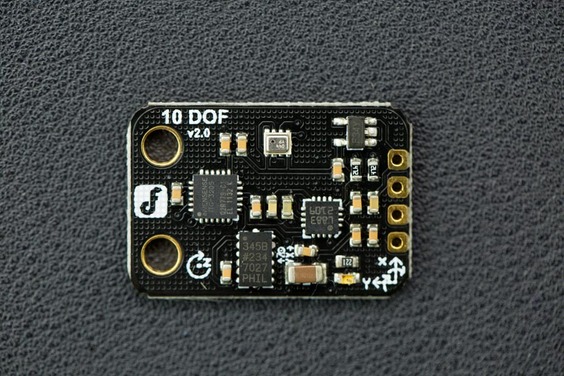

The 10 DOF (degrees of the freedom)  Mems IMU sensor is a compact and low cost IMU from DFRobot. It integrates the ADXL345 accelerometer, the VCM5883L magnetometer,the ITG-3205 gyro and the BMP280 barometric pressure sensor. It's suitable for most of the controlling system because of the small dimension. The mounting holes make it possible to provide the highly accurate and stable sensor data.It embeds a low noise LDO regulator for supplying a wide range power input. Works with 3~8 volts power input. Certainly, the 10 DOF sensor is directly compatible with your Arduino boards.

SPECIFICATION

  • Wide power input range from 3 to 8 volts
  • Low noise LDO regulator
  • Low cost IMU
  • Interface: I2C
  • M3x2 holes for easily mounted on your mobile platforms,robots,HCI or UAVs
  • LED power indication
  • Integrate 10 dof sensors
    • Adxl345 accelerometer
    • ITG3200 gyro
    • VCM5883L Compass
    • BMP280 pressure sensor
  • Compact size design and easy-to-use
  • Compatible with Arduino controllers
  • Electricity gold PCB

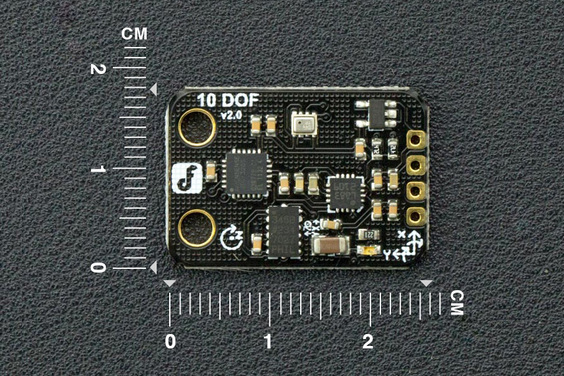

  • Size: 26x18mm (1.02x0.71")

PROJECTS

DOCUMENTS

SHIPPING LIST

  • 10 DOF IMU Sensor   x1

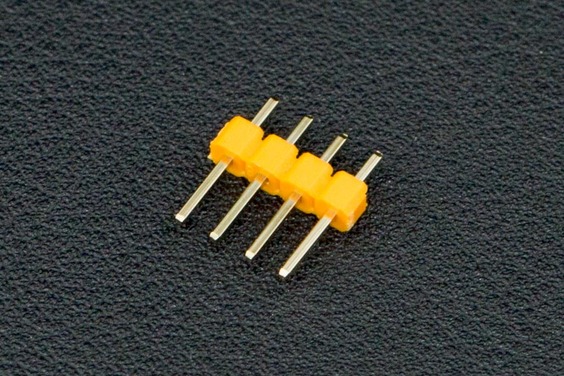

  • 4P Pin Headers  x1

Connection Diagram

10 DOF IMU Sensor V2.0 Connection Diagram

Sample Code 1

Please download following library first.


#include <FreeSixIMU.h>
#include <FIMU_ADXL345.h>
#include <FIMU_ITG3200.h>

#include <Wire.h>

float angles[3]; // yaw pitch roll

// Set the FreeSixIMU object
FreeSixIMU sixDOF = FreeSixIMU();

void setup() {
Serial.begin(9600);
Wire.begin();

delay(5);
sixDOF.init(); //begin the IMU
delay(5);
}

void loop() {

sixDOF.getEuler(angles);

Serial.print(angles[0]);
Serial.print(" | ");
Serial.print(angles[1]);
Serial.print(" | ");
Serial.println(angles[2]);

delay(100);
}

Open the arduino IDE serial monitor, you will get Yaw; Pitch; Roll value:

Yaw; Pitch; Roll Value

Sample Code 2

BMP280 Barometer & Temperature Test

/*!
* @file bmp280test.ino
* @brief DFRobot's Temperature、Pressure and Approx altitude
* @n [Get the module here](等上架后添加商品购买链接)
* @n This example read the Temperature、Pressure and Altitude from BMP280, and then print them
* @n [Connection and Diagram](等上架后添加wiki链接)
*
* @copyright [DFRobot](https://www.dfrobot.com), 2016
* @copyright GNU Lesser General Public License
*
* @author [yuxiang](1137717512@qq.com)
* @version V1.0
* @date 2016-12-06
*/

#include <Wire.h>
#include "DFRobot_BMP280.h"

DFRobot_BMP280 bmp280;

void setup() {
Serial.begin(9600);
Serial.println("BMP280 demo");

if (!bmp280.begin()) {
Serial.println("Could not find a valid BMP280 sensor!");
while (1);
}
}

void loop() {
Serial.print("Temperature = ");
Serial.print(bmp280.readTemperatureValue());
Serial.println(" *C");

Serial.print("Pressure = ");
Serial.print(bmp280.readPressureValue());
Serial.println(" Pa");

Serial.print("Altitude = ");
Serial.print(bmp280.readAltitudeValue(1013.25)); // this should be adjusted to your local forcase
Serial.println(" m");

Serial.println();
delay(2000);
}

Temperature & Barometer Value
