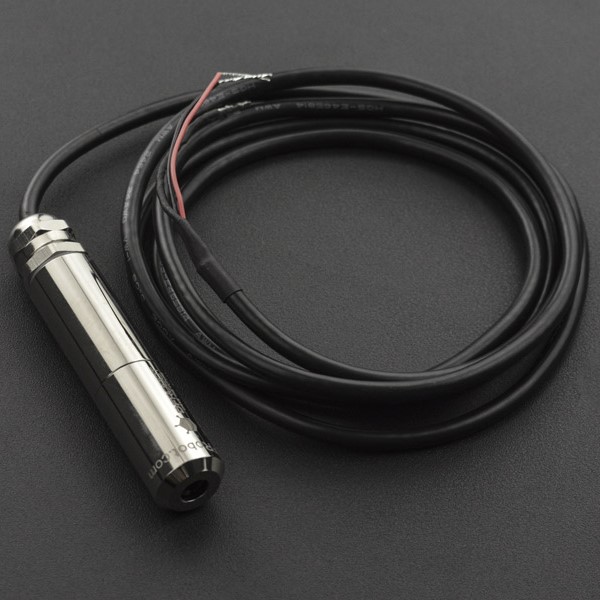

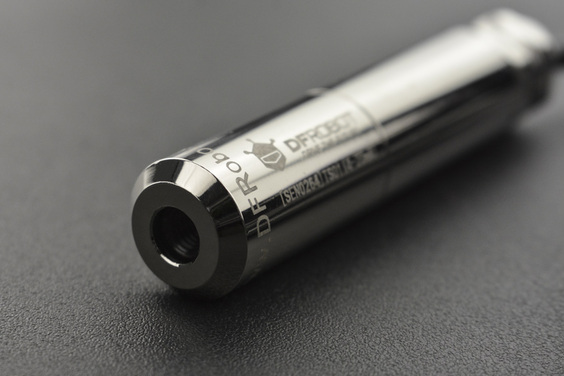

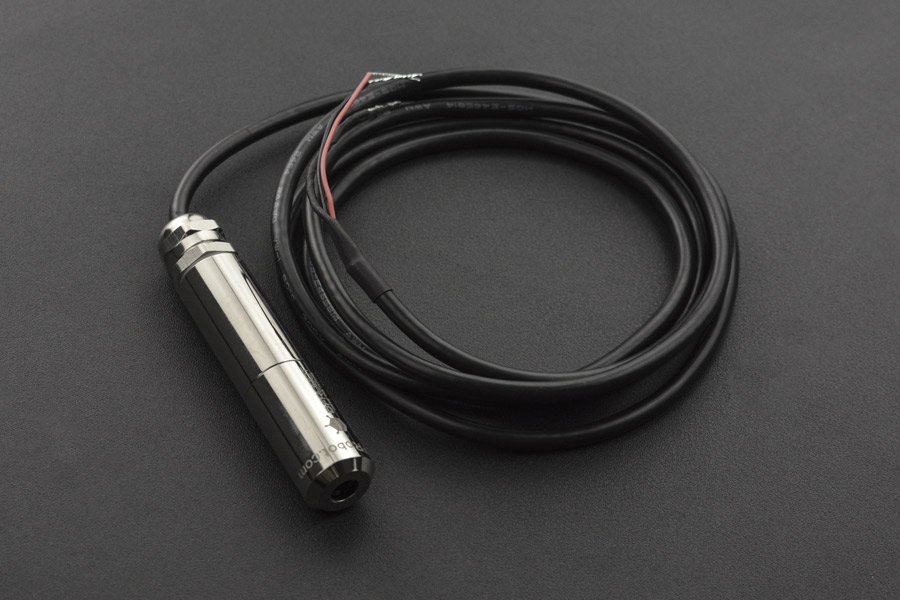

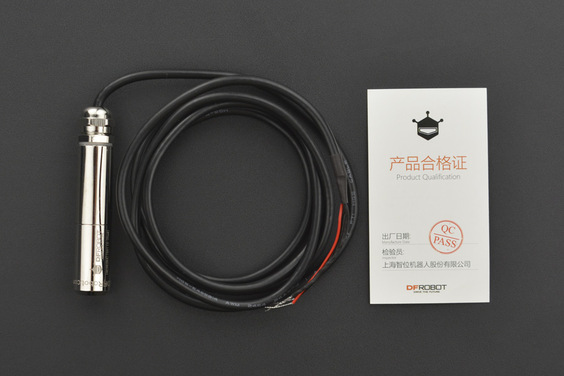

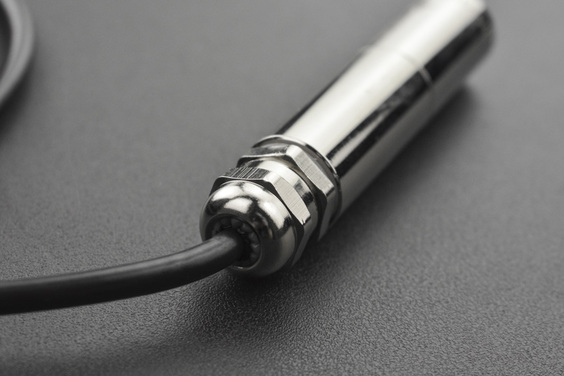

TS01 Non-Contact Analog Infrared Temperature Sensor (-70℃~380℃, IP65, 4-20mA) (แท้ DFRobot)

ดูรายละเลียดการใช้งานและตัวอย่าง arduino code ได้ที่ Click

Introduction

• Non-contact Temperature Measurement
• Operating Temperature Range of Industrial Grade
• Current Output
• Metal Packaging

• Supply Voltage: 7.5~36V DC
• Operating Current: 20mA
• Signal Output: 4~20mA
• Operating Temperature: -40℃~85℃
• Measuring Temperature: -70℃~380℃
• Accuracy: ±0.5℃~±4℃
• FOV: 5°
• Defense Grade: IP65
• Probe Diameter: 15.4 mm/0.61”
• Probe Length: 78 mm/3.07”
• Cable Length: 1.5m/59.06”
• Interface Type: stripped tin-plating wire

• Product Wiki
• Product Manual

• TS01 Non-Contact Analog Infrared Temperature Sensor (-70℃~380℃, IP65, 4-20mA) x1

Tutorial

Preparation

• Hardware
  • Arduino UNO Main Board(or analogous main board) ×1
  • TS01 Infrared Temperature Sensor 4-20mA ×1
  • Current-to-Voltage Module ×1
  • Object Detected ×1
• Software
  • Arduino IDE(1.0× or 1.8×), click to download Arduino IDE.

Connection Diagram

• TS01 outputs 4~20mA standard industrial current signal, a current to voltage converter is highly recommended when you want to use MCU to read the value.
• The power supply of TS01 is 7.5-36V.

Sample Code

void setup() {
Serial.begin(115200);
}

void loop() {
unsigned int ADC_Value = analogRead(A3);
float i=(double)ADC_Value/(204.8*0.12);
float j=(i-4)/16*340-70;
Serial.print(i);
Serial.print("mA, ");//printed current value
Serial.print(j);
Serial.println("\u2103");//printed temperature value
delay(100);
}

Result

Gradient Diagram of Measuring Accuracy

• The field of view(FOV) of the sensor is 5°. The target dimension and the optical properties of the IR temperature sensor decided the maximum distance between the target and the probe. The field of view of the sensor is shown below.

• The gradient diagram of measuring accuracy of the sensor is shown below (To is the measured temperature; Ta is the temperature of the environment the sensor locates in). Please note that the temperature error only applies to a certain isothermal condition, and it’s only valid when the detected object is fully filling in the FOV of the sensor.
