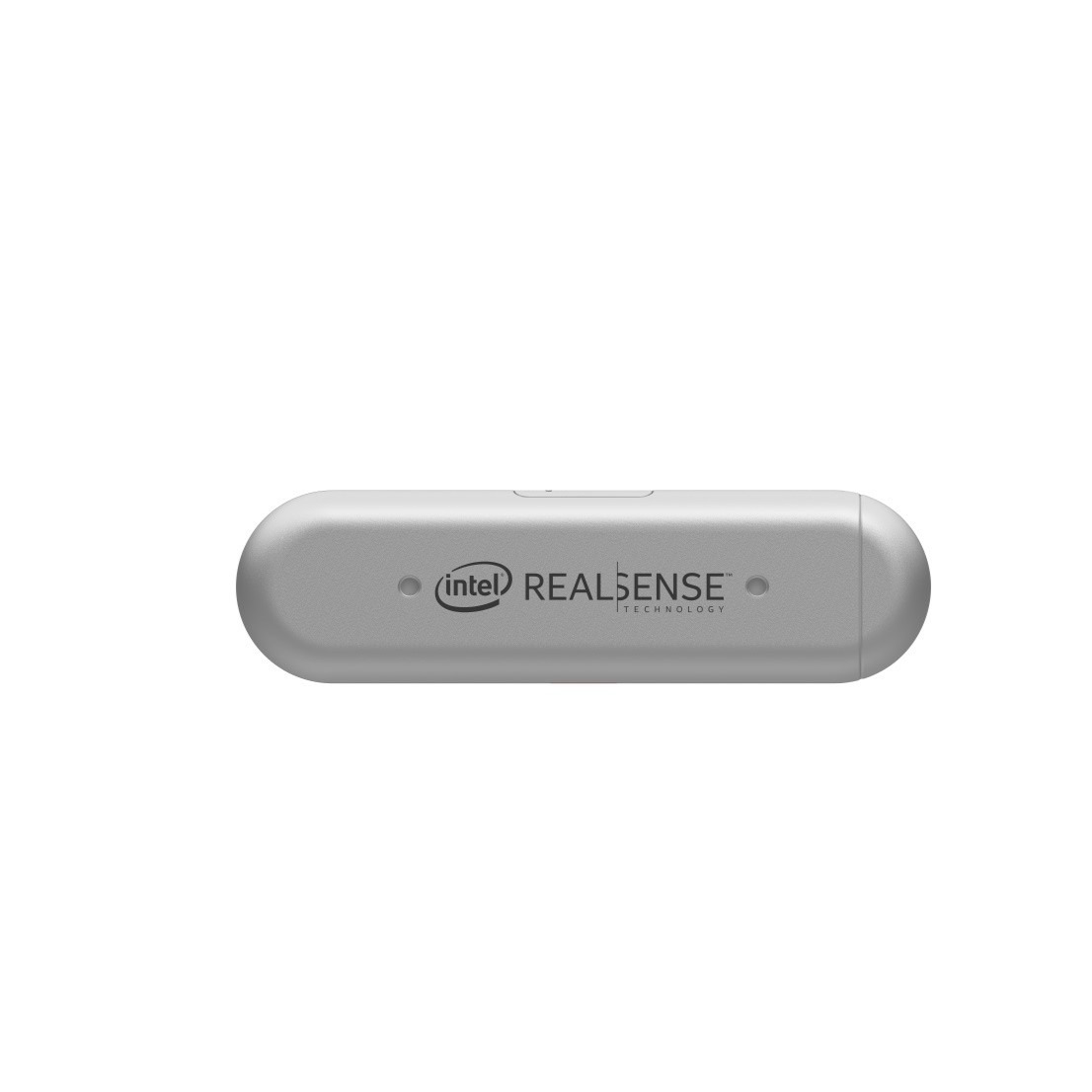

Intel® RealSense™ Depth Camera D435if (IR Pass Vision with IMU)

• A powerful vision processor that uses 28 nanometer (nm) process technology and supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output.
• New advanced stereo depth algorithm for accurate depth perception.
• A set of image sensors with an IR pass filter that enable capturing of disparity between images up to 1280 x 720 resolution.
• Support for the cross-platform, open-source Intel® RealSense™ SDK 2.0.
• Dedicated color image signal processor for image adjustments and scaling color data.
• Active infrared projector to illuminate objects to enhance the depth data.
• IMU Data that is time stamped to align with depth data as needed on the Intel® RealSense™ Vision Processor D4 Board

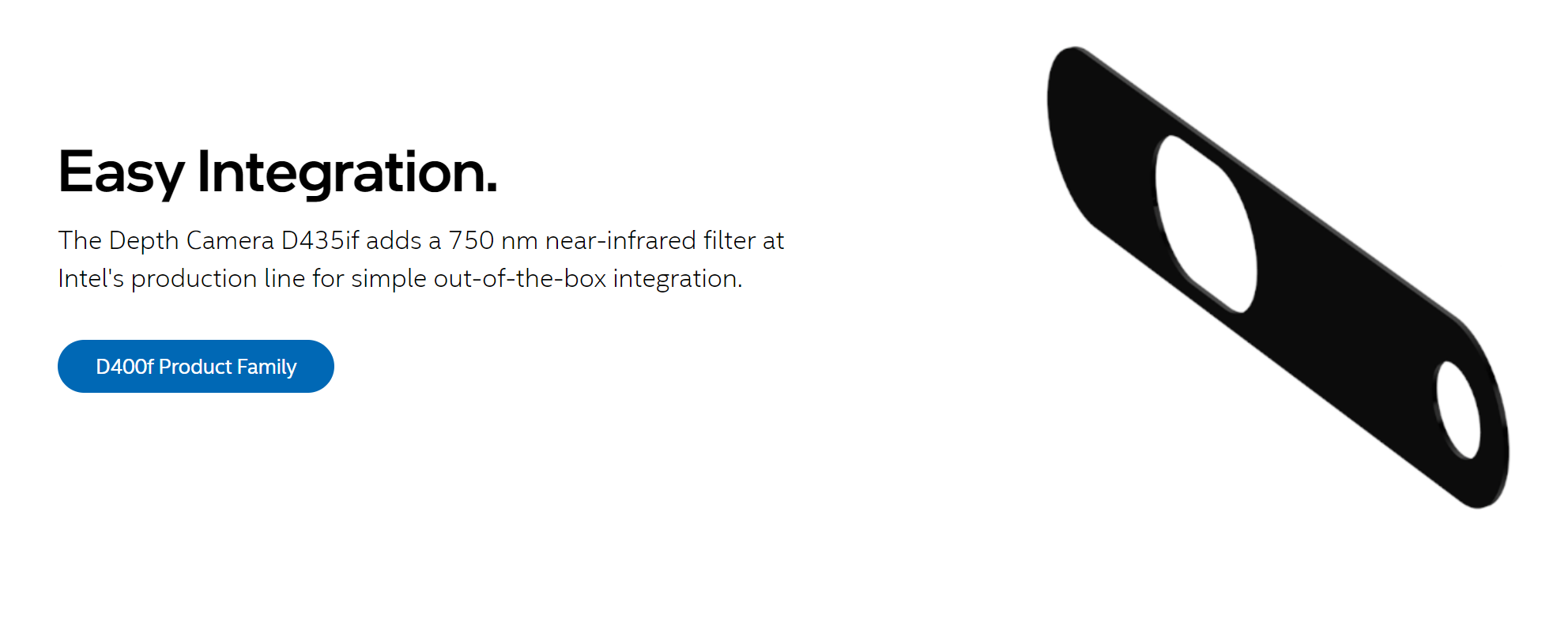

The Intel RealSense Depth Camera D435if expands our D400f portfolio targeting the growing robotic market. The D435if utilizes an IR pass filter to enhance depth noise quality and performance range and together with the IMU best suited for robotic specific environments.

The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/.

WARNING This product can expose you to Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
