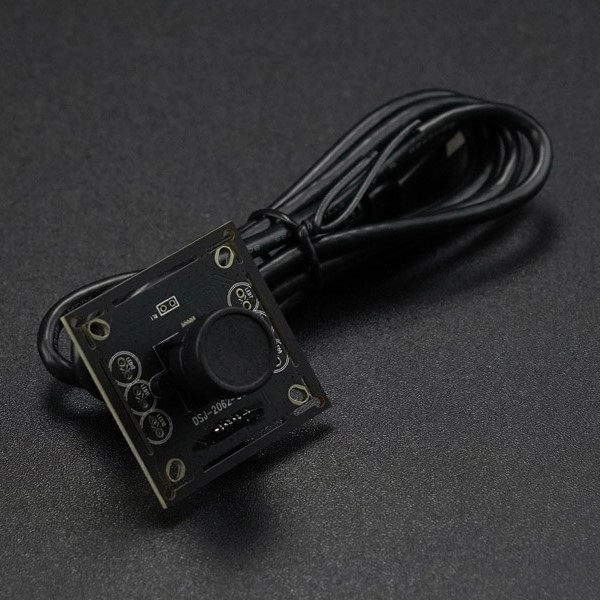

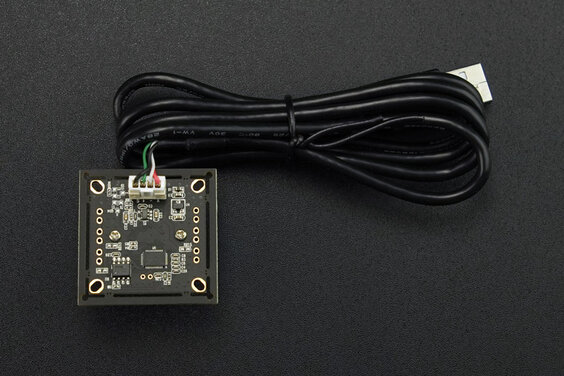

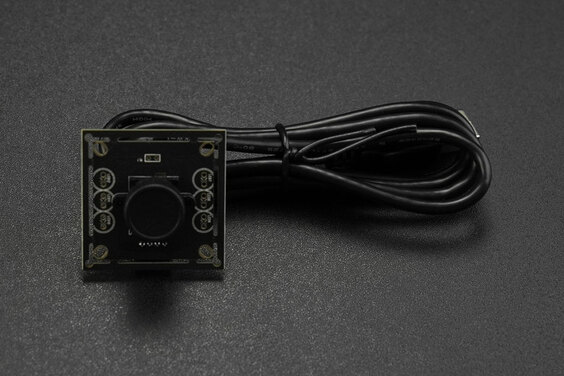

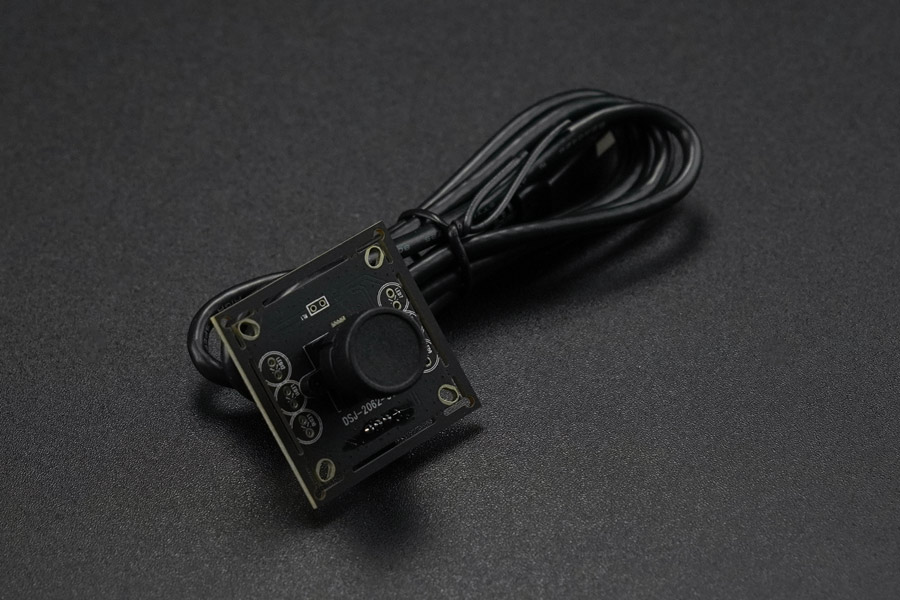

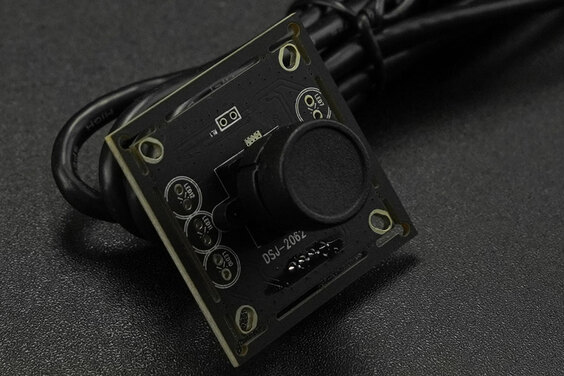

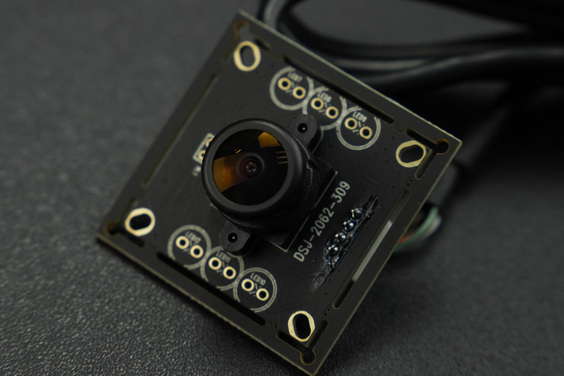

Megapixel 720p USB Wide-angle Camera for Raspberry Pi and NVIDIA Jetson Nano (แท้จาก DFRobot)

FEATURES:

• Plug and play
• Compatible with Raspberry Pi and NVIDIA Jetson Nano

APPLICATIONS:

• Face recognition
• Image recognition
• Security
• Remote teaching

• Lens Size: 1/4 inch
• Pixel Size: 3μm x 3μm
• Maximum Effective Pixels: FULL HD 1280(H)*720(V)
• Field of View (FOV): 140°
• Output Image Format: MJPEG/YUV2 (YUYV)
• Supported Resolutions:
              320*240 MJPEG@30fps;
              352*288 YUV2@30fps;
              352*288 MJPEG@30fps;
              640*480 YUV2@25fps;
              800*600 MJPEG@30fps
              320*240 YUV2@30fps;
              1280*720 MJPEG @25fps;
              800*600 YUV2@15fps;
              640*480 MJPEG@25fps;
              1280*720 YUV2@10fps
• Special Function: Lens correction/Defective pixel correction/Black sun cancellation
• Minimum Illumination: 0. 051lux
• Shutter Type: Electronic rolling shutter / Frame exposure
• USB Protocol: USB2.0 HS/FS
• Interface Type: USB2.0 High Speed
• Support OTG Protocol: USB2.0 OTG
• Support Driver-free Protocol: USB Video Class (UVC)
• Automatic Exposure Control AEC: support
• Automatic White Balance AEB: support
• Automatic Gain Control AGC: support
• Adjustable Parameters: brightness / contrast / color saturation / hue / sharpness / gamma / white balance / backlight / contrast / exposure
• Night Vision Function: support, need to cooperate with infrared lens 850 or 940nm, and infrared light board
• Infrared Light Board-Power Supply Interface: support, 2P-2.0mm socket
• Power Supply Mode: USB BUS POWER 4P-2.0mm socket
• Working Voltage: DC 5V
• Working Current: 120mA~220mA
• Working Temperature: 0～60℃
• Storage Temperature: -20～75℃
• Size/Weight: 38x38mm/1.50x1.50 inch (Compatible with 32x32mm/1.26x1.26 inch) / about 30g
• Support Operating System: Windows, iOS, Android, Linux, etc.

• Megapixel 720p USB Wide-angle Camera x1
• USB Cable x1
