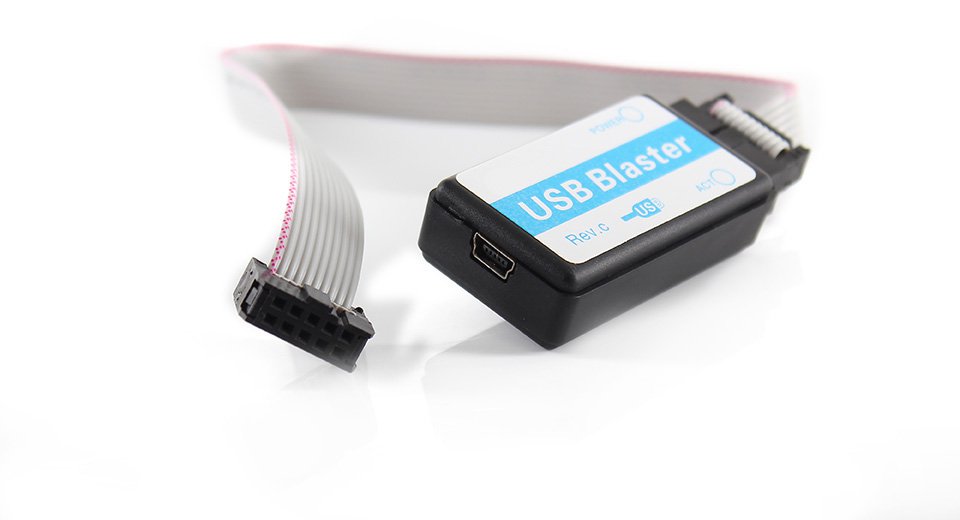

Altera USB Blaster CPLD / FPGA

Altera USB Blaster CPLD / FPGA

  อุปกรณ์ Upload โปรแกรม .sof และ .pof สำหรับ Altera FPGA / CPLD หลายๆ รุ่น ดูรายละเอียดรุ่นที่สามารถใช้งานได้ด้านล่างครับ   ทดสอบแล้วสามารถใช้งานได้กับ Windows XP,  7,  8 และ 8.1

USB-Blaster download cable Features

1. Stable support SignalTap II embedded logic analyzer function;

2. ALTERA company supports a full range of devices. Absolutely the whole series, do not worry about a device does not support!

◇ CPLD: MAX3000, MAX7000, MAX9000 and MAXII etc.

◇ FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K and FLEX10K etc.

◇ active serial configuration devices: EPCS1, EPCS4, EPCS16, EPCS64 etc.

◇ Enhanced Configuration Device: EPC1, EPC4 so on.

3. Supports three download mode: AS, PS and JTAG;

4. Communications and debugging support and Nios II embedded soft-core processor in the system, Rev.C latest firmware! ;

5. Speed: ByteBlasterII faster than conventional parallel port download cable 6 times;

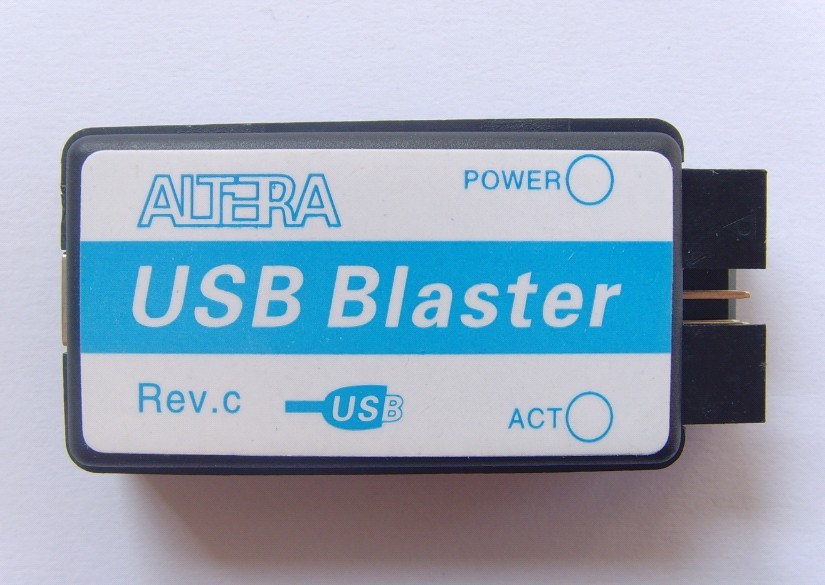

6. Easy to use: MiniUSB interface, easy connection, two status LEDs make debugging much easier.

7. Must: present laptop has almost eliminated the parallel port, so get used ByteblasterMV and ByteblasterII download cable have not be used in a notebook, so for notebook users, choose USB download cable that is convenient, it is a must.

8. Fully compatible with ALTERA USB Blaster, use, functionality and performance are consistent and ALTERA original download cable.

Manual

http://www.altera.com/literature/ug/ug_usb_blstr.pdf

Shipping list

1, USB Blaster programming a station

2, USB cable is a

3,10-core JTAG cable 1

4, USB-Blaster driver installation instructions 1
