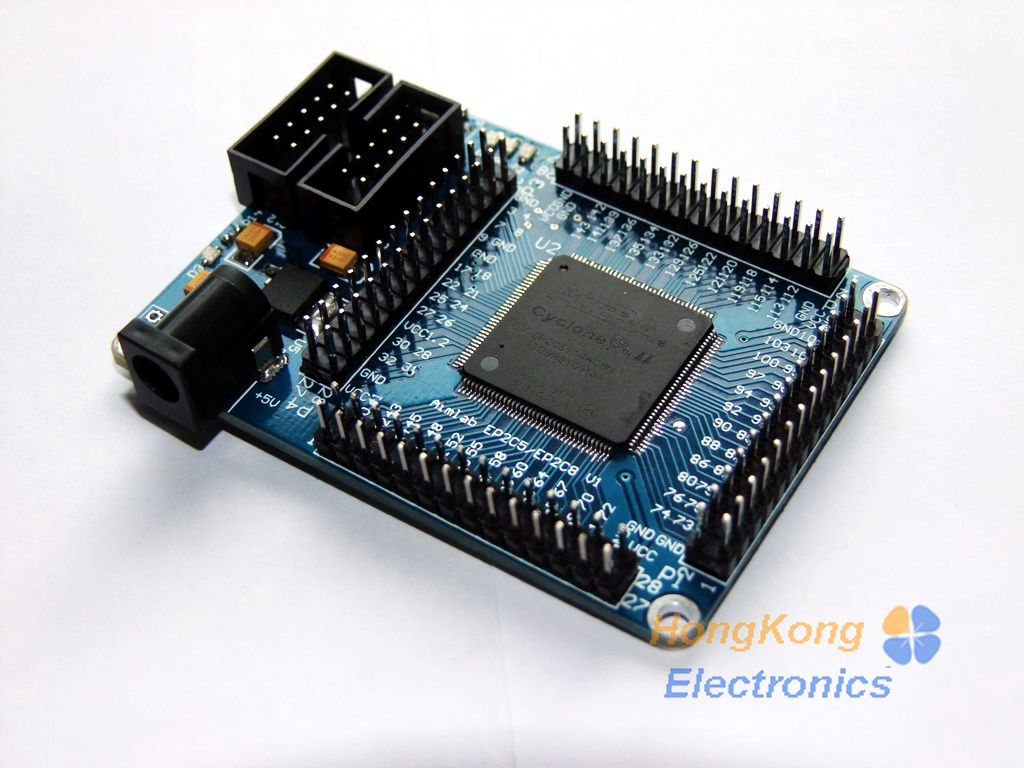

Altera Cyclone II EP2C5T144 FPGA Mini Development Board

Altera Cyclone II EP2C5T144 FPGA Mini Development Board

FPGA บอร์ดรุ่นนี้เหมาะสำหรับการใช้งานสำหรับผู้เริ่มต้น หรือ การออกแบบ logic ในระดับเริ่มต้น  โดย FPGA ที่ใช้เป็น chip จาก Altera รุ่น EP2C5T144  มี ขนาด 4,608 LE

  *** สินค้าตัวนี้ไม่รวม USB Blaster ที่ใช้ในการ upload sof file นะครับ ***

Key Features

1. Cyclone II  EP2C5T144 using ALTERA chip as the core of the company's smallest system, the FPGA easily embedded into the practical application of the system

2. complete from simple logic control, data acquisition, signal processing, mathematical calculations and other functions

3. all of the core board FPGA chip pin all the leads, can be applied directly to the board into the board, the board's 5V power supply can be introduced through the power outlet can also be introduced through the front row

4. very compact size: 6 (cm) * 8 (cm)

Hardware configuration:

1. chip board EP2C5T144 Altera

2. Configuration EPROM chip EPCS4, the size of 4Mbit

3. onboard 50M active patch oscillator (crystal in the back of the board)

4. outlet power supply with a large mouth, single 5V power supply

5. panel power LED and reset switch

6. on-board 3 SMD LED, LED test experiment can be done, more complete experimental use of lead

7. all the IO port pin and clock pin through the leads, these interfaces can be extended by any memory and peripherals

8. board with high-quality tantalum capacitors for power filtering

9. support the development of embedded CPU NiosII

เว็บแนะนำ

http://www.leonheller.com/FPGA/FPGA.html

http://www.altera.com/literature/lit-cyc2.jsp

DataSheet

http://www.datasheetarchive.com/dlmain/SFDatasheet-4/sf-00095703.pdf

PIN Assignment และ Schematic Diagram

http://www.leonheller.com/FPGA/EP2C5T144mini.pdf

http://elecfreaks.com/store/download/datasheet/dev%20platform/fpga/EP2C5T144E&P2C8T144Sch.pdf

โปรแกรม Quartus II  Web Edition (ฟรี) ที่ใช้สามารถ download จาก

https://www.altera.com/download/sw/dnl-sw-index.jsp

Download ตัวอย่าง

•  Cyclone II Device Handbook.pdf
•  EP2C5T144 Altera Cyclone II FPGA Development Board Diagram.pdf
•  EP2C5 core board test.zip
•  ALTREA CY2 Evaluation Board Schematic Diagram.pdf
•  EP2C5T144E Diagrams.zip
