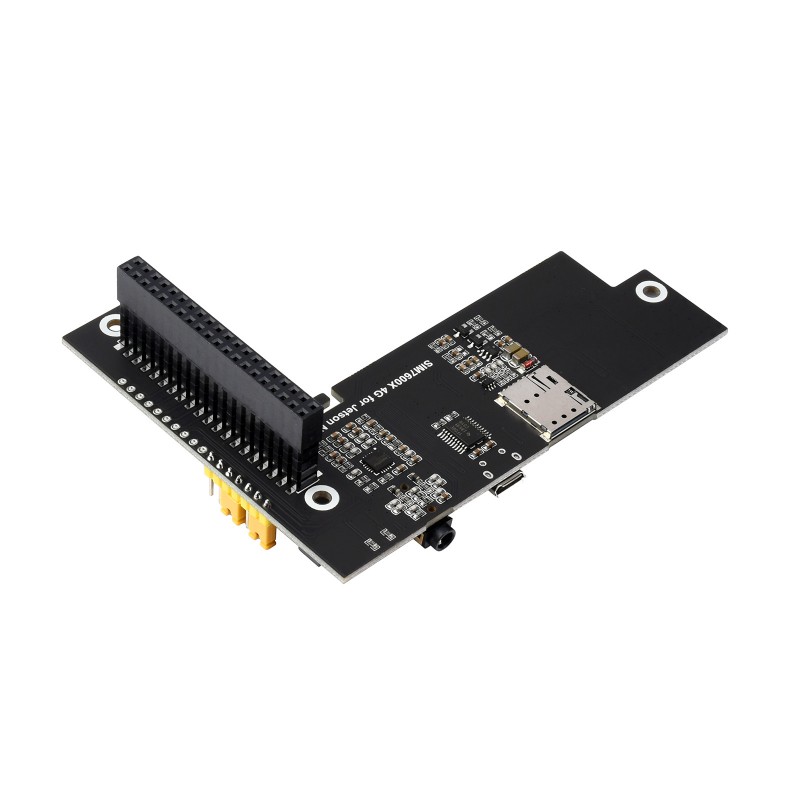

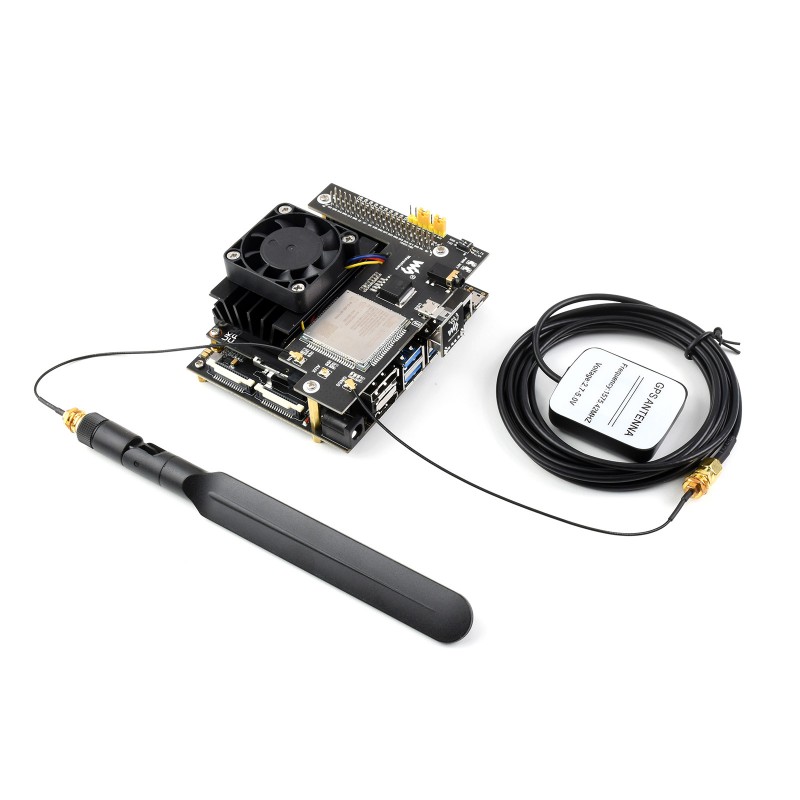

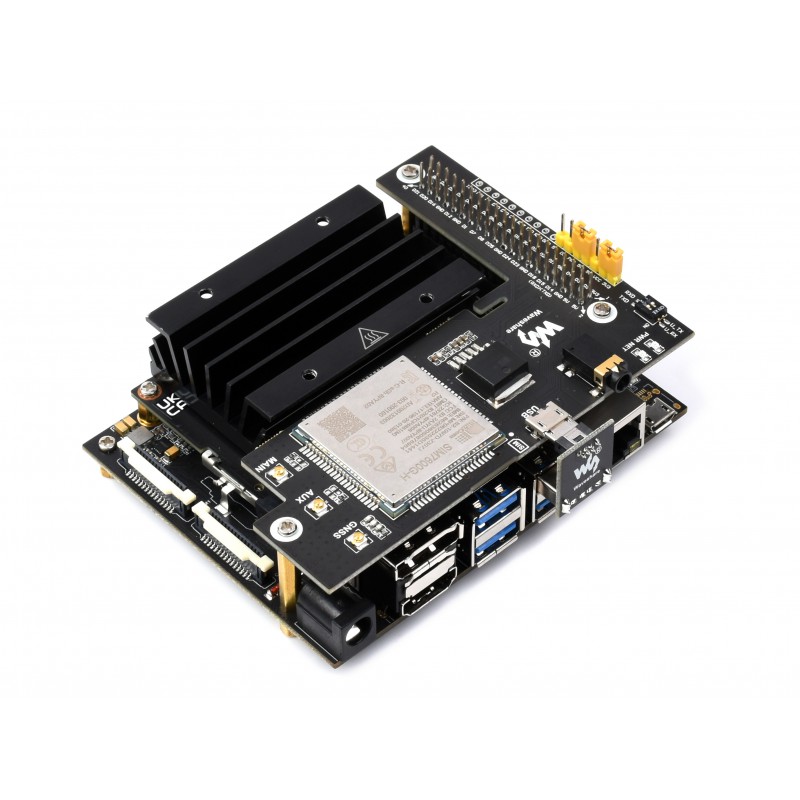

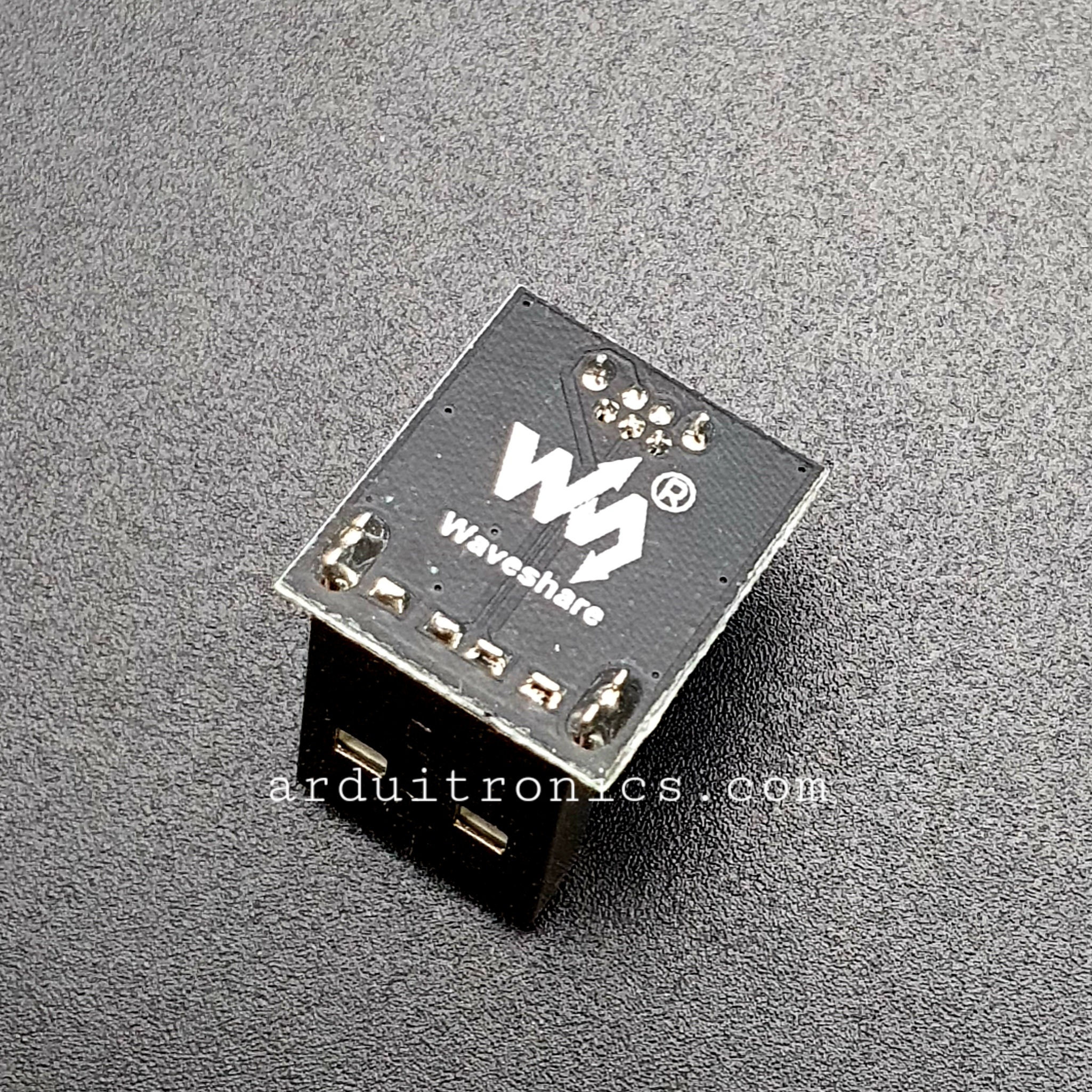

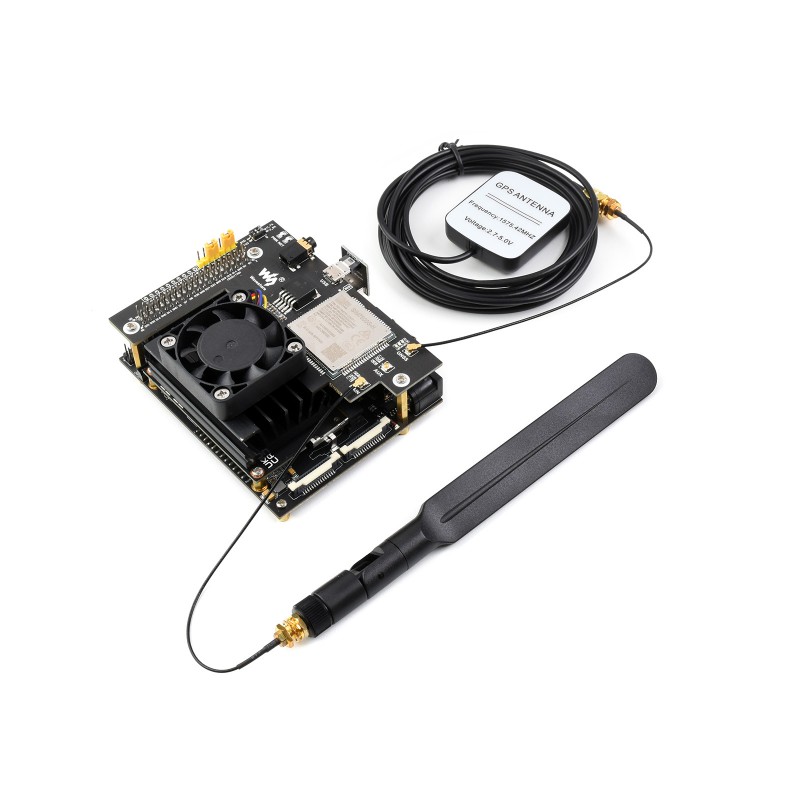

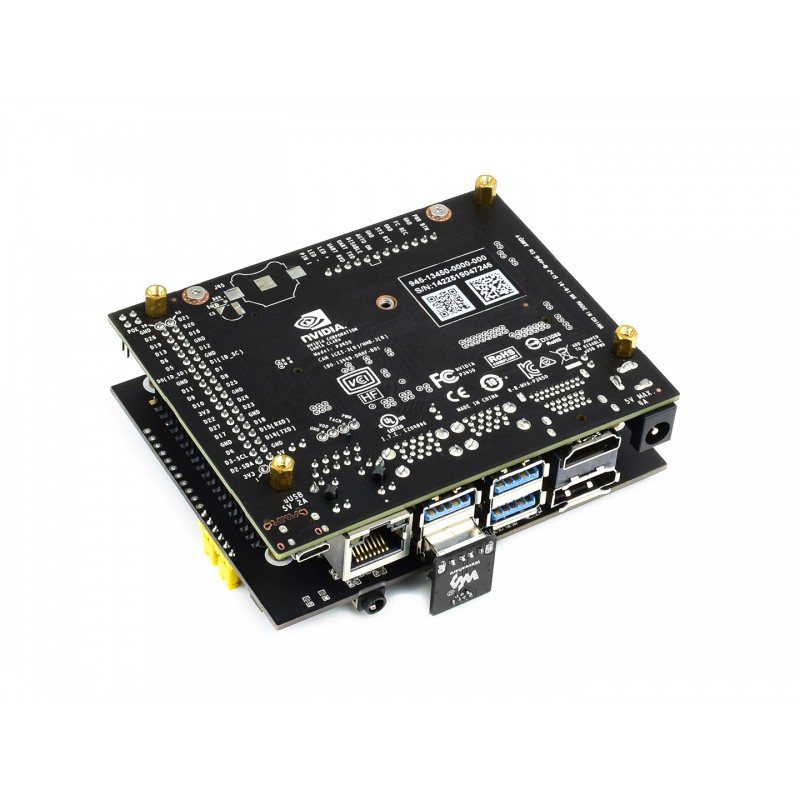

SIM7600G-H 4G / 3G / 2G / GNSS Module for Jetson Nano, LTE CAT4, Global Applicable (แท้จาก Waveshare)

Overview

Features

• 40PIN GPIO extension header for connecting Jetson Nano
• Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
• 2x LED indicators, easy to monitor the working status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32)

Communications Specifications

GNSS Specifications

• Receiver type
  • 16-channel
  • C/A code
• Sensitivity
  • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
  • Cold starts: -148 dBm
• Time-To-First-Fix (open air)
  • Cold starts: <35s
  • Hot starts: <1s
• Accuracy
  • Position: <2.5m CEP

SMS and Audio Specifications

• SMS
  • Supported types: MT, MO, CB, Text, PDU
  • Storage: USIM card and ME (default)
• Audio feature
  • Supports echo cancellation
  • Supports noise reduction

Other Specifications

• Power supply: 5V
• Operating voltage: 5V/3.3V (configured via jumper)
• Operating temperature: -30°C ~ 80°C
• Storage temperature: -45°C ~ 90°C

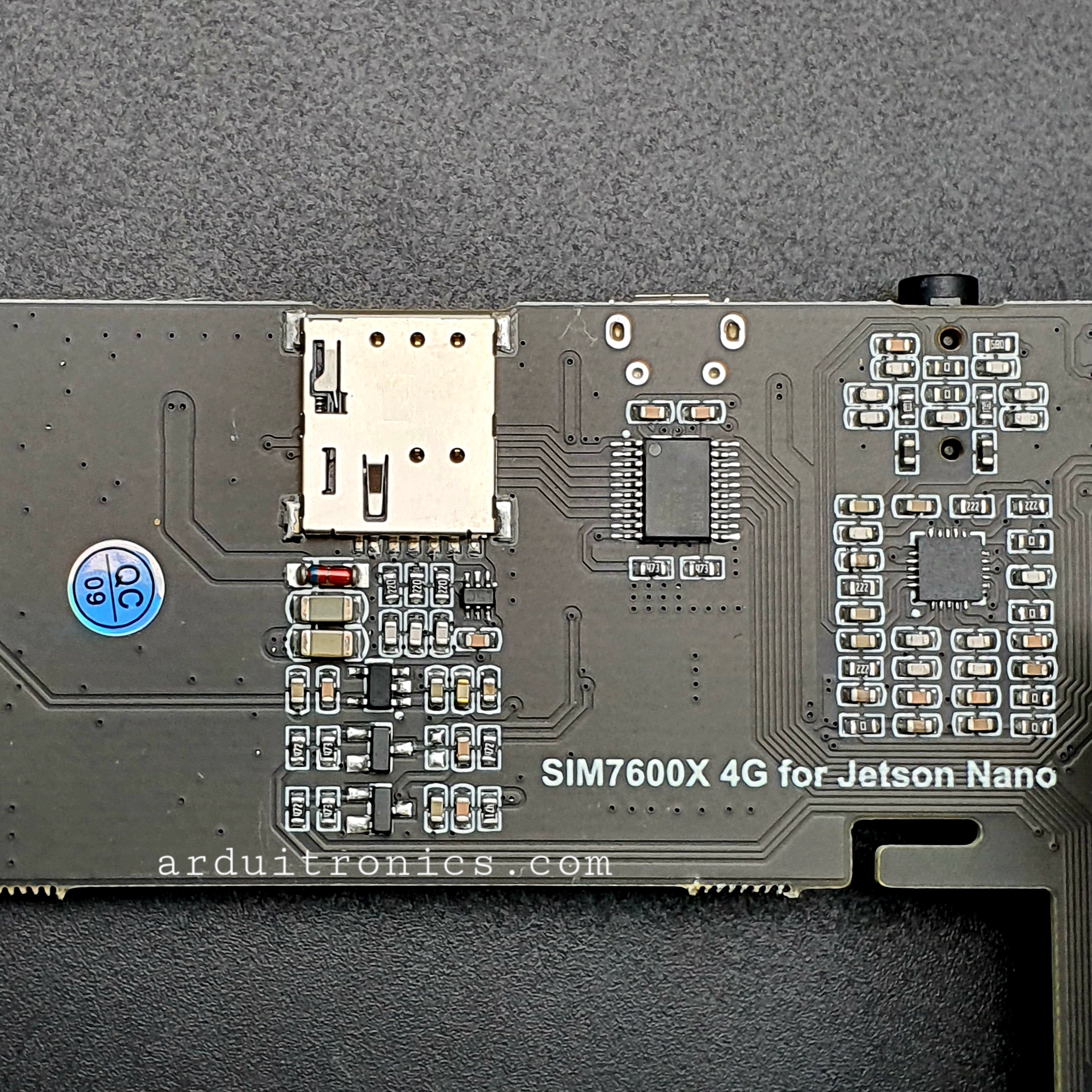

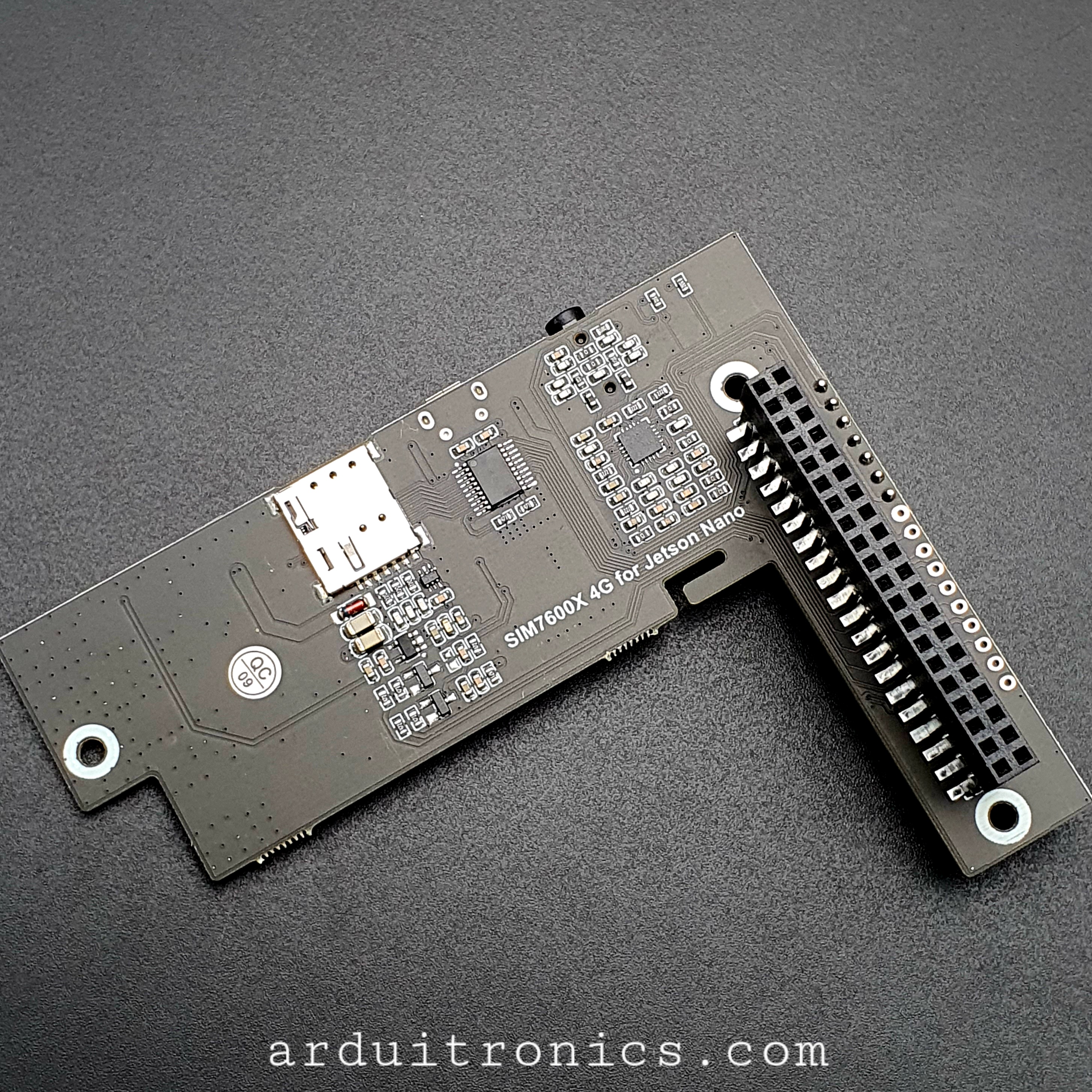

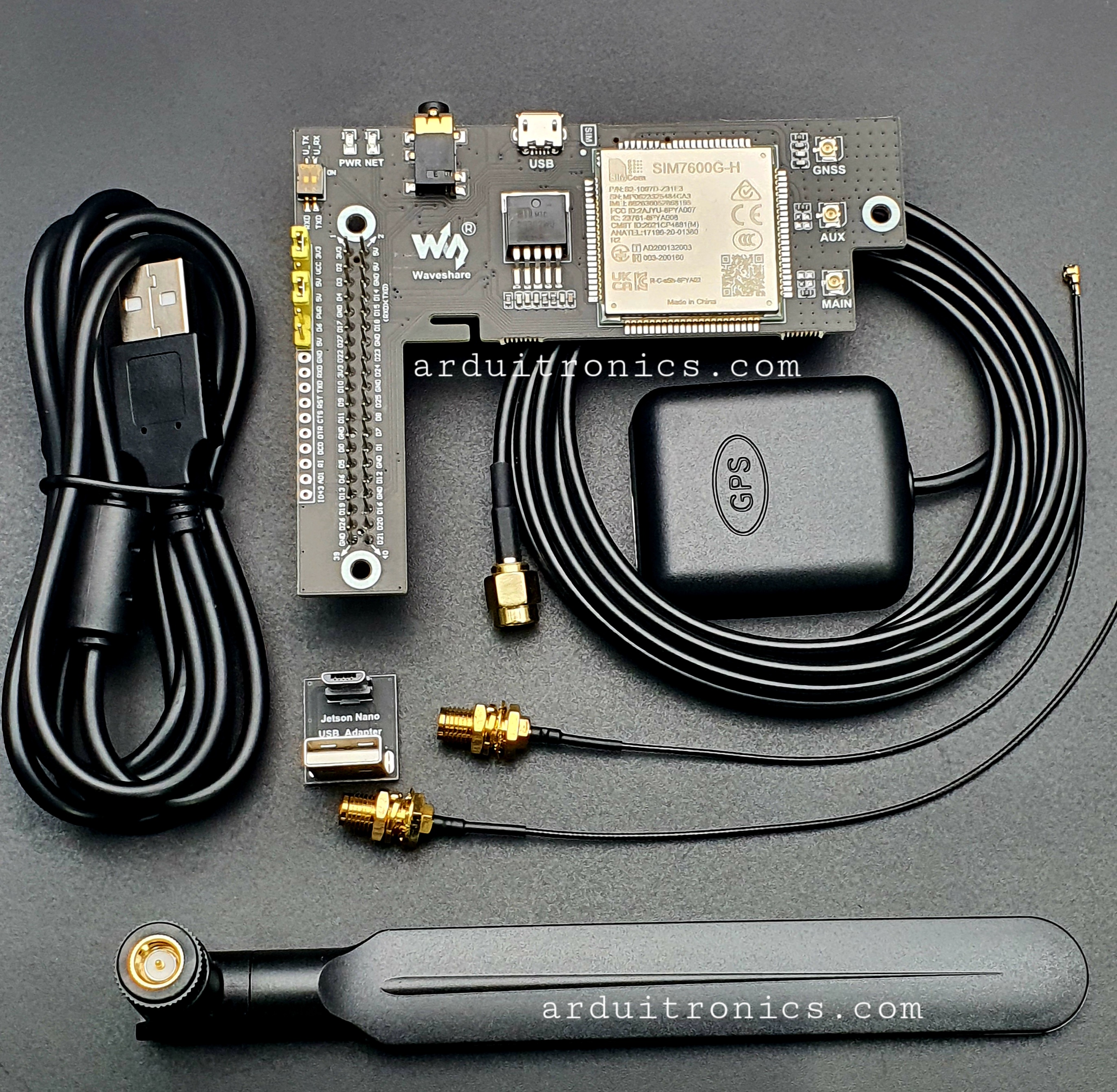

What's on Board

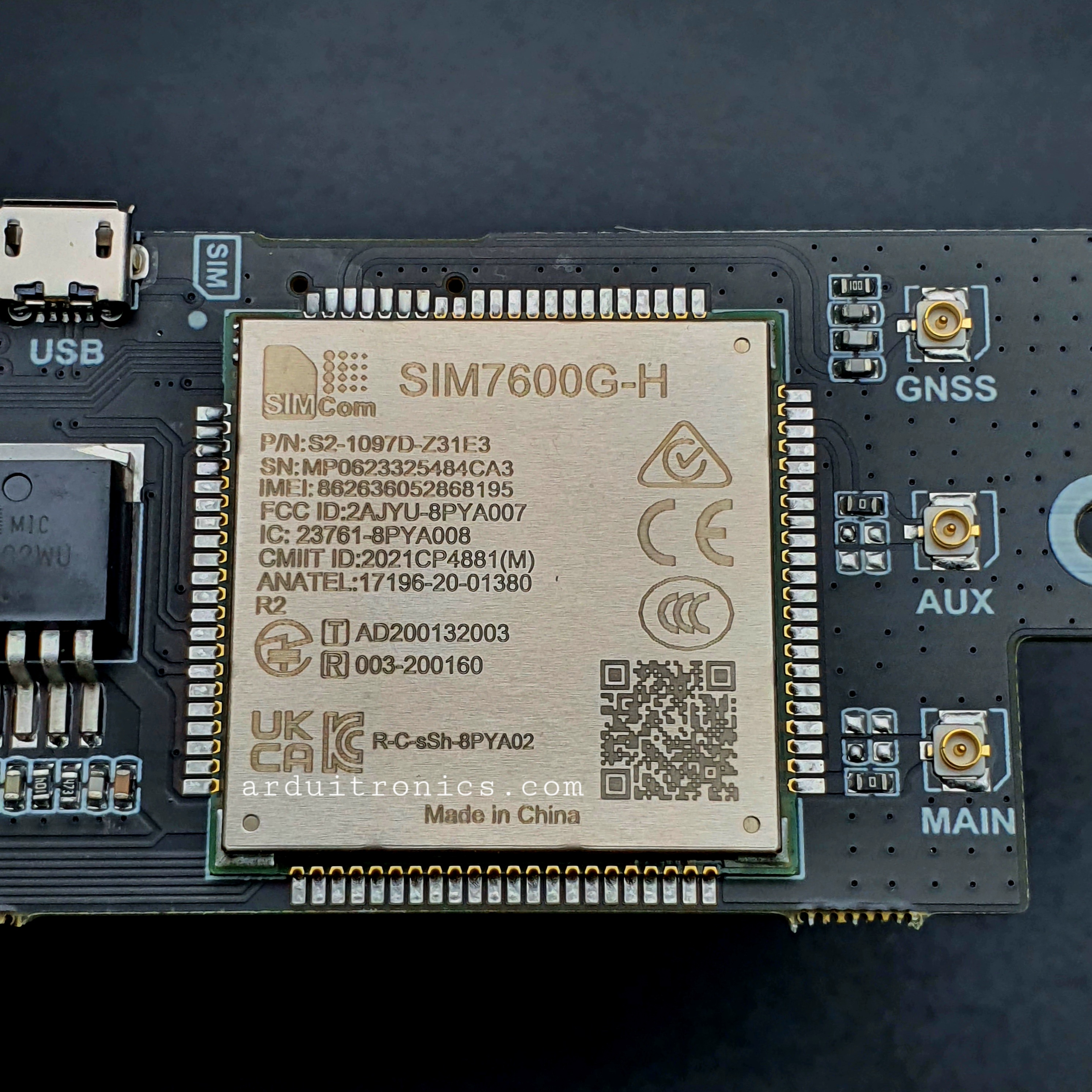

1. SIM7600G-H
2. NAU8810 audio decoder
3. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V

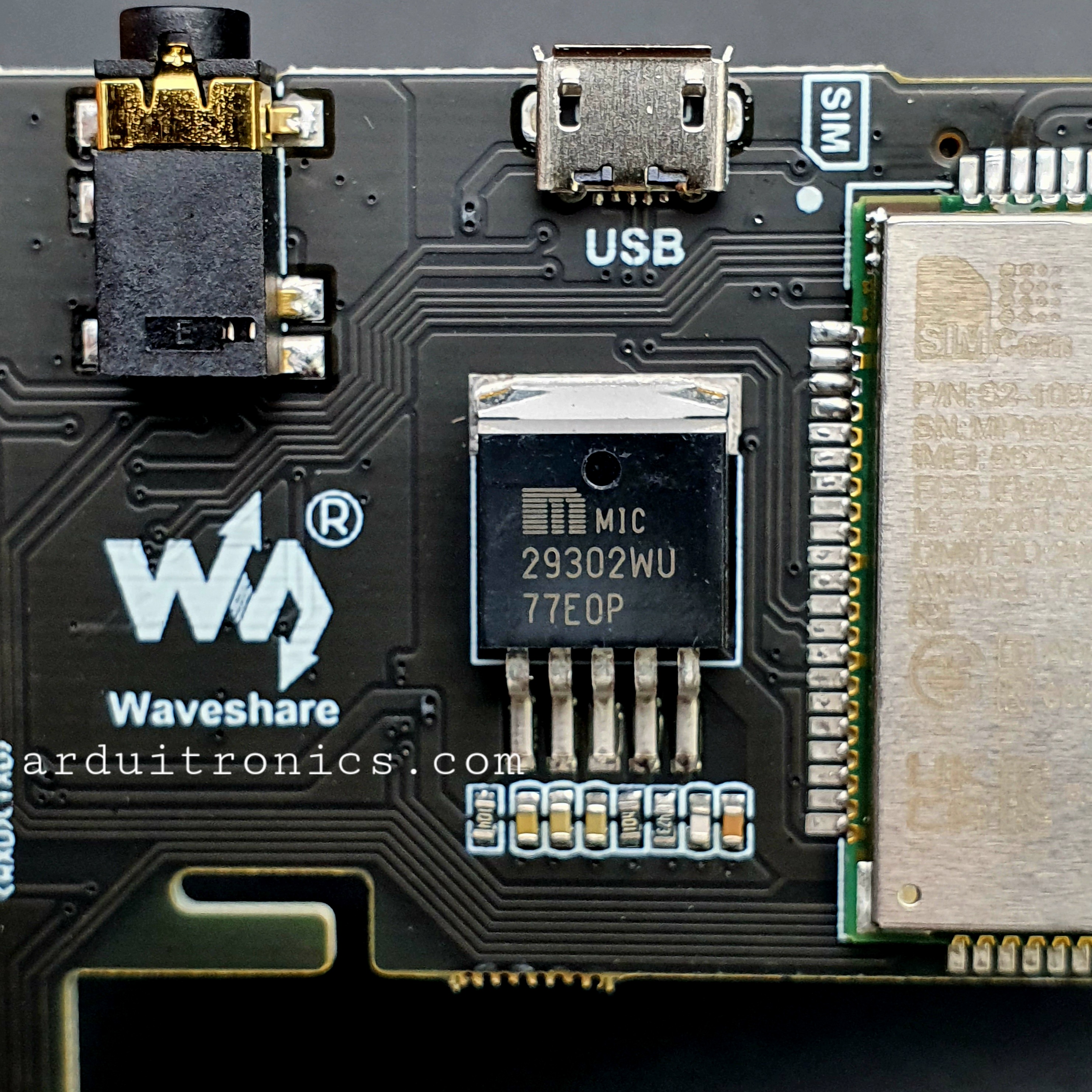

4. SPX29302 power chip
5. RT9193-33 voltage translator: translates 5V into 3.3V

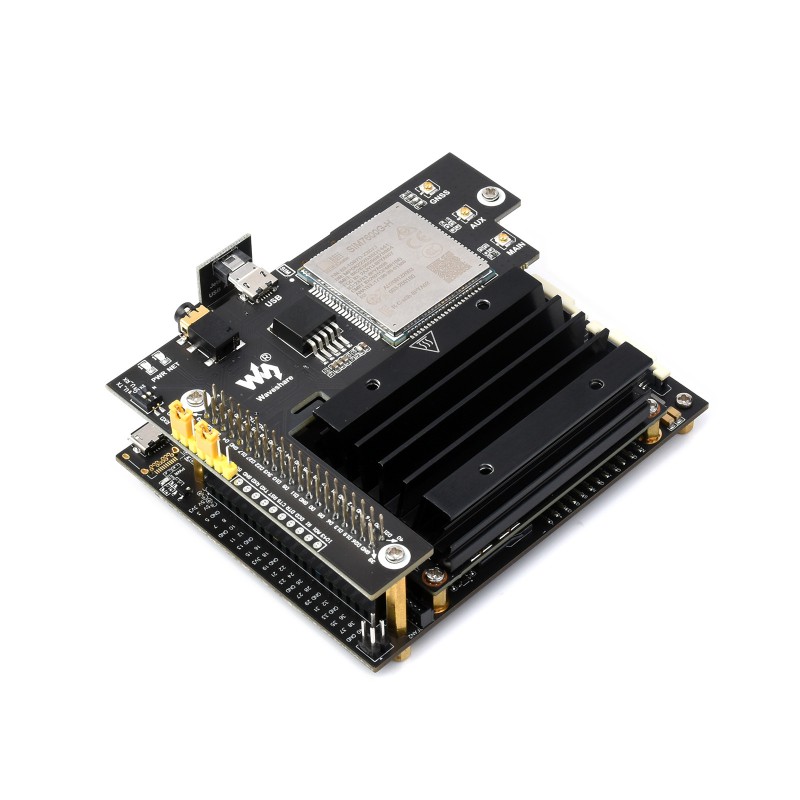

6. 40PIN GPIO header: for connecting with Jetson Nano Developer Kit

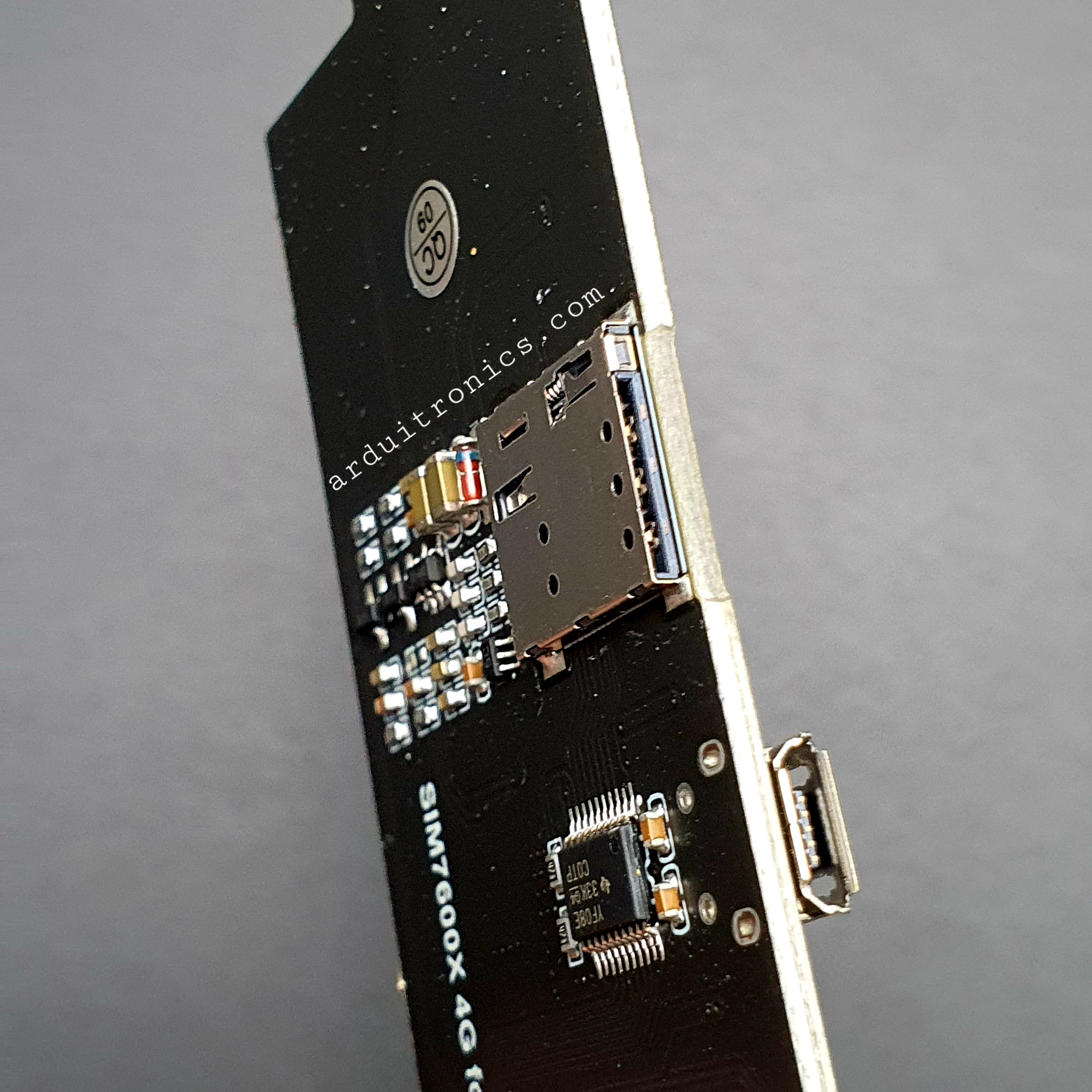

7. Nano SIM card slot: supports 1.8V/3V SIM card
8. USB interface: for testing AT Commands, getting GPS positioning data, etc.

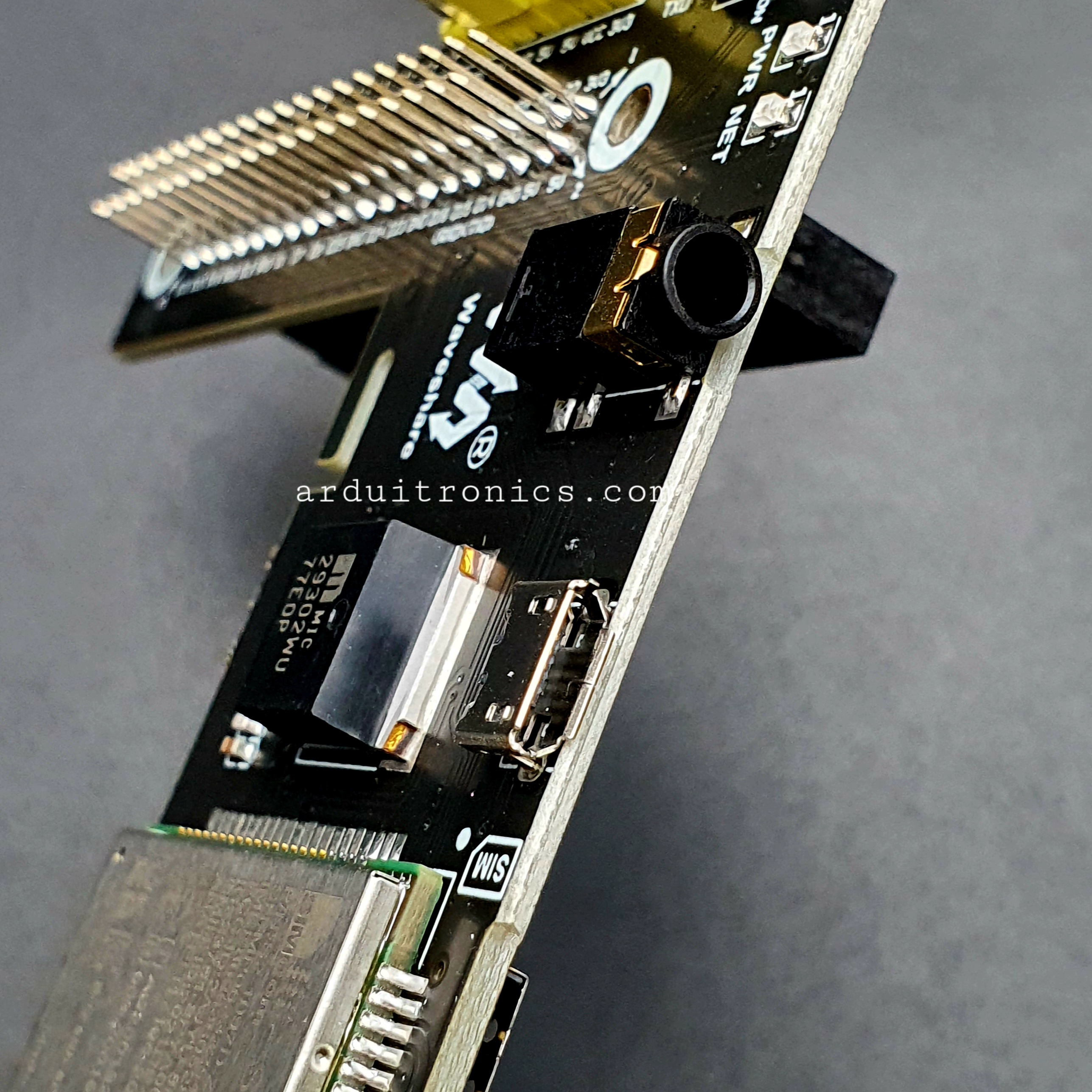

9. 3.5mm earphone/mic jack

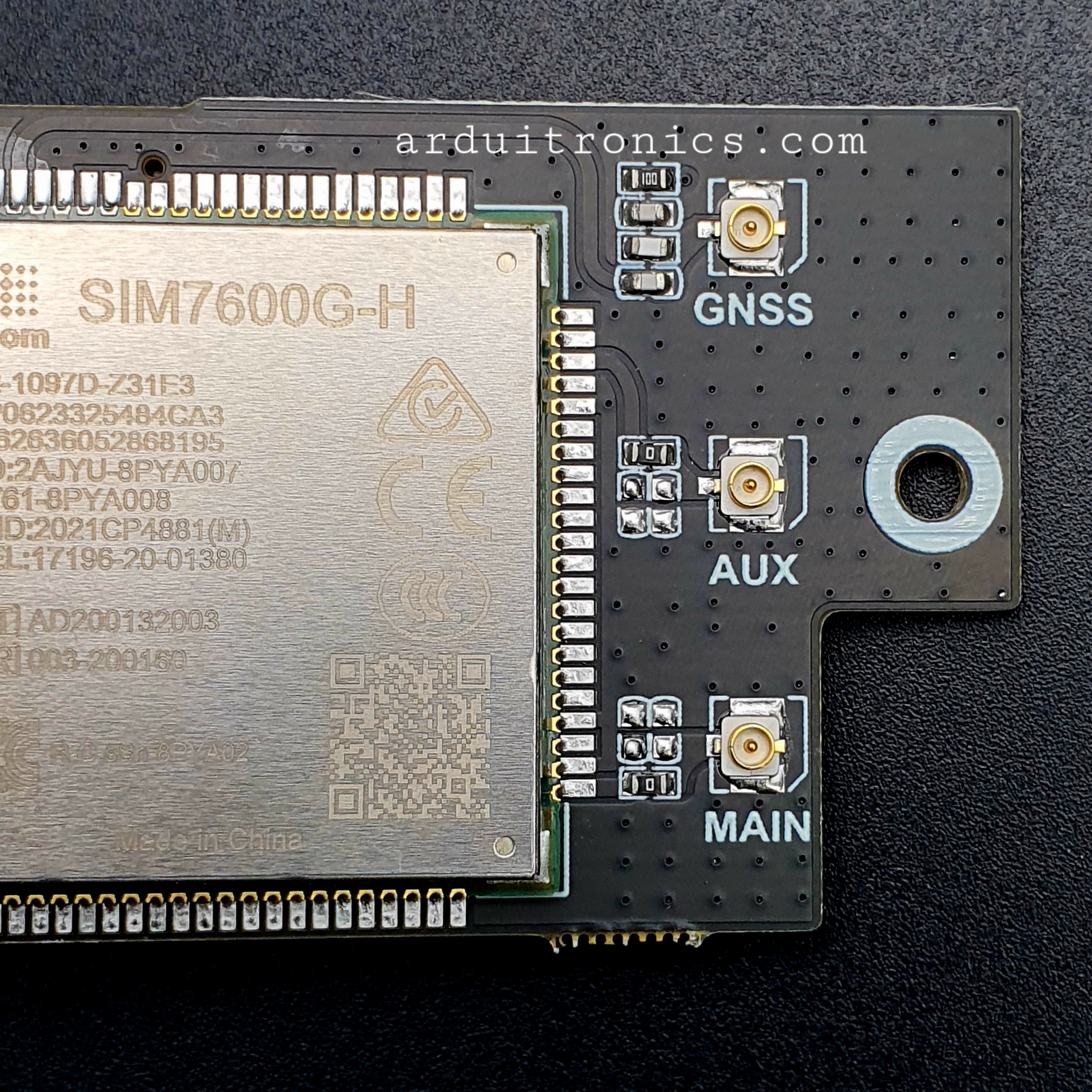

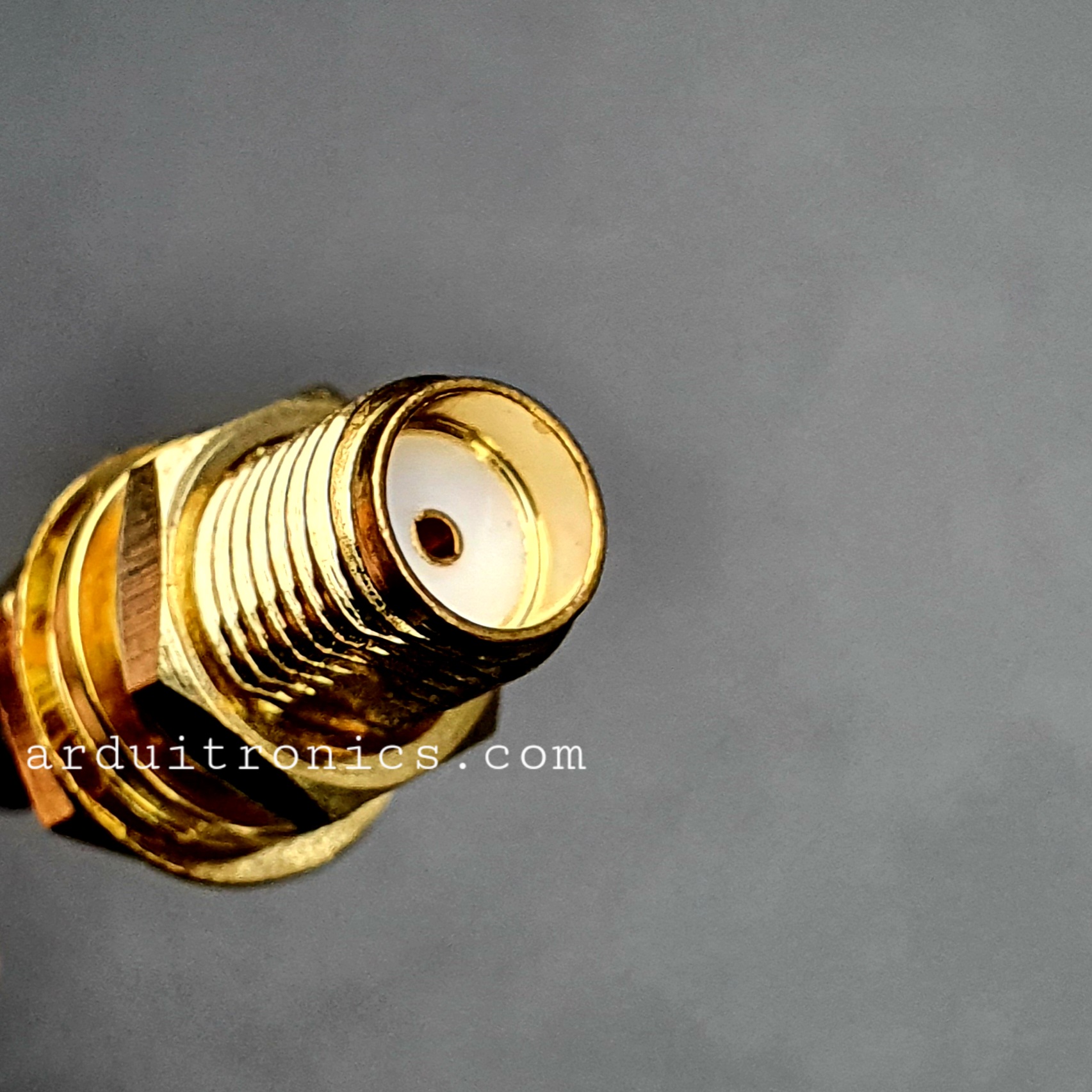

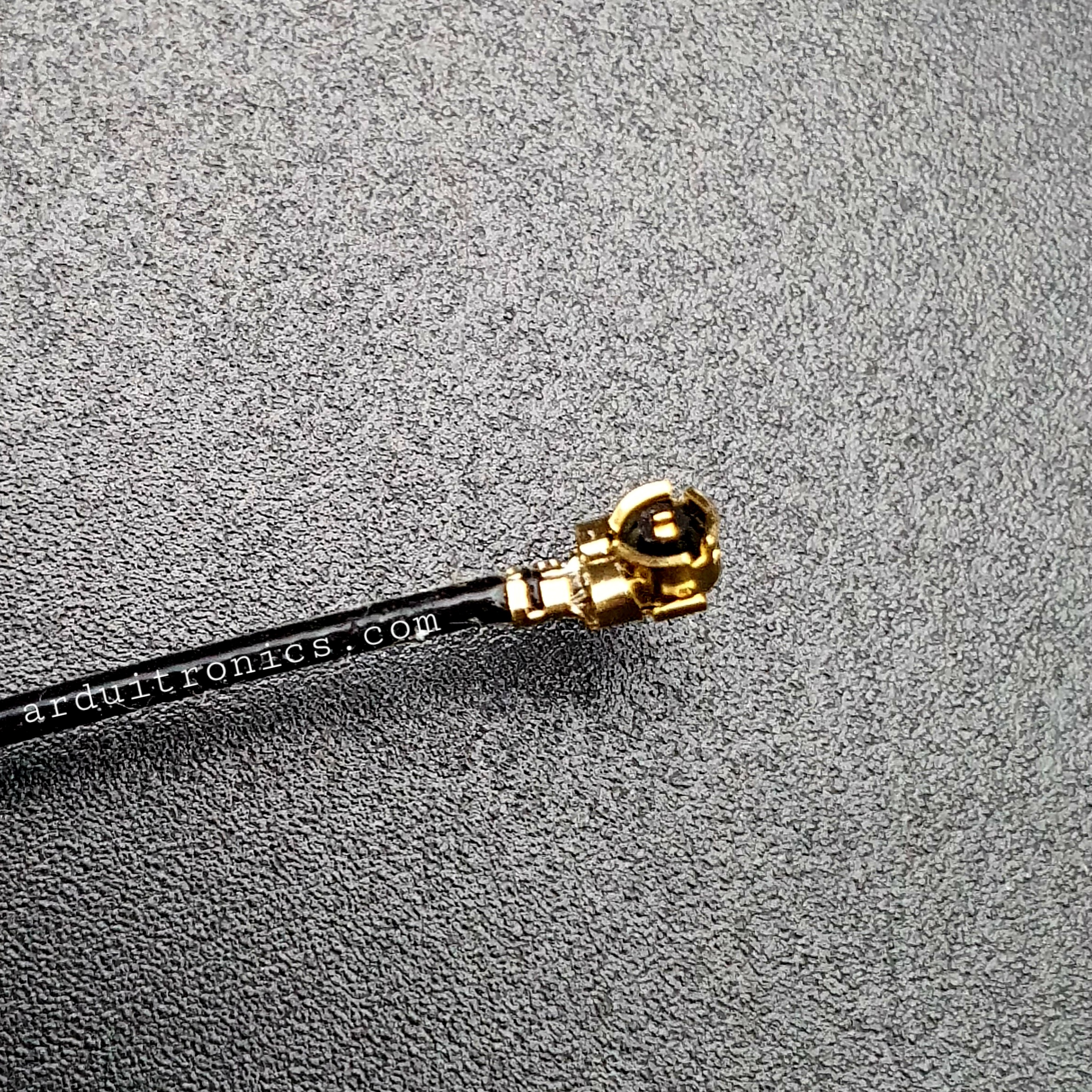

10. MAIN antenna connector
11. AUX antenna connector

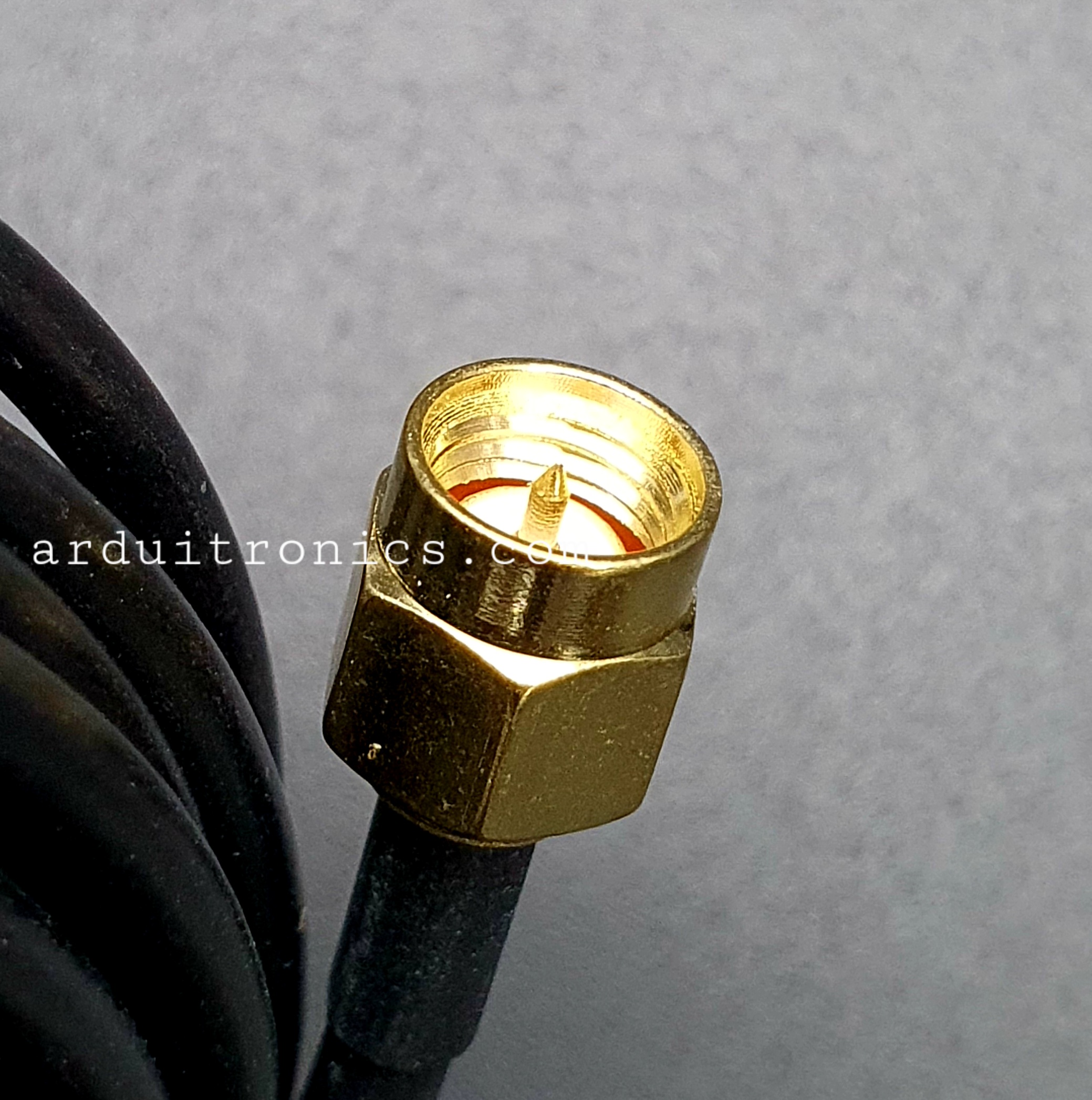

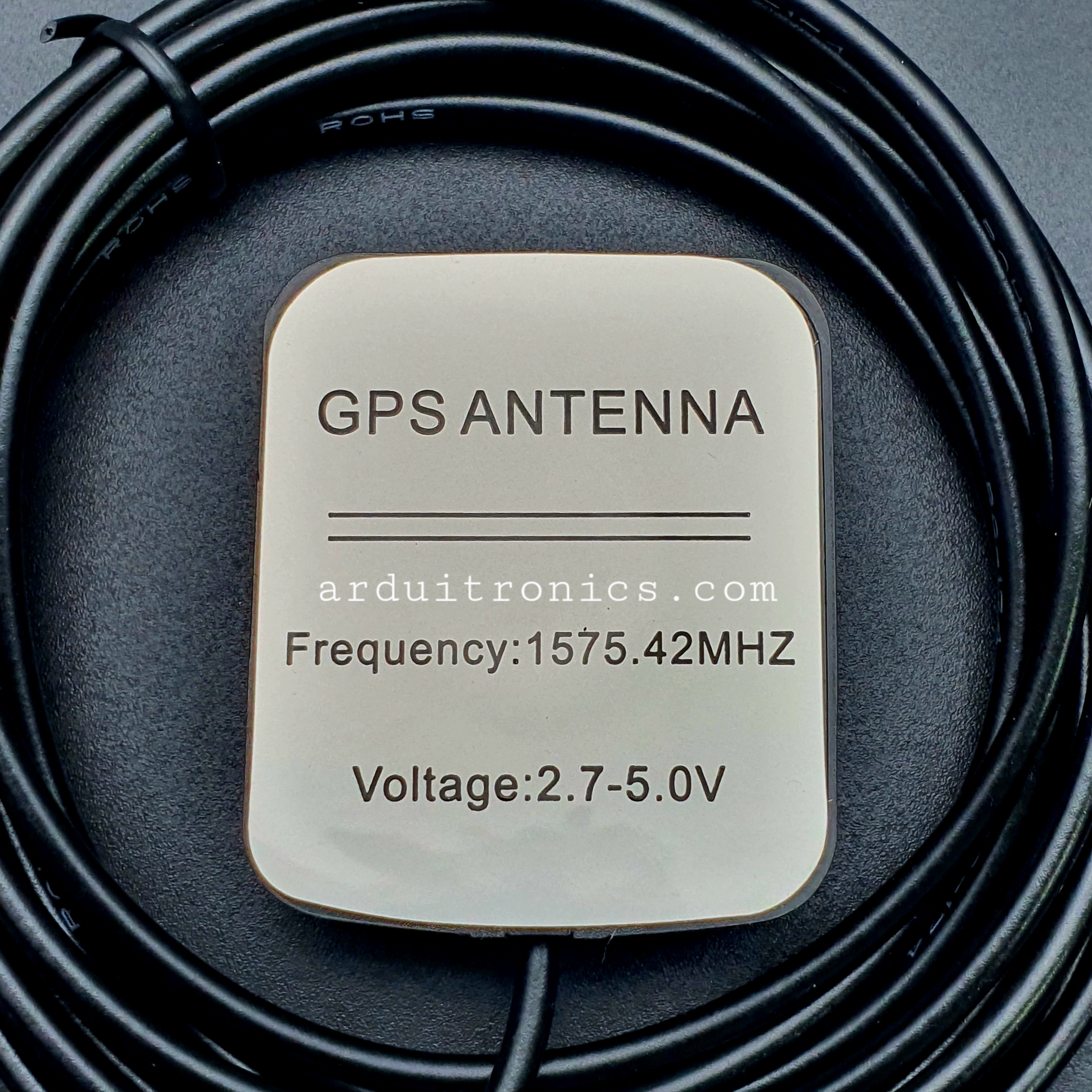

12. GNSS antenna connector
13. Network status indicator
14. Power indicator

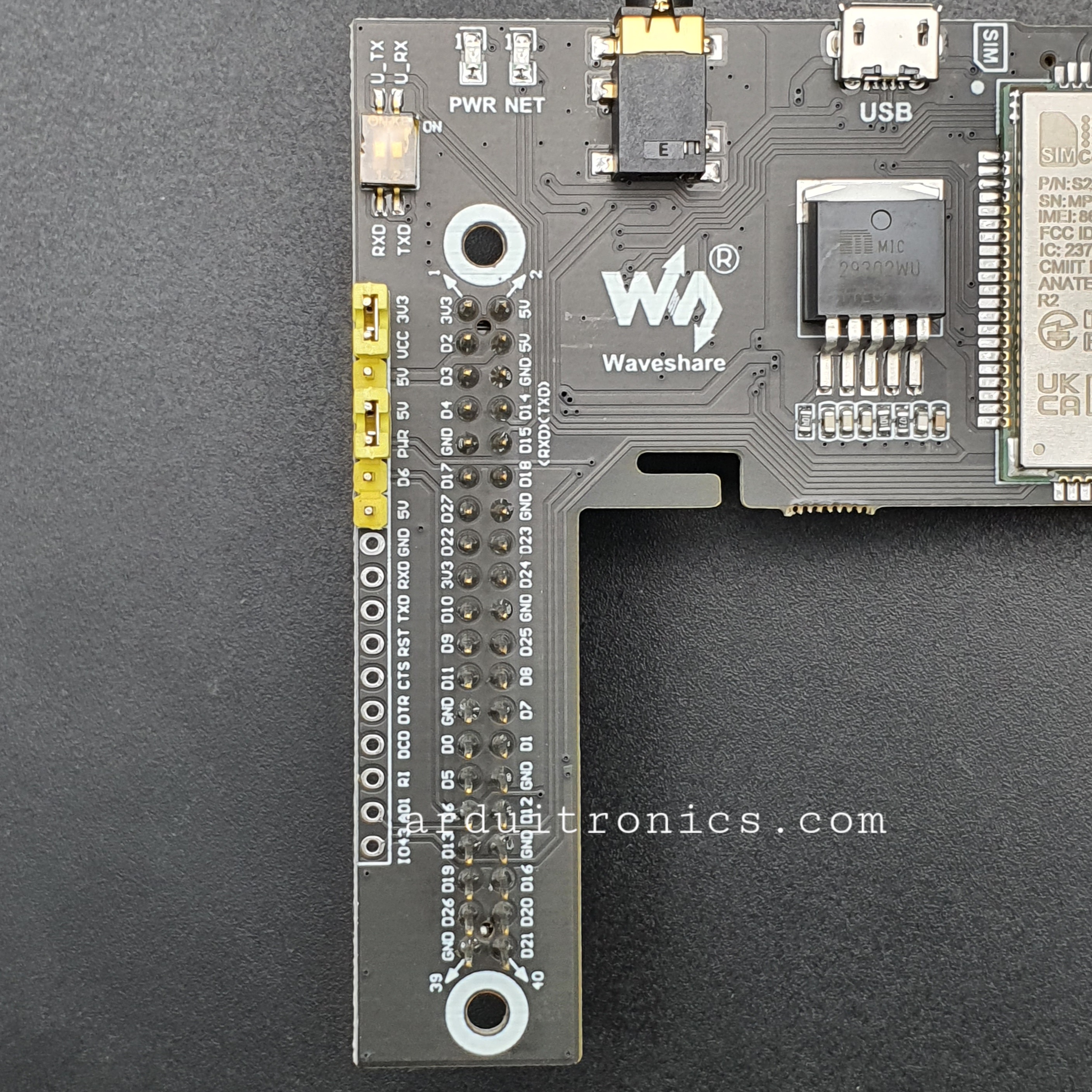

15. UART enable switch:
    ON: connect UART ports of SIM7600 and Jetson Nano
    OFF: disconnect UART ports of SIM7600 and Jetson Nano
16. Operating voltage selection jumper:
    VCC - 3.3V: set operating voltage as 3.3V
    VCC - 5V: set operating voltage as 5V
17. PWR control config:
    PWR - 5V: SIM7600 auto startup on power up
    PWR - D6: SIM7600 will be turned on/off by D6 pin of Jetson Nano

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/SIM7600G-H_4G_for_Jetson_Nano
