GUVA-S12SD เซ็นเซอร์วัดความเข้มของแสง UV Sensor Module S12SD for Arduino

Example of Library and Code

เซ็นเซอร์วัดความเข้มของแสง UV Sensor Module S12SD
UV Sensor Module (CJMCU GUVA S12SD) เป็นเซนเซอร์วัดแสง  UV  Output ที่ได้เป็นแบบ analog 0-1VDC วัดค่าได้ 0-10 UV Index ใช้ไฟเลี้ยง 2.5-5VDC เหมาะสำหรับนำไปทดลองการเก็บข้อมูลรังสี UV ในช่วงเวลาต่างๆของวัน  หรือเอาไว้แจ้งเตือนปริมาณรังสี UV ใช้ได้ทั้ง Arduino และ NodeMCU

An UV Sensor is used for detecting the intensity of incident ultraviolet (UV) radiation – radiation lying in the ultraviolet range, with wave lengths shorter than light but longer than Xrays. UV sensors are widely used in many different applications, including but not limited to automobiles, pharmaceuticals and robotics. Now a days, a vast range of pre-wired UV sensor modules are readily available for use by amateur and professional design engineers and hobbyists. These microcontroller-compatible modules can be used for detecting the intensity of incident ultraviolet radiation, like the UV radiation in sunlight.

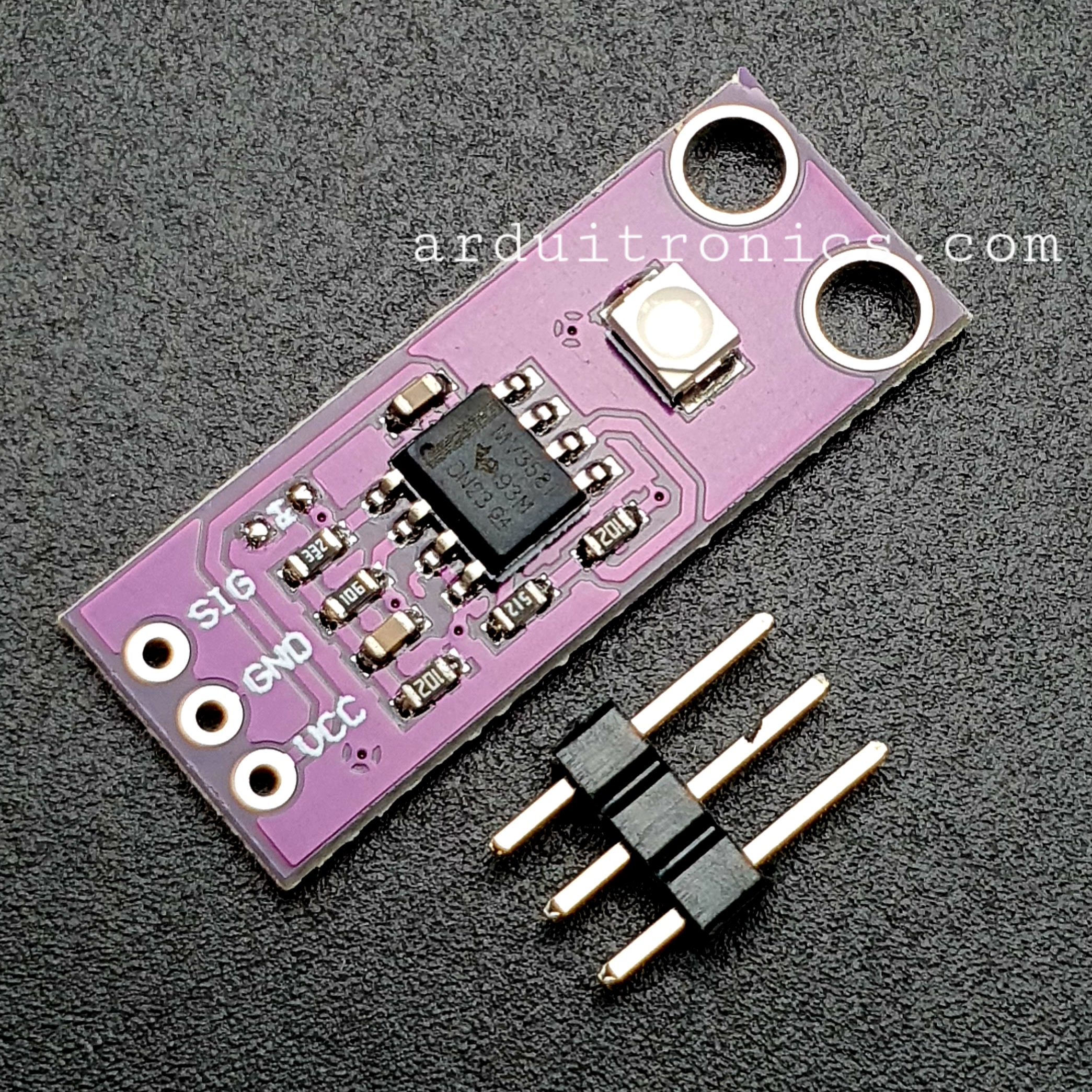

Recently, I bought such a module (photograph of which is shown above) for my next UV electronics experiment, and really impressed by its simple internal circuitry. The module, with typical UV detection wavelength of 200 – 370nm, outputs a calibrated analog voltage which varies with the UV light intensity. Good for interfacing with any MCU through one ADC channel!

Features :
Size: 11 mm x 27 mm
Low power consumption, the power supply voltage of 2.5 V ~ 5 V, working current is microamps level
Good linear
High sensitivity
High stability
Wide detection range: 240 nm to 370 nm
The big Angle: 130 degrees
Schottky type photosensitive diode, apply light electric model
Output: 0V to 1V ( 0 to 10 UV Index)
