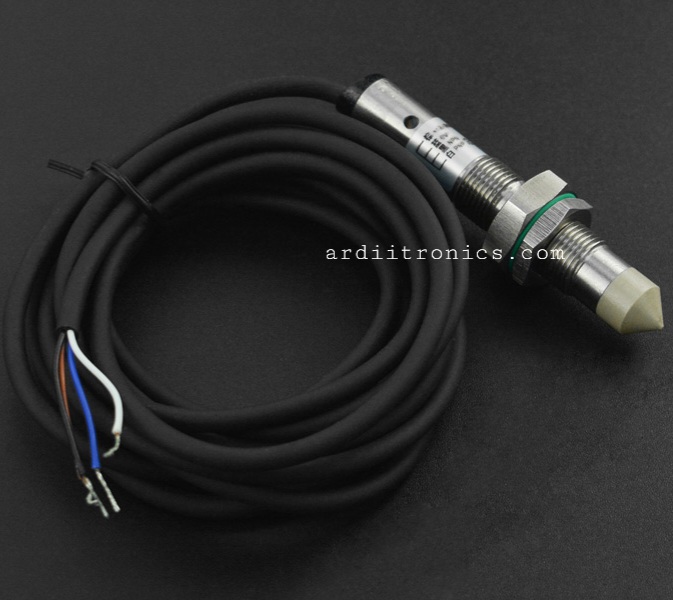

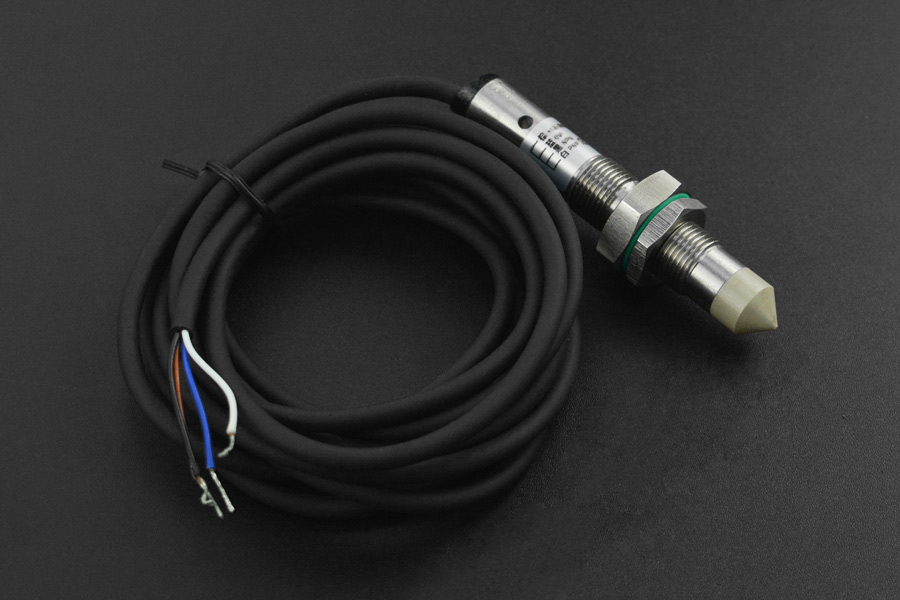

Industrial Capacitive Liquid Level Sensor for High-Viscosity Liquids (แท้ DFRobot)

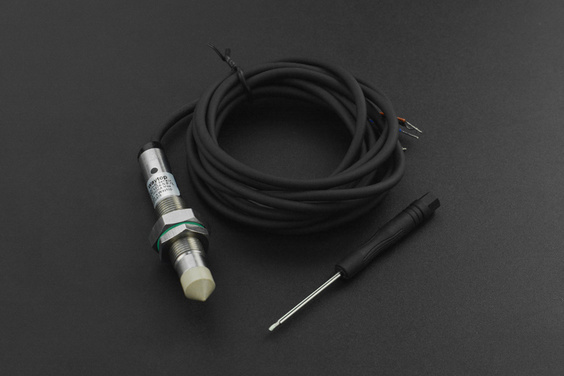

SHIPPING LIST

• Industrial Capacitive Liquid Level Sensor for High-Viscosity Liquids x1
• Screwdriver x1

INTRODUCTION

Different from our previous liquid level sensors, this capacitive liquid sensor can be used to detect high-viscosity and low-corrosive liquids, such as glue, lubricating oil, grease, ink, engine oil, powder and other special materials.

The sensitivity of the sensor can be adjusted by the knob (clockwise to increase, counterclockwise to decrease) to adapt to more media. It has an indicator light to feedback the sensor status in real time, and comes with polarity protection and over-current protection mechanism.

Capacitance contact detection: Determine whether there is liquid and distinguish between liquids by detecting the capacitance of the liquid.

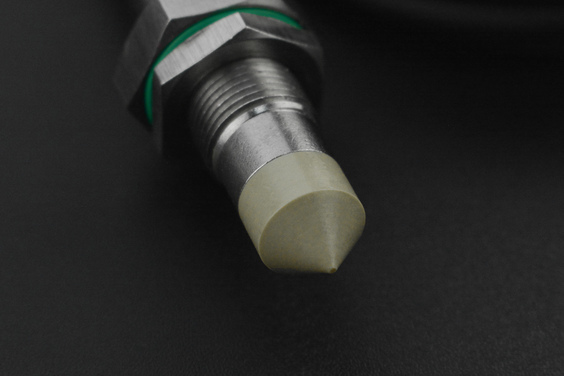

Conical head of anti-hanging-liquid design: Reduces the phenomenon of hanging liquid in detecting.

Stability design: With temperature compensation, the liquid level sensor can detect stably in the range of low temperature -25°C and high temperature 75°C. These detailed designs ensure the stability of detection performance to a large extent.

Material: The head is made of PEEK material, the shell is made of 316 stainless steel, with general anti-corrosion performance, M12*1 standard thread, easy to install.

Precautions

The liquid sensor should not be used in the following cases:

• Temperature exceeds 75°C
• Pressure higher than 0.3MP
• There is dry glue on the probe that can't be removed

FEATURES

• Can detect high viscosity and low corrosive liquids
• Conical head of anti-hanging-liquid design
• NPN+PNP dual output

APPLICATIONS

• Detect high viscosity and low corrosive liquids

SPECIFICATION

• Detection Mode: Contact detection
• Detection Principle: Capacitive detection
• Power Supply Voltage: 12-24V
• Detection Object: High viscosity and low corrosive liquid
• Speed: Response speed is 20ms, switch output frequency is 50Hz
• Output Signal: NPN+PNP Dual Output
• Output Current: Max100mA
• Working Power: < 0.5W
• Working Temperature: -25°C~+80°C
• Protection Level: IP65
• Appearance Material: PEEK/316 stainless steel
• Protection Mechanism: Polarity protection, over-current protection

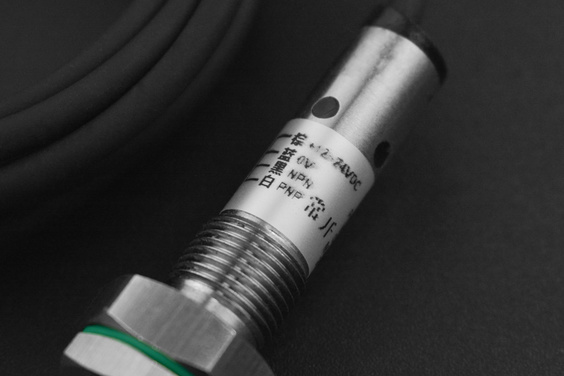

• Wiring Instructions: Brown-positive, blue-negative, black-NPN, white-PNP
