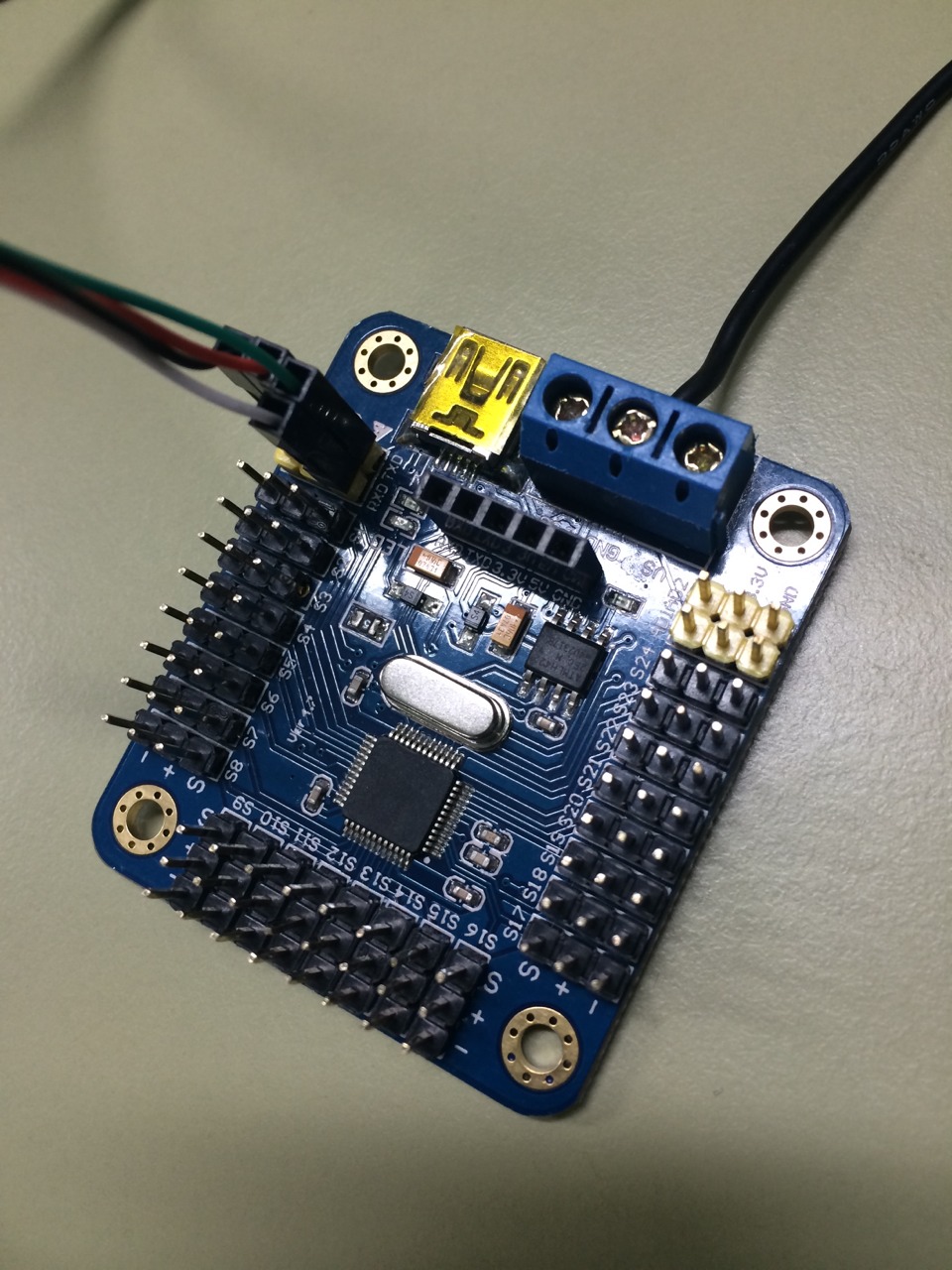

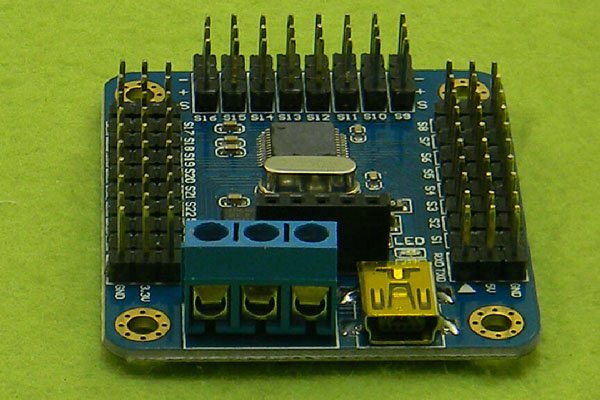

Mini USB 16-Way Steering Servo Motor Controller Board

Arduino mini USB 16 path Servo Motor Steering Gear control board/ Controller USC-1(C2B3)

Advantage:

You can use the computer software to control the robot, or control over your steering. Can control 16 steering gear, a high precision at the same time (us), using the imported from 32 bit CPU, internal integration USB communication interface, high stability and precision. Supports the latest Windows 8 systems!

Features:

• Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board.And it can be chosen automatically.With the USB reverse protection,it can protect your computer from been hurted by the reverse USB.)
• Servos power supply: DC (depends on the motors, generally 5V DC)
• Control channels: 16. (can be controlled at the same time and the accuracy can be adjusted)
• Communication Input: USB or UART (TTL or USART). (The Bluetooth or some other wireless module can be used to make the controlling)
• Signal Output: PWM (Accuracy 1us).
• Servo motor resolution: 1us, 0.09 degrees.
• Baud Rate: 9600,19200,28400,57600,115200,128000(recognized automatically)
• Servo motors supported: Futaba, Hitec or some other Servos Motor controlled by PWM.
• Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software)
• Flash: onboard 512K ROM(If every command is used to control the motors at the same time,more than 500 commands can be saved.)
• Dimensions: 51mm x 43.5mm x 1.6mm
