ดูการเริ่มต้นใช้งานได้ที่ Click

INTRODUCTION

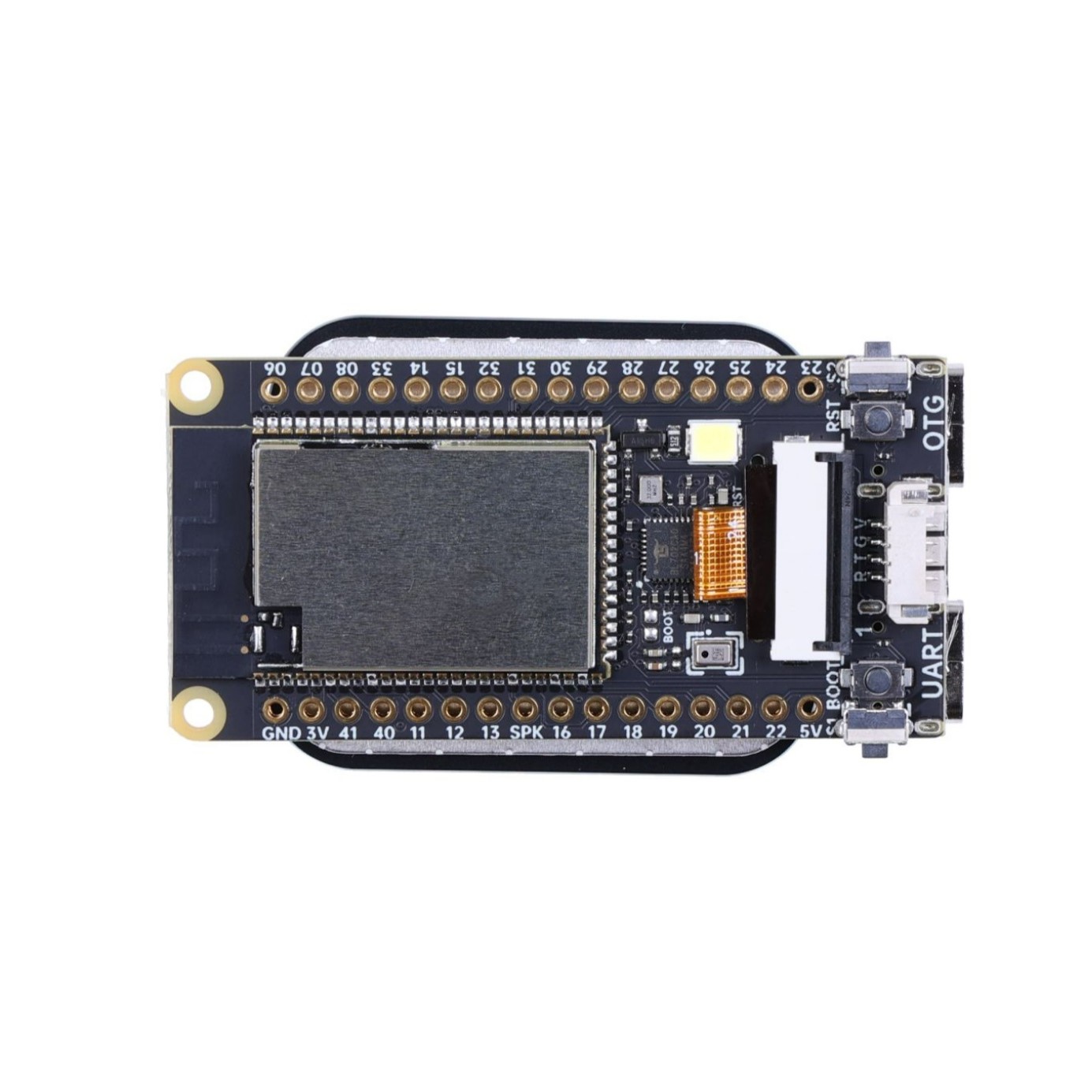

Sipeed M1s Dock is a development board designed based on Sipeed BL808 M1s Module that supports 2.4G WIFI/BT/Bluetooth5 and is equipped with a base of the screen and base of the MIPI camera. Designed with the most minimal design, for customers to evaluate the module, or hobbyists to play directly, etc.

Sipeed M1s Dock is a powerful core board with a screen and uses the BL808 RISC-V as the CPU, and the powerful tri-core heterogeneous architecture can play a role in high-performance computing power.



BL808 mainly includes two subsystems, wireless and multimedia. The wireless subsystem includes a RISC-V 32-bit high-performance CPU, integrated Wi-Fi /BT/Bluetooth5 wireless subsystem, which can provide a variety of connection and transmission experiences. The multimedia subsystem includes a RISC-V 64-bit ultra-high-performance CPU and integrates video processing modules such as DVP/CSI/ H264/NPU, which can be widely used in various AI fields such as video surveillance/smart speakers. As well as the BLAI-100 (Bouffalo Lab AI engine) NPU for video/audio detection and/or recognition.

It supports 2.4G WIFI/BT/Bluetooth5. You can choose different networking methods according to your needs to achieve different functions. At the same time, the M1s Dock comes with a USB to UART debugger, so you can easily burn code to the board with just one click. And then It has more rich features that are equipped with a base of the screen and base of the MIPI camera, as well as onboard an analog microphone, an LED and a TF card slot. For example, you will have a richer experience when choosing a 1.69-inch 240x280 capacitive touch screen and 200W pixel camera.

One advantage of the BL808 is that it can support Linux, and the microcontroller does include an MMU, so you would not have to deal with the usual uClinux headaches.


FEATURES

  • Stronger-performance CPU: main chip BL808 RISC-V + NPU BLAI-100, the highest operating frequency of 480MHz to achieve the powerful performance of three-core heterogeneous.
  • Wireless three-mode integration: Support 2.4G WIFI / BT / Bluetooth5, any mode can efficiently be networked.
  • One-click easy Burning: Sipeed M1s Dock has an onboard USB-to-UART debugger, which can realize one-click burning without pressing physical buttons.
  • Friendly visualization features: The onboard display interface (optional 1.69-inch 240x280 capacitive touch screen) and the MIPI camera interface (optional 200W pixel camera) provide a stronger visual experience.
  • High port compatibility: Route USB-OTG to USB Type-C port.

SPECIFICATION





Main Chip BL808



CPU



RV64GCV 480MHz



RV32GCP 320MHz



RV32EMC 160MHz



NPU



BLAI-100



Capacity



768KB SRAM + 64MB UHS PSRAM



Encode and Decode



MJPEG and H264(Baseline/Main)



1920x1080@30fps + 640x480@30fps



Camera interface



DVP and MIPI-CSI



Display interface



SPI、DBI、DPI(RGB)



Wireless



Wi-Fi 802.11 b/g/n



Bluetooth 5.x Dual-mode(BT+Bluetooth)



Wi-Fi / BT co-existence



Port



USB 2.0 HS OTG/TYPE-C



Basic Parameters



Onboard components



USB to UART debugger



1.69-inch 240x280 capacitor touch screen



2M solution camera



1 analog microphone、1 LED、1 TF card slot



TYPE-C interface



5V±10% 0.5A



Temperature rise



<30K



Operating temperature



-10℃ ~ 65℃


DOCUMENTS

SHIPPING LIST

  • Maixduino controller x1
  • 2.4” LCD screen x1
  • GC0328 camera x1

Hardware Overview

Function block


Dimenssion

Pin Out

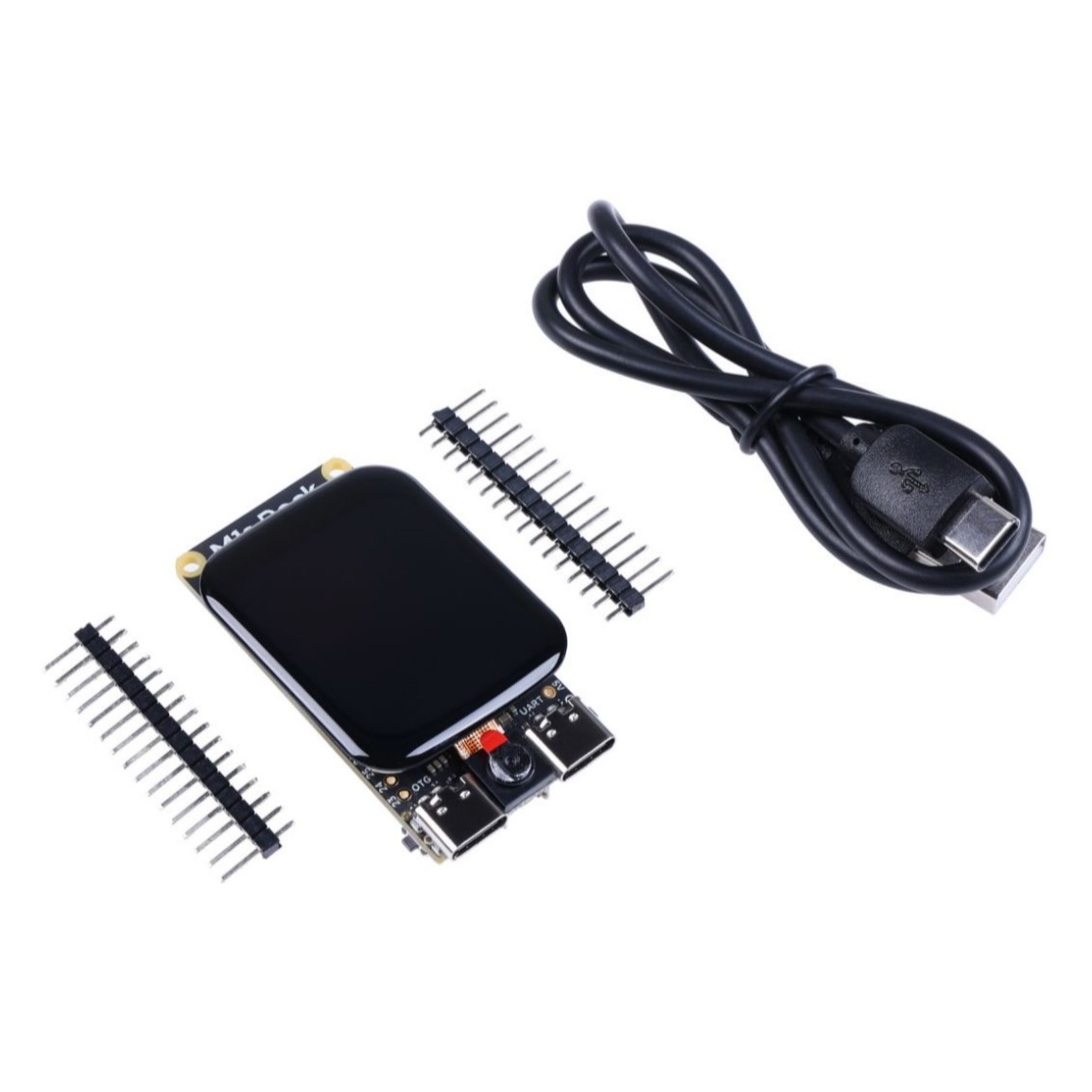

Part List



M1s Dock



×1



TYPE-C Cable



×1



Pin Header



×1
