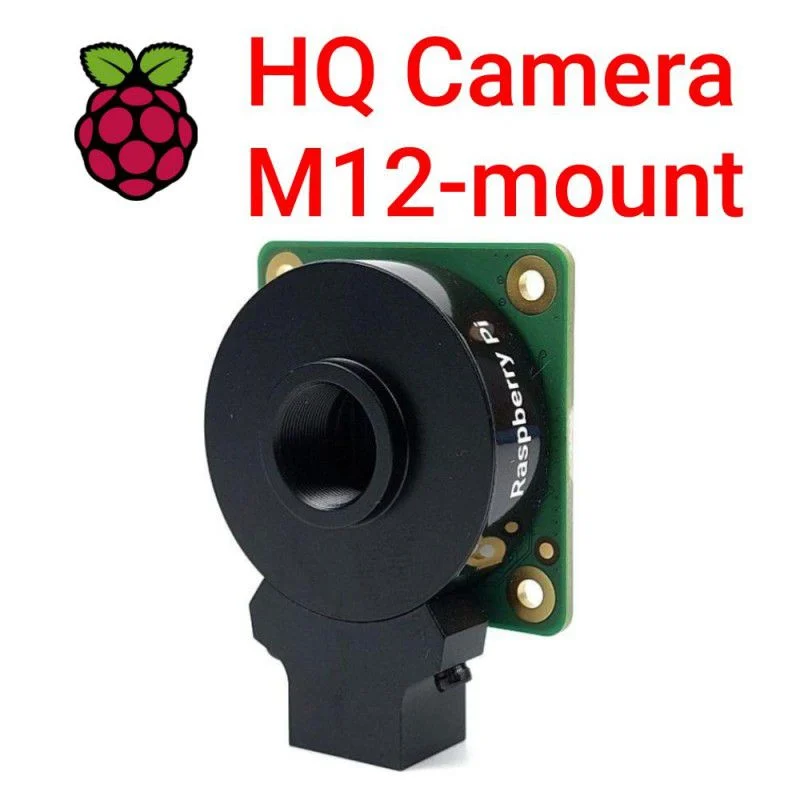

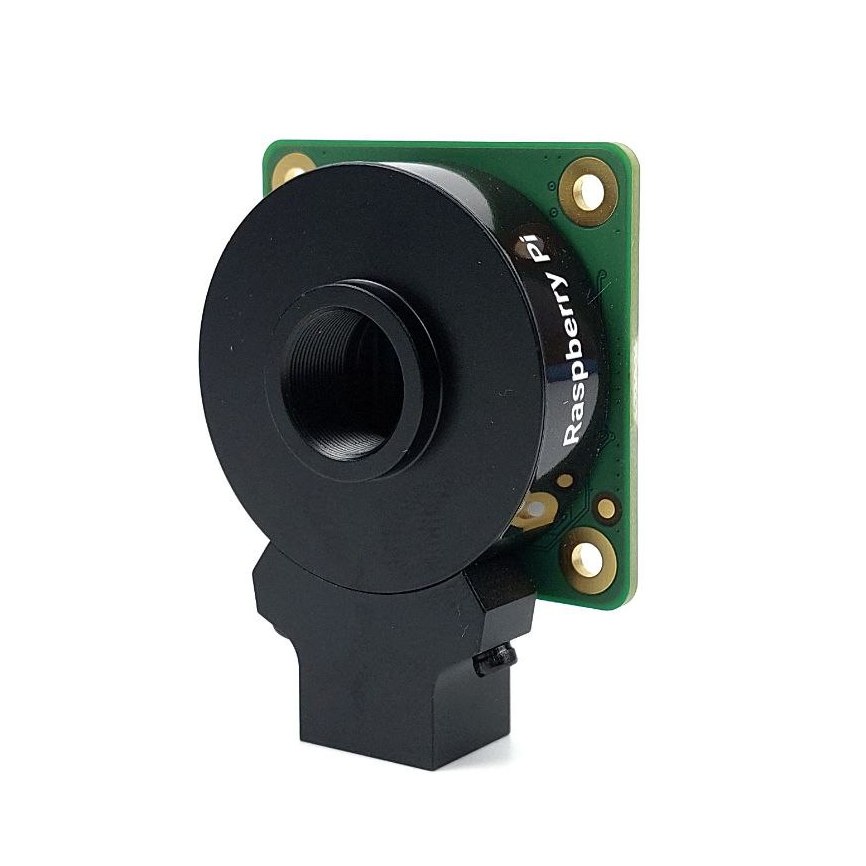

Official Raspberry Pi HQ Camera Module + M12 Lens Mount

The Raspberry Pi High-Quality Camera M12 is the latest camera accessory from Raspberry Pi. It offers higher resolution and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2.

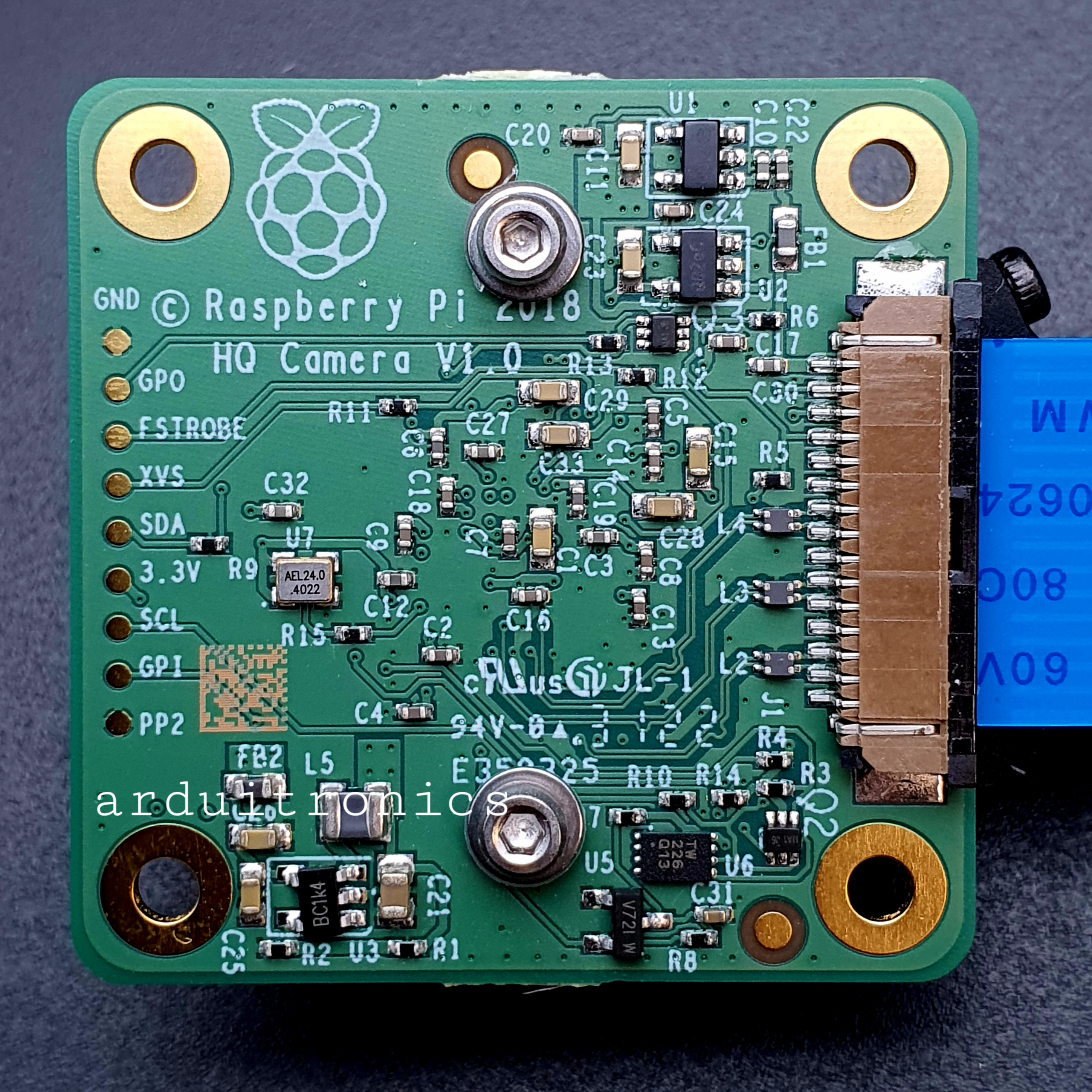

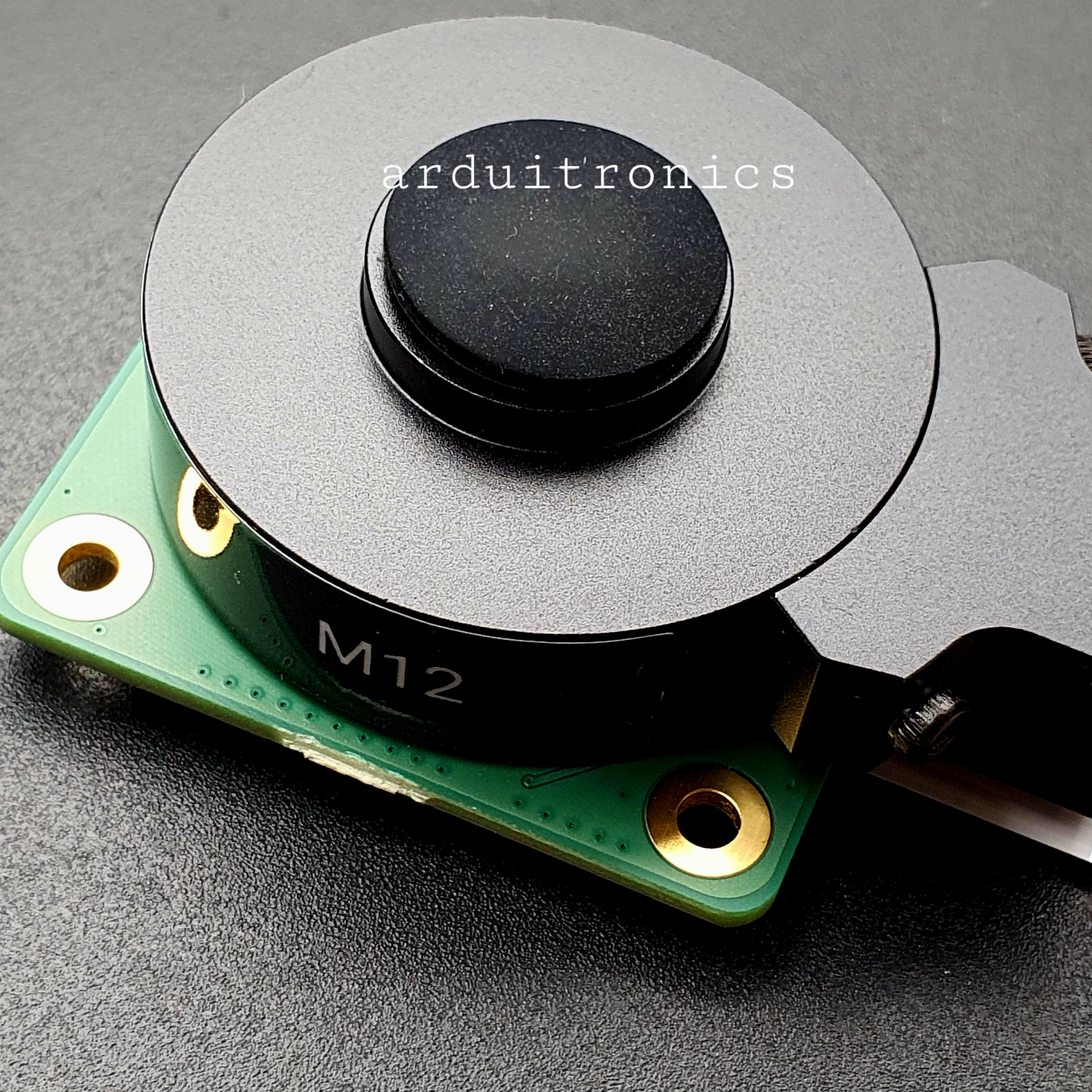

The package comprises a circuit board carrying a Sony IMX477 sensor, an FFC (Flexible Flat Cable) cable for connection to a Raspberry Pi computer, a milled aluminum M12 lens mount with integrated tripod mount, a camera sensor cover, and a few lens holders/locking rings.  This High-Quality Camera M12-Mount provides an alternative to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics and use a variety of M12 lenses. It is compatible with all models of Raspberry Pi computers from Raspberry Pi 1 Model B onwards, using the latest software release from www.raspberrypi.com.

The High-Quality Camera M12 Mount DOES NOT come with a lens, yet it MUST have a lens to operate, so choose one of the M12 lenses and match it.

Raspberry Pi HQ Camera Module M12 Mount:

• Image Sensor:
  • SONY IMX477R stacked, back-illuminated sensor
  • 12.3 Megapixels
  • 7.9mm sensor diagonal
  • 1.55um x 1.55 um pixel size
• Output: RAW12/10/8, COMP8
• Back Focus Length of Lens: 2.6mm - 11.8mm
• Lens standards: M12-mount
• Lens sensor format: 1/2.3" (7.9mm) or larger
• No focusing lens included, but it is a MUST to have a lens, so get it separately:
• IR filter: integrated
• Ribbon cable/FFC length: 200mm
• Tripod mount: 1/4" - 20
• Compliance:
  • FCC 47 CFR Part 15, Subpart B, Class B Digital Device
  • Electromagnetic Compatibility Directive (EMC) 2014/30/EU
  • Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
• Connects to the Raspberry Pi board via the FFC/Ribbon cable (included)
• Size: 38mm x 38mm x 19.18mm
