Industrial USB to RS485 Bidirectional Converter, Onboard Original CH343G, Multi-Protection Circuits ( RS485 USB โมดูลแปลงสัญญาณ ) ของแท้จาก Waveshare

Weight: 0.085 kg

1. USB TO RS485 (B) x1
2. USB-A male to female cable x1
3. Screwdriver x1

1

2

3

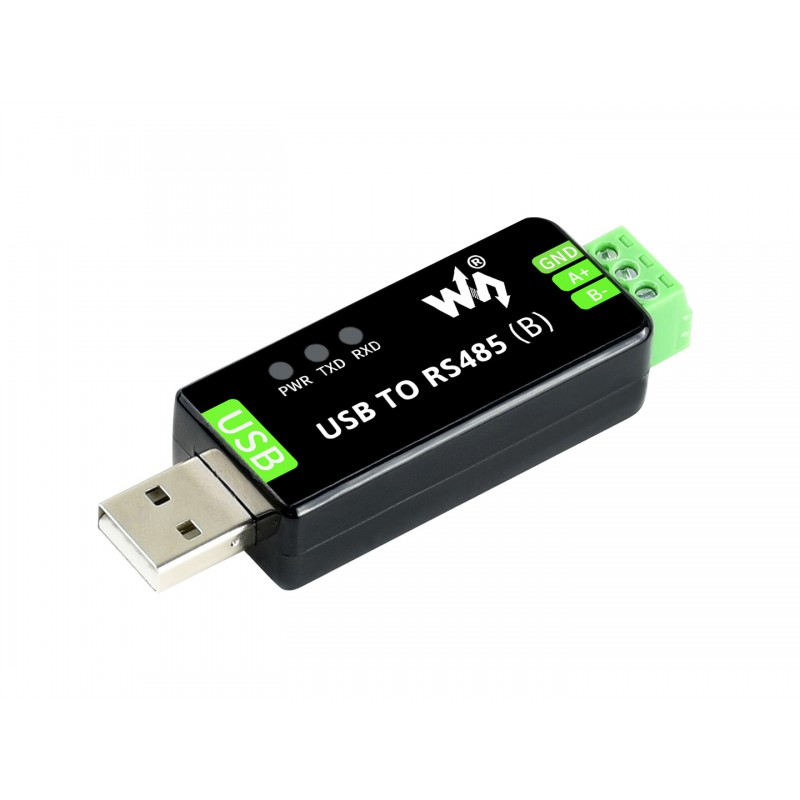

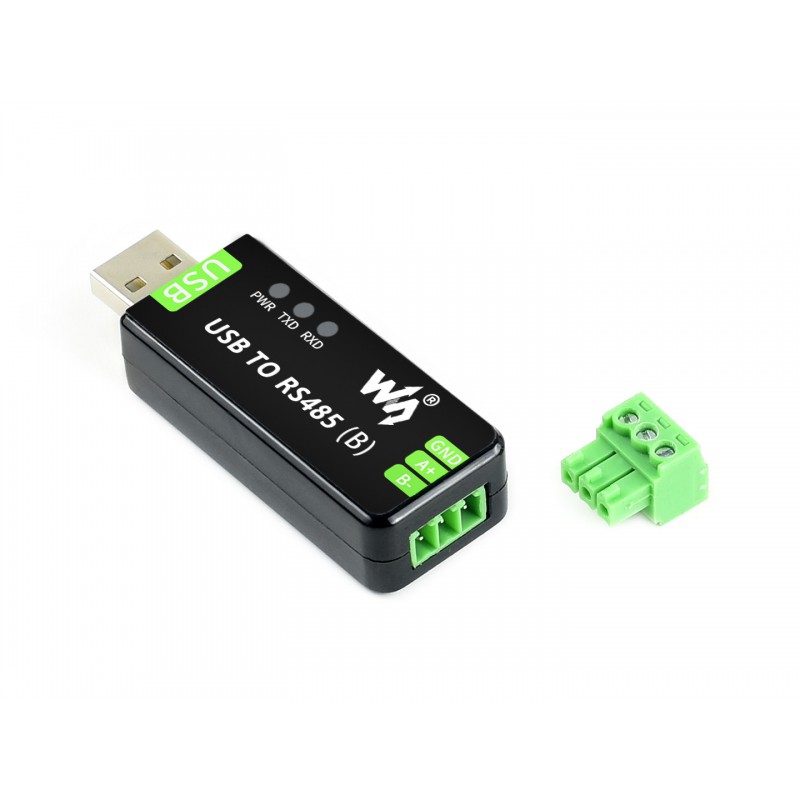

USB TO RS485 Bidirectional Converter

Features At A Glance

• Support USB to RS485 bidirectional conversion
• Fast communication, stable and reliable, better compatibility
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
• 3 LEDs for indicating the power and transceiver status

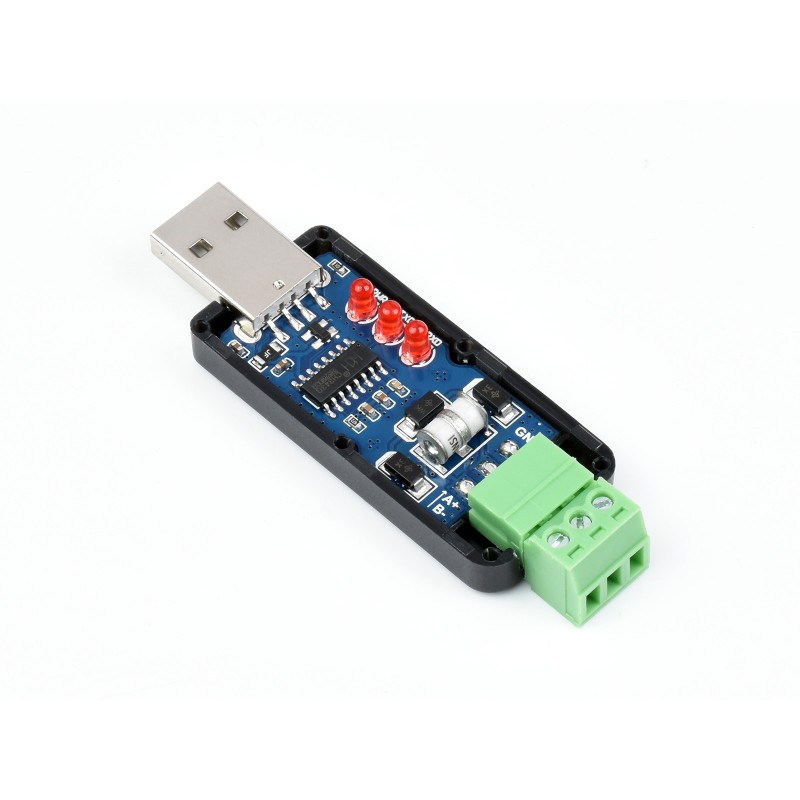

Onboard Original Chips

Onboard Original CH343G And SP485EEN Chips, Providing Better Stability And Compatibility, Built-In Lightningproof Tube, Resettable Fuse, ESD And TVS Protection Circuits, Etc.

Transmission Distance Up To 1.2km

The USB Signal Can Be Converted Into A Balanced Differential RS485 Signal And The Transmission Rate Is Stable. The Reliable Speed Is 300bps ~ 3Mbps, The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB.

Multi System Support

Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, Etc.

Working Status Indicators

Onboard 3 LEDs For Indicating The Power And Transceiver Status



Outline Dimensions

• USB to RS485 communication
• Adopt original FT232RL, fast communicating, stable and reliable, better compatibility
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• 3 LEDs for indicating the power and transceiver status

• Product type: industrial converter
• Baudrate: 300-921600bps
• Host port: USB
• Device port:  RS485
• USB:
  • Operating voltage: 5V
  • Connector: USB-A
  • Protection: 200mA self-recovery fuse, ESD protection
  • Transmission distance: about 5m
• RS485:
  • Connector: screw terminal
  • Pins: A+, B-, GND
  • Direction control: hardware automatic control
  • Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
  • Transmission distance: about 1200m (low rate)
  • Transmission mode: point-to-multi points (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• LED indicators:
  • PWR: red power indicator, light up when there is USB connection and voltage is detected
  • TXD: red TX indicator, light up when the USB port sends data
  • RXD: red RX indicator, light up when the device ports send data back
• Operating environment:
  • Temperature: -15℃ ~ 70℃
  • Humidity: 5%RH ~ 95%RH
• Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

Dimensions


ข้อมูลเพิ่มเติม
https://www.seeedstudio.com/Industrial-USB-to-RS485-Converter-p-4371.html

User guide

Driver installation

• Connect the module to host PC, check Device Manager, if the device is listed with the yellow exclamation mark, it means that the driver was not installed.

• Download the driver form #Resources, unzip, and install it.
• After installing, you can find that the mark disappeared and a COM device is listed

Testing

RS485

• You should prepare two RS485 device
• Connect A+ to A+, B- to B-, and connect them to host PC.

Run SSCOM software to test.

• Expected result

Resources

• Driver
• Driver from FTDI website
• SSCOM software
• FT232R datasheet
• SP481E_SP485E SP485 datasheet
