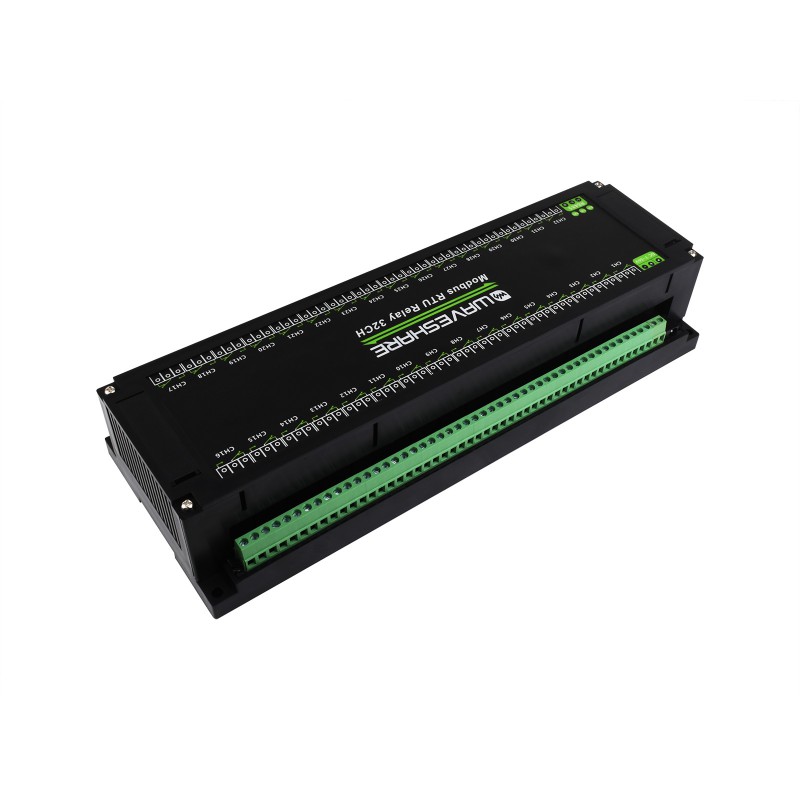

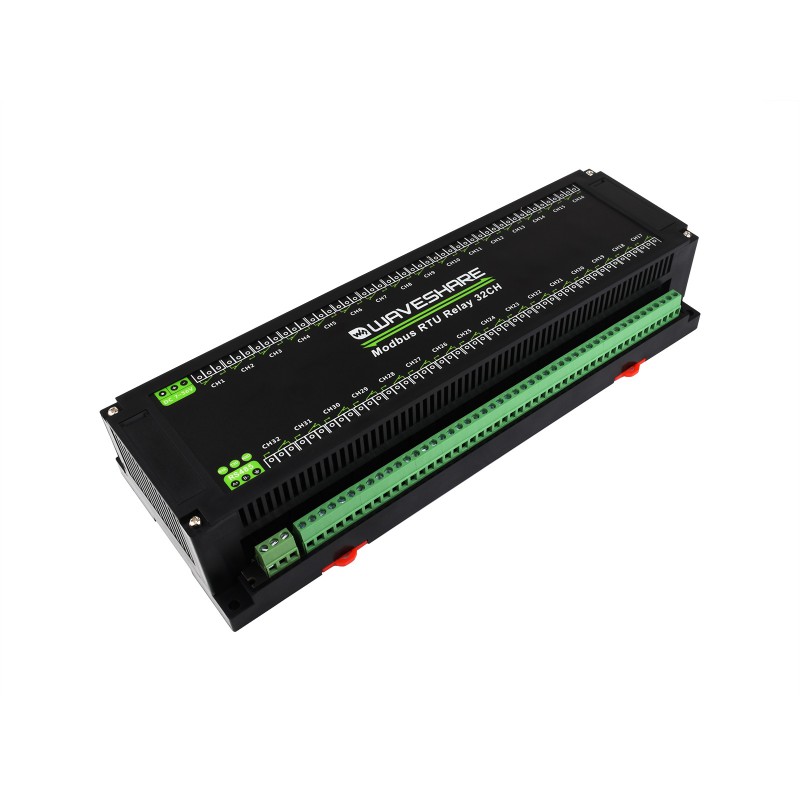

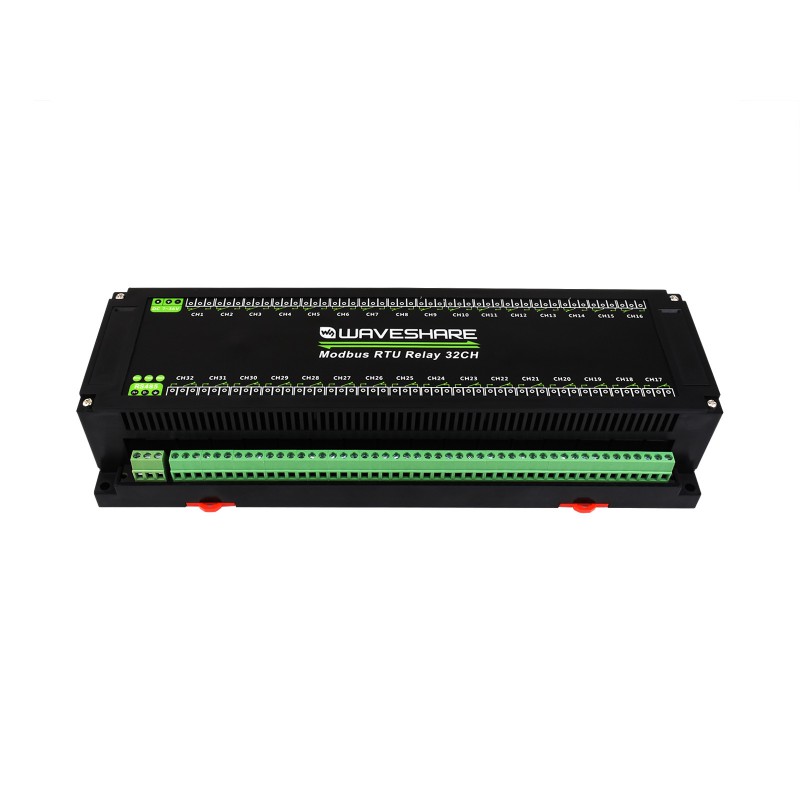

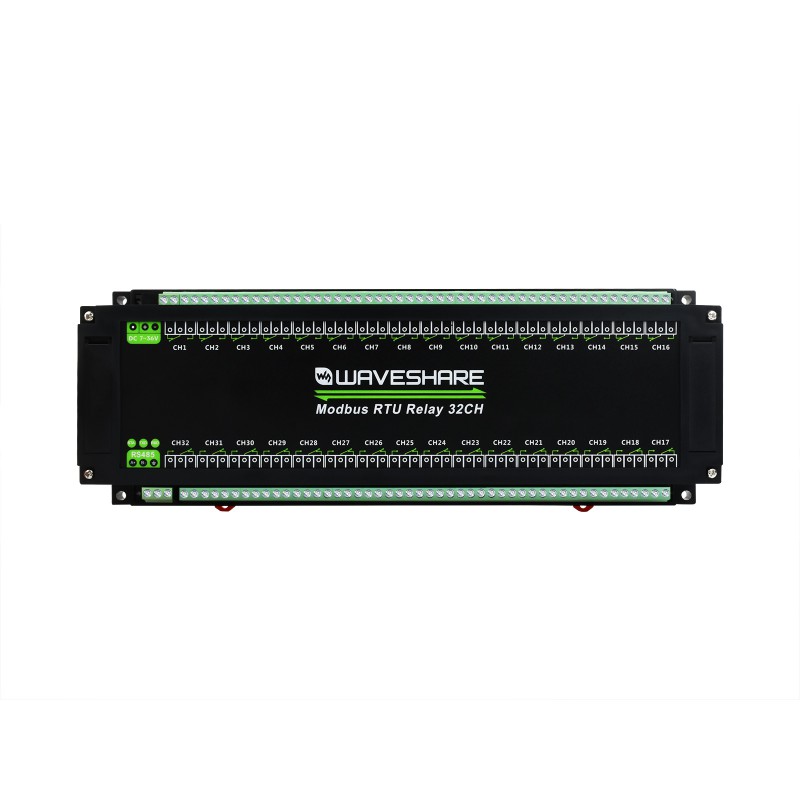

Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)

Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)
Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits (ของแท้จาก Waveshare)
รหัสสินค้า AG00781
หมวดหมู่ 32 Channel Relay
ราคา 2,985.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : Relay, Modbus RTU 16-Ch Relay Module, Modbus RTU, Modbus, relay module, 16-Ch Relay Module, 16-channel, 16 channel relay, 32 channel

รายละเอียดสินค้า

สามารถใช้ร่วมกับ Industrial Grade USB to RS485 m

Wiki: www.waveshare.com/wiki/Modbus_RTU_Relay_32CH

Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits, Industrial-Grade, Rail-Mount Case
RS485 32-Ch Relay Module

Modbus RTU Protocol, Multi Isolation Protection Circuits, Safe & Stable & Reliable


Features At A Glance

This product is an industrial 32-ch relay module controlled via RS485 bus, adopts Modbus RTU protocol, built-in protection circuits such as power supply isolation, ADI magnetical isolation, resettable fuse, and TVS diode, etc. It also comes with an ABS case.

The Modbus RTU 32-Ch Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

  • Configurable device address (1~255), multi devices can be cascaded on RS485 bus
  • Features flash-on, flash-off function, it is possible to turn on the relay for a while and then close it automatically via the command
  • Onboard voltage regulator chip, supports 7~36V wide voltage power supply
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
  • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
  • Onboard dedicated relay driver chip, with built-in freewheeling diode protection, the driving ability is stronger and more stable
  • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
  • High quality relay, contact rating: ≤10A 250VAC/30VDC
  • Rail-mounted ABS case, easy to install, safe to use
  • 3 LEDs for indicating the MCU status and signal transceiving status
Specifications
OPERATING VOLTAGE 7~36V
COMMUNICATION INTERFACE RS485
BAUDRATE 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
DEFAULT COMMUNICATION FORMAT 9600, N, 8, 1
RELAY CHANNELS 32
CONTACT FORM 1NO 1NC
CONTACT RATING ≤10A 250VAC/30VDC
COMMUNICATION PROTOCOL Standard Modbus RTU protocol
RS485 ADDRESS 1~255
LED INDICATORS STA: MCU indicator, keep flashing when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data

Onboard Multiple Isolation Protection Circuit

Multiple Protections, More Safe And Reliable

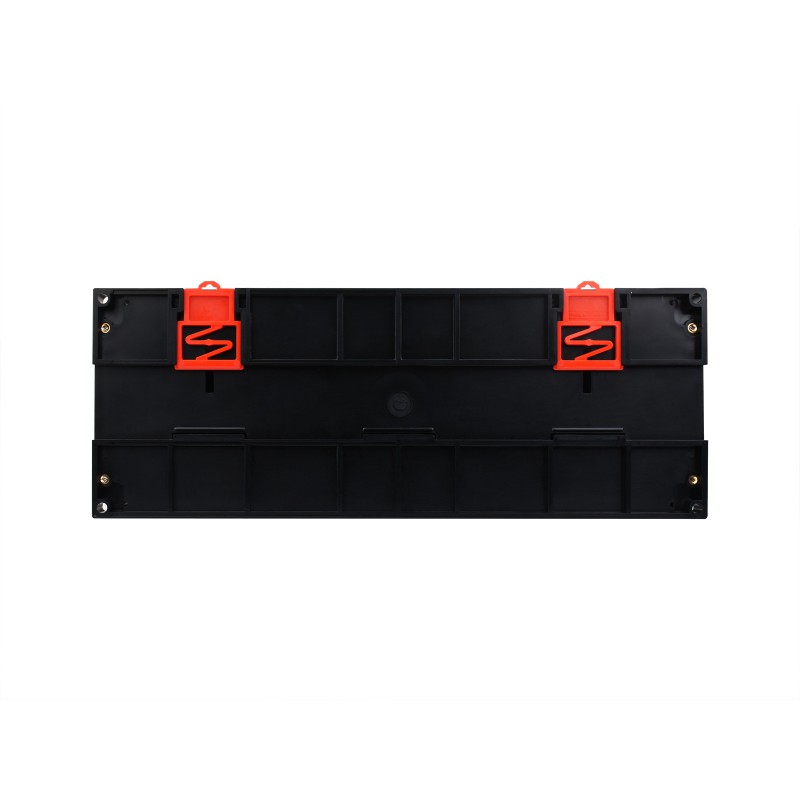

Rail-Mount Case Design

Rail-Mounted ABS Protective Enclosure, Easy To Install, Safe To Use

RS485 Communication

Configurable Device Address (1~255), Multi Devices Can Be Cascaded On RS485 Bus
In Case Of Many Devices Are Cascaded, Or The Communication Distance Is Quite Long,
It Is Necessary To Use RS485 Repeaters

* for reference only, the USB to RS485 is NOT included.

Relay Connection

Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC

Applications
Product Show
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/Modbus_RTU_Relay_32CH
Selection Guide
PRODUCT MODBUS POE ETH RELAY MODBUS RTU RELAY MODBUS RTU RELAY 16CH MODBUS RTU RELAY 32CH

COMMUNICATION PARAMETERS
Communication interface Ethernet port (PoE support) RS485 port
Baud rate - 4800，9600，19200，38400，57600，115200，128000，256000 (configurable)
Default communication format - 9600, N, 8, 1
Communications protocol TCP/UDP/MQTT RS485 protocol
Modbus protocol Modbus RTU Protocol or Modbus TCP Protocol Modbus RTU Protocol
Device address Unconfigurable, identify the devices by IP address 1~255 (configurable, supports cascading multiple devices)
CONTROL INTERFACE
Output control (DO) 8-ch relay 8-ch relay 16-ch relay 32-ch relay
Contact form 1NO 1NC
Contact rating ≤10A 250VAC/30VDC
OTHERS
Power Supply PoE port, DC 5.5*2.1 power port, or screw terminal DC 5.5*2.1 power port, or screw terminal
Power range 7~36V wide range 5V 7~36V wide range
Dimensions 145×90×40mm 200×110×60mm 300×110×60mm
Installation Standard DIN 35mm rail mounting, wall mounting
