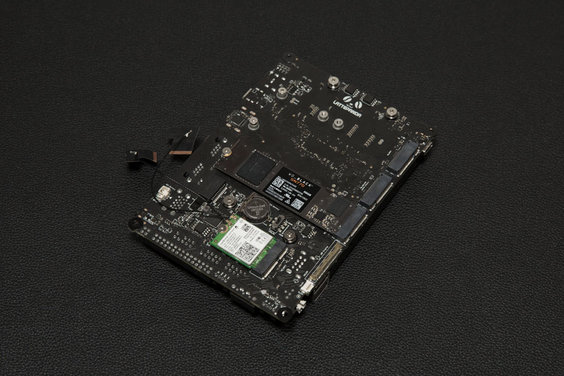

LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM/500GB SSD and WiFi 6E Module) - LattePanda Board

INTRODUCTION

Comparison Tables

FEATURES

• Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
• Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
• High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
• Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
• User-friendly Interface Layout: plug and play with ease
• Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
• Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

APPLICATIONS

SPECIFICATION

Processor

• CPU: Intel® Core™ i5-1340P
• Cores / Threads: 12C(4P+8E) / 16T
• Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
• L2 Cache: 12 MB
• Base Power: 28 W
• Graphics: Intel® Iris® Xe Graphics
• Max Dynamic Frequency: 1.45 GHz
• Execution Units: 80
• Co-processor: Microchip® ATmega32U4-MU

Memory

• Technology: Dual-Channel LPDDR5-6400
• Capacity: 16GB

Storage

• Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive

Wireless

• Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)

Display

• HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
• USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
• Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz

External I/O

• USB Type-A: 2 x USB2.0 (480Mbps)
            2 x USB3.2 Gen 2 (10Gbps)
• USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
• HDMI: HDMI 2.1
• Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
• Power: 5.5mm x 2.5mm DC Jack
• Audio: 3.5mm Microphone Headphone Combo Connector
• Sim Card: Micro Sim Card Slot

Internal I/O

• USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
• Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
• SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
• Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
• Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
• COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
• GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
• eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes

Expansion Slot

• M.2 M Key: Type 2280, Supports PCIe 3.0 x4
            Type 2280, Supports PCIe 4.0 x4
• M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
• M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio

Security

• TPM: Built-in TPM (2.0)

Power

• Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
            USB Type C: PD 20V
• Power Adapter: 19V DC, 4.74A, 90W
• RTC Battery: CR1220 Battery Holder: 3V
  1.27mm Pitch 2-Pin Connector: 3V

Operating System

• Microsoft Windows: Windows 10, Windows 11
• Linux: Ubuntu 22.04

Environment

• Operating Temperature: 0~45℃
• Relative Humidity: 0%~80%

Dimension

• Form Factor: 3.5", 146 x 102 mm

• Product wiki
• Certificates
• Pin diagram
• Datasheet
• Installing Ubuntu OS
• Using eDP Touch Display
• Setup Auto Power-on
• Operating Systems
• Drivers and Software
• 3D File

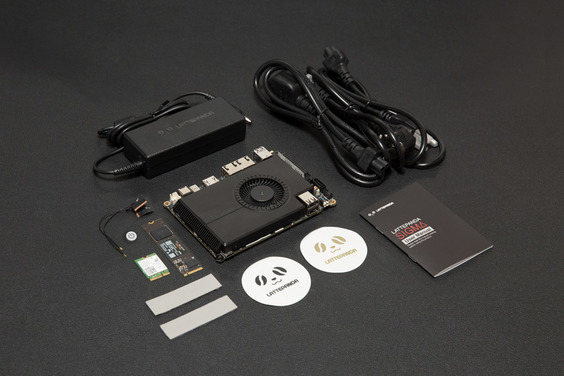

• LattePanda Sigma x1

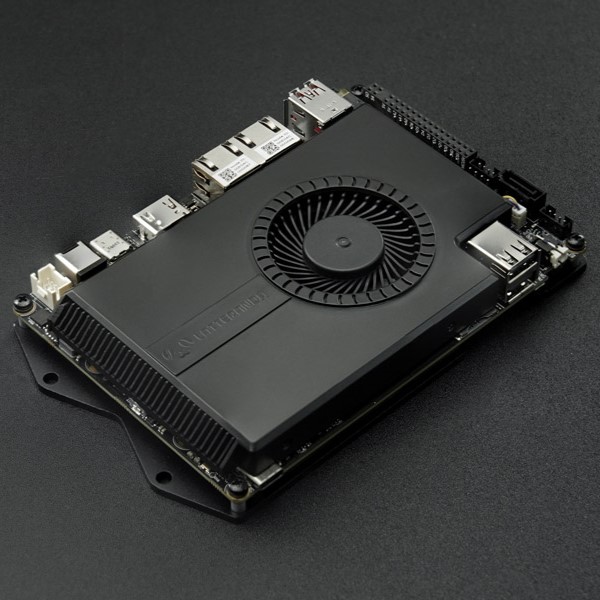

• Active Cooling Fan (Assembled) x1
• Metal Protective Bottom Plate x1
• Thermal Pads for M.2 SSD x2
• Power Adapter with DC cable x1
• AC Cable(EU & US & UK) for power adapter x3
• RTC Battery (Assembled) x 1
• User Manual x 1
• M.2 NVMe SSD 500GB x1
• M.2 Intel WiFi 6E Module x1
• WiFi/BT Antenna x2

Project 2: The All New LattePanda Sigma May Just Be The Ultimate X86 SBC! First Look

Introduction: In this video we take look at the all new Lattepanda SIGMA! A Powerful X86 SBC with a 12 Core CPU, 16Gb of DDR5 Ram Running at 6400Mhz, Dual Thunderbolt 4 and loads More! It runs WIndos Or Linux and Has The Power To Games and Run high end emulators like PCSX2 for PS2, RPCS3 for PS3 and even YUZU of Nintendo Switch! Plus when you need more GPU power you can connect an eGPU and turn it into a real gaming SBC!
