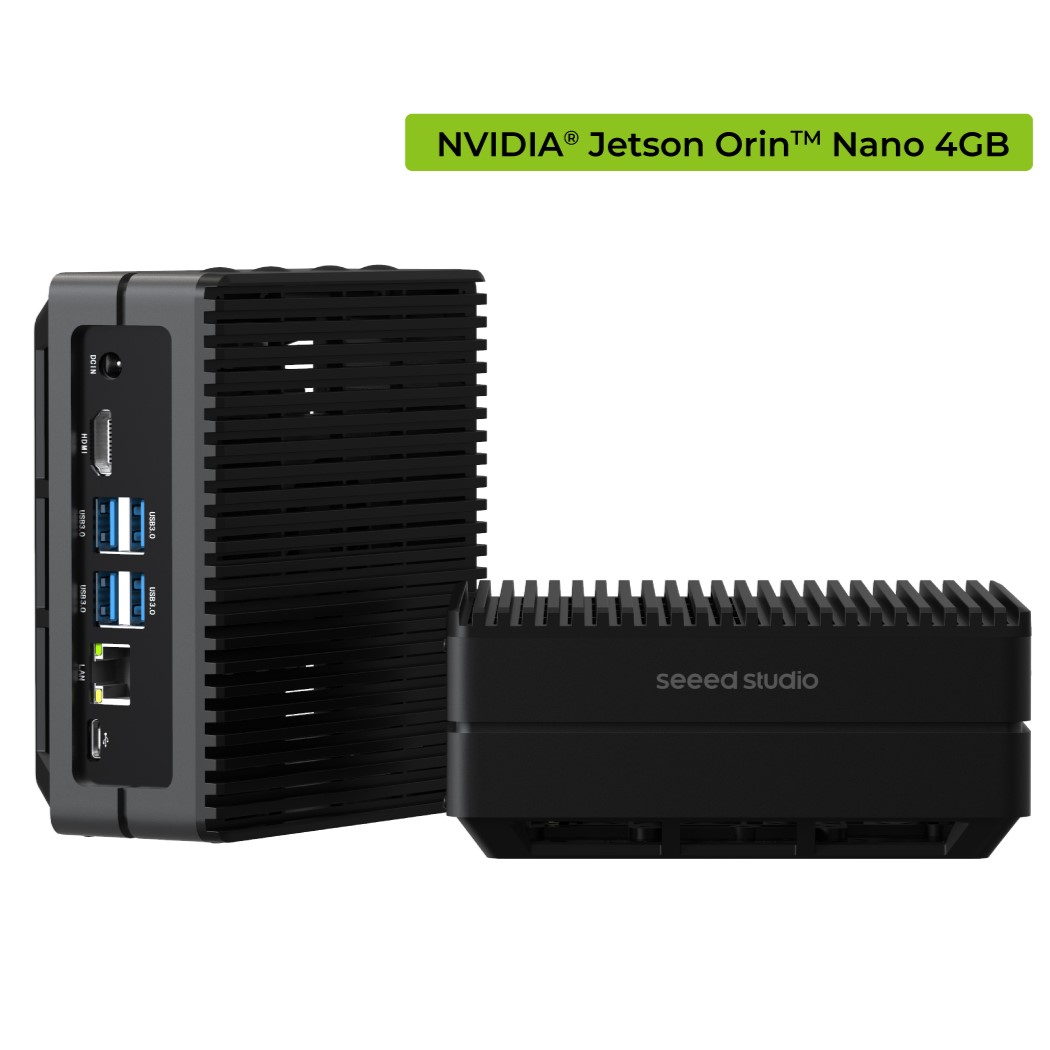

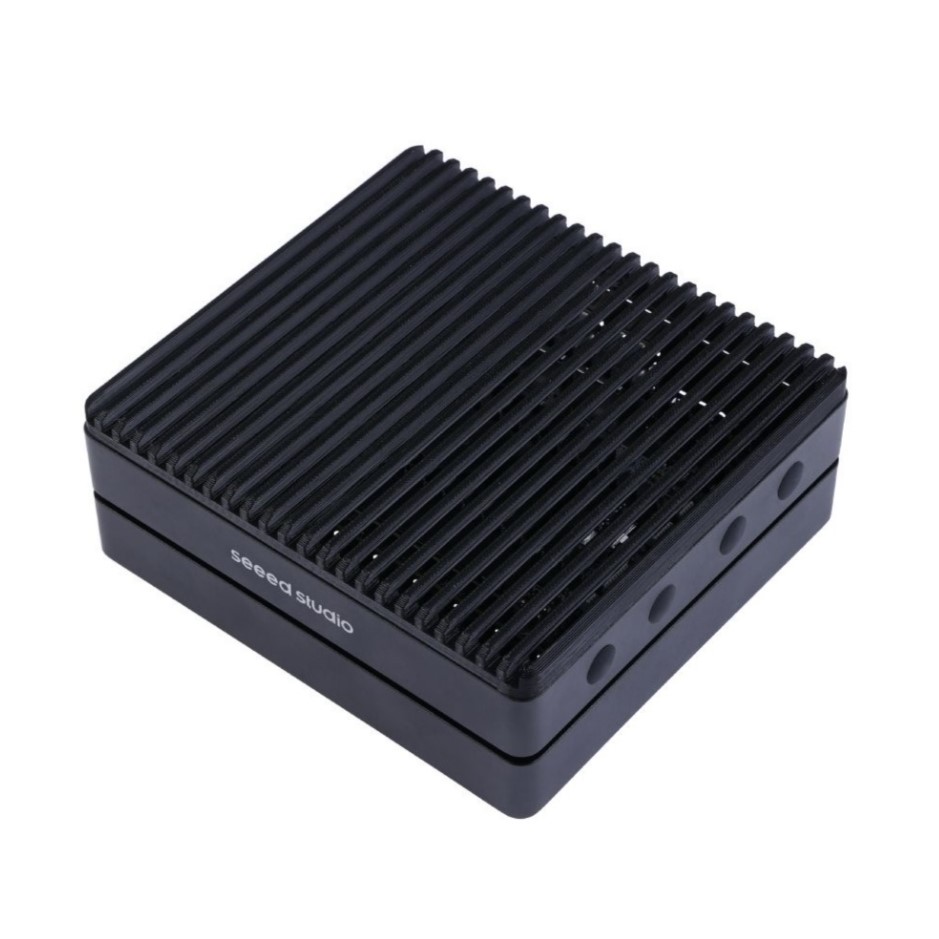

reComputer J3010-Edge AI Device with NVIDIA Jetson Orin™ Nano 4GB Module
| รหัสสินค้า | BA00281 |
| หมวดหมู่ | Development Boards |
| ราคา | 24,850.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
PRODUCT DETAILS
Features
- Brilliant AI Performance for production:on-device processing with up to 20 TOPS AI performance with low power and low latency
- Hand-size edge AI device: compact size at 130mm x120mm x 58.5mm, includes NVIDIA Jetson Orin Nano 4GB production module, a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere
- Expandable with rich I/Os:4x USB3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN and GPIO
- Accelerate solution to market: pre-installed Jetpack with NVIDIA JetPack™ 5.1 on the included 128GB NVMe SSD, Linux OS BSP, 128GB SSD, WiFi BT combo module, Antennas x2, support Jetson software and leading AI frameworks and software platforms
- Comprehensive certificates: FCC, CE, RoHS, UKCA
Developer Tools
Computer Vision and embedded machine learning
-
NVIDIA DeepStream SDK delivers a complete streaming analytics toolkit for AI-based multi-sensor processing and video and image understanding on Jetson.
-
NVIDIA TAO Toolkit, built on TensorFlow and PyTorch, is a low-code version of the NVIDIA TAO framework that accelerates the model training
Speech AI
-
NVIDIA® Riva is a GPU-accelerated SDK for building Speech AI applications that are customized for your use case and deliver real-time performance.
Remote Fleet Management
Enable secure OTA and remote device management with Allxon. Unlock 90 days free trial with code H4U-NMW-CPK.
Robot and ROS Development
-
NVIDIA Isaac ROS GEMs are hardware-accelerated packages that make it easier for ROS developers to build high-performance solutions on NVIDIA hardware. Learn more about NVIDIA Developer Tools
-
Cogniteam Nimbusis a cloud-based solution that allows developers to manage autonomous robots more effectively. Nimbus platform supports NVIDIA® Jetson™ and ISAAC SDK and GEMs out-of-the-box. Check out our webinar on connecting your ROS Project to the Cloud with Nimbus.
Applications
The reComputer industrial series is a versatile and powerful platform that can be used to develop a wide range of AI-powered applications, enabling digital transformation across industries. Below are some of the applications:
-
Video Analytics: Object recognition, tracking, and classification. These capabilities can be used in security systems, traffic monitoring, and business advertisement analytics.
-
Natural Language Processing: Speech recognition or language translation.
-
Medical Imaging: Analyzing medical images to assist with diagnosis or treatment planning.
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience and check out the Community Projects page to inspire your next project!
Supported AI Platforms (continue updating)
with edge AI partners, harness the power of cutting-edge AI technology to accelerate edge computing deployment in the real world across industries.Welcome to check out ourEdge AI partner program.
Comparison among reComputer J40 and J30 series boards
|
Specifications |
reComputer J3010 |
reComputer J3011 |
reComputer J4011 |
reComputer J4012 |
|
Module |
Jetson Orin Nano 4GB |
Jetson Orin Nano 8GB |
Jetson Orin NX 8GB |
Jetson Orin NX 16GB |
|
AI Performance |
20 TOPS |
40 TOPS |
70 TOPS |
100 TOPS |
|
GPU |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
|
|
GPU Max Frequency |
625 MHz |
765 MHz |
918 MHz |
|
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
|
CPU Max Frequency |
1.5 GHz |
2 GHz |
||
|
Memory |
4GB 64-bit LPDDR5 34 GB/s |
8GB 128-bit LPDDR5 68 GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
16GB 128-bit LPDDR5 102.4GB/s |
|
DL Accelerator |
/ |
1x NVDLA v2 |
2x NVDLA v2 |
|
|
DLA Max Frequency |
/ |
614 MHz |
||
|
Vision Accelerator |
/ |
1x PVA v2 |
||
|
Storage |
128GB NVMe SSD |
|||
|
Video Encoder |
1080p30 supported by 1-2 CPU cores |
1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
||
|
Video Decoder |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
||
|
Display |
1* HDMI 2.1 |
|||
|
CSI Camera |
2* CSI (2-lane 15pin) |
|||
|
Networking |
1* Gigabit Ethernet (10/100/1000M) |
|||
|
USB |
4* USB 3.2 Type-A (10Gbps); 1* USB2.0 Type-C (Device Mode) |
|||
|
M.2 Key M |
1* M.2 Key M |
|||
|
M.2 Key E |
1* M.2 Key E |
|||
|
Fan |
1* 4 pin Fan Connector(5V PWM) |
|||
|
CAN |
1* CAN |
|||
|
Multifunctional Port |
1* 40-Pin Expansion header,1* 12-Pin Control and UART header |
|||
|
RTC |
RTC 2-pin, RTC socket (supports CR1220 but not included) |
|||
|
Power |
9-19V |
|||
|
Power Supply |
DC 12V/5A(Barrel Jack 5.5/2.5mm) |
|||
|
Temperature |
-10℃~60℃ |
|||
|
Mechanical |

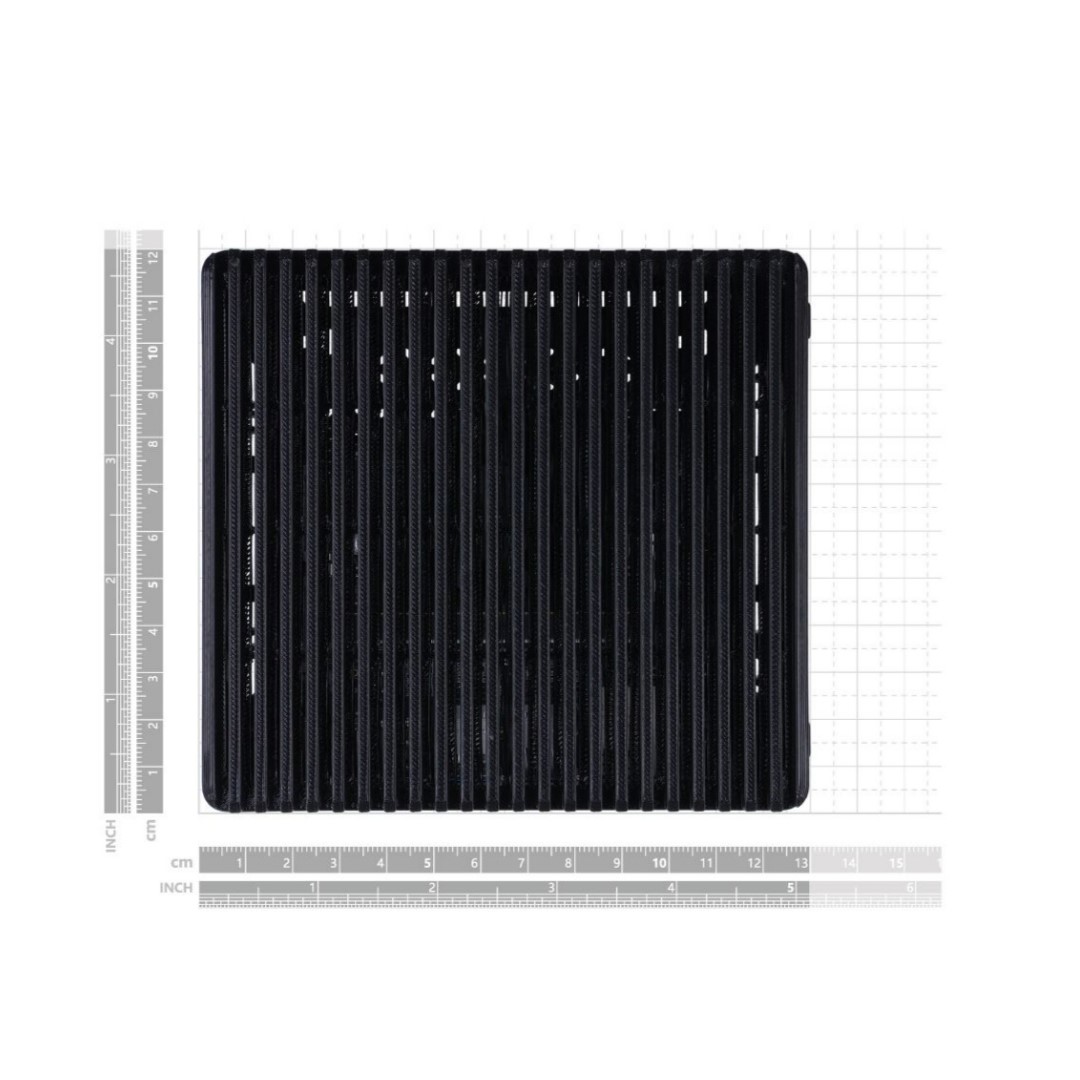

130mm x120mm x 58.5mm |
|||
Comparison among reComputer J30 and NVIDIA Jetson Orin Nano Developer Kit
|
Specifications |
reComputer J3010-Edge AI Device with NVIDIA Jetson Orin™ Nano 4GB module - Seeed Studio |
reComputer J3011-Edge AI Device with Jetson Orin™ Nano 8GB module - Seeed Studio |
NVIDIA Jetson Orin Nano Developer Kit |
|
Module |
Jetson Orin Nano 4GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 8GB(non-production)with SD card slot on Module |
|
AI Performance |
20 TOPS |
40 TOPS |
|
|
Storage |
128GB NVMe SSD |
/ |
|
|
Display |
1* HDMI 2.1 |
1x DP 1.2 (+MST) connector |
|
|
CSI Camera |
2* CSI (2-lane 15pin) |
2x MIPI CSI-2 22-pin |
|
|
M.2 Key M |
1* M.2 Key M |
1* M.2 Key M slot with x4 PCIe Gen3 1* M.2 Key M slot with x2 PCIe Gen3 |
|
|
M.2 Key E |
1* M.2 Key E(pre-installed 1*Wifi/Bluetooth combo module) |
1* M.2 Key E(pre-installed 1*Wifi/Bluetooth combo module) |
|
|
MicroSD slot |
/ |
/ |
1* microSD card socket(on Module) |
|
Power |
9-19V |
9-20 V |
|
|
Power Supply |
DC 12V/5A(Barrel Jack 5.5/2.5 mm) |
DC 19V |
|
|
Enclosure |
Aluminumcase |
/ |
|
|
Mechanical |
130mm x120mm x 58.5mm(with case) |
100mm x 79mm x 21mm |
|

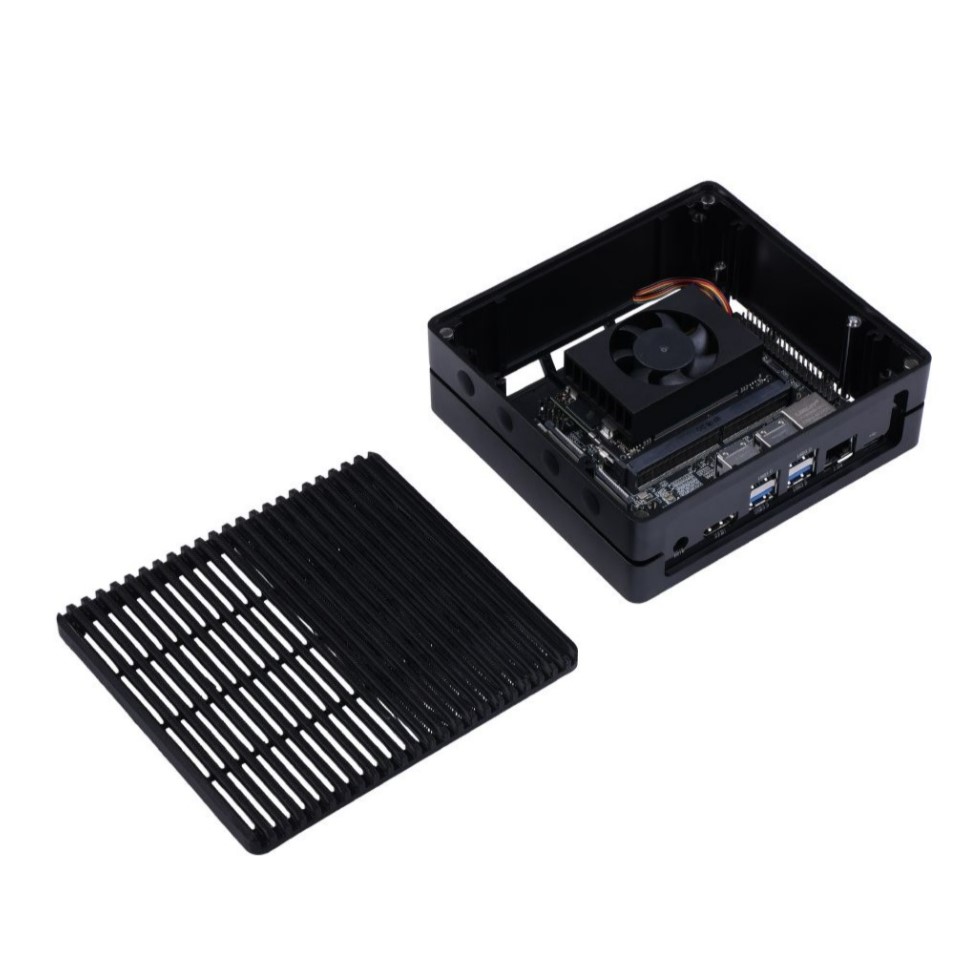

Hardware Overview
Interface-rich reference carrier board
Seeed carrier board for reComputer J3010 is a high-performance, interface-rich board, providing HDMI 2.1, Gigabit Ethernet, USB 3.2, M.2 key E, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fan, and other rich peripheral interfaces.
Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capabilities to all your embedded AI and edge systems.

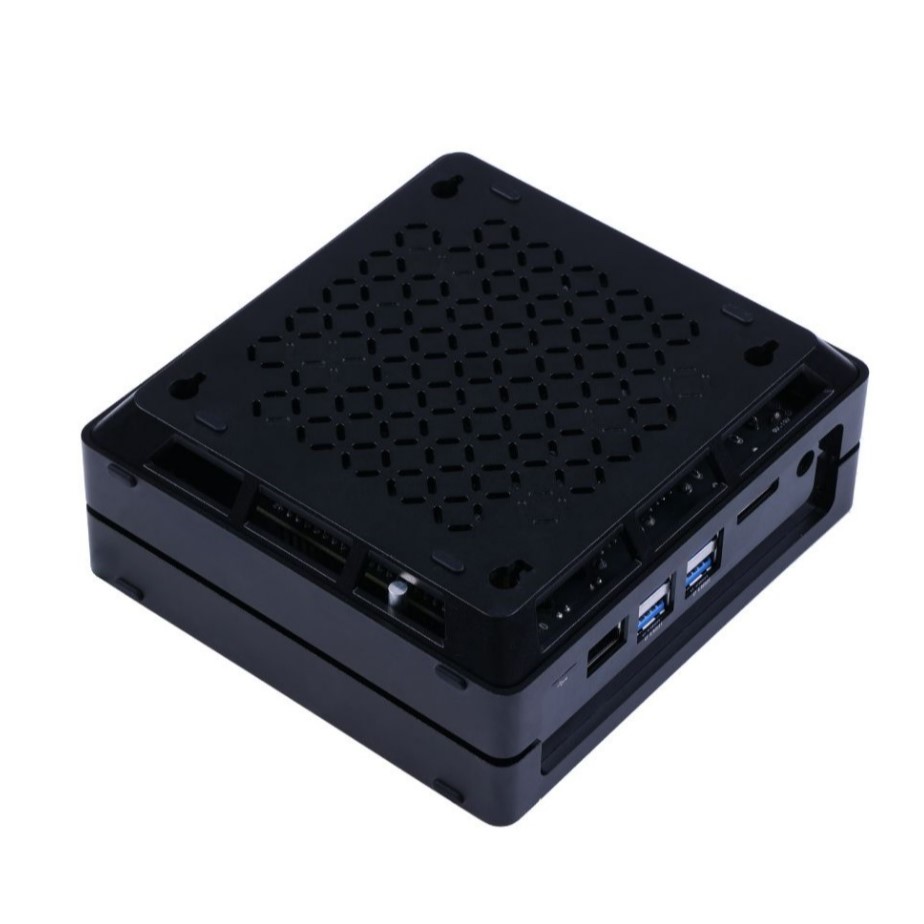

Desktop, Wall Mount, Expandable, or fit in anywhere
The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver, and silver metal, whose stackable structure allows you to stack more middle layers to create rooms very easily.
Note
Part List
|
NVIDIA Jetson Orin™ Nano 4GB |
x1 |
|
Seeed carrier board (reComputer J401) x1 |
x1 |
|
128GB NVMe SSD x 1 |
x1 |
|
Wifi BT combo module x1 |
x1 |
|
Antennas x2 |
x2 |
|
Aluminum heatsink with fan x1 |
x1 |
|
Aluminum case (black) x1 |
x1 |
|

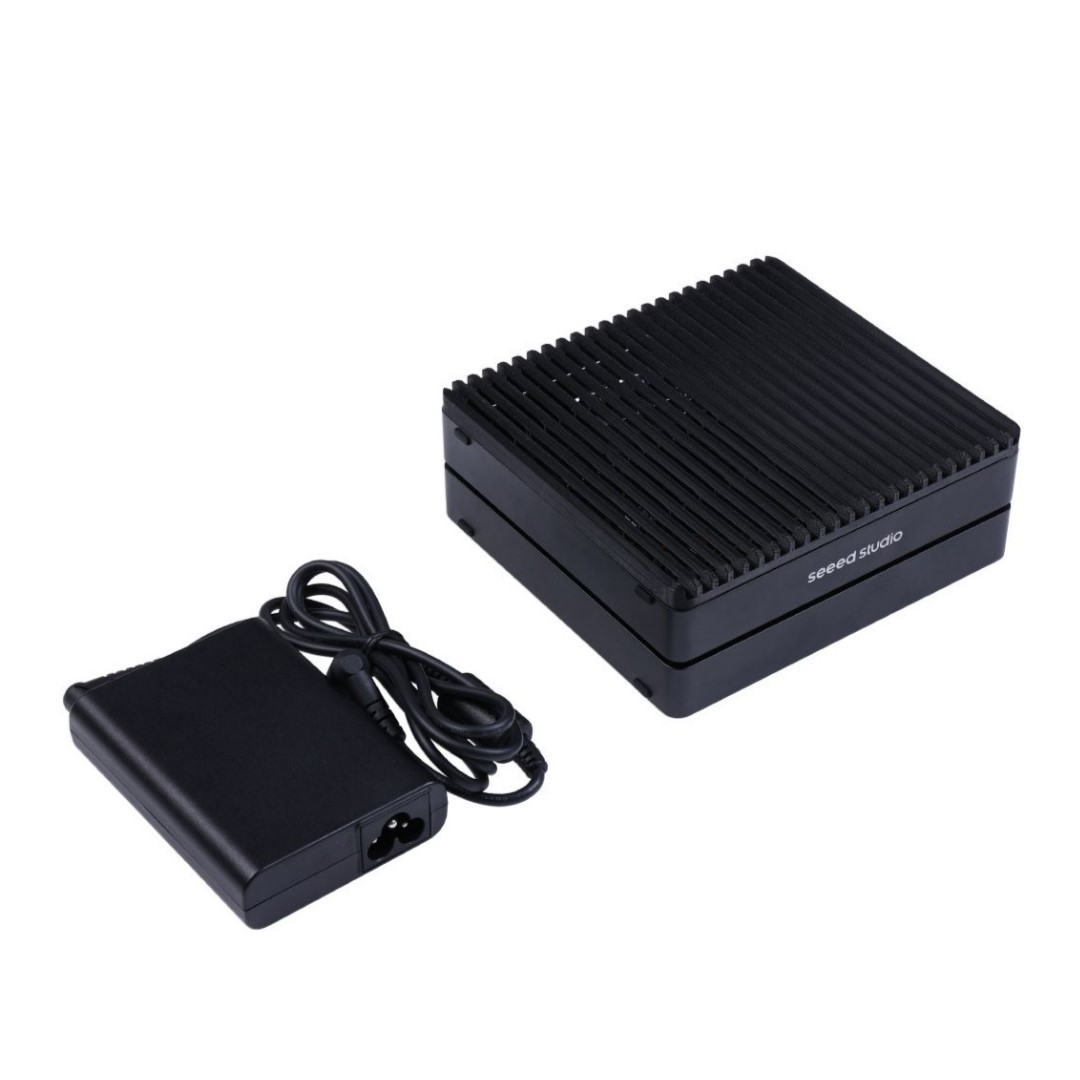

12V/5A(Barrel Jack 5.5/2.5mm) Power Adapter (Power cord not included) |
x1 |
LEARN AND DOCUMENTS
Documentations
- reComputer J301x Datasheet
- NVIDIA Jetson Devices and carrier boards comparisions
- reComputer J401 schematic design file
Learn
