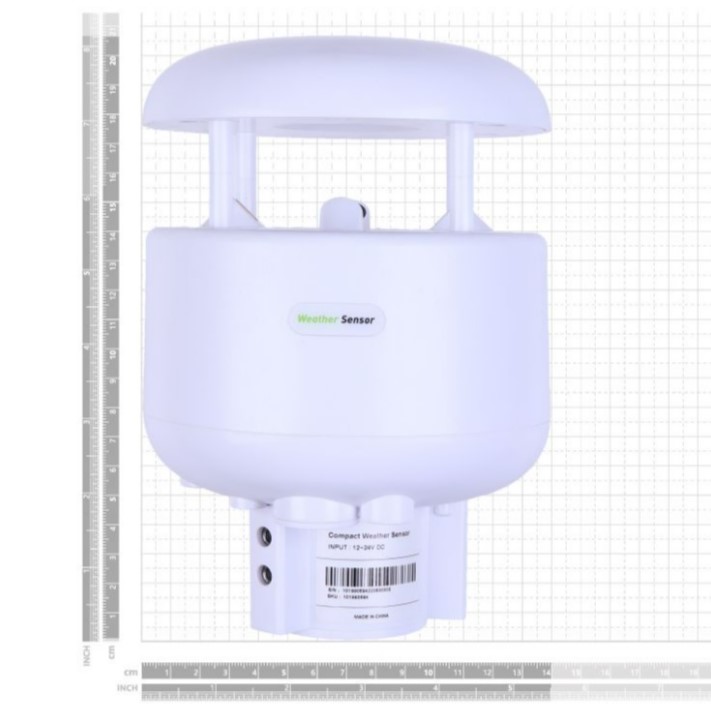

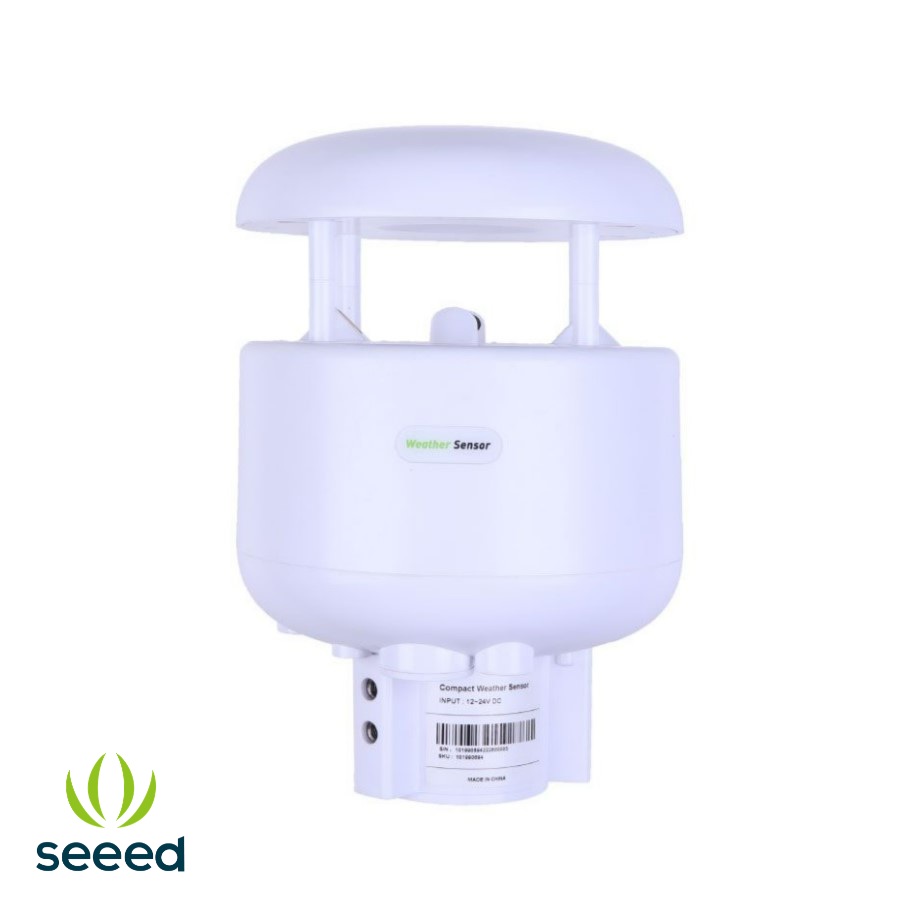

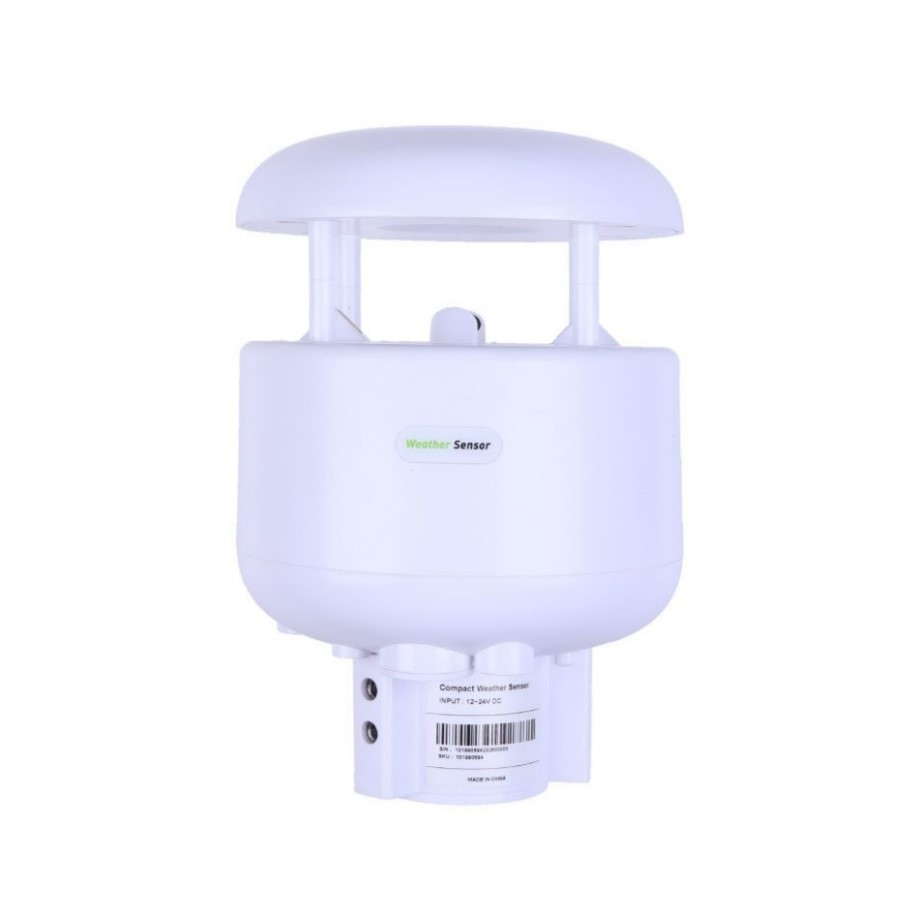

The SenseCAP S200 Weather Sensor is the perfect solution for measuring wind speed and direction (using ultrasonic technology) in harsh outdoor environments such as agriculture and smart cities. Designed to withstand harsh conditions, this durable sensor provides accurate data to help you make informed decisions.
Features
Today, data on localized weather, known as microclimates, is the new frontier for more precise and accurate weather forecasting. As a result, the collection of weather data is becoming increasingly smaller and gridded. In light of this, weather sensors, which are the most convenient means of collecting weather data, are seeing a rise in demand.

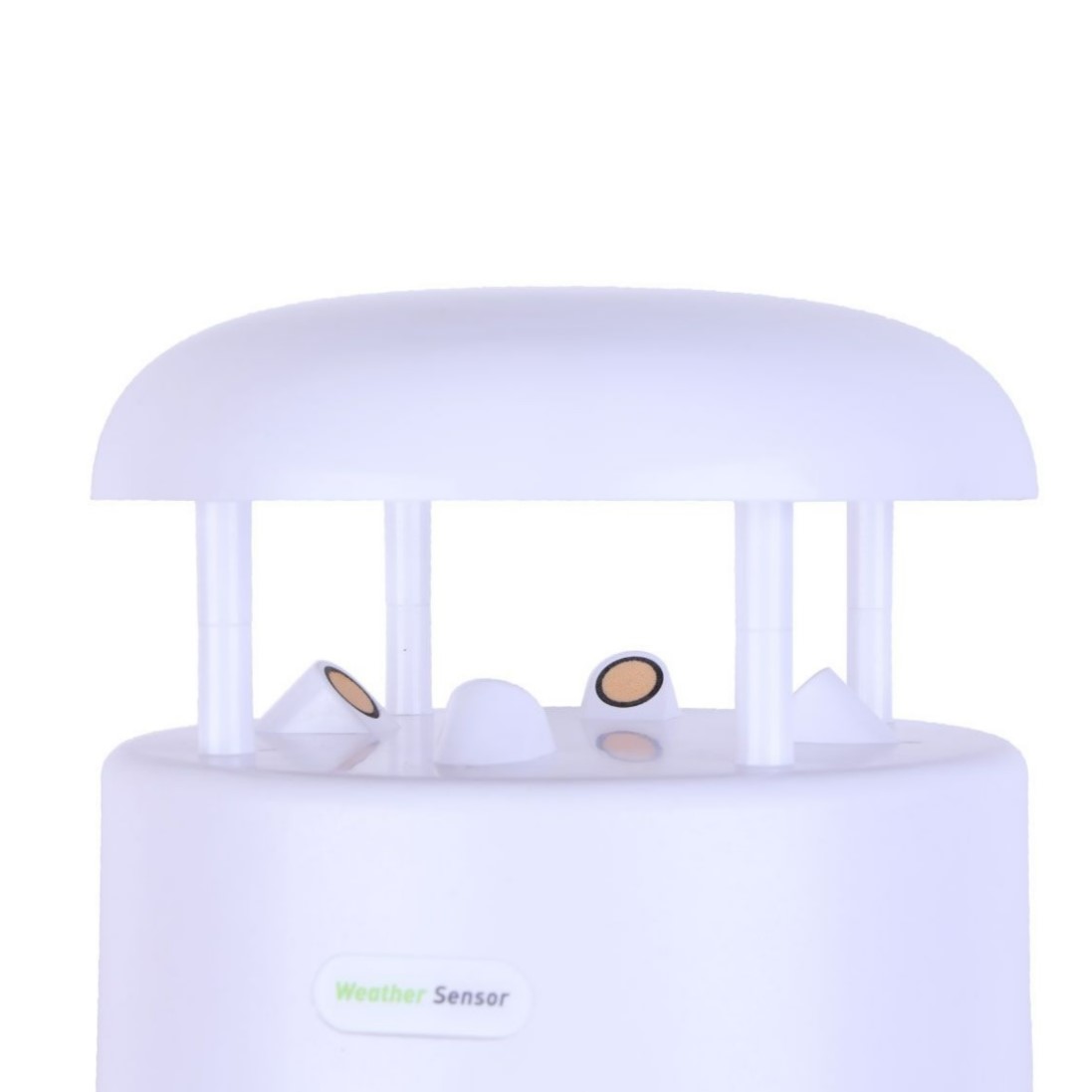

This SenseCAP S200 Wind Speed and Direction Weather Sensor can help you collect and monitor wind speed and direction data, which are crucial in different application scenarios such as smart city projects and etc. It's IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of a traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.
SenseCAP ONE is a series of all-in-one compact weather sensors, that integrate multiple sensors into this compact device, monitoring up to 10 weather parameters: air temperature, air humidity, atmospheric pressure, light intensity, wind speed, wind direction, precipitation, PM 2.5, PM 10, and CO2.
The SenseCAP ONE series uses the RS 485 (MODBUS-RTU) / SDI-12 communication protocol. Hence, the SenseCAP ONE compact weather sensor can be used with any data logger that supports RS485 (MODBUS-RTU) / SDI-12.
We offer the SenseCAP S2100 - LoRaWAN® Data Logger and SenseCAP Sensor Hub 4G Data Logger suitable for SenseCAP ONE series weather sensors, you can transmit the sensor data to public LoRaWAN® network servers(Helium, TTN, etc.,) or private servers.
High-performance Guarantee
We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP ONE Serials Sensor went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions.
Field Deployment
General Parameters |
|
Parameters Measured |
wind speed, wind direction |
Protocol |
RS485 (MODBUS-RTU) / SDI-12 |
Power Supply |
12V~24V 24V(Heating power supply) |
Cable Length |
3m |
Operating Temperature & Humidity |
-40 °C ~ + 85 °C, 0 ~ 100%RH |
IP Rating |
IP66 |
Device Weight |
2kg |
Wind Speed (Ultrasonic) |
|
Range |
0~60 m/s standard range 0~75m/s extended range Up to 80m/s withstand range |
Accuracy |
±0.3m/s(≤10m/s); ±3% (10m/s ~ 50m/s) ±5% (>50m/s) |
Resolution |
0.1 m/s |
Wind Direction (Ultrasonic) |
|
Range |
0 ~ 360 ° |
Accuracy |
± 3.0° |
Resolution |
0.1° |
DOCUMENTS
