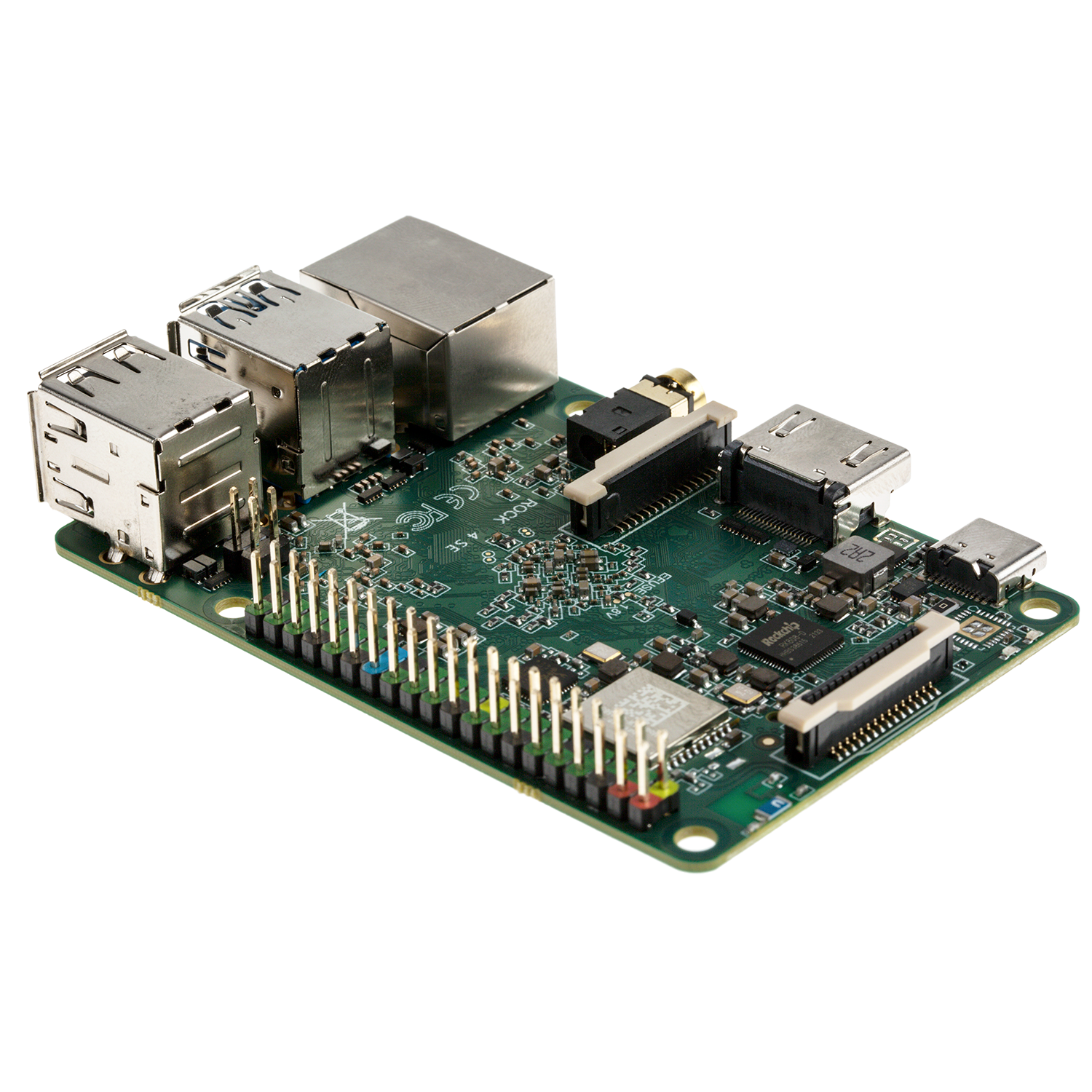

ROCK 4 SE 4GB Single Board Computer

ROCK 4 SE 4GB Single Board Computer
ROCK 4 SE 4GB Single Board ComputerROCK 4 SE 4GB Single Board ComputerROCK 4 SE 4GB Single Board ComputerROCK 4 SE 4GB Single Board ComputerROCK 4 SE 4GB Single Board ComputerROCK 4 SE 4GB Single Board Computer
รหัสสินค้า BR00286
หมวดหมู่ Rock Pi 4
ราคา 3,385.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : Orange, orange pi, orange pi board, board orange, Orange pi 4 LTS, ROCK 4 SE 4GB, ROCK 4

รายละเอียดสินค้า

ดูการติดตั้ง Debian บน Rock 4C+ ได้ที่ Click
ดูการติดตั้ง Ubuntu บน Rock 4C+ ได้ที่ Click

Description
ROCK 4 SE is a reliable and high-performing single-board computer that offers class-leading performance and superior hardware as standard. This special edition board is based on a powerful Rockchip RK3399-T hexa-core processor, big.LITTLE™ Arm® Dual Cortex-A72® CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM. With onboard RTC, WiFi, Bluetooth, antenna, audio jack, 4K HDMI port, and many more, ROCK 4 SE is the perfect Raspberry Pi alternative, that provides an incredible performance solid as a ROCK!

Pinout Diagram of the ROCK 4 SE

ROCK 4 SE pinout diagram

Details
Note: We recommend using a PD or QC power supply with a maximum output of 9V or 12V.
What Are the Key Benefits of the ROCK 4 SE?

Powerful Rockchip processor
A low-power high-performing Rockchip RK3399-T processor is embedded into the heart of the ROCK 4 SE board. Equipped with an Arm® big.LITTLE™ technology Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM, be sure that your board will provide a high-performance solid as a ROCK!

Extensive storage capacity
ROCK 4 SE offers you an immense advantage over other competitors’ boards, benefiting from extensive storage capability. It features a Micro SD card, an eMMC and an M.2 (M key), ensuring the board with a tremendous amount of additional storage capacity.

RTC (real-time clock)
The onboard real-time clock allows you to accurately register the time even when the ROCK 4 SE is powered off. The board features an onboard connector for an RTC battery.

Multiple connectivity capabilities
The board offers you multiple connectivity capabilities, including Bluetooth 5.0, WiFi, Gigabit Ethernet, USB and HDMI ports, and a built-in antenna, allowing you to widely incorporate ROCK 4 SE into your applications.
ROCK 4 SE product features

Highly compatible with SBC accessories
ROCK 4 SE features an onboard 40P GPIO extension header, offering extensive compatibility with a wide range of SBC accessories.

Advanced multimedia functions
The ROCK 4 SE is fitted with an Arm Mali™ – T860MP4 quad-core graphics processing unit (GPU), ideal for advanced multimedia applications, including games. The board incorporates camera and display interfaces, an HDMI port supporting displays up to 4Kp60 resolution, a high-quality audio output via a 3.5mm onboard audio jack that supports microphone input as default, and much more.

Why is ROCK 4 SE the perfect Raspberry Pi alternative?

  • Better performance – 4GB 64bit RAM, more processing cores and a broader memory interface,

  • Extensive storage capacity,

  • Similar form factor,

  • 40 pin GPIO extension header.

How to customise your ROCK board?
Your board, your way. With OKdo, you can customise the board in large volumes. Reach out to us and find out our conditions and how you can customise the ROCK 4 SE to tailor it to your design needs.

You can now benefit from the adaptive design of the ROCK 4 SE and add or remove components or even fully configure it for low-cost applications efficiency and environmental improvements.

Availability
Tackling the shortage of semiconductors on the market, OKdo, in collaboration with Radxa, ensured long-term stock availability of ROCK 4 SE, sparing you from stock hunting and allowing you to focus on designing the world with breathtaking innovations.

Technical Specifications


ROCK 4 SE Board

SOC

Rockchip RK3399-T

Processor

Arm® big.LITTLE™ technology (Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz)

GPU

Arm Mali™ – T860MP4 GPU, supporting OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11

Memory

Dual channel (64bit) 4GB LPDDR4 RAM

Power Req

USB Type-C™ PD/QC 9-12V

HDMI

1 x 4k@60fps HDMI

USB

2 x USB 2.0

1 x USB 3.0, 1 x USB 3.0 OTG (Switchable)

Audio Ports

3.5mm jack, analogue stereo output, microphone input

Connectivity

WiFi 5/BT 5.0, BLE, Gigabit Ethernet

MIPI

1 x 2 lane DSI/1 x 2 lane CSI

Storage

Micro SD / M.2 (M key) / eMMC

EMMC

B2B connector

UARTS

2 x UART

RTC

YES (support for external battery)

Software

ARMv8 Instruction Set

Debian/Ubuntu Linux support

Android 7.1/Android 9.0/Android 10/Android 11 support

GPU-enabled AI stack such as Caffe

Hardware access/control library for Linux/Android

Temperature

Operation Temperature: 0~50 ℃/ Storage Temperature: -20~80 ℃
Get Started with the ROCK 4SE

Need some inspiration to help you create amazing applications with your brand-new ROCK 4SE? Check out our getting started guides for the ROCK 4SE on Debian, and Ubuntu.
