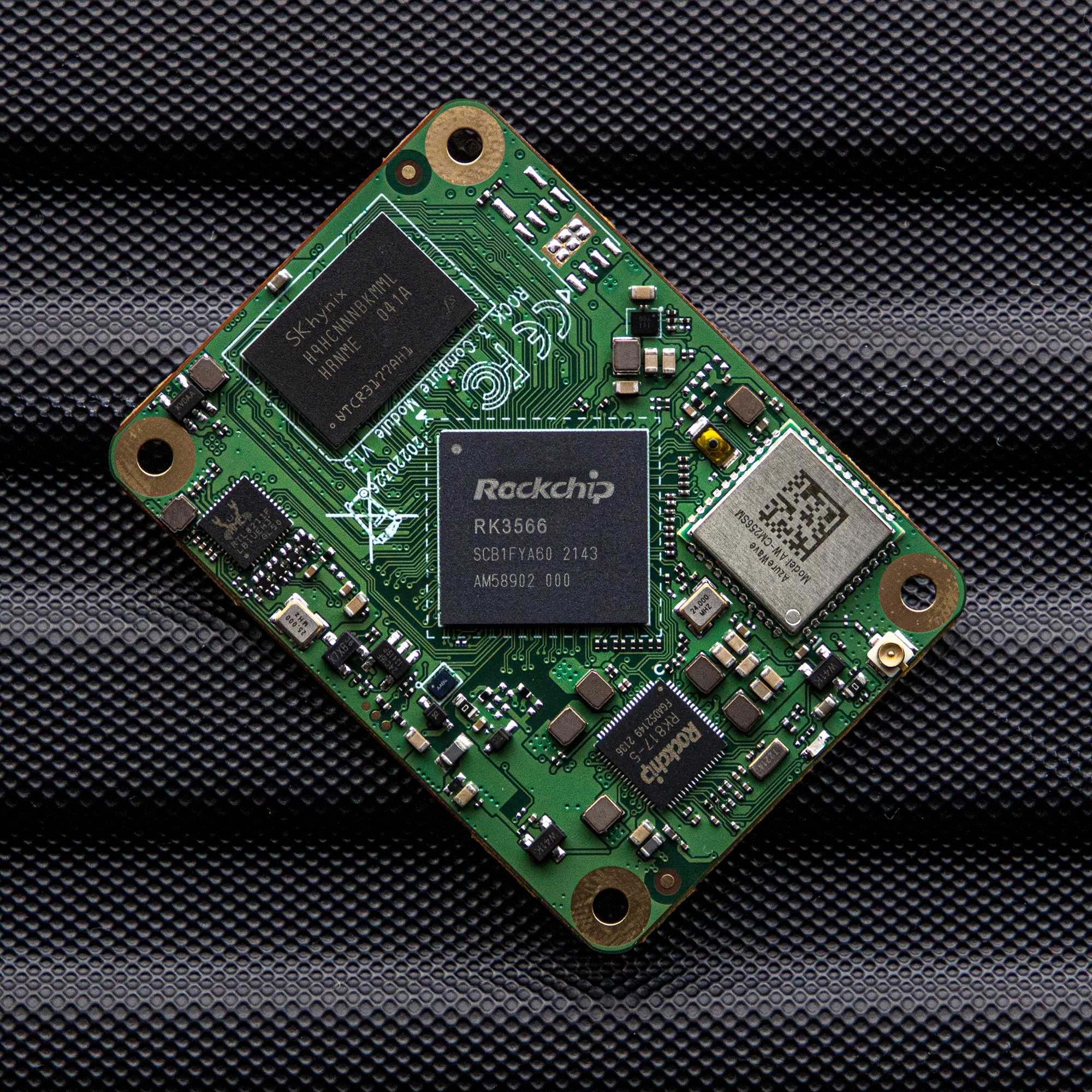

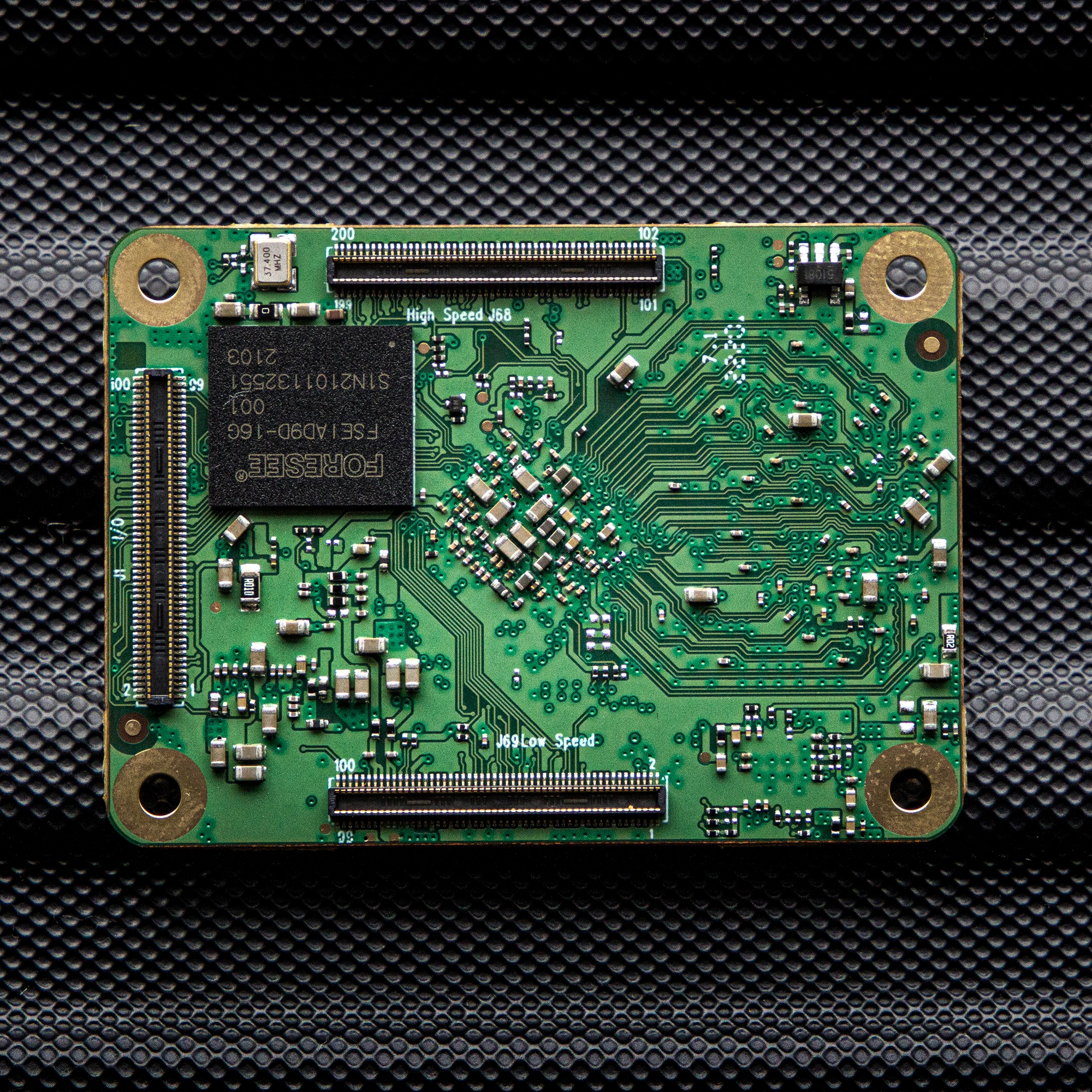

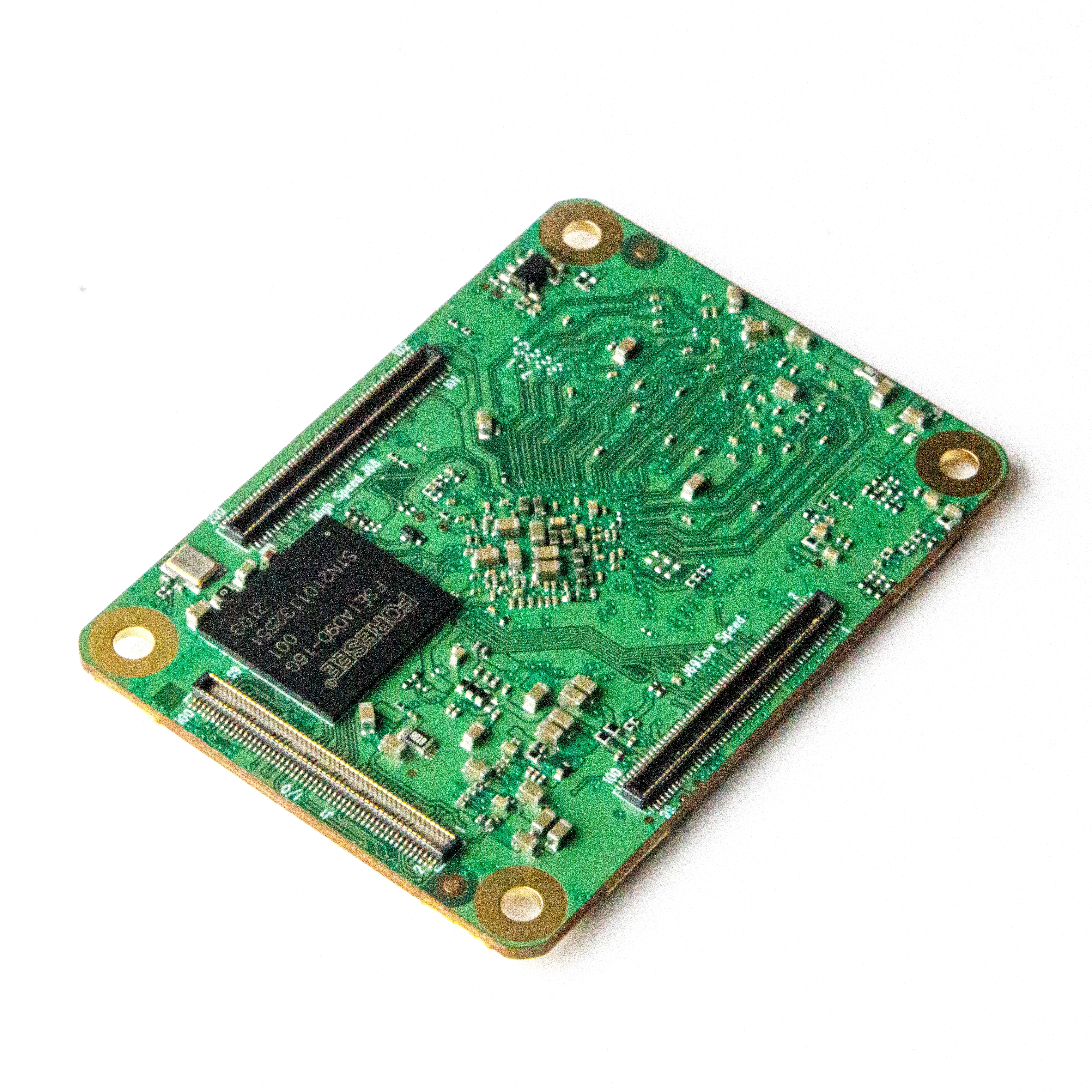

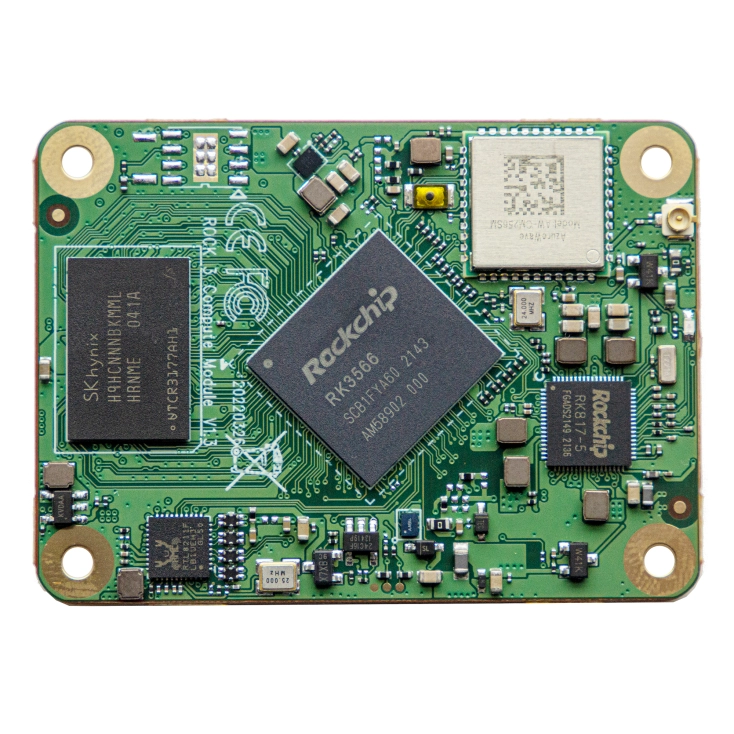

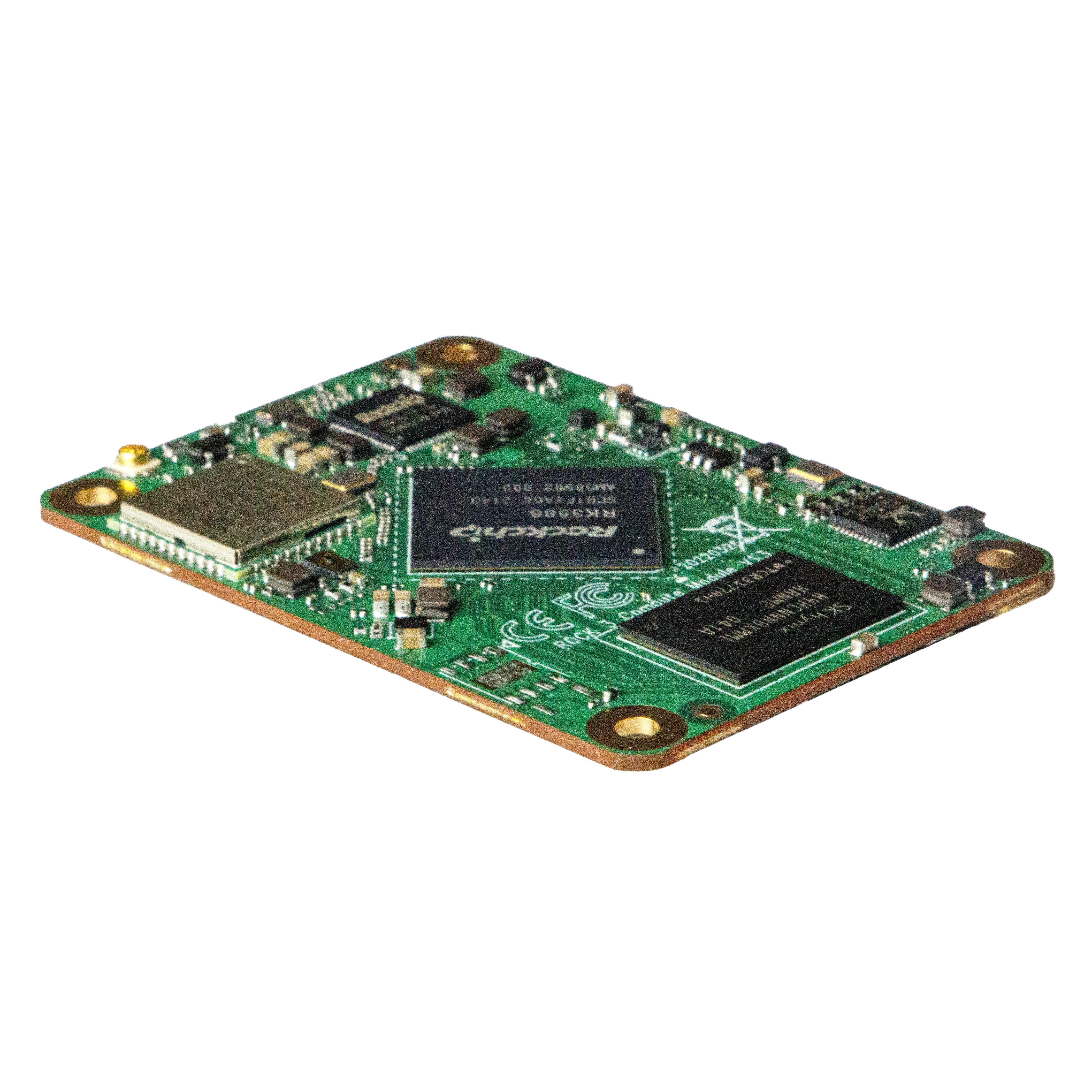

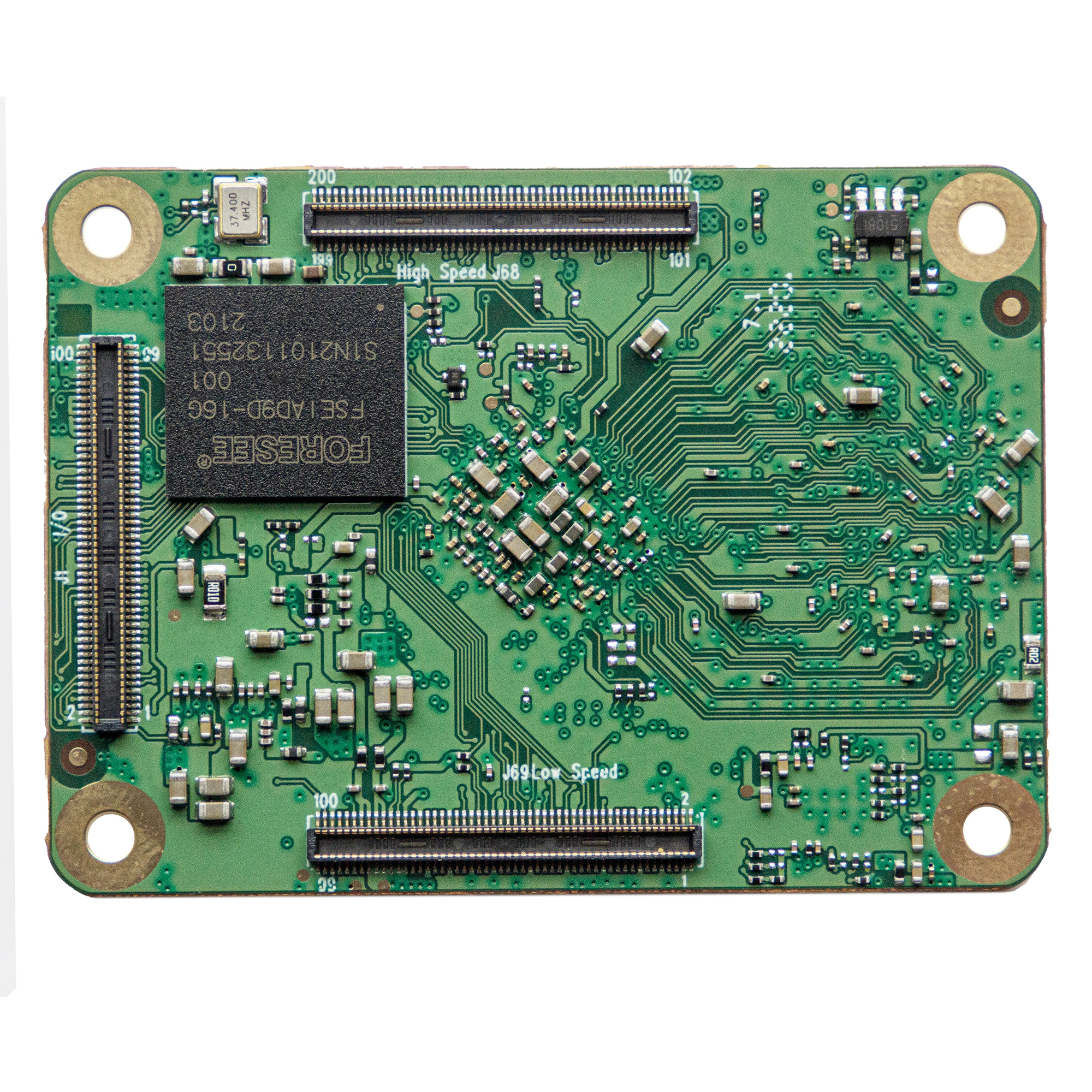

ROCK 3 Compute Module 2GB/16GB WiFi/BT

ROCK 3 Compute Module 2GB/16GB WiFi/BT
ROCK 3 Compute Module 2GB/16GB WiFi/BTROCK 3 Compute Module 2GB/16GB WiFi/BTROCK 3 Compute Module 2GB/16GB WiFi/BTROCK 3 Compute Module 2GB/16GB WiFi/BTROCK 3 Compute Module 2GB/16GB WiFi/BTROCK 3 Compute Module 2GB/16GB WiFi/BT
รหัสสินค้า BR00280
หมวดหมู่ Compute Module
ราคา 2,685.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : Orange, orange pi, orange pi board, board orange, Orange pi 4 LTS, Rock, rock pi, rock 3, rock model 3, compute module

รายละเอียดสินค้า

Description
The ROCK 3 Compute Module (CM3) is an incredible, high-performing System on Module (SoM) based on a powerful Rockchip RK3566 System on Chip (SoC). With a Quad-core Arm® Cortex®-A55 CPU and Arm Mali™-G52-2EE GPU, 2GB LPDDR4 RAM and 16GB eMMC storage, the CM3 will accelerate your design development and increase the performance and capabilities of your applications. ROCK CM3 benefits from multiple class-leading features, including wireless connectivity, such as WiFi® 5 and Bluetooth® 5.0, and extensive interface functionality, including audio and video interfaces, perfect for multimedia applications. Developed by OKdo Technology in collaboration with Radxa, the ROCK CM3 is an out-of-the-box, cost-efficient solution for any embedded applications.

Details
What are the key benefits of the ROCK 3 Compute Module (CM3)?

Out-of-the-box, cost-efficient solution
The CM3 will accelerate the development of your design applications.

Reliable and powerful SoC
Based on the Rockchip RK3566 System on Chip (SoC).

Perfect for multimedia applications
The CM3 benefits from an Arm Mali-G52-2EE graphic processing unit, audio and video interfaces, and an HDMI port supporting up to 4K x 2k@60Hz.

Perfect size for easy integration into different designs
Its compact size of just 55mm x 40mm allows it to be easily integrated into various embedded applications.

Flexible storage capacity
2GB LPDDR4 RAM and 16GB eMMC flash storage which can be used for OS and data storage.

Wireless connectivity
Practical SoM that offers several wireless connectivity opportunities, including WiFi 5, Bluetooth 5.0 with BLE and Gigabit Ethernet.

Multiple onboard interfaces
An extensive list of onboard interfaces allowing you to be highly flexible with applications of this compute module.

Technical Specifications

SoC

Rockchip RK3566 SoC with 64-bit Quad Core low power cores up to 2.0GHz

RAM

2GB LPDDR4

CPU

Quad-core Arm Cortex-A55 (ARMv8) 64-bit @ 2.0GHz

GPU

Arm Mali-G52-2EE, OpenGL® ES1.1/2.0/3.0/3.1/3.2, Vulkan® 1.1, OpenCL™ 2.1

NPU

1 TOPs@INT8, support INT8, INT16, FP16, BFP16, support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN, etc.

Memory

32bit DDR4/3/3L/LPDDR4/4X/3 and support eMMC 5.1 and SFC

Display

Single display engine, HDMI2.0, eDP 1.3, Dual MIPI-DSI, combo with single LVDS, 24bit RGB/BT1120 and EBC interface

Multimedia

4K H.265/H.264/VP9 video decoder and 1080p@60fps H.264/H.265 video encoder

Video input

8M Pixel ISP and 1 x 4 lanes or 2 x 2 lanes MIPI CSI-2 and DVP interface

Audio interface

I2S0/I2S1 with 8 channels, IS2/I2S3 with 2 channels, SPDIF0, PDM0 with 8 channels, TDM) with 8 channels and Voice Activity Detection (VAD)

High-Speed Interface

One USB 3.0 host, two SATA 3.0, one PCIE2.1, two SerDes (serialiser/deserialiser) lanes, dual USB 2.0 host and one USB 2.0 OTG and a single RGMII interface

Security

Arm TrustZone® security extension, Secure Video Path, Secure JTAG to debug, Secure boot, OTP and Crypto (AES/TDES/SM4/SM3/SHA256/SHA512/RSA)

Power Requirements

The power input into the SoM is 5VDC at 5A

Supported Software

Debian/Ubuntu Linux support

Android 11 support

Operating temperature

0°C to 60°C

Connectivity

WiFi 5, Bluetooth 5.0 with BLE, Gigabit Ethernet
Are you ready to learn more about ROCK and get creative whilst trying our latest projects? Discover our blogs and visit our Project Hub for more exciting stuff about ROCK.
Interfaces:

  • 802.11 b/g/n/ac Wireless LAN (Wi-Fi 5)

  • Bluetooth 5.0 with BLE

  • 8 x I2C

  • 4 x SPI

  • 8 x UART

  • 9 x PWM

  • 50 x GPIO

  • 2 x ADC

  • 1 x Gigabit Ethernet PHY

  • Support PDM with microphone array

  • I2S

  • 2 x SATA

  • 1 x PCIe 2.0, 1 lane host (5Gbps)

  • 1 x USB 2.0

  • 1 x USB 2.0 OTG

  • 1 x USB 3.0 (5Gbps)

  • 1 x SDIO 3.0

  • 1 x HDMI up to 4K x 2k@60Hz

  • 1 x eDP four lanes (2.7 Gbps per lane)

  • 2 x MIPI DSI @ 1.6Gbps per lane

  • 2 x MIPI CSI

  • 1 x 2 lane MIPI CSI camera port

  • 1 x 4 lane MIPI CSI camera port

  • 1 x LVDS combo four lanes, mux with MIPI DSIO

  • eMMC size: 16GB

  • 3 x 100 pins 0.4mm pitch B2B connector
