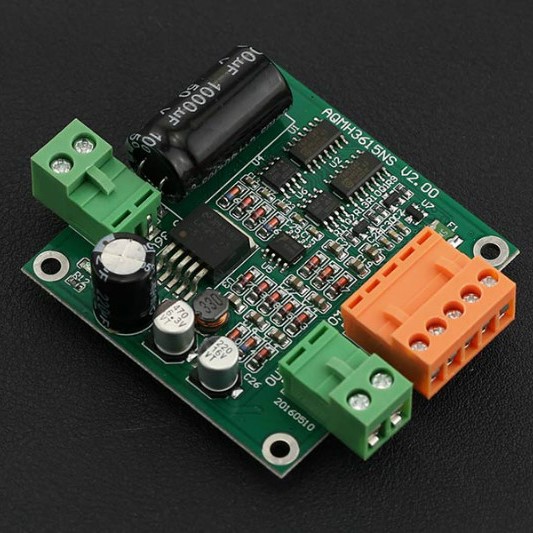

15A Single DC Motor Driver (แท้จาก DFRobot)

This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.

Features:

• Voltage supply: DC 12 ~ 36 V
• Voltage supply limit: 6.5 ~ 40 V
• Control signal Level (Compatible 3.3V/5V)
  • High: DC 2.0 ~ 5.5 V
  • Low: DC0 ~ 0.8 V
• Maximum continuous operating current:
  • 12A (no heat sink)
  • 15A (with simple heat sink)
  • 20A (with Thick Heat Sink/ Cooling System)
• Peak current: 110 A
• Speed control: PWM
• Minimum valid Pulse Width: 200 ns
• Maximum Output Current @5V: 500 mA
• Working Temperature: -25 ~ 85 °C
• Mounting Hole: M3
• Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
• Weight: 42g

Shipping List:

• 15A Single DC Motor Driver x1

Tutorial

Here you will learn how to use PWM signal to control the motor through this motor driver, do some wiring according to the Connection Diagram below, and then upload the sample code below to the Arduino card, here we use a UNO as the controller, you could see your motor run forward for 3 second and then run reversely for another 3 seconds and repeat this behavior then.

This tutorial will cover how to use PWM to control a motor using the shield.

Requirements

• Hardware
  • 1 x DFRduino UNO (or similar)
  • 1 x DC Motor Driver
  • 1 x DC Motor
  • 1 x Fuse@20A
  • Jumper wires

• Software
  • Arduino IDE Click to Download Arduino IDE from Arduino®.

Connection Diagram



Sample Code

/*
* @file Motor driver DRI0042_Test.ino
* @brief DRI0042_Test.ino Motor control program
*
* control motor positive inversion
*
* @author bernie.chen@dfrobot.com
* @version V1.0
* @date 2016-8-10
*/
const int IN1=5;
const int IN2=4;
const int PWM=6;

void setup() {
pinMode(IN1, OUTPUT);
pinMode(IN2, OUTPUT);
pinMode(PWM, OUTPUT);
}

void loop() {
Motor_Brake();
delay(100);
Motor_Forward(200);//Forward, PWM setting 0-255
delay(3000);
Motor_Brake();
delay(100);
Motor_Backward(200);//Reverse, PWM setting 0-255
delay(3000);
}

void Motor_Forward(int Speed) {
digitalWrite(IN1,HIGH);
digitalWrite(IN2,LOW);
analogWrite(PWM,Speed);
}

void Motor_Backward(int Speed) {
digitalWrite(IN1,LOW);
digitalWrite(IN2,HIGH);
analogWrite(PWM,Speed);
}

void Motor_Brake(){
digitalWrite(IN1,LOW);
digitalWrite(IN2,LOW);
}
