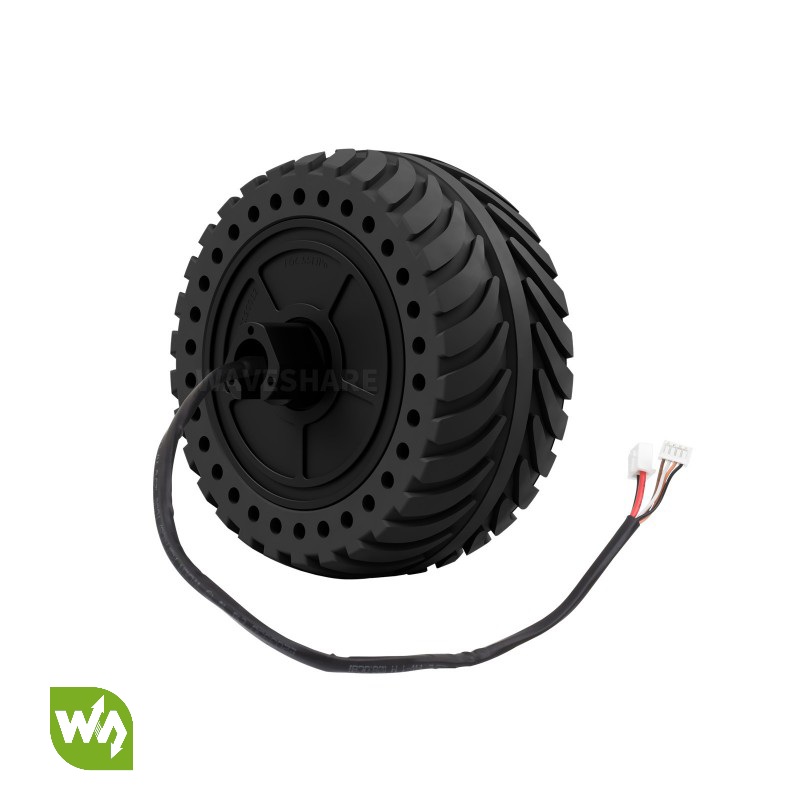

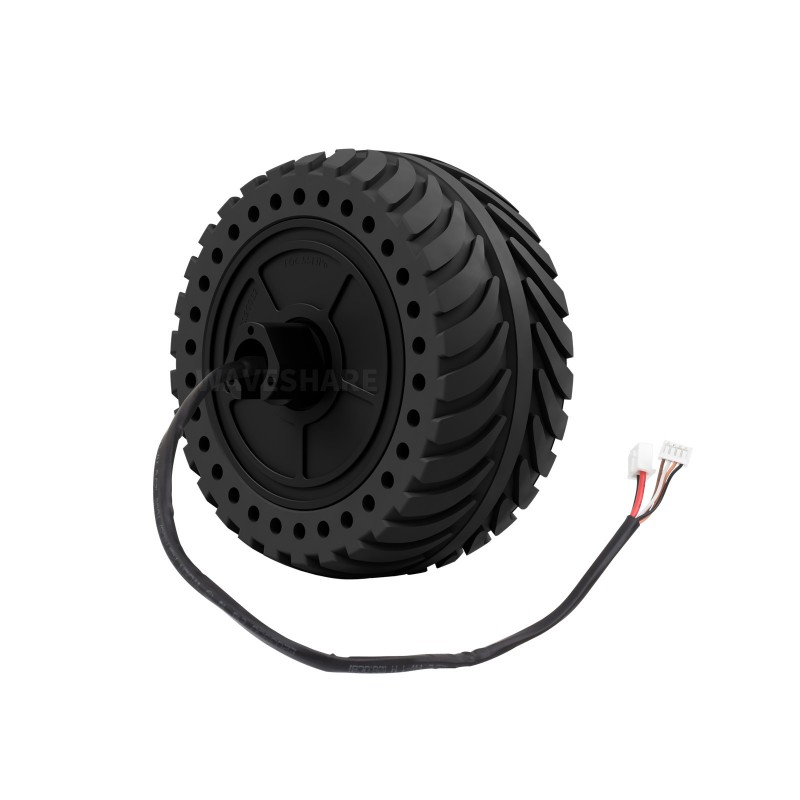

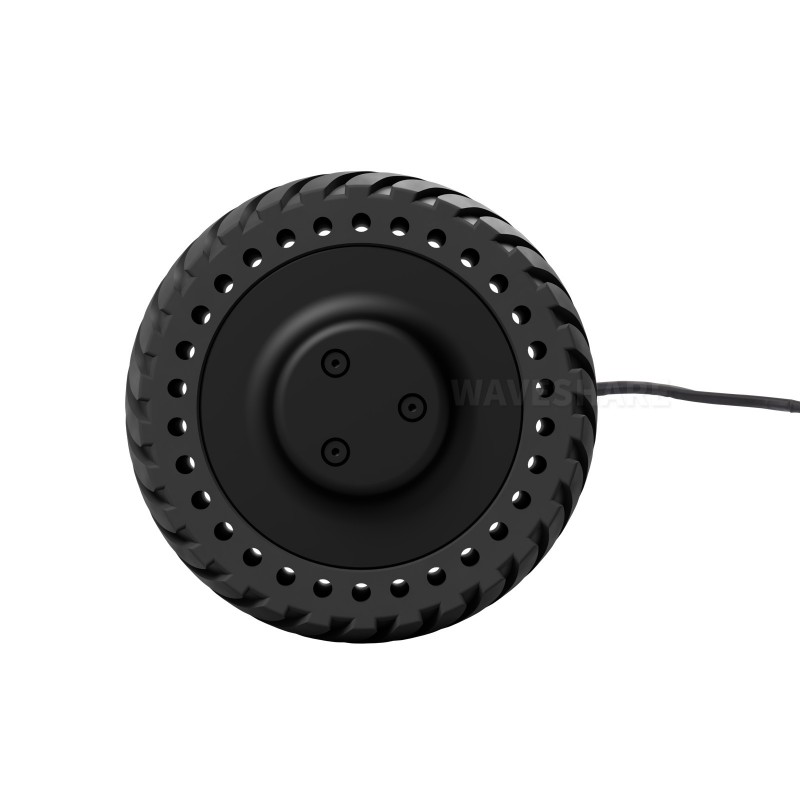

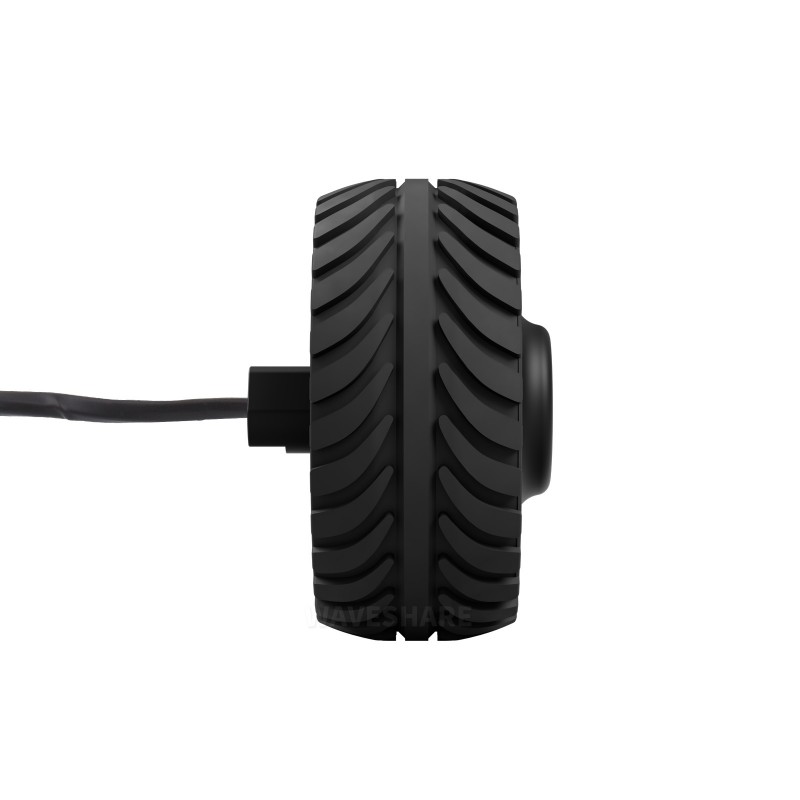

DDSM115 Direct Drive Servo Motor, Low Speed & High Torque, Low Noise, All-In-One Design, Hub Motor (แท้จาก WaveShare)

Adopts Advanced Direct Drive Technology, Remove The Reducer In The Traditional Drive Solution. Say Goodbye To The Shortcomings Of Expensive, Noisy, Inefficient And Bulky

Based On The Integrated Development Concept, DDSM115 Is A High-Reliability Permanent Magnet Synchronous Motor (PMSM) Integrating Outer Rotor Brushless Motor, Encoder And Servo.

• Ultra low noise
• High precision and zero-backlash
• Fast response, direct drive without delay
• Integrated motor and driver, compact structure and high integration
• Support RS485 communication mode
• Motor feedback information such as position, speed, current, error code, etc. can be obtained through communication.
• With Hall position detection, over-current protection, etc.
• Support electric brake
• No drive mechanical friction, drive efficiency close to 100%

Current Loop Mode, Position Loop Mode, Velocity Loop Mode

Only 1-Ch RS485 Bus Is Required To Control Multiple Direct Drive Servo Motors At The Same Time

You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity, Current, Etc. By Communication

Temperature Feedback



Position Feedback



Speed Feedback



Current Feedback

The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration

The DDSM115 Speed Is As Low As 1 RPM And Its Torque Up To 2.0Nm

IP54 Protection Rating, The Ingress Protection Design Against Dust And Water Jets Can Make The Motor Better Protected, Provides A Longer Lifetime And Better Performance

Home Robots, Industrial/Commercial Robots, Fitness Equipment, Etc.

Home Robots



Industrial Robots



Fitness Equipment



Food Delivery Robots
