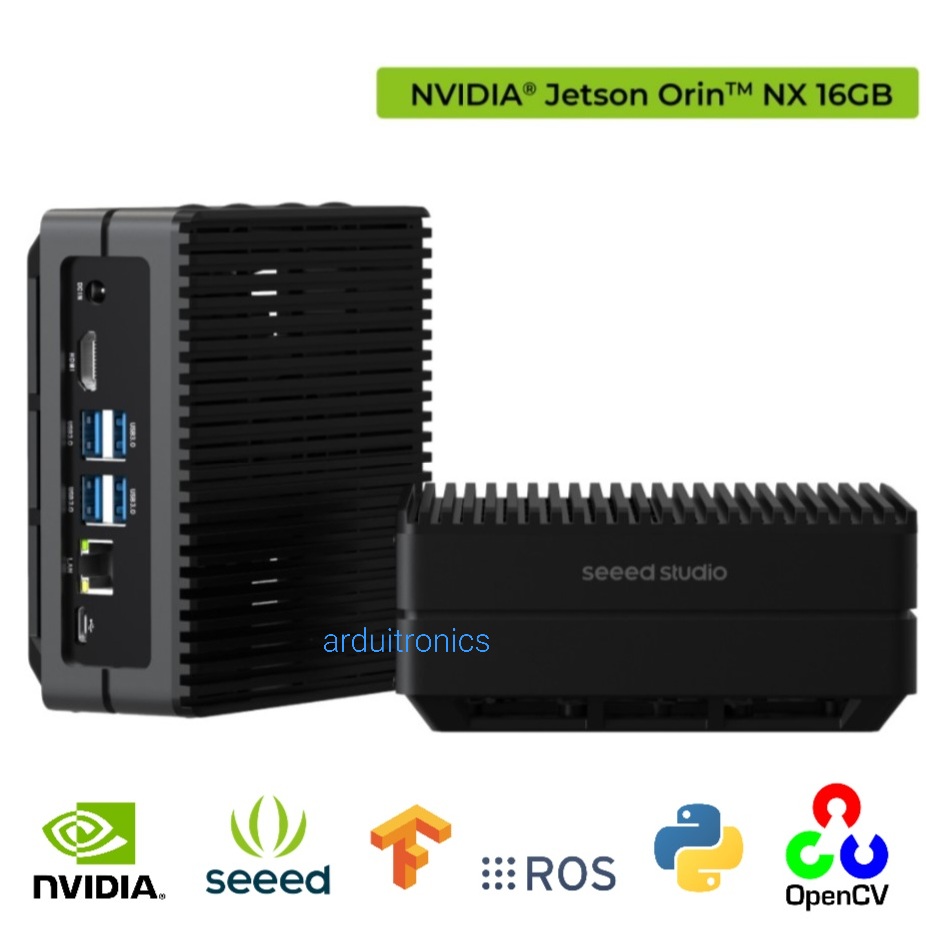

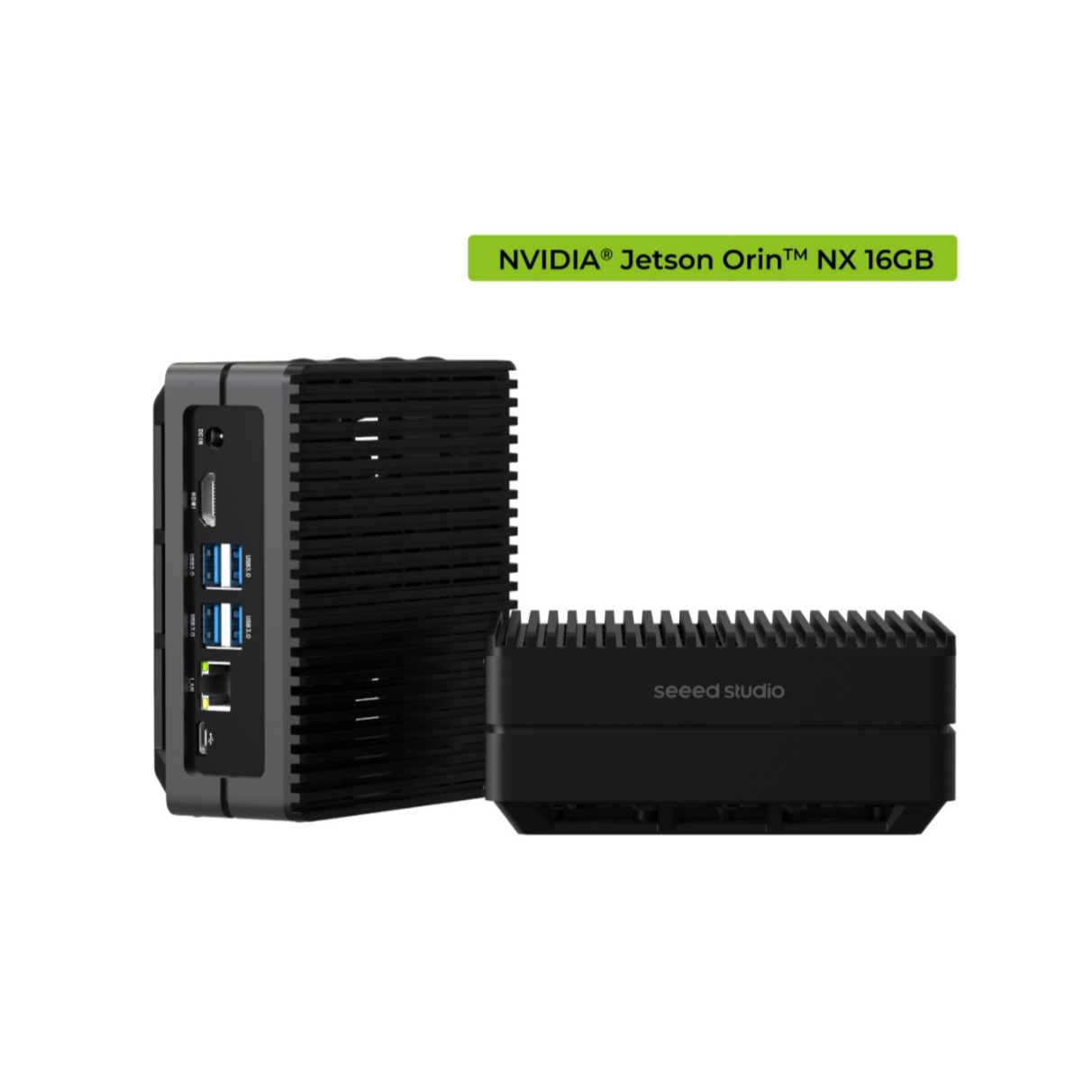

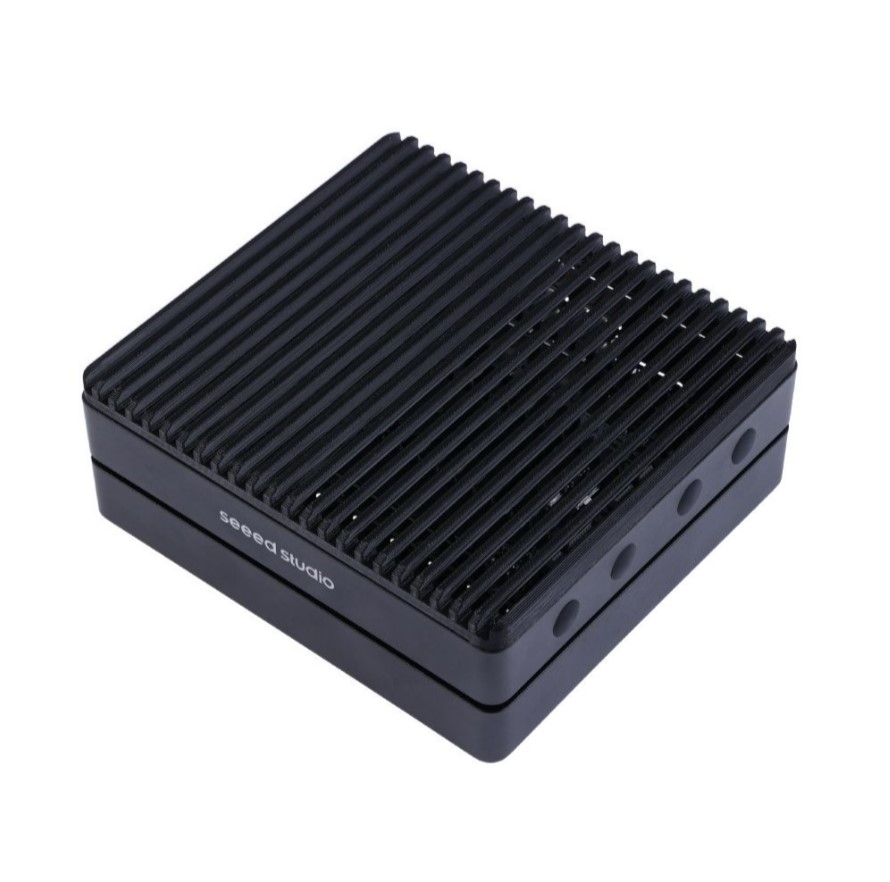

reComputer J4012-Edge AI Device with NVIDIA Jetson Orin™ NX 16GB module, 4xUSB 3.2, M.2 Key E & Key M Slot, Aluminum case, Pre-installed Jetpack System with NVIDIA JetPack™ on 128GB NVMe SSD - Seeed Nvidia

ดูรายละเอียดเพิ่มเติมและวิธีเริ่มต้นใช้งานได้ที่ Link1 และ Link2

ต้องการติดตั้ง Nvidia Software Package ด้วยตนเอง ดูวิธีการได้ที่ Link
หมายเหตุ:
1) รุ่น J4012 นี้รองรับการเพิ่มหน่วยความจำแบบ SSD M.2
2) ดูวิธีการเพิ่มหน่วยความจำแบบ SSD M.2 อย่างละเอียดได้ที่ Click
3) หากต้องการใช้ SSD กับ reComouter ทางผู้ผลิตแนะนำว่าให้ใช้ 128GB, 256GB, 516GB ที่ผลิตโดย seeed เนื่องจากบางยี่ห้อและรุ่นของ SSD ทาง recomputer จะไม่รองรับ

3) รุ่นนี้ไม่มี Wifi ติดมาให้ด้วย หากต้องการใช้งาน wifi แนะนำให้ใช้ USB Wifi Dongle เชื่อมต่ออินเตอร์เน็ต

สินค้าประกอบด้วย

1 x NVDIA Jetson Orin™ NX 16GB

1 x Seeed carrier board (reComputer J401)

1 x 128GB NVMe SSD

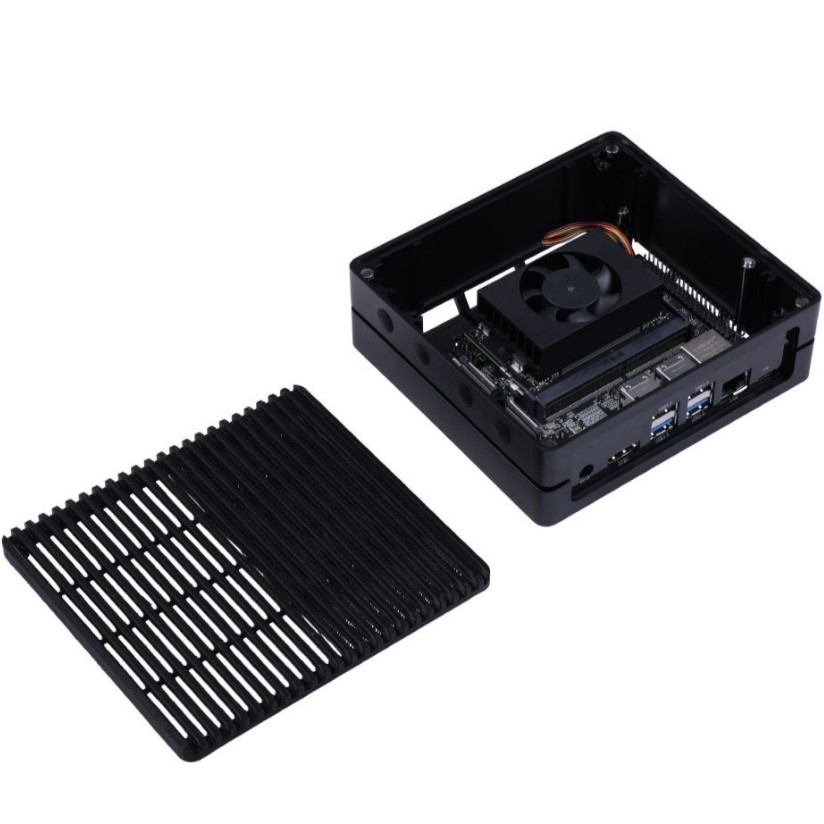

1 x Aluminum heatsink with fan

1 x Aluminum case (black)

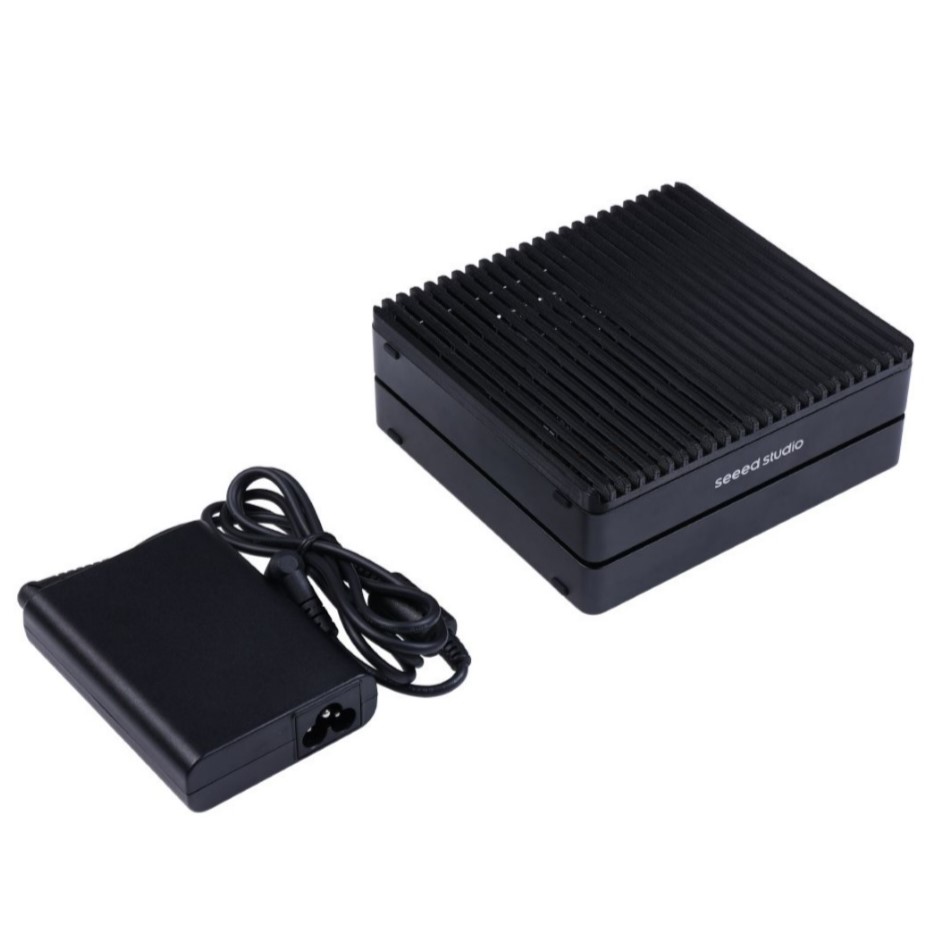

1 x 12V/5A(Barrel Jack 5.5/2.5mm) Power Adapter (Power cord not included)

Short description

reComputer J4012 is a hand-size edge AI box built with NVIDIA Jetson Orin™ NX 16GB module which delivers up to 100 TOPS AI performance and has a rich set of IOs including USB 3.2 ports(4x), HDMI 2.1, M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin and more. It is also equipped with an aluminum case, a cooling fan with a heatsink, and a pre-installed Jetpack System with NVIDIA JetPack™. As part of the NVIDIA Jetson ecosystem, reComputer J4012 is ready for your next AI application development and deployment.

PRODUCT DETAILS

Features

• Brilliant AI Performance for production: on-device processing with up to 100 TOPS AI performance with low power and low latency

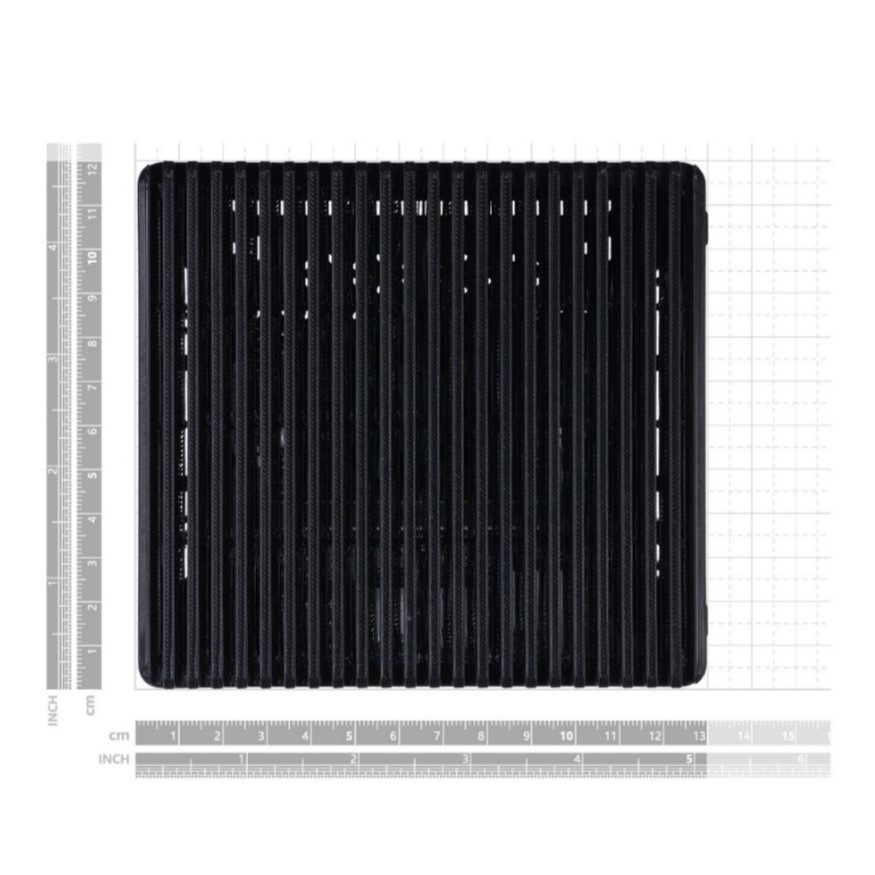

• Hand-size edge AI device: compact size at 130mm x120mm x 58.5mm, includes NVIDIA Jetson Orin™ NX 16GB production module, a cooling fan with a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere
• Expandable with rich I/Os: 4x USB 3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN, and GPIO.
• Accelerate solution to market: pre-installed Jetpack with NVIDIA JetPack™ 5.1 on the included 128GB NVMe SSD, Linux OS BSP, 128GB SSD, support Jetson software and leading AI frameworks and software platforms
• Comprehensive certificates: FCC, CE, RoHS, UKCA

Description

Hardware Overview
Interface-rich reference carrier board

Applications

• Traffic management

  • license plate detection

  • car detection

  • pedestrian detection

• Industry 4.0:

  • helmet detection, hard hat detection, and custom PPE detection

  • visual anomaly detection using NVIDIA Deepstream IoT

• Retail:

  • sentiment analysis(webinar: learn your customer with AI by Zenus smart camera),

  • retail store items detection

• Robotics:

  • under-ice sensing ROV

  • warehouse towing robot

• Edge AI into the Wild: Wildfire detection

• Agriculture: weeding machines, Tractors, Livestock detection

• Healthcare: medical imaging analysis

Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!

LEARN AND DOCUMENTS
Documents:
reComputer J401X Datasheet
Nvidia Jetson Devices and carrier boards comparisions

Learn


[Wiki] Getting Started with CVEDIA-RT on NVIDIA® Jetson Devices
CVEDIA-RT is a modular, cross-platform AI inference engine that provides the solid foundations for building decision support systems. It's designed from the ground-up with developers and integrators in mind, providing both high and low-level interfaces.


[Wiki] Update Jetson Linux Over-the-Air Using Allxon
Generally, NVIDIA provides "OTA Payload Package Update" mechanism which allows users to update their Jetson devices to newer versions of JetPack. Eventhough it seems convenient to update the OS of Jetson devices, there is an additional effort which users need to make. That is, users need to host an OTA server to deliver the OTA Payload Package to Jetson devices. It will be a huge effort for users to handle in addition to generating the OTA Payload Package.


[Wiki] Getting Started with Lumeo on NVIDIA® Jetson Devices
Lumeo is a no-code video analytics platform that enables you to rapidly design, deploy, and monitor custom video analytics and other vision-AI enabled applications.

[Others] NVIDIA Deep Learning Institute
If you would like to get critical AI skills and dive into deep learning. NVIDIA’s Deep Learning Institute (DLI) will be a good choice, which delivers practical, hands-on training and certification in AI at the edge for developers, educators, students, and lifelong learners. You can even earn certificates to demonstrate your understanding of Jetson and AI when you complete these free, open-source courses.
