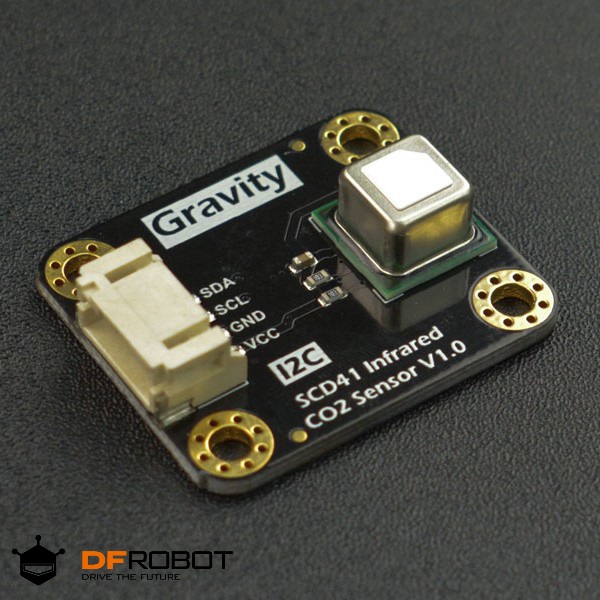

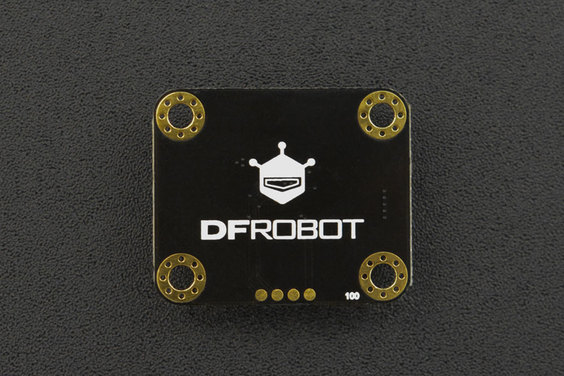

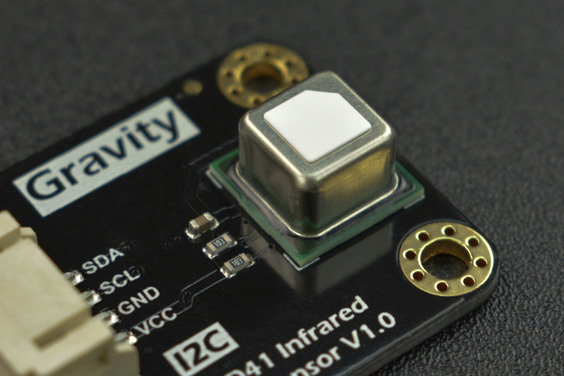

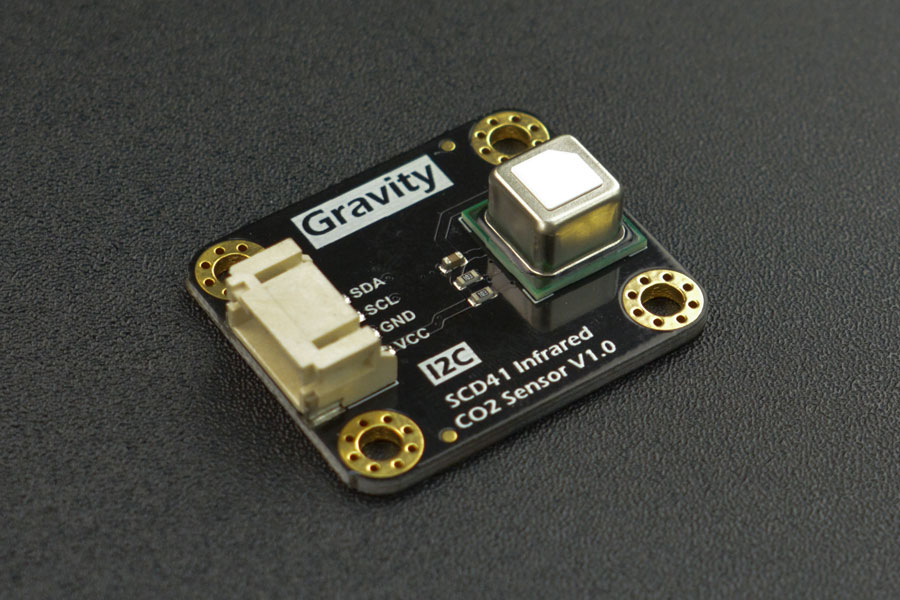

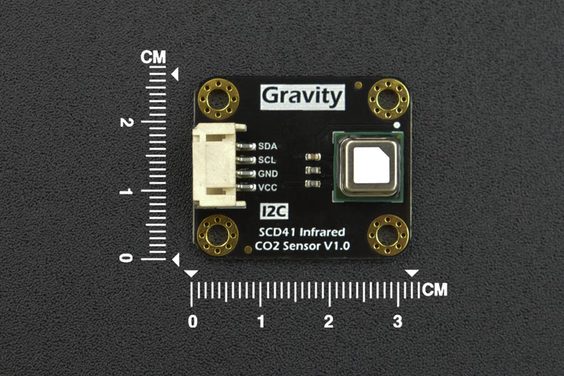

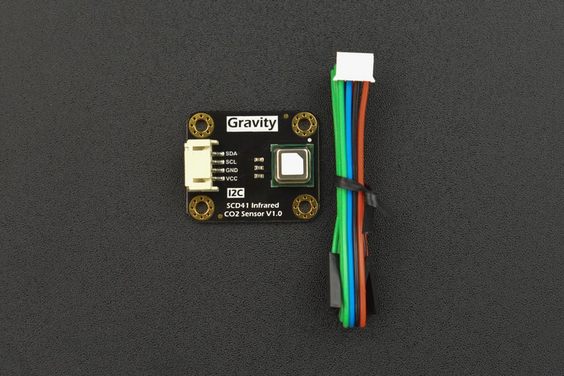

Gravity: I2C SCD41 Infrared CO2 Sensor (400 - 5000 ppm) - แท้จาก DFRobot

/*!
* @file periodMeasure.ino
* @brief This sample shows how to configure period measurement mode, compensation and calibration.
* @note The actual compensation and calibration parameter should be changed according to the operating environment
* @copyright Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
* @license The MIT License (MIT)
* @author [qsjhyy](yihuan.huang@dfrobot.com)
* @version V1.0
* @date 2022-05-11
* @url https://github.com/DFRobot/DFRobot_SCD4X
*/
#include <DFRobot_SCD4X.h>

/**
* @brief Constructor
* @param pWire - Wire object is defined in Wire.h, so just use &Wire and the methods in Wire can be pointed to and used
* @param i2cAddr - SCD4X I2C address.
*/
DFRobot_SCD4X SCD4X(&Wire, /*i2cAddr = */SCD4X_I2C_ADDR);

void setup(void)
{
Serial.begin(115200);

// Init the sensor
while( !SCD4X.begin() ){
Serial.println("Communication with device failed, please check connection");
delay(3000);
}
Serial.println("Begin ok!");

/**
* @brief set periodic measurement mode
* @param mode - periodic measurement mode:
* @n SCD4X_START_PERIODIC_MEASURE : start periodic measurement, signal update interval is 5 seconds.
* @n SCD4X_STOP_PERIODIC_MEASURE : stop periodic measurement command
* @n SCD4X_START_LOW_POWER_MEASURE : start low power periodic measurement, signal update interval is approximately 30 seconds.
* @return None
* @note The measurement mode must be disabled when configuring the sensor; after giving the stop_periodic_measurement command, the sensor needs to wait 500ms before responding to other commands.
*/
SCD4X.enablePeriodMeasure(SCD4X_STOP_PERIODIC_MEASURE);

/**
* @brief set temperature offset
* @details T(offset_actual) = T(SCD4X) - T(reference) + T(offset_previous)
* @n T(offset_actual): the calculated actual temperature offset that is required
* @n T(SCD4X): the temperature measured by the sensor (wait for a period of time to get steady readings)
* @n T(reference): the standard reference value of the current ambient temperature
* @n T(offset_previous): the previously set temperature offset
* @n For example : 32(T(SCD4X)) - 30(T(reference)) + 2(T(offset_previous)) = 4(T(offset_actual))
* @param tempComp - temperature offset value, unit ℃
* @return None
* @note When executing the command, the sensor can't be in period measurement mode
*/
SCD4X.setTempComp(4.0);

/**
* @brief get temperature offset
* @return The current set temp compensation value, unit ℃
* @note When executing the command, the sensor can't be in period measurement mode
*/
float temp = 0;
temp = SCD4X.getTempComp();
Serial.print("The current temperature compensation value : ");
Serial.print(temp);
Serial.println(" C");

/**
* @brief set sensor altitude
* @param altitude - the current ambient altitude, unit m
* @return None
* @note When executing the command, the sensor can't be in period measurement mode
*/
SCD4X.setSensorAltitude(540);

/**
* @brief get sensor altitude
* @return The current set ambient altitude, unit m
* @note When executing the command, the sensor can't be in period measurement mode
*/
uint16_t altitude = 0;
altitude = SCD4X.getSensorAltitude();
Serial.print("Set the current environment altitude : ");
Serial.print(altitude);
Serial.println(" m");

/**
* @brief set automatic self calibration enabled
* @param mode - automatic self-calibration mode:
* @n true : enable automatic self-calibration
* @n false : disable automatic self-calibration
* @return None
* @note When executing the command, the sensor can't be in period measurement mode
*/
// SCD4X.setAutoCalibMode(true);

/**
* @brief get automatic self calibration enabled
* @return Automatic self-calibration mode:
* @n true : enable automatic self-calibration
* @n false : disable automatic self-calibration
* @note When executing the command, the sensor can't be in period measurement mode
*/
// if(SCD4X.getAutoCalibMode()) {
// Serial.println("Automatic calibration on!");
// } else {
// Serial.println("Automatic calibration off!");
// }

/**
* @brief persist settings
* @details Configuration settings such as the temperature offset, sensor altitude and the ASC enabled/disabled
* @n parameter are by default stored in the volatile memory (RAM) only and will be lost after a power-cycle.
* @return None
* @note To avoid unnecessary wear of the EEPROM, the persist_settings command should only be sent
* @n when persistence is required and if actual changes to the configuration have been made.
* @n The EEPROM is guaranteed to endure at least 2000 write cycles before failure.
* @note Command execution time : 800 ms
* @n When executing the command, the sensor can't be in period measurement mode
*/
// SCD4X.persistSettings();

/**
* @brief reinit reinit
* @details The reinit command reinitializes the sensor by reloading user settings from EEPROM.
* @return None
* @note Before sending the reinit command, the stop measurement command must be issued.
* @n If the reinit command does not trigger the desired re-initialization,
* @n a power-cycle should be applied to the SCD4x.
* @n Command execution time : 20 ms
* @n When executing the command, the sensor can't be in period measurement mode
*/
//SCD4X.moduleReinit();

/**
* @brief set periodic measurement mode
* @param mode - periodic measurement mode:
* @n SCD4X_START_PERIODIC_MEASURE : start periodic measurement, signal update interval is 5 seconds.
* @n SCD4X_STOP_PERIODIC_MEASURE : stop periodic measurement command
* @n SCD4X_START_LOW_POWER_MEASURE : start low power periodic measurement, signal update interval is approximately 30 seconds.
* @return None
* @note The measurement mode must be disabled when changing the sensor settings; after giving the stop_periodic_measurement command, the sensor needs to wait 500ms before responding to other commands.
*/
SCD4X.enablePeriodMeasure(SCD4X_START_PERIODIC_MEASURE);

Serial.println();
}

void loop()
{
/**
* @brief get data ready status
* @return data ready status:
* @n true : data ready
* @n false : data not ready
*/
if(SCD4X.getDataReadyStatus()) {
/**
* @brief set ambient pressure
* @param ambientPressure - the current ambient pressure, unit Pa
* @return None
*/
// SCD4X.setAmbientPressure(96000);

/**
* @brief Read the measured data
* @param data - sSensorMeasurement_t, the values measured by the sensor, including CO2 concentration (ppm), temperature (℃) and humidity (RH)
* @n typedef struct {
* @n uint16_t CO2ppm;
* @n float temp;
* @n float humidity;
* @n } sSensorMeasurement_t;
* @return None
* @note CO2 measurement range: 0~40000 ppm; temperature measurement range: -10~60 ℃; humidity measurement range: 0~100 %RH.
*/
DFRobot_SCD4X::sSensorMeasurement_t data;
SCD4X.readMeasurement(&data);

Serial.print("Carbon dioxide concentration : ");
Serial.print(data.CO2ppm);
Serial.println(" ppm");

Serial.print("Environment temperature : ");
Serial.print(data.temp);
Serial.println(" C");

Serial.print("Relative humidity : ");
Serial.print(data.humidity);
Serial.println(" RH");

Serial.println();
}
delay(1000);
}

/*!
* @file singleShotMeasure.ino
* @brief This sample shows how to set single measurement mode, perform reset operation, and set sleep and wake-up mode.
* @details Get 6 data from single measurement, take the average value, print it, enter sleep mode, wake up the sensor after 5 minutes, and repeat the above measurement process
* @copyright Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
* @license The MIT License (MIT)
* @author [qsjhyy](yihuan.huang@dfrobot.com)
* @version V1.0
* @date 2022-05-11
* @url https://github.com/DFRobot/DFRobot_SCD4X
*/
#include <DFRobot_SCD4X.h>

/**
* @brief Constructor
* @param pWire - Wire object is defined in Wire.h, so just use &Wire and the methods in Wire can be pointed to and used
* @param i2cAddr - SCD4X I2C address.
*/
DFRobot_SCD4X SCD4X(&Wire, /*i2cAddr = */SCD4X_I2C_ADDR);

void setup(void)
{
Serial.begin(115200);

// Init the sensor
while( !SCD4X.begin() ){
Serial.println("Communication with device failed, please check connection");
delay(3000);
}
Serial.println("Begin ok!");

/**
* @brief set periodic measurement mode
* @param mode - periodic measurement mode:
* @n SCD4X_START_PERIODIC_MEASURE : start periodic measurement, signal update interval is 5 seconds.
* @n SCD4X_STOP_PERIODIC_MEASURE : stop periodic measurement command
* @n SCD4X_START_LOW_POWER_MEASURE : start low power periodic measurement, signal update interval is approximately 30 seconds.
* @return None
* @note The measurement mode must be disabled when configuring the sensor; after giving the stop_periodic_measurement command, the sensor needs to wait 500ms before responding to other commands.
*/
SCD4X.enablePeriodMeasure(SCD4X_STOP_PERIODIC_MEASURE);

/**
* @brief perform self test
* @details The perform_self_test feature can be used as an end-of-line test to check sensor
* @n functionality and the customer power supply to the sensor.
* @return module status:
* @n 0 : no malfunction detected
* @n other : malfunction detected
* @note Command execution time : 10000 ms
* @n When executing the command, the sensor can't be in period measurement mode.
*/
if(0 != SCD4X.performSelfTest()) {
Serial.println("Malfunction detected!");
}

Serial.println();
}

void loop()
{
/**
* @brief Set the sensor as sleep or wake-up mode (SCD41 only)
* @param mode - Sleep and wake-up mode:
* @n SCD4X_POWER_DOWN : Put the sensor from idle to sleep to reduce current consumption.
* @n SCD4X_WAKE_UP : Wake up the sensor from sleep mode into idle mode.
* @return None
* @note Note that the SCD4x does not acknowledge the wake_up command. Command execution time : 20 ms
* @n When executing the command, the sensor can't be in period measurement mode.
*/
Serial.print("Waking sensor...");
SCD4X.setSleepMode(SCD4X_WAKE_UP);

DFRobot_SCD4X::sSensorMeasurement_t data[6];
memset(data, 0, sizeof(data));
uint32_t averageCO2ppm=0;
float averageTemp=0.0, averageHumidity=0.0;
Serial.print("Measuring...");
for(uint8_t i=0; i<6; i++) {
/**
* @brief measure single shot（SCD41 only）
* @details On-demand measurement of CO2 concentration, relative humidity and temperature.
* @n Get the measured data through readMeasurement(sSensorMeasurement_t data) interface
* @param mode - Single-measurement mode:
* @n SCD4X_MEASURE_SINGLE_SHOT : On-demand measurement of CO2 concentration, relative humidity and temperature.
* @n Max command duration 5000 [ms].
* @n SCD4X_MEASURE_SINGLE_SHOT_RHT_ONLY : On-demand measurement of relative humidity and temperature only.
* @n Max command duration 50 [ms].
* @note In SCD4X_MEASURE_SINGLE_SHOT_RHT_ONLY mode, CO2 output is returned as 0 ppm.
* @return None
* @note When executing the command, the sensor can't be in period measurement mode.
*/
SCD4X.measureSingleShot(SCD4X_MEASURE_SINGLE_SHOT);

/**
* @brief get data ready status
* @return data ready status:
* @n true : data ready
* @n false : data not ready
*/
while(!SCD4X.getDataReadyStatus()) {
delay(100);
}

/**
* @brief Read the measured data
* @param data - sSensorMeasurement_t, the values measured by the sensor, including CO2 concentration (ppm), temperature (℃) and humidity (RH)
* @n typedef struct {
* @n uint16_t CO2ppm;
* @n float temp;
* @n float humidity;
* @n } sSensorMeasurement_t;
* @return None
* @note CO2 measurement range: 0~40000 ppm; temperature measurement range: -10~60 ℃; humidity measurement range: 0~100 %RH.
*/
SCD4X.readMeasurement(&data[i]);
if(0 != i) { // Discard the first set of data, because the chip datasheet indicates the first reading obtained after waking up is invalid
averageCO2ppm += data[i].CO2ppm;
averageTemp += data[i].temp;
averageHumidity += data[i].humidity;
}
Serial.print(i);
}
Serial.print("\nCarbon dioxide concentration : ");
Serial.print(averageCO2ppm / 5);
Serial.println(" ppm");

Serial.print("Environment temperature : ");
Serial.print(averageTemp / 5);
Serial.println(" C");

Serial.print("Relative humidity : ");
Serial.print(averageHumidity / 5);
Serial.println(" RH\n");

// Put the sensor from idle to sleep to reduce current consumption.
Serial.print("Sleeping sensor...");
SCD4X.setSleepMode(SCD4X_POWER_DOWN);
delay(300000); // Wake up the sensor after 5 minutes, and repeat the above measurement process
}

/**
* @fn enablePeriodMeasure
* @brief set periodic measurement mode
* @param mode - periodic measurement mode:
* @n SCD4X_START_PERIODIC_MEASURE : start periodic measurement, signal update interval is 5 seconds.
* @n SCD4X_STOP_PERIODIC_MEASURE : stop periodic measurement command
* @n SCD4X_START_LOW_POWER_MEASURE : start low power periodic measurement, signal update interval is approximately 30 seconds.
* @return None
* @note The measurement mode must be disabled when configuring the sensor; after giving the stop_periodic_measurement command, the sensor needs to wait 500ms before responding to other commands.
*/
void enablePeriodMeasure(uint16_t mode);

/**
* @fn readMeasurement
* @brief Read the measured data
* @param data - sSensorMeasurement_t, the values measured by the sensor, including CO2 concentration (ppm), temperature (℃) and humidity (RH)
* @return None
* @note CO2 measurement range: 0~40000 ppm; temperature measurement range: -10~60 ℃; humidity measurement range: 0~100 %RH.
*/
void readMeasurement(sSensorMeasurement_t * data);

/**
* @fn getDataReadyStatus
* @brief get data ready status
* @return data ready status:
* @n true : data ready
* @n false : data not ready
*/
bool getDataReadyStatus(void);
