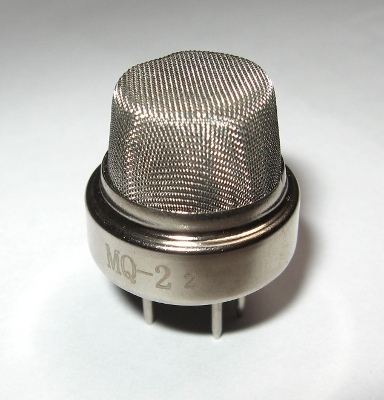

MQ-2 Gas Sensor (LPG, Propane, Hydrogen, Methane, Smoke) MQ-02

MQ-2 semiconductor combustible gases, smoke sensors

  ตัวนี้เป็น Sensor วัด ก๊าซที่ติดไฟได้ เช่น butane - propane - methane - smoke ให้ค่าออกมาเป็น Analog ใช้ในการตรวจวัดการนรั่วไหลของก็าซทั้งภายในบ้านที่อยู่อาศัย หรือ ในโรงงานอุตสาหกรรม

Specification

http://www.seeedstudio.com/depot/datasheet/MQ-2.pdf

http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor%28MQ2%29

 MQ-2 sensitive material is used for gas sensors in clean air low conductivity tin oxide (SnO 2 ) . When there is the environment in the combustible gas sensor, conductivity sensor with increasing concentrations of combustible gases in air increases. Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal.

MQ-2 gas sensor high on liquefied petroleum gas, propane, hydrogen sensitivity, detection of natural gas and other flammable vapors are also very good. This sensor can detect a variety of flammable gas, is a low-cost sensors for a variety of applications.

Features

* in a wide concentration range of the sensitivity of the combustible gas a good

* for liquefied petroleum gas, propane, hydrogen, high sensitivity

* Long life, low cost

* simple drive circuit can be

Applications

* household gas leak alarm

* Industrial combustible gas alarm

* portable gas detector
