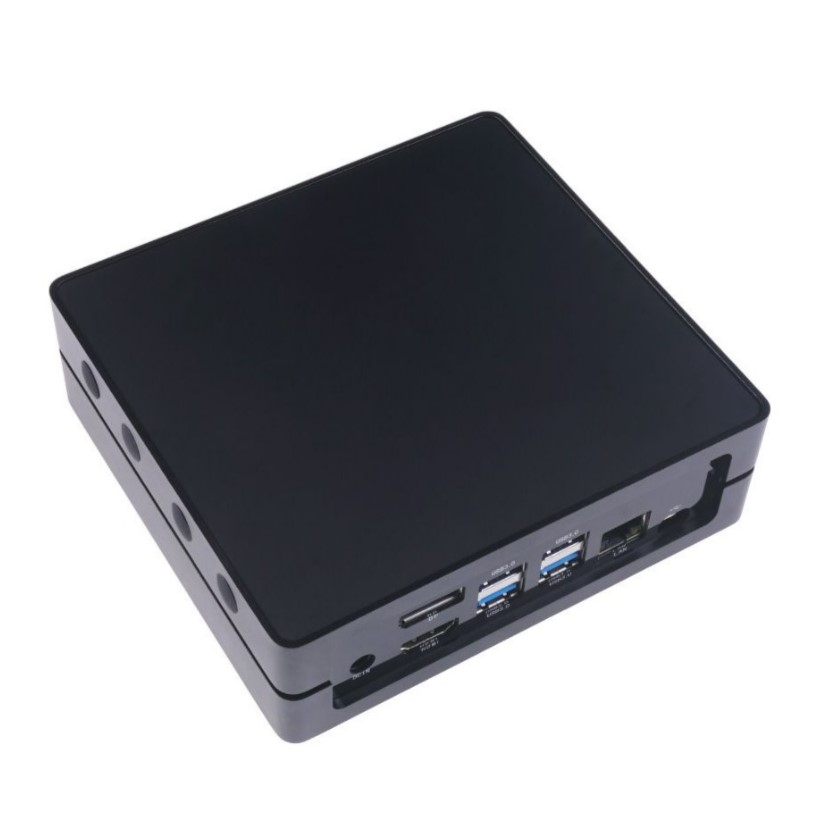

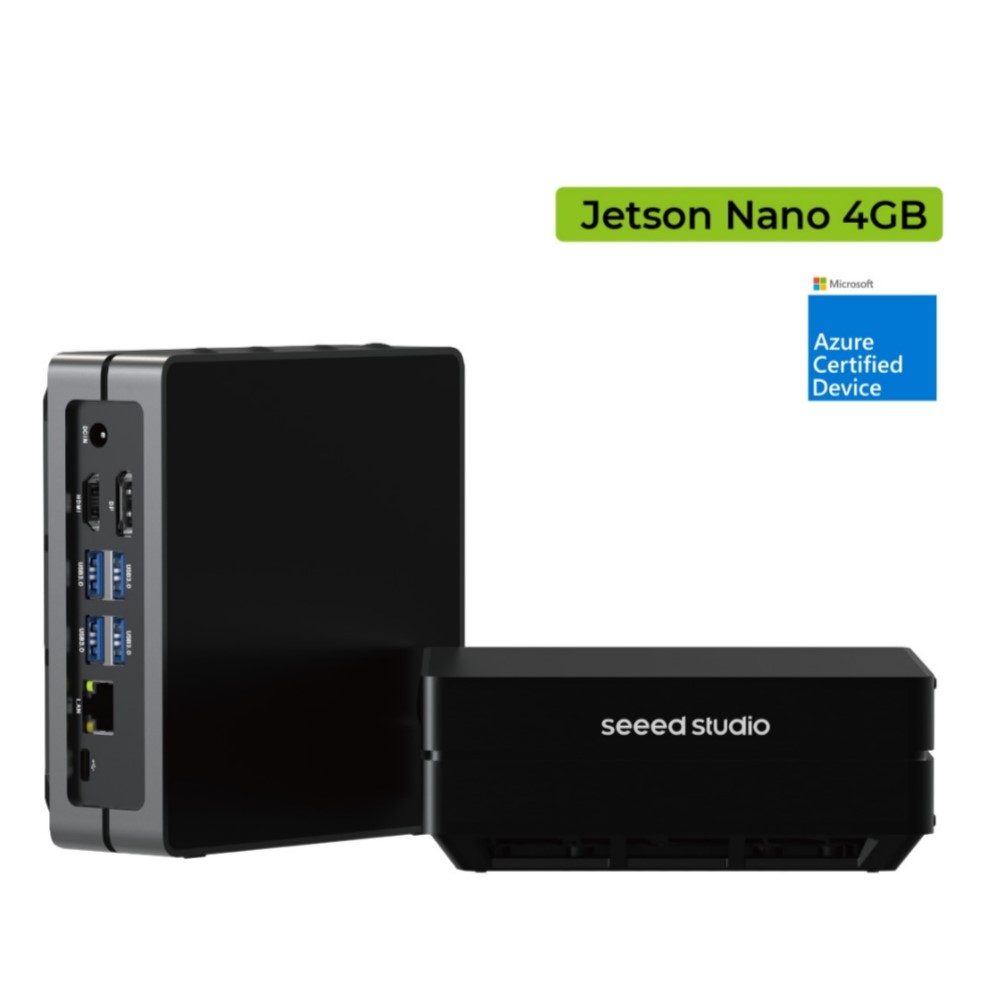

reComputer J1020 v2 with Jetson Nano Module, Aluminium Case, pre-installed Jetpack (128 Core, 4GB LPDDR4, 16GB eMMC) - Seeed Nvidia

ดูรายละเอียดเพิ่มเติมและวิธีเริ่มต้นใช้งานได้ที่ Link1 และ Link2

ต้องการติดตั้ง Nvidia Software Package ด้วยตนเอง ดูวิธีการได้ที่ Link
หมายเหตุ:
1) รุ่น J1020 นี้รองรับการเพิ่มหน่วยความจำแบบ SSD M.2
2) ดูวิธีการเพิ่มหน่วยความจำแบบ SSD M.2 อย่างละเอียดได้ที่ Click
3) หากต้องการใช้ SSD กับ reComouter ทางผู้ผลิตแนะนำว่าให้ใช้ 128GB, 256GB, 516GB ที่ผลิตโดย seeed เนื่องจากบางยี่ห้อและรุ่นของ SSD ทาง recomputer จะไม่รองรับ

3) รุ่นนี้ไม่มี Wifi ติดมาให้ด้วย หากต้องการใช้งาน wifi แนะนำให้ใช้ USB Wifi Dongle เชื่อมต่ออินเตอร์เน็ต

สินค้าประกอบด้วย

1 x Acrylic Cover

1 x Aluminium Frame

1 x Jetson Nano module

1 x Heatsink

1 x Carrier board

1 x 12V/2A  Power Adapter (with 5 interchangeable adapter plugs)

Short description

reComputer J1020 v2 is a hand-size edge AI box built with Jetson Nano module, rich set of IOs, aluminium case, passive heatsink, pre-installed JetPack System, ready for your next AI application development and deployment.

Note:
- We will not include a power cord, please choose a suitable form according to your country.
- We will not include a 3V RTC battery (CR1220).




PRODUCT DETAILS

Features

• NVIDIA Jetson Nano Dev Kit alternative: hand-size Edge AI device built with Jetson Nano 4GB Production Module, the carrier board brings extensive I/Os: GPIO, CSI, Gigabit Ethernet, 4 x USB 3.0 Type A, onboard 16 GB eMMC, Please check here for SSD storage expansion.
• 128 NVIDIA CUDA® cores deliver 0.5 TFLOPs (FP16) to run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing.
• Pre-installed NVIDIA Jetpack, JetPack SDK includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, etc.
• Support the entire Jetson software stack and various developer tools for building fast and robust AI applications provided by Seeed Edge AI partners.

Note:
- We have already installed JetPack 4.6 system.

Description

Application

For both beginners and experts, it is designed to help you to build your next-gen autonomous machine at the edge.

Edge AI Applications

reComputer J1010 and J1020 v2, powered by Jetson Nano, are ideal for learning AI and building AI applications for image recognition, object detection, pose estimation, video processing, and many more. Check out the following application example with tutorials!

• Pedestrian detection by Edge Impulse

• Hard hat detection and build custom PPE detection

• Pose Estimation with alwaysAI

• Visual anomaly detection using NVIDIA Deepstream IoT

• Retail store items detection

• Wildfire detection

• Animal detection

Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!

Developers Tools
Pre-installed Jetpack for fast development and edge AI integration

Jetson software stack begins with NVIDIA JetPack™ SDK which provides a full development environment and includes CUDA-X accelerated libraries and other NVIDIA technologies to kickstart your development.JetPack includes the Jetson Linux Driver package which provides the Linux kernel, bootloader, NVIDIA drivers, flashing utilities, sample filesystem, and toolchains for the Jetson platform. It also includes security features, over-the-air update capabilities, and much more.

Computer Vision and embedded machine learning

• Edge AI no code Vision tool, Seeed latest open-source project for deploying AI application within 3 nodes.

• NVIDIA DeepStream SDK delivers a complete streaming analytics toolkit for AI-based multi-sensor processing and video and image understanding on Jetson.

• NVIDIA TAO tool kit, built on TensorFlow and PyTorch, is a low-code version of the NVIDIA TAO framework that accelerates the model training

• alwaysAI: build, train, and deploy computer vision applications directly at the edge of reComputer. Get free access to 100+ pre-trained Computer Vision Models and train custom AI models in the cloud in a few clicks via enterprise subscription. Check out our wiki guide to get started with alwaysAI.

• Edge Impulse: the easiest embedded machine learning pipeline for deploying audio, classification, and object detection applications at the edge with zero dependencies on the cloud.

• Roboflow provides tools to convert raw images into a custom-trained computer vision model of object detection and classification and deploy the model for use in applications. See the full documentation for deploying to NVIDIA Jetson with Roboflow.

• YOLOv5 by Ultralytics: use transfer learning to realize few-shot object detection with YOLOv5 which needs only a very few training samples. See our step-by-step wiki tutorials

• Deci: optimize your models on NVIDIA Jetson Nano. Check the webinar at Deci of Automatically Benchmark and Optimize Runtime Performance on NVIDIA Jetson Nano and Xavier NX Devices

Remote Fleet Management

Enable secure OTA and remote device management with Allxon. Unlock 90 days free trial with code H4U-NMW-CPK.

Robot and ROS Development

• NVIDIA Isaac ROS GEMs are hardware-accelerated packages that make it easier for ROS developers to build high-performance solutions on NVIDIA hardware. Learn more about NVIDIA Developer Tools

• Cogniteam Nimbus is a cloud-based solution that allows developers to manage autonomous robots more effectively. Nimbus platform supports NVIDIA® Jetson™ and ISAAC SDK and GEMs out-of-the-box. Check out our webinar on connecting your ROS Project to the Cloud with Nimbus.

Hardware Overview

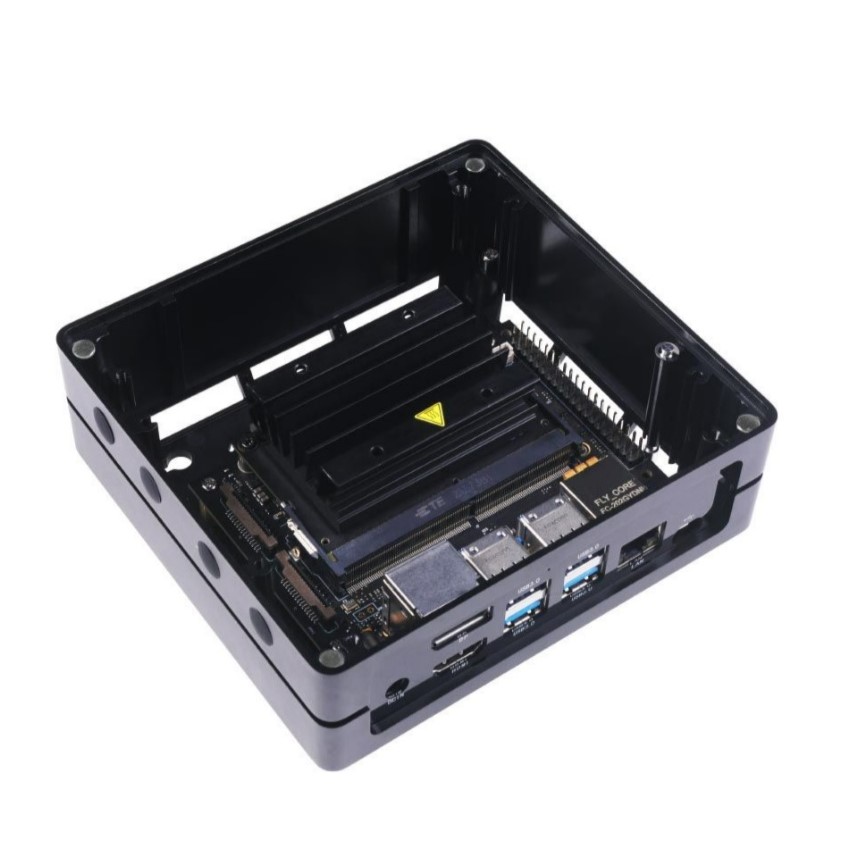

The interface-rich reference carrier board

Nearly the same functional design as Jetson Nano Developer Kit

Seeed reference carrier board for J1020 v2 is a high-performance, interface-rich NVIDIA Jetson Nano compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB 3.0, CSI camera, GPIO, I2C, I2S, fans, and other rich peripheral interfaces.

Desktop, Wall Mount, Expandable or fit in anywhere

The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver and silver mental, whose stackable structure allows you to stack more middle layers to create rooms very easily.

Learn and Documentations

Documentation

• Jetson-10-1-H0 Datasheet
