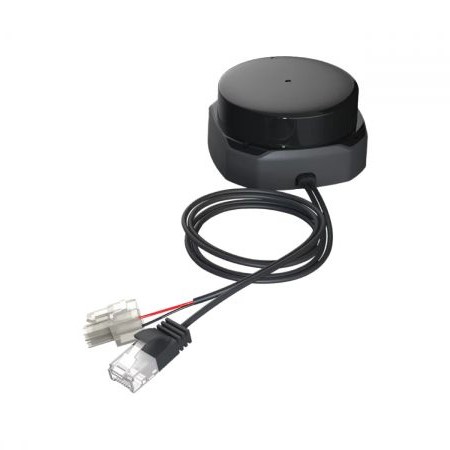

RPLIDAR S2E (0.05-30m) - 360 Degree Laser Scanner Development Kit (ROS Supported)

Feature

• 360 Degree DToF Laser Ranging Scanner: Generate 2D point cloud map information up to 30m radius, within 30mm precision
• Stunning Sampling Capability: Up to 32KHz measurement frequency, 10Hz rotational speed, resist up to 80000 lux light
• Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running
• Suitable for Anywhere: IP65 high ingress protection, small and compact, capable of every indoor and outdoor deployment
• Certified Output Laser Power: Safe as IEC-60825 Class One eye safety rating

RPLIDAR S2E comes with upgraded products, increasing the operating performance of hardware and optimizing the internal algorithms, also supporting Ethernet UDP connection. It applies the Direct Time of Flight (DToF) theory that emits and receives the laser pulse to measure the distance by calculating the flight time. Compared to Triangulation Laser Sensor, it performs much higher precision, higher sampling frequency, and longer measuring distance.

As it to say, what the RPLIDAR S2E brings 360 degrees, 30M radius, 32 kHz light detection and ranging, 0.12 angular resolution by 10Hz rotational speed, within 30mm sensing precision, for 5 years of reliable running.

It implements 2D point cloud map information generating and you can deploy it to map, navigate, position robots, model objects, or other practical use. By its small and compact structure, along with its IEC-60825 Class 1 eye safety rating, the RPLIDAR S2E can perform high standards of operation in your property of which the output laser power is harmless to the human eye.

The IP65 design of this precision mechanical equipment is well protected from foreign bodies such as tools, dirt, and liquid water. Additionally, it retains its functionality against high-intensity 80000 lux light. All of these make it suitable for outdoor and field installation, especially capable of working under the big sun on sunny days.

By the sense of its line and science, it will be your ideal choice for architecture exploration.

RPLIDAR S2E has a stable ranging and high-resolution mapping performance in indoor and outdoor environments, even in 80Klux strong sunlight interference

Application

RPLIDAR S2 Series Comparison

Part List

RPLiDAR S2E 360 Degree Laser Range Scanner	x1
Power transfer cable	x1
