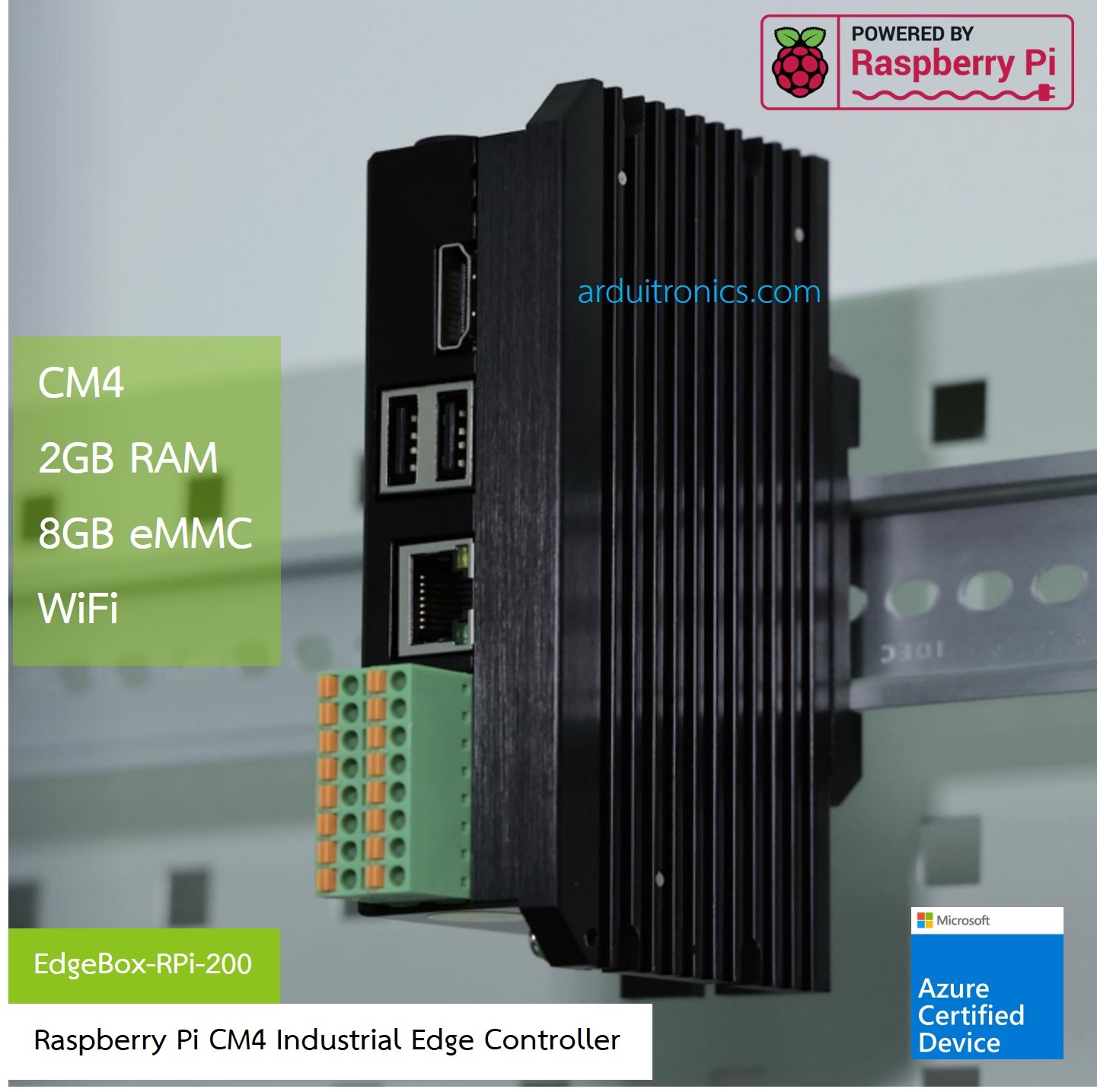

[Industrial Raspberry Pi] EdgeBox RPi 200 - Industrial Edge Controller 2GB RAM, 8GB eMMC, WiFi

Feature

• All-in-one Industry Controller:

  • More than just a PLC, PAC, more can it implement functions of the IIoT Gateway，OPC UA Server and Industry PC.

• Powerful and Flexible Processors:

  • Powered by Raspberry Pi Compute Module 4 (CM4), equipped up to 2GB RAM and 8GB eMMC, performing real-time operation and multi-process.

• Rich IO resources and Industrial Interfaces Mounted:

  • Support a wide range of industrial bus protocols and standards

• Multiple Communication Capabilities:

  • Carry full-featured wireless interconnectivity and a RJ45 Gigabit Ethernet, supported by multiple cloud services

• Rugged Industrial-grade Hardware Design:

  • Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN and wall mount

• Great Raspberry Pi Industrial Software Ecosystem:

  • Support a variety of industrial software and platforms, including Codesys, Node Red, MQTT, OPC UA, Ignition and etc.

Description

EdgeBox-RPi-200 series controllers represent the conceivable alternatives for increasing edge automation and industrial interconnecting control. Being small and compact, they can perform real-time operation and multi-process controlling for multiple industrial purposes, not only the PLC & PAC but also the IIoT Gateway, OPC UA Server and Industry PC.

Powerful and Flexible Processors
EdgeBox-RPi-200-CM4102008 leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 2 GB RAM and 8 GB eMMC, compiling in Linux, with Debian Operate System.

Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards
This high-scalability equipment has been engineered with multiple optoisolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers extended SSD storage and enhanced display output, for more data acquisition and improved visual presentation.

Multiple Communication Capabilities, Multiple Cloud Services Support

The EdgeBox employs the high integration of communication, where it intergates with wireless capabilities, supported by multiple cloud services. It is greatly qualified for IIoT(Industrial Internet of Things), in where you can utilize it to build IoT Gateways.

Great Raspberry Pi Industrial Software Ecosystem

With the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox has plentiful software and autonomous platforms supported. With massive documentation and open communities, troubleshooting can be precise and expeditious.

• Codesys

• Node Red

• MQTT

• OPC UA

• Ignition

Robust Hardware Design

The overall structure of Edge Box is rugged and maintenance-reducing, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN and wall mount, all of which make it suitable for limited space and extreme conditions including in-vehicle applications.

Application

Specification

Part List
