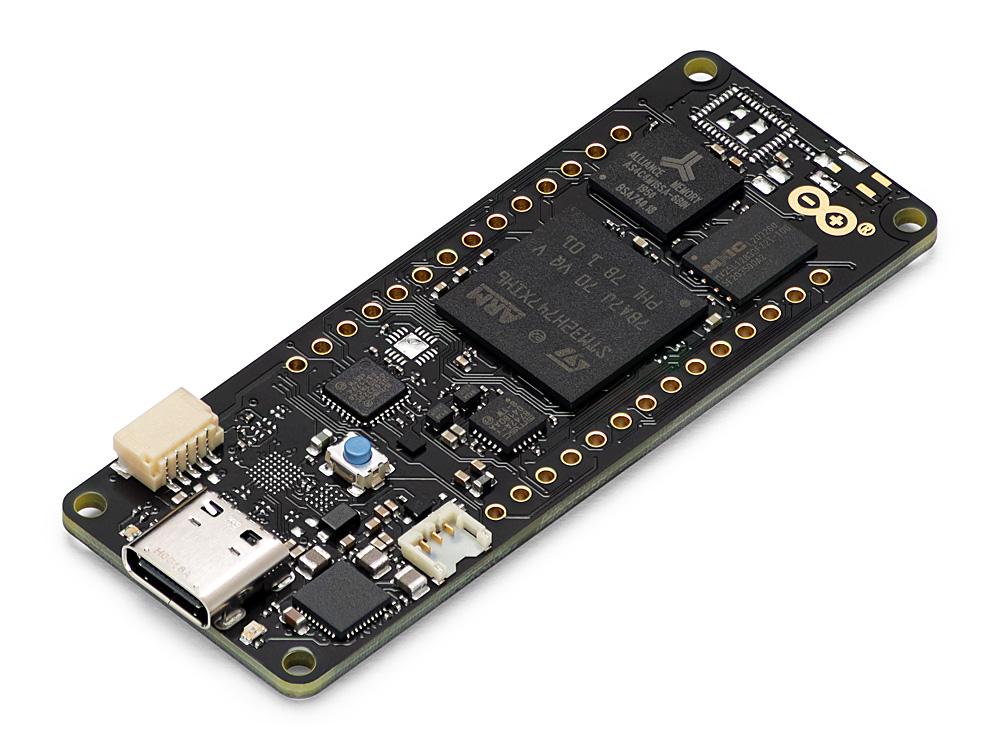

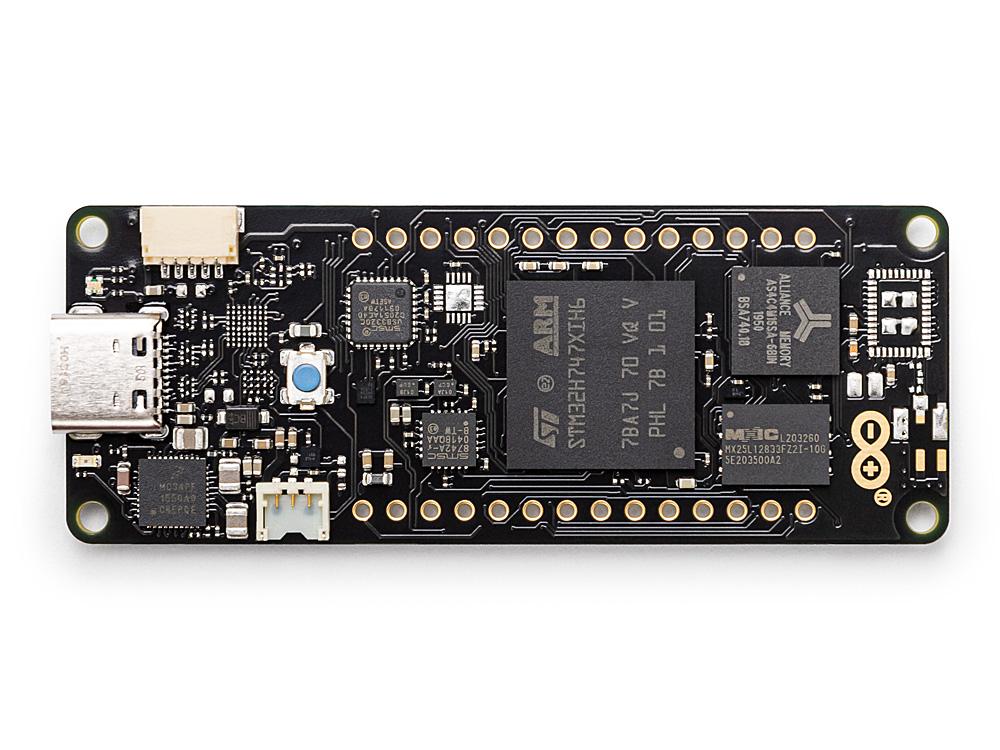

Portenta H7 Lite (แท้ 100% Italy)

Overview

Key benefits include:

• Dual Core - Two best-in-class processors in one, running parallel tasks

• AI on the edge - So powerful it can run AI state machines

• Customization - The board is highly customizable in volumes

• High-level programming language support (Micropython)

The Portenta H7 Lite offers twofold functionality: it can run either like any other embedded microcontroller board, or as the main processor of an embedded computer.

For example, use the Portenta Vision Shield to transform your H7 Lite into an industrial camera capable of performing real-time machine learning algorithms on live video feeds. As the H7 Lite can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other carries out low-level operations like controlling a motor or acting as a user interface.

Portenta is the go-to family when performance is key, and the H7 Lite is no exception. We can already envision it as part of a wide range of solutions, including:

• High-end industrial machinery

• Laboratory equipment

• Computer vision

• PLCs

• Robotics controllers

• Mission-critical devices

• High-speed booting computation (ms)

Two Parallel Cores

The Portenta H7 Lite’s main processor is the STM32H747 dual core including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:

• Arduino sketches on top of the Arm® Mbed™ OS

• Native Mbed™ applications

• MicroPython / JavaScript via an interpreter

• TensorFlow™ Lite

A New Standard for Pinouts

The Portenta family adds two 80-pin high-density connectors at the bottom of the board. This ensures scalability for a wide range of applications: simply upgrade your Portenta board to the one suiting your needs.

USB-C Multipurpose Connector

The board’s programming connector is a USB-C port that can also be used to power the board, as a USB Hub, or to deliver power to OTG connected devices.

Arduino IoT Cloud

Use your Portenta board on Arduino’s IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
