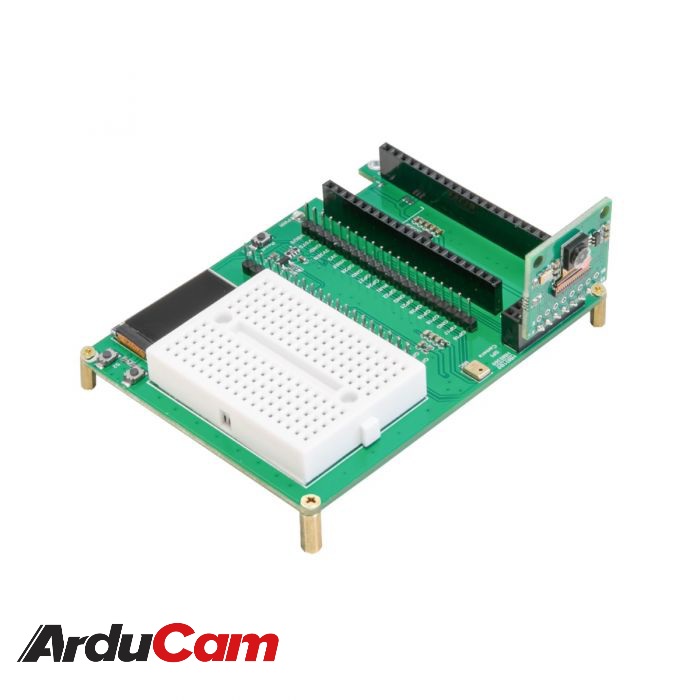

Pico Machine Learning Kit, Base Board and HM01B0 QVGA Camera for Raspberry Pi Pico TensorFlow Lite Micro Examples and Electronic Learning

Features:

• Not only a base platform gets you started in learning the electronics and circuits easily, most importantly, but the kit also packs a camera, and an onboard display, microphone and IMU to help you run the examples of Tensorflow Lite Micro tiny machine learning.
• Camera Module: HiMax HM01B0, Up to QVGA (320 x 240)@60fps; Screen: 0.96 inch LCD SPI Display (160 x 80, ST7735); IMU: ICM-42622; Operating Voltage: DC 5V; Overall Size: 90x70mm
• Starter Friendly: The mini breadboard and expanded pins make you play with circuits without soldering; The camera and 3 pre-trained Person Detection, Magic Wand and Wake-Word Detection examples are included, no hassle to begin machine learning.
• Further Expansion: Reserved socket for Arducam SPI camera modules, ASIN B012UXNDOY and B013JUKZ48; Other camera examples, all the codes, and schematics will be made available for anyone to use, rebuild or modify.
• NOTE: Raspberry Pi Pico and micro USB cable are not included! If needed, please search for ASIN B095R759MM or B08XBTLH4R to get the Pico electronic starter kit.

Specification:

• Camera Module: HiMax HM01B0, Up to QVGA (320 x 240)
• Screen: 0.96 inch LCD SPI Display (160 x 80, ST7735)
• IMU: ICM-42622
• Microphone: Mono channel, PDM output
• Button: Reset
• Onboard Interface: Socket for Raspberry Pi Pico with the pre-soldered header, socket for HM01B0/HM0360 camera, socket for OV2640/OV5642 SPI camera, expanded GPIO pins of Pico.
• Breadboard: 35x47mm, 170 points
• Overall Dimension: 90x70mm
• Mounting Hole Pitch: 86x66mm

Package Contents

1 x Pico Machine Learning baseboard
1 x HM01B0 camera
4 x Standoffs and screws
1 x Manual
