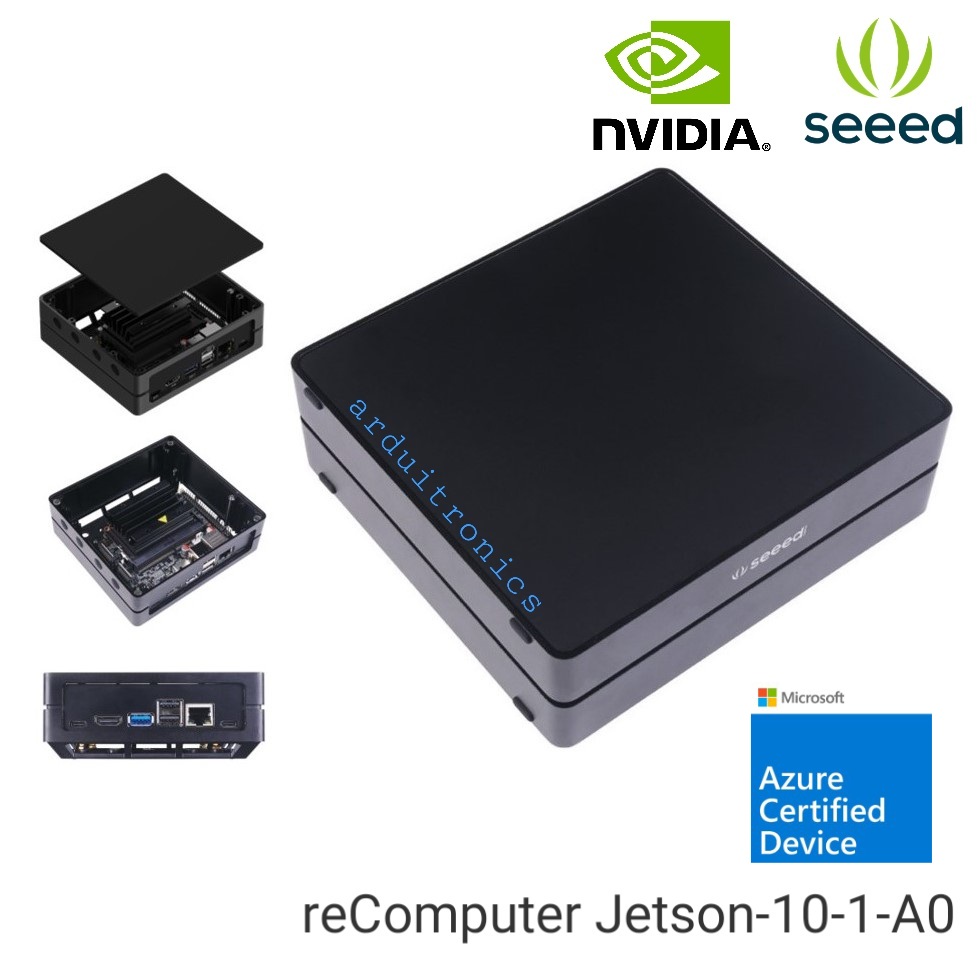

reComputer Jetson-10-1-A0 (J1010) with microSD Card Slot on Carrier Board - Seeed Nvidia

ดูรายละเอียดเพิ่มเติมและวิธีเริ่มต้นใช้งานได้ที่ Link1 และ Link2

ต้องการลง Nvidia System ใหม่ด้วยตัวเอง ดูวิธีการได้ที่ Link
หมายเหตุ:
1) J1010 เวอร์ชั่นนี้ (ฺBA00239) มี microSD card slot ติดมาให้บน carrier board พร้อมใช้งาน แต่ J1010 (BA00206) จะไม่มี microSD card slot ติดตั้งมาให้บน carrier board
2) รุ่น J1010 ไม่สามารถเพิ่มหน่วยความจำแบบ SSD M.2 Slot ได้ หากต้องการเพิ่มหน่วยความจำแบบ SSD ได้ จะต้องเป็นรุ่น J1020 / J2011 / J2012
3) สามารถเพิ่มหน่วยความจำโดยใช้ USB memory ได้ ดูวิธีได้จาก Link โดยไปที่หัวข้อ "Capacity expansion via USB storage device"

สินค้าประกอบด้วย

1 x Acrylic Cover

1 x Aluminium Frame

1 x Jetson Nano module

1 x Heatsink

1 x Carrier board (with microSD card slot)

สินค้าไม่รวม Power Adapter แบบ 5V 3A (BR00149)
Short description

Jetson-10-1-A0 (J1010) is a hand-size edge AI box built with Jetson Nano module, rich set of IOs, aluminium case, passive heatsink, pre-installed JetPack System, ready for your next AI application development and deployment.
Note:

- We will not include a 3V RTC battery (2-pin).

PRODUCT DETAILS

Features

• Hand-size edge AI device built with NVIDIA Jetson Nano Production Module, delivering 128 NVIDIA CUDA® cores delivers 0.5 TFLOPs (FP16).
• Nearly the same design as Jetson Nano Developer Kit’s reference carrier board, rich IOs including Gigabit Ethernet port, USB 3.0 & USB 2.0 ports, HDMI port.
• Pre-installed NVIDIA official JetPack software, ready for cloud-native application.
• Support a wide range of AI applications fast building with our ecosystem partners.
• Support real-time robotic development, analysis, and remotely fleet management at Cogniteam Nimbus.
• Support Allxon to enable secure OTA and remote device management. Unlock 90 days free trial with code H4U-NMW-CPK.
• Able to mount on the wall with mounting holes on the back

Description

Reference: NVIDIA, Performance of various deep learning inference networks with Jetson Nano and TensorRT, using FP16 precision and batch size 1

Developers can use highly accurate pre-trained models from TAO Toolkit and deploy with DeepStream. Jetson Nano can achieve 11 FPS for PeopleNet- ResNet34  of People Detection, 19 FPS for DashCamNet-ResNet18 of Vehicle Detection, and 101 FPS for FaceDetect-IR-ResNet18 of Face Detection. Benchmark details can be found on NVIDIA®’s DeepStream SDK website.

Jetson Nano can run a wide variety of advanced networks, including the full native versions of popular ML frameworks like TensorFlow, PyTorch, Caffe/Caffe2, Keras, MXNet, and others.

reComputer Jetson series is compatible with the entire NVIDIA Jetson software stack, industry-leading AI frameworks, development platforms like Edge Impulse, AlwaysAI, and cloud-based robot development tool Nimbus.



NVIDIA Jetson powered Edge AI platform at Seeed

At Seeed, you will find everything you want to work with NVIDIA Jetson Platform – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, and edge devices, as well as accessories. Seeed will continue working on the Jetson product line and will be ready to combine our partners’ unique technology with Seeed’s hardware expertise for an end-to-end solution.



Hardware specification

Comparison among reComputer Jetson-10 series and Official Dev Kits

Product	reComputer Jetson-10-1-A0 (J1010)	reComputer Jetson-10-1-H0 J(1020)	Jetson Nano Dev. Kit-B01
Module	Nano (production version)		Nano (not production version)
AI Perf	472 GFLOPS
GPU	128-core NVIDIA Maxwell™
CPU	Quad-core ARM A57 @ 1.43 GHz
Memory	4GB 64-bit LPDDR4 25.6GB/s
Storage	16 GB eMMC		MicroSD (Card not included)
Video Encoder	4K30 | 2x1080p60 | 4x1080p30 | 4x720p60 | 9x720p30  (H.265 & H.264)		4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265)
Video Decoder	4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60  (H.265 & H.264)		4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265)
Gigabit Ethernet	1*RJ45 Gigabit Ethernet Connector (10/100/1000)
USB	1*USB 3.0 Type A Connector 2*USB 2.0 Type A Connector 1*USB Type C for device mode 1*USB Type C for 5V power input	4*USB 3.0 Type A Connector 1*Micro-USB port for device mode	4*USB 3.0 Type A Connector  1*Micro-USB port for 5V power input  or for device mode
CSI Camera Connect	2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )
Display	1*HDMI Type A	1*HDMI Type A;  1*DP	1*HDMI Type A;  1*DP
FAN	1* FAN (5V PWM)
M.2 KEY E	1*M.2 Key E	1*M.2 Key E (Disabled)	1*M.2 Key E
M.2 KEY M	-	1*M.2 Key M	-
RTC	1*RTC Socket		-
Multifunctional port	1* 40-Pin header
Power	USB-Type C 5V⎓3A	DC Jack 12V/2A	DC Jack 5V⎓3A Micro-USB 5V⎓2A
Mechanical	130 mm x 120 mm x 50 mm (with case)	130mm x120mm x 50mm (with case)	100 mm x 80 mm x 29 mm

Comparison between Nano 2GB developer kit and Jetson-10-1-A0:

Seeed reference carrier board for Jetson-10-1-A0 is a high-performance, interface rich NVIDIA Jetson Nano compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB 3.0, USB 2.0, CSI camera, GPIO, I2C, I2S, fans, and other rich peripheral interfaces. It has nearly the same functional design and size as the carrier board of Nvidia Jetson Nano 2GB Developer Kit | NVIDIA Developer. Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

Desktop, Wall Mount, or fit in anywhere

With an overall dimension of 130mm*120mm*50mm, it is only around 1/10 of the size of an ordinary computer case which makes it possible to fit in edge AI scenarios. The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver and silver mental, whose stackable structure allows you to stack more middle layers to create rooms very easily.

Work with Seeed Ecosystem

Deploying an AI idea can be faster, flexible, even scalable for everyone. Seeed Jetson Platform targets on helping educators, developers and enterprises deploy ML in the real-world. By consolidating Seeed’s best-in-class hardware, cutting-edge technology from our software partners and all developers from the community, we aim at emerging all kinds of AI scenarios in our open-source platform to faster industries digital transformation. We are looking for partners to join our ecosystem together to deliver solutions to different industries together. Please contact cooperation@seeed.cc for more partnership ecosystem information.

Specifications

Module Technical Specifications

Carrier Board Technical Specifications

Part List

1 x Acrylic Cover

1 x Aluminium Frame

1 x Jetson Nano module

1 x Heatsink

1 x Carrier board (with microSD card slot)

LEARN AND DOCUMENTS
Document
Jetson-10-1-A0 Datasheet.pdf

Learn



[Wiki] Maskcam: Crowd Face Mask Usage Monitoring based on NVIDIA Jetson Nano

MaskCam is a prototype reference design for a Jetson Nano-based smart camera system that measures crowd face mask usage in real-time, with all AI computation performed at the edge. MaskCam detects and tracks people in its field of view and determines whether they are wearing a mask via an object detection, tracking, and voting algorithm.



[Wiki] reComputer Jetson User Guide

We represent you the user guide of reComputer Jetson Series, providing kickstart for the beginners, documentation for usage, elaboration for the advance, AI tools and projects for reference, comprehensively help you from beginner to advancer.



[Wiki] Getting Started with Allxon on NVIDIA® Jetson Devices

You can securely manage NVIDIA® JetPack 4.6 onward versions with Cyber Security at the Edge protecting all networks and hardware. Here are some operations about installing, getting code, adding devices etc.



[Blog] Seeed Partners with Allxon to Enable Efficient Remote Hardware Management Services for NVIDIA Jetson Platform

Seeed is glad to partner with Allxon to deliver a secure remote management solution for Jetson Platform. At Seeed, you will find everything you want to work with NVIDIA Jetson Platform – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, and kits, as well as third-party boards and accessories.



[Others] Zenus Smart Camera: Sentiment analysis in the retail industry becomes more accessible

Zenus leverages the power of Artificial Intelligence to create incredible products while driving the ethical use of facial analysis. Seeed supports the Zenus AI camera with Seeed's high-performance, interface-rich NVIDIA Jetson Nano/Xavier NX/TX2 NX compatible carrier board.
