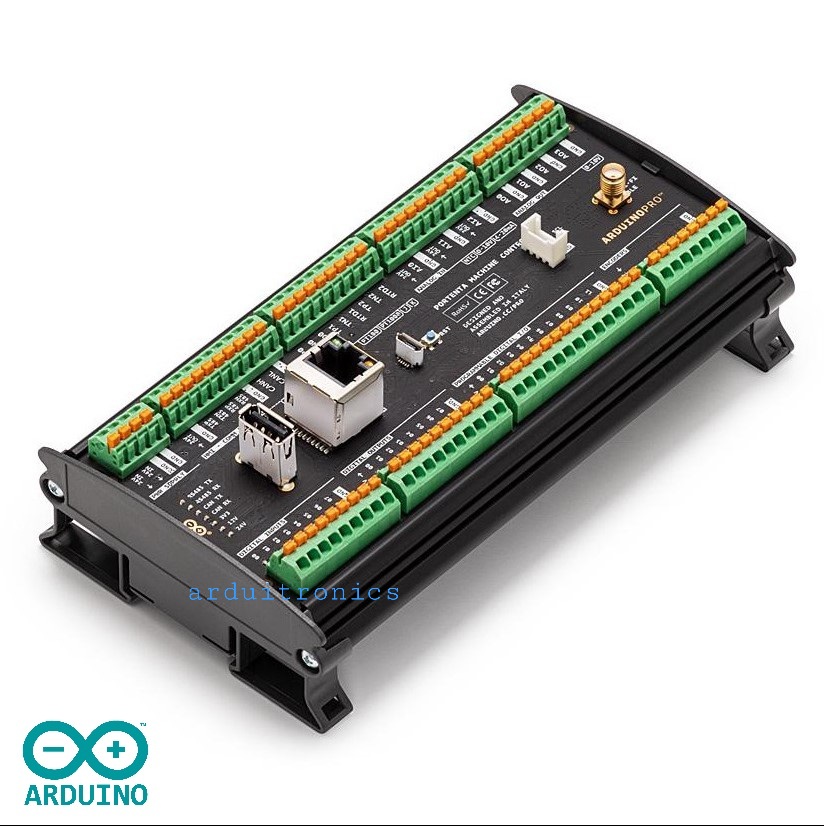

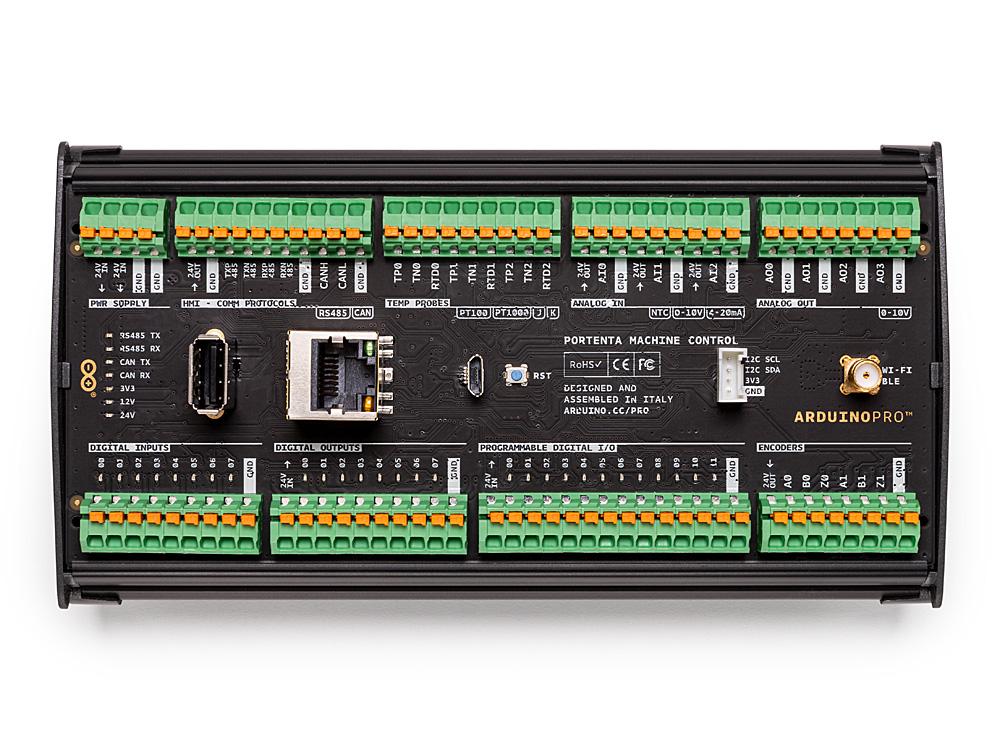

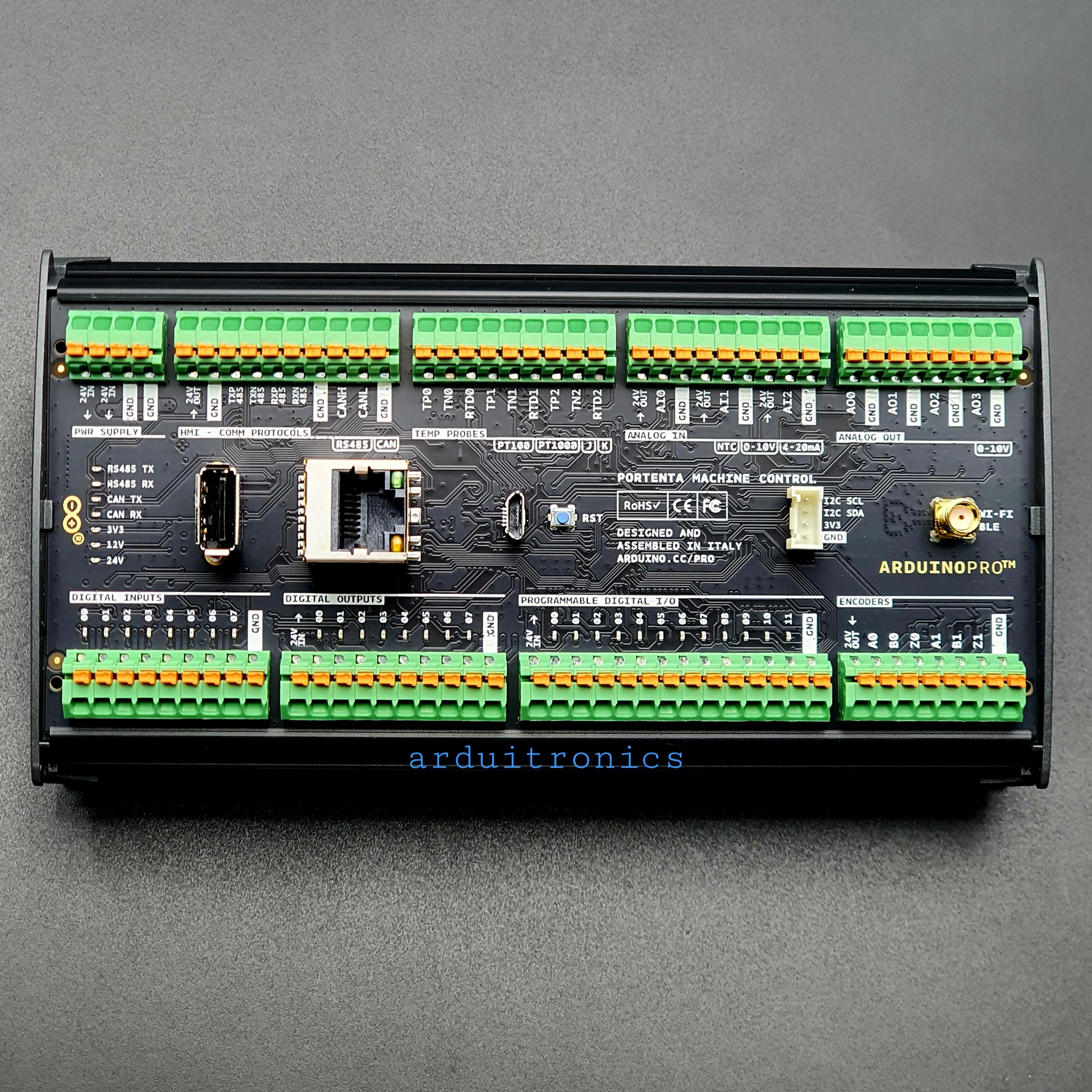

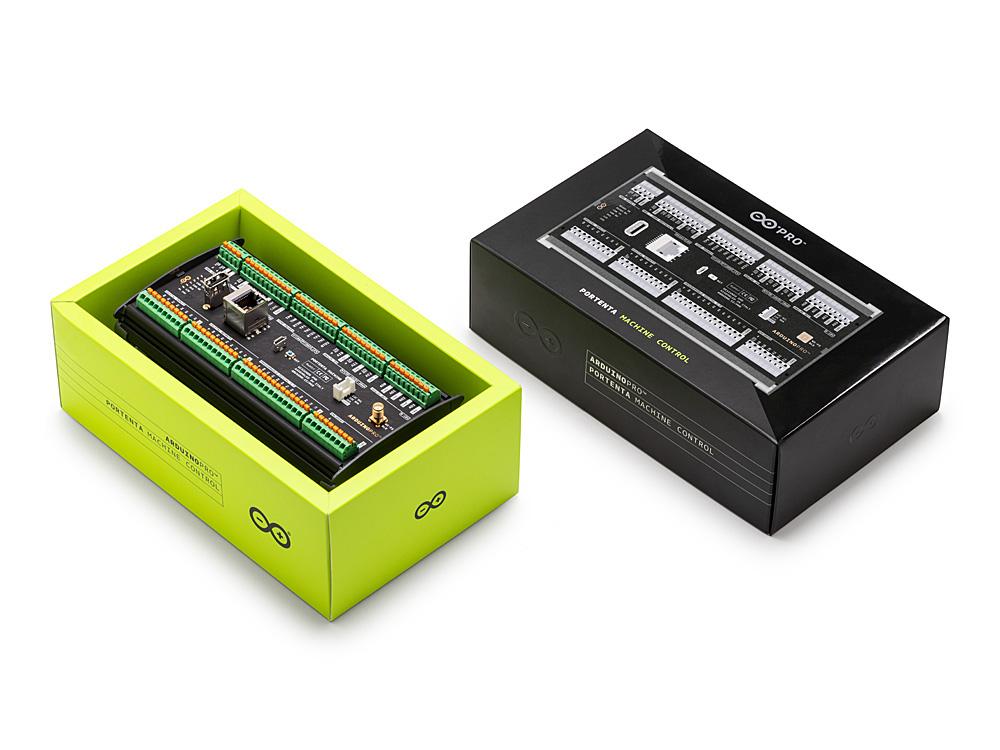

Arduino Portenta Machine Control (แท้ 100% Italy)
| รหัสสินค้า | CC00033 |
| หมวดหมู่ | Arduino PLC |
| ราคา | 18,850.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| จำนวน | ชิ้น |
หยิบลงตะกร้า
รายละเอียดสินค้า
The simplest way to add a powerful brain to your machines !
A fully-centralized, low-power, industrial control unit able to drive equipment and machinery.
| PROCESSOR | STM32H747XI dual Cortex®-M7+M4 32 bit low power Arm® MCU (Portenta H7) |

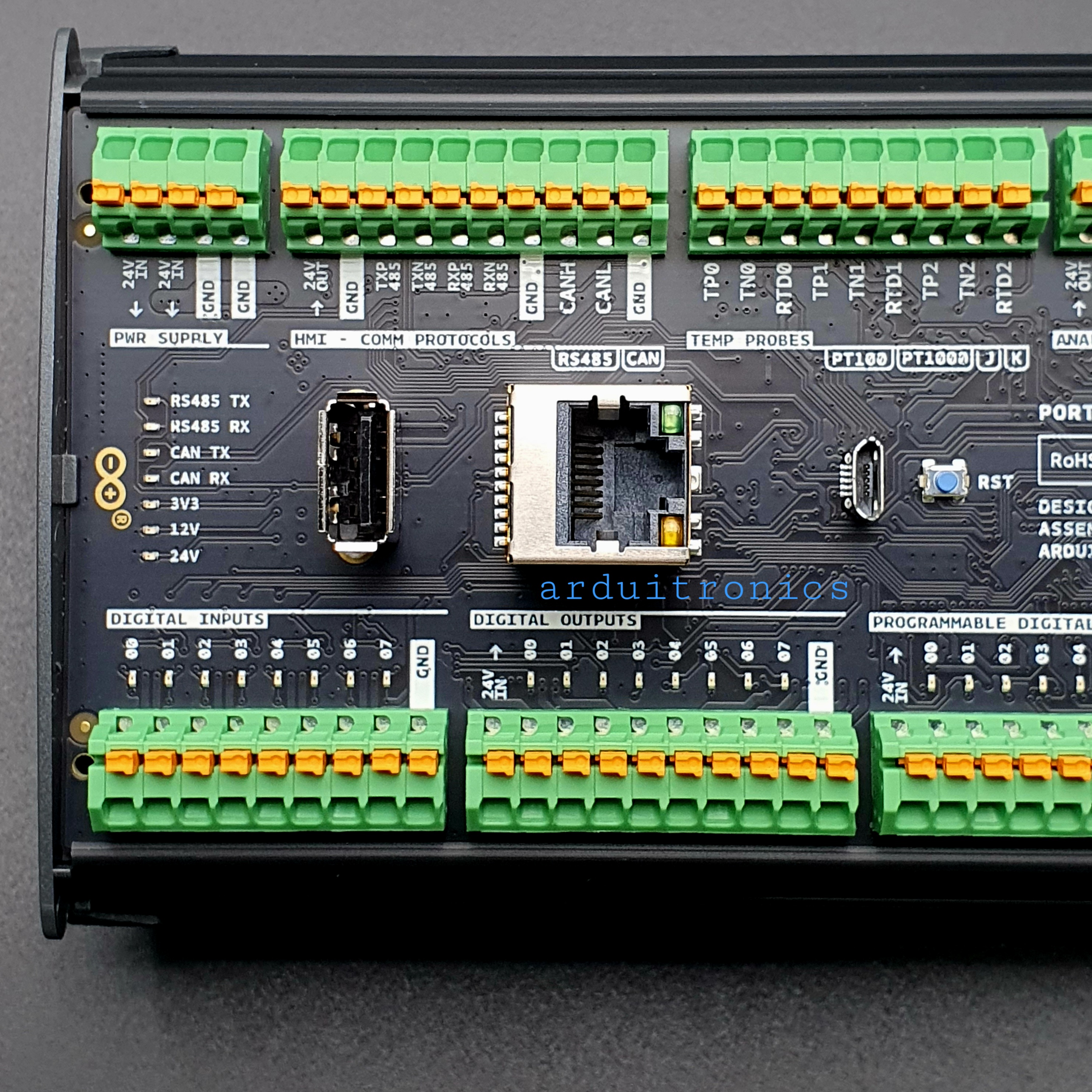

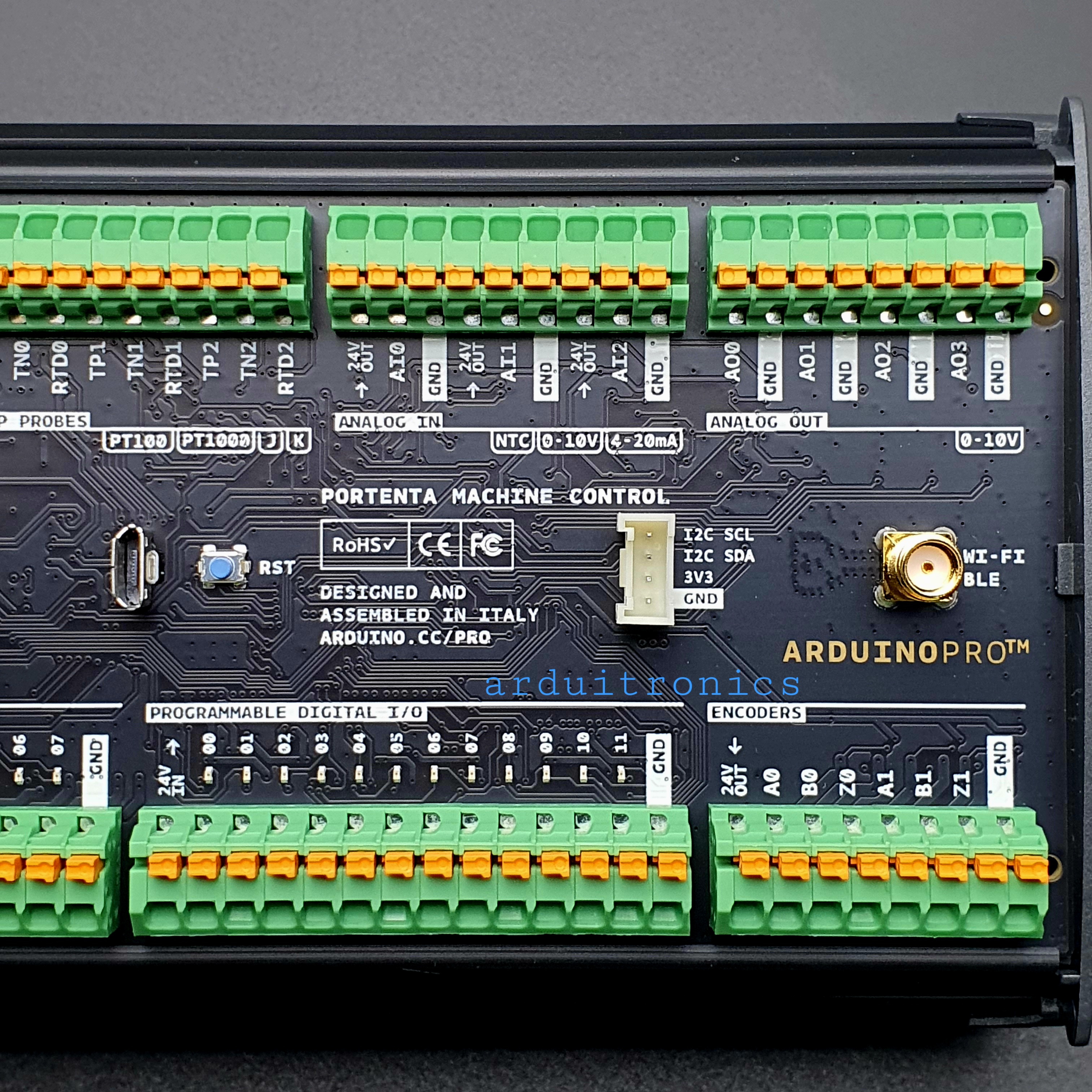

| INPUT | 8 digital 24Vdc, 2 channels encoder readings, 3 Analog for PT100/J/K temperature probes, 3 Analog input (4-20mA/ 0-10V/NTC 10K) |
| OUTPUT | 8 digital 24Vdc up to 0,5A (short circuit protection), 4 analog 0-10V (up to 20mA output per channel) |
| OTHER I/O | 12 programmable digital I/O (24V logic) |
| COMMUNICATION PROTOCOLS | CAN BUS, Programmable Serial port 232/422/485 |
| CONNECTIVITY | Ethernet, USB, Programming Port, Wi-Fi, BLE |
| MEMORY | 16 MB onboard Flash memory, 8MB SDRAM |
| DIMENSIONS | 170 x 90 x 50 mm |
| OPERATING TEMPERATURES | -40° C to +85° C (-40° F to 185°F) |
| POWER | 24V DC +/- 20% |
| CONNECTOR TYPE | Push-in terminals for fast connection |
Overview
The Portenta Machine Control is a fully-centralized, low-power, industrial control unit able to drive equipment and machinery. It can be programmed using the Arduino framework or other embedded development platforms.
Thanks to its computing power, the Portenta Machine Control enables a wide range of predictive maintenance and AI use cases. It enables the collection of real-time data from the factory floor and supports the remote control of equipment, even from the cloud, when desired.
Key benefits include:
Thanks to its computing power, the Portenta Machine Control enables a wide range of predictive maintenance and AI use cases. It enables the collection of real-time data from the factory floor and supports the remote control of equipment, even from the cloud, when desired.
Key benefits include:
- Shorter Time-To-Market
- Give new life to existing products
- Add connectivity for monitoring and control
- Tailor it to your need, each I/O pin can be configured
- Make equipment smarter to be ready for the AI revolution
- Provide security and robustness from the ground up
- Open new business model opportunity (e.g. servitization)
- Interact with your equipment with advanced HMI
- Modular Design for adaptation & upgrades
The Portenta Machine Control allows companies to enable new business-as-a-service models by monitoring customer usage of equipment for predictive maintenance and providing valuable production data.
The Arduino Machine Control enables industry standard soft-PLC control and is able to connect to a range of external sensors and actuators with isolated digital I/O, 4-20mA compatible analog I/O, 3 configurable temperature channels, and a dedicated I2C connector. Multiple choices are available for network connectivity, including USB, Ethernet, and WiFi/Bluetooth® Low Energy in addition to industry specific protocols such as RS485. All I/O are protected by resettable fuses and onboard power management has been engineered to ensure maximum reliability in harsh environments.
The Portenta Machine Control core runs an Arduino Portenta H7 microcontroller board (included), a highly reliable design operating at industrial temperature ranges (-40 °C to +85 °C) with a dual-core architecture that doesn’t require any external cooling. The main processor offers the possibility of connecting external Human Machine Interfaces like displays, touch panels, keyboards, joysticks, and mice to enable on-site reconfiguration of state machines and direct manipulation of processes.
The Portenta Machine Control’s design addresses a large variety of use scenarios. It is possible to configure a selection of the I/O pins via software. The Portenta Machine Control stands out as a powerful computer to unify and optimize production where one single type of hardware can serve all of your needs. Among other outstanding features are the following:
- Industrial performance leveraging the power of Arduino Portenta boards

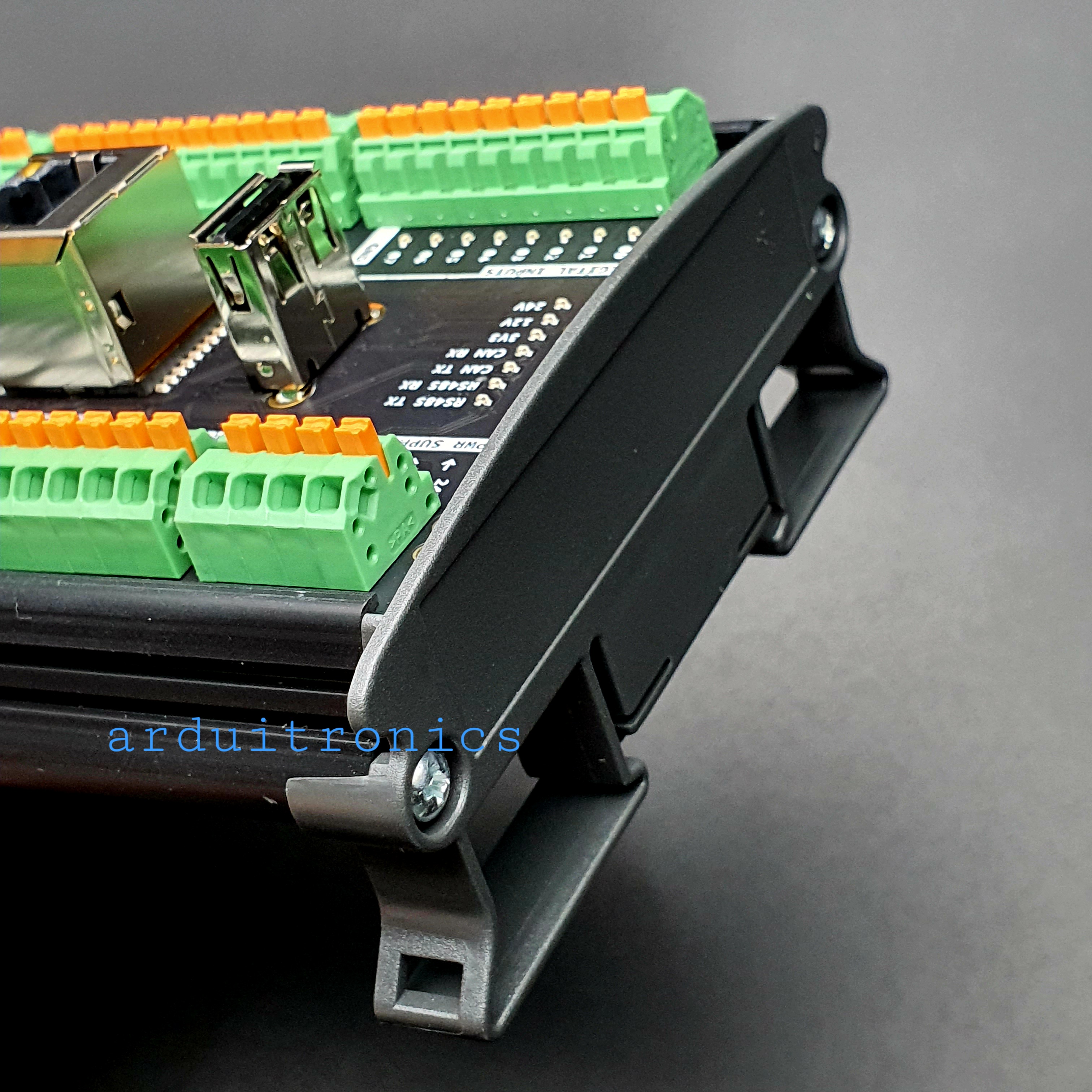

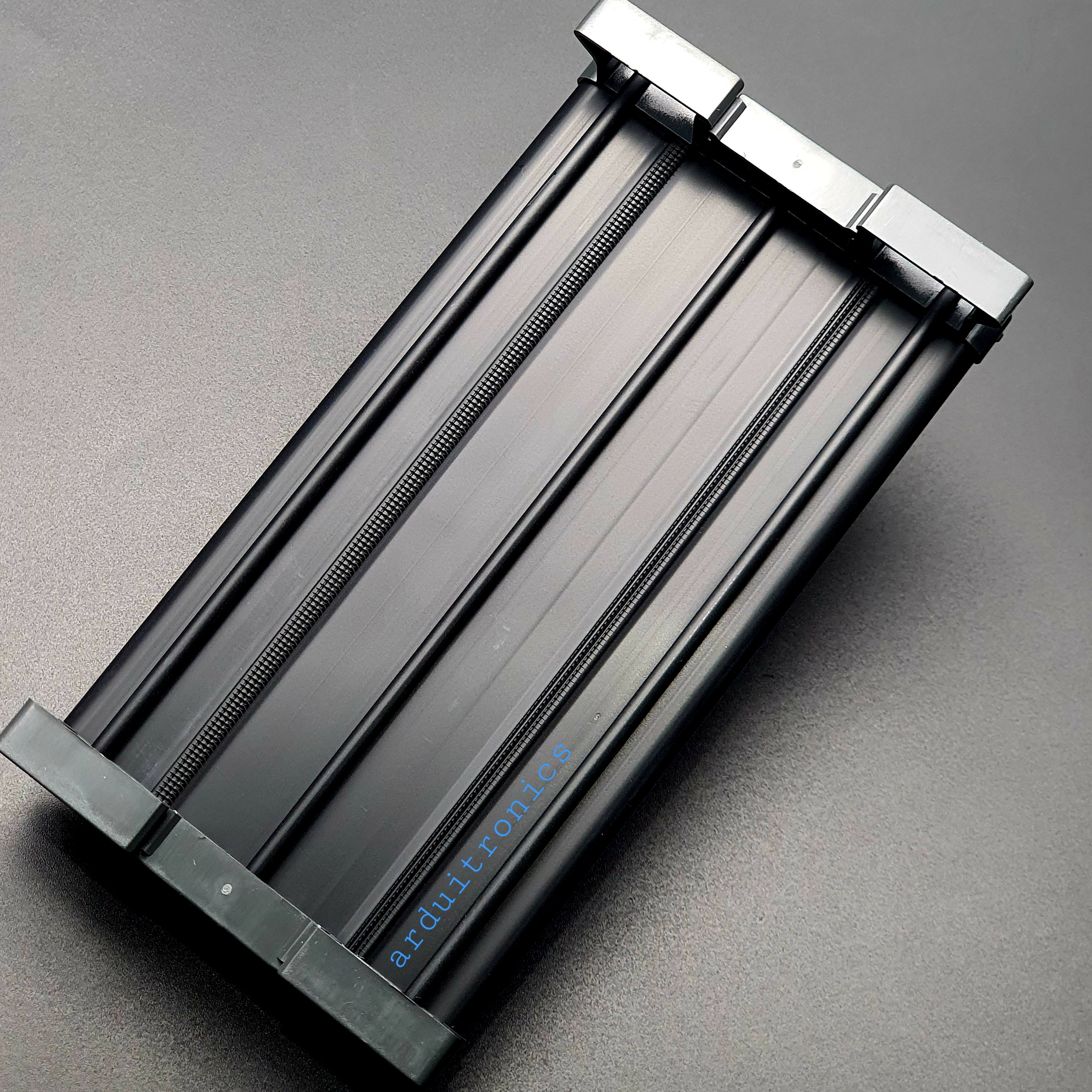

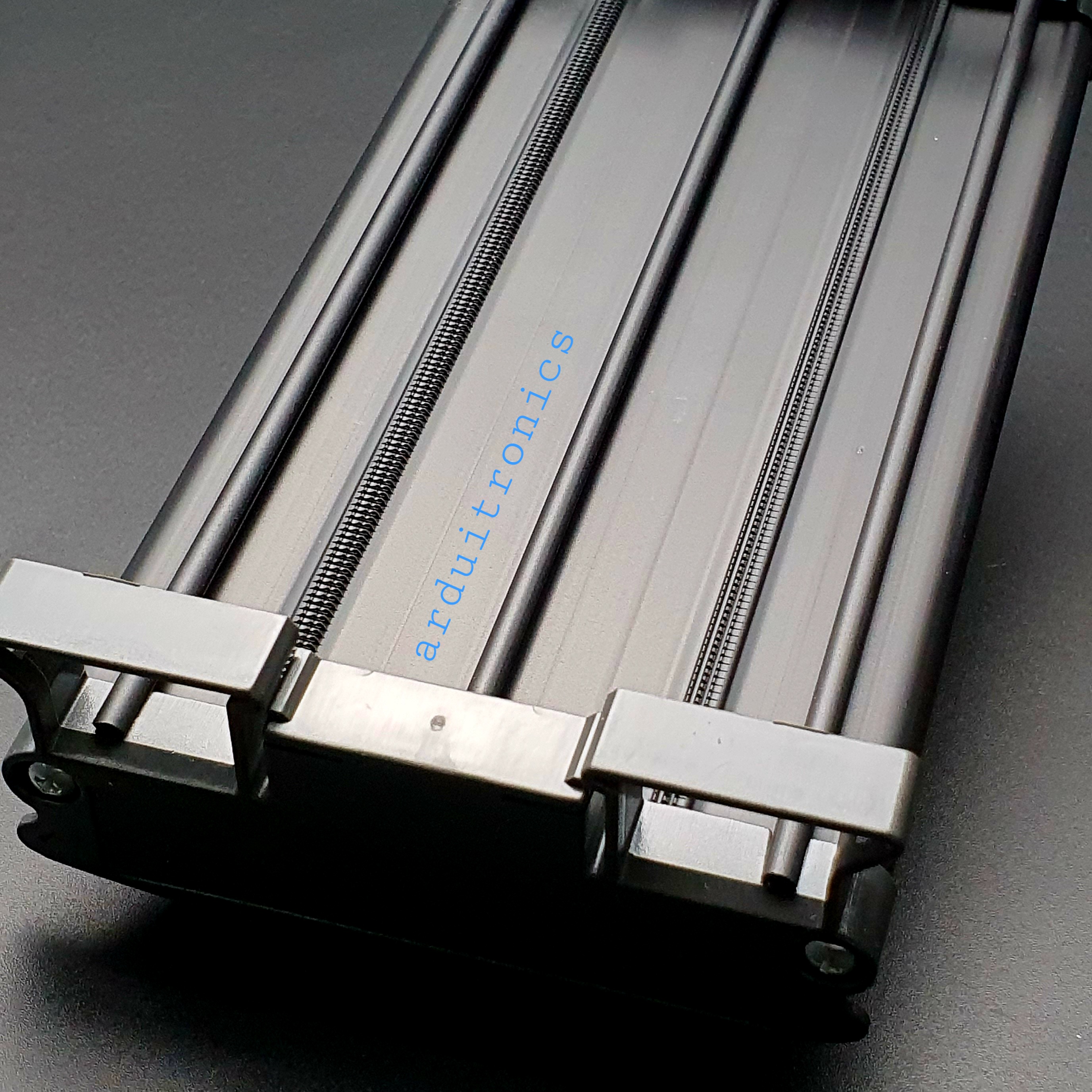

- DIN bar compatible housing
- Push-in terminals for fast connection

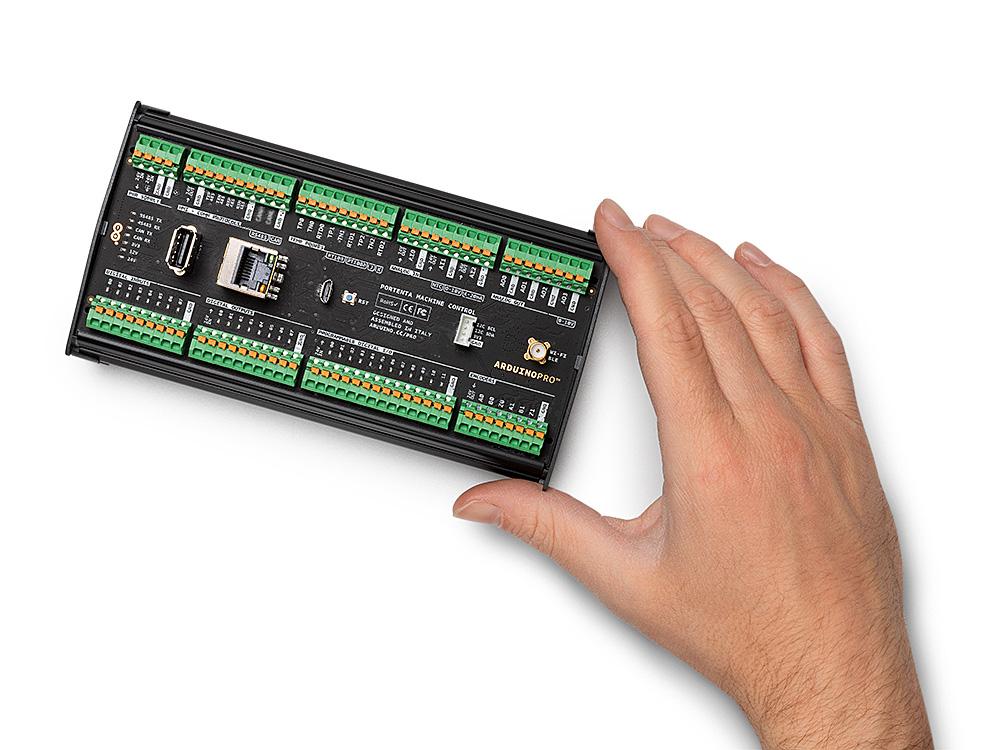

- Compact device (170 x 90x 50 mm)
- Reliable design, operating at industrial temperature rates (-40 °C to +85 °C) with a dual-core architecture that doesn’t require any external cooling
- Embedded RTC (Real Time Clock) to ensure perfect synchronization of processes
- Leverage the embedded connectivity without any external parts
- CE, FCC, and RoHS certified
Add the Portenta Machine Control to your existing processes effortlessly and become the owner of your solutions in the market of machines.
APPLICATION EXAMPLES
Add Industrial IoT capabilities to standalone industrial machinery:
Upgrade equipment or develop new distinctive products
The Portenta Machine Control enhances existing products with minimal effort, allowing companies to implement a standard platform across different equipment models. It is now easy to create an infrastructure of interconnected machines, which can be controlled onsite or via the cloud when needed; moreover, human-machine interaction can be further enahnced via mobile apps thanks to BLE connectivity. Arduino is a popular technology that has been adopted by many engineers worldwide to reduce time to market; there is a huge number of ready-to-use software libraries that make it easier to interact with sensors and actuators
Improve customer experience
Monitoring customer usage of equipment can provide valuable production data, useful to minimize downtime, perform predictive maintenance, and carry out calibration activities. Customers can be supported remotely, in order to optimize field engineer workload as well as spare parts availability. In addition, the constant monitoring of the equipment parameters often makes achieving industry certifications easier.
Tailor it to your needs
The modular design is ideal for upgrades and adaptations. Since each I/O pin can be configured, the Portenta Machine Control can be highly customizable while allowing companies to avoid vendor lock-in. Our hardware is robust and secure by design. Many corporations have chosen Arduino Pro solutions to improve manufacturing processes and enhance their products and services.
