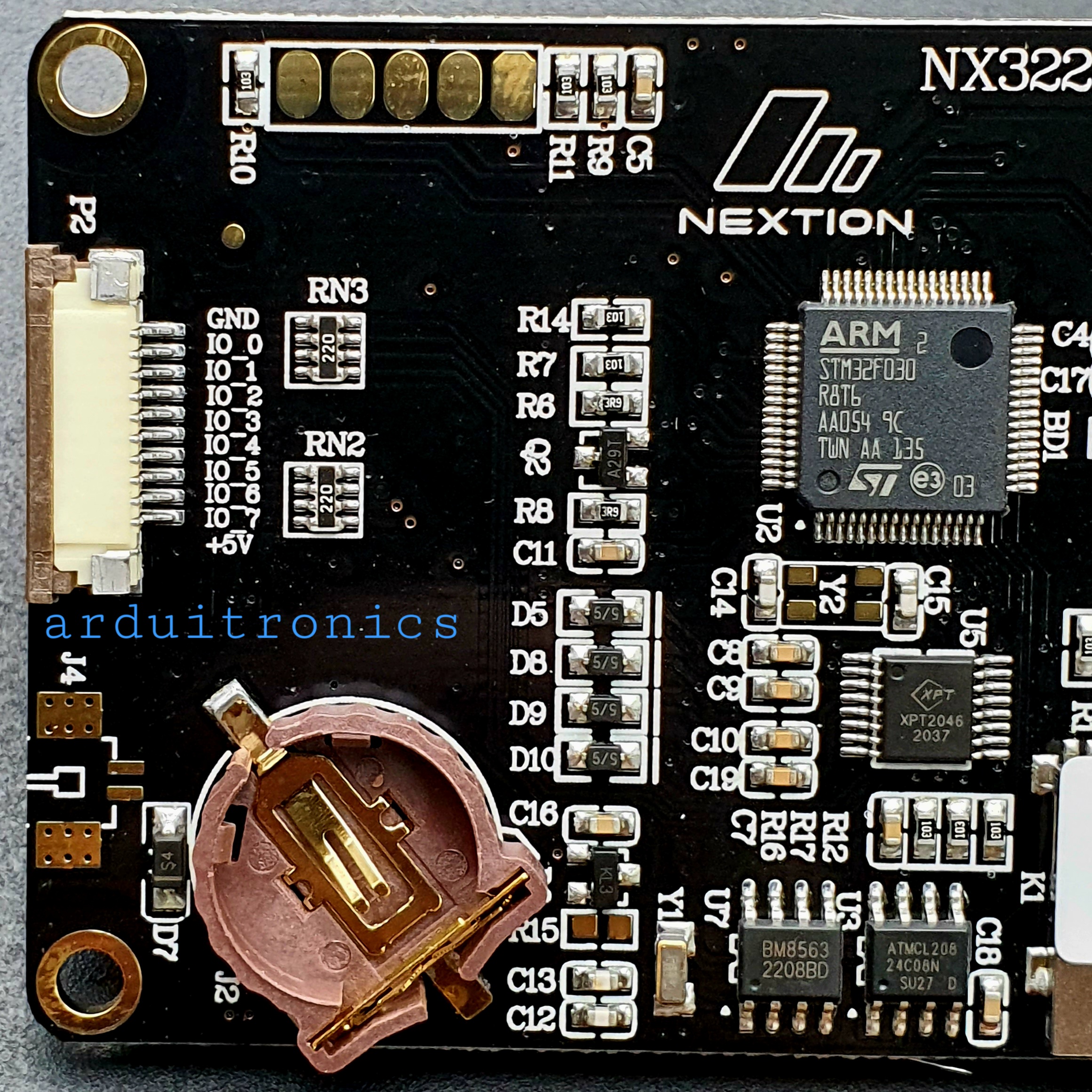

Nextion Enhanced NX3224K028 - Generic 2.8 inch HMI Touch Display

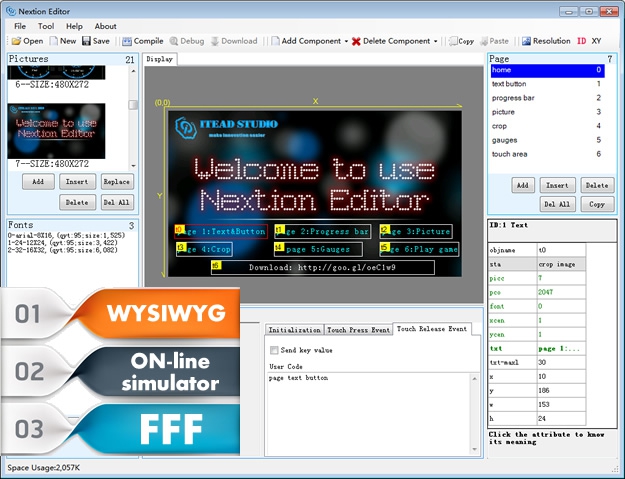

WYSIWYG – What You See Is What You Get. Just lay the display out with the objects and code is written automatically.

On-line simulator – You can design without even a screen in hand. And you can use an external MCU to control the simulate screen as well.

FFF – Free Full-Function software. Users can use the Editor freely, full-functions without any charge.
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4'' to 7.0''.

Nextion Enhanced NX3224K028 is a powerful 2.8'' HMI TFT display, with 16MB Flash data storage space, 1024 bytes EEPROM, 3584 bytes RAM. With GPIO supported, now customers can use Nextion to control external devices.

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It's easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.

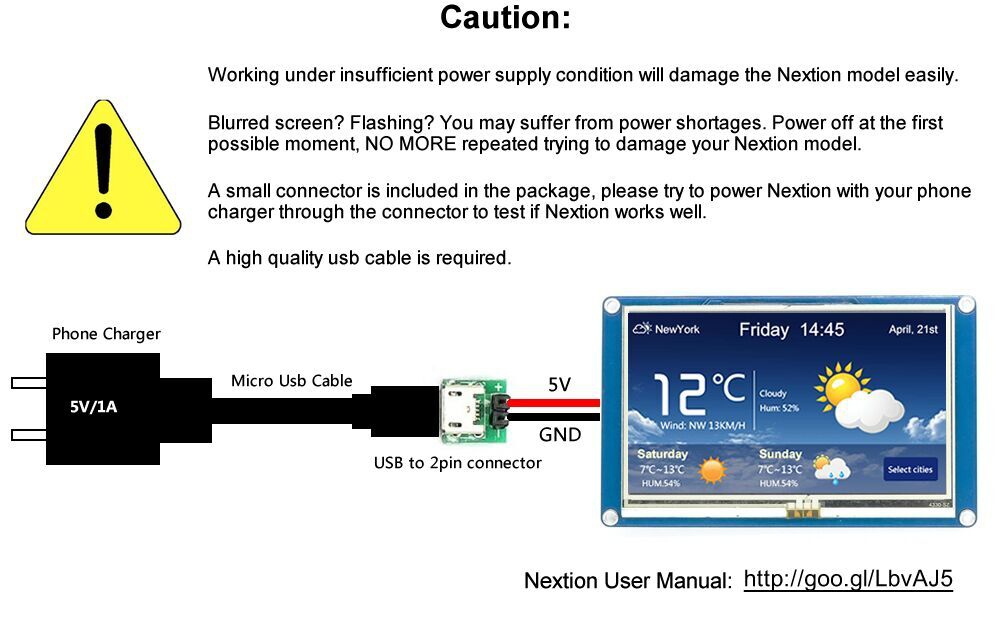

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.

• Supports built-in RTC
• Supports GPIO
• SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
• Flash data storage space: 16MB
• EEPROM: 1024 bytes
• RAM: 3584 byte
• Instruction buffer: 1024 bytes
• Color: 65K (65536) colors
• Resolution: 320×240 pixel
• Adjustable Brightness: 0~180 nit- the interval of adjustment is 1%

Specification:

• Visual Area:48.96mm(L)×36.72mm(W)
• Layout size：74.4(L)×42.72(W)×5.8(H)
• Touch type: Resistive
• Backlight：LED
• Backlight lifetime (Average): >30,000 Hours
• Recommended power supply: 5V 500mA DC
• Package includes

Information Support:

• หน้าสินค้าผู้ผลิต
• หน้าผลิตภัณฑ์ Nextion
• โปรแกรม Nextion Editor
• หน้า Wiki ของ Nextion
• หน้า Wiki ของรุ่น NX3224K028
• หน้า Wiki ของโปรแกรม Nextion Editor
• หน้า Wiki ของคำสั่งของ Nextion
• Arduino library for Nextion
• Nextion 2.8" Demo

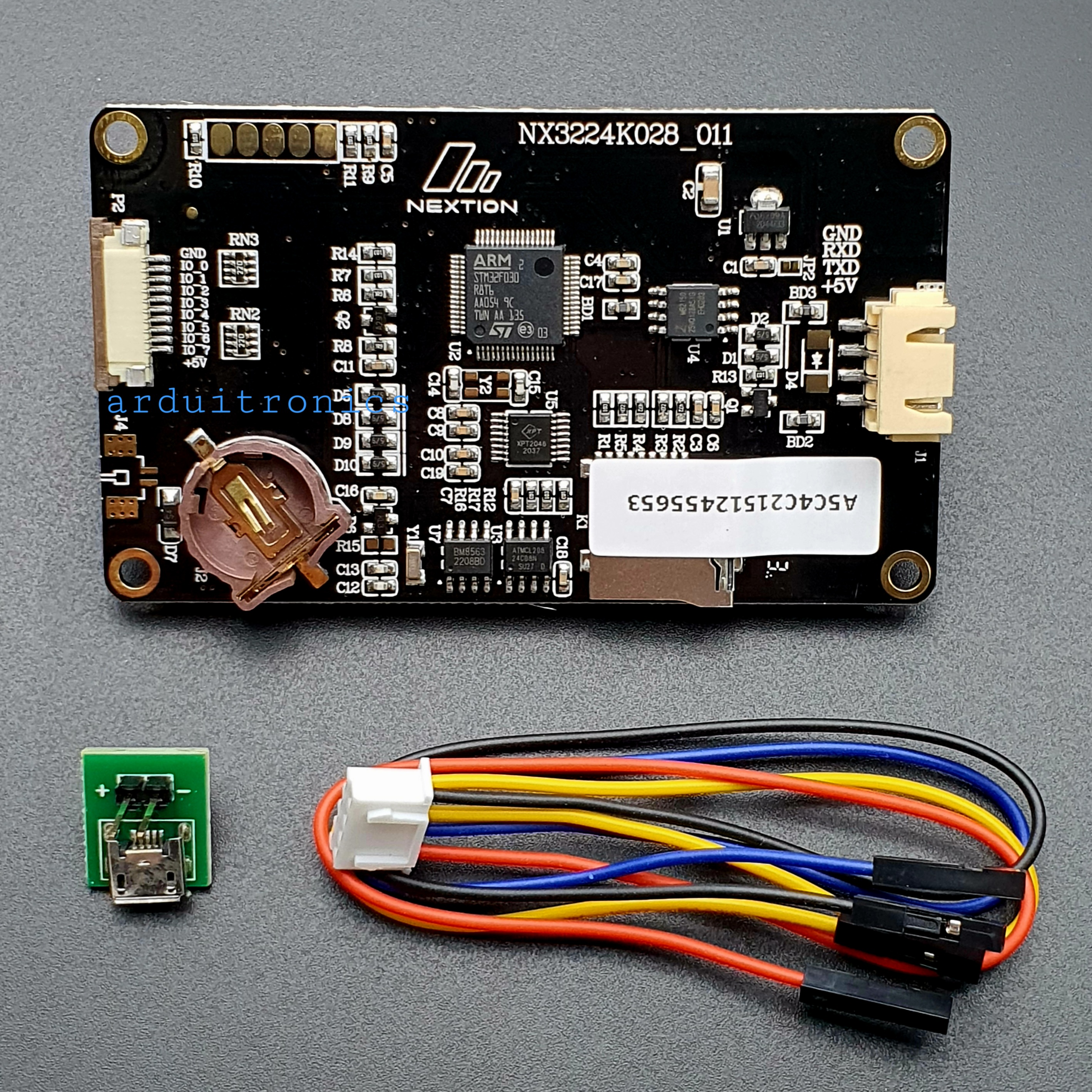

Product included:

• Nextion Enhanced NX3224K028 - Generic 2.8inch HMI Touch Display x 1 set
  • 1× 2.8-inch Nextion Enhanced HMI Display

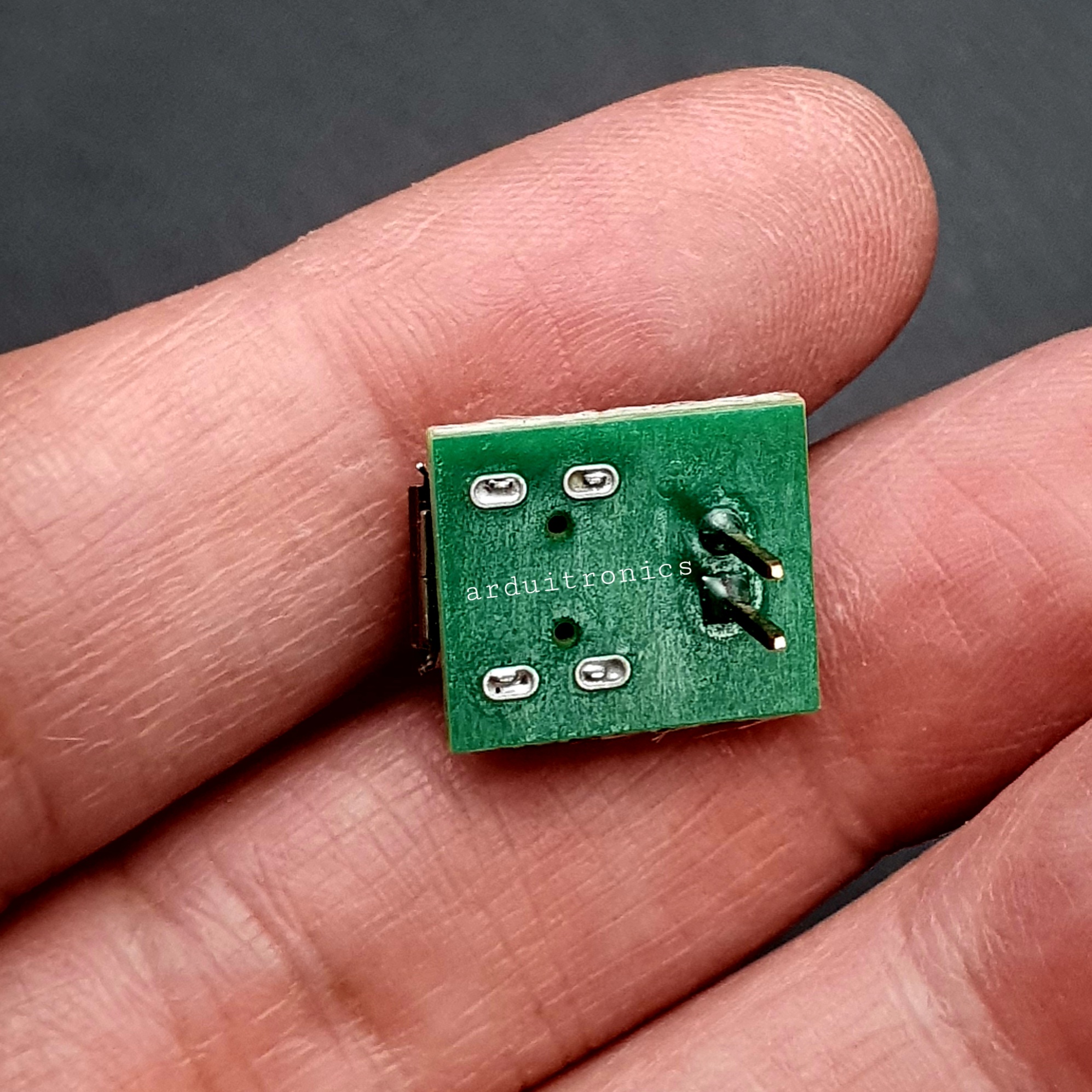

  • 1× power supply test board
  • 1× 4-pin grove cable
