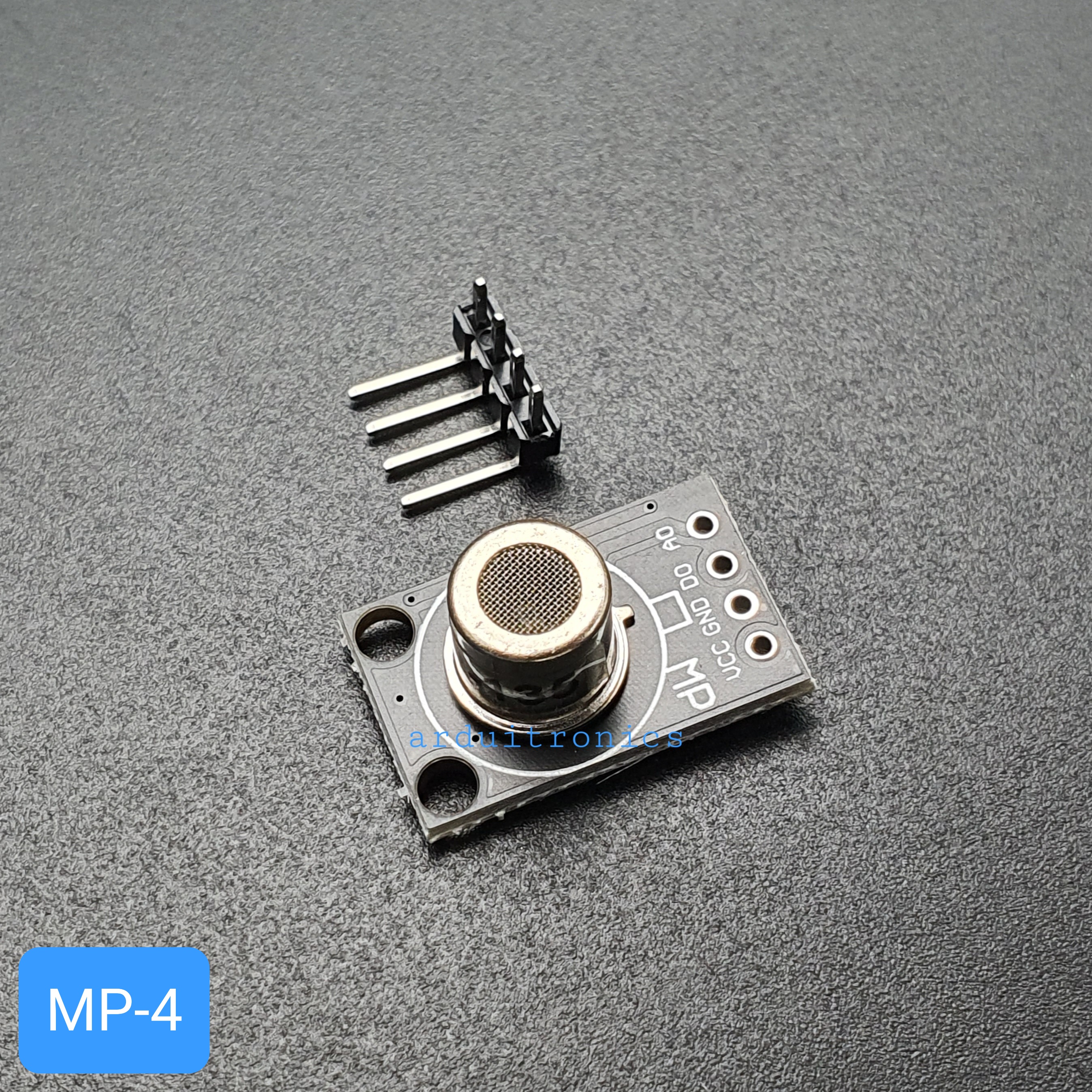

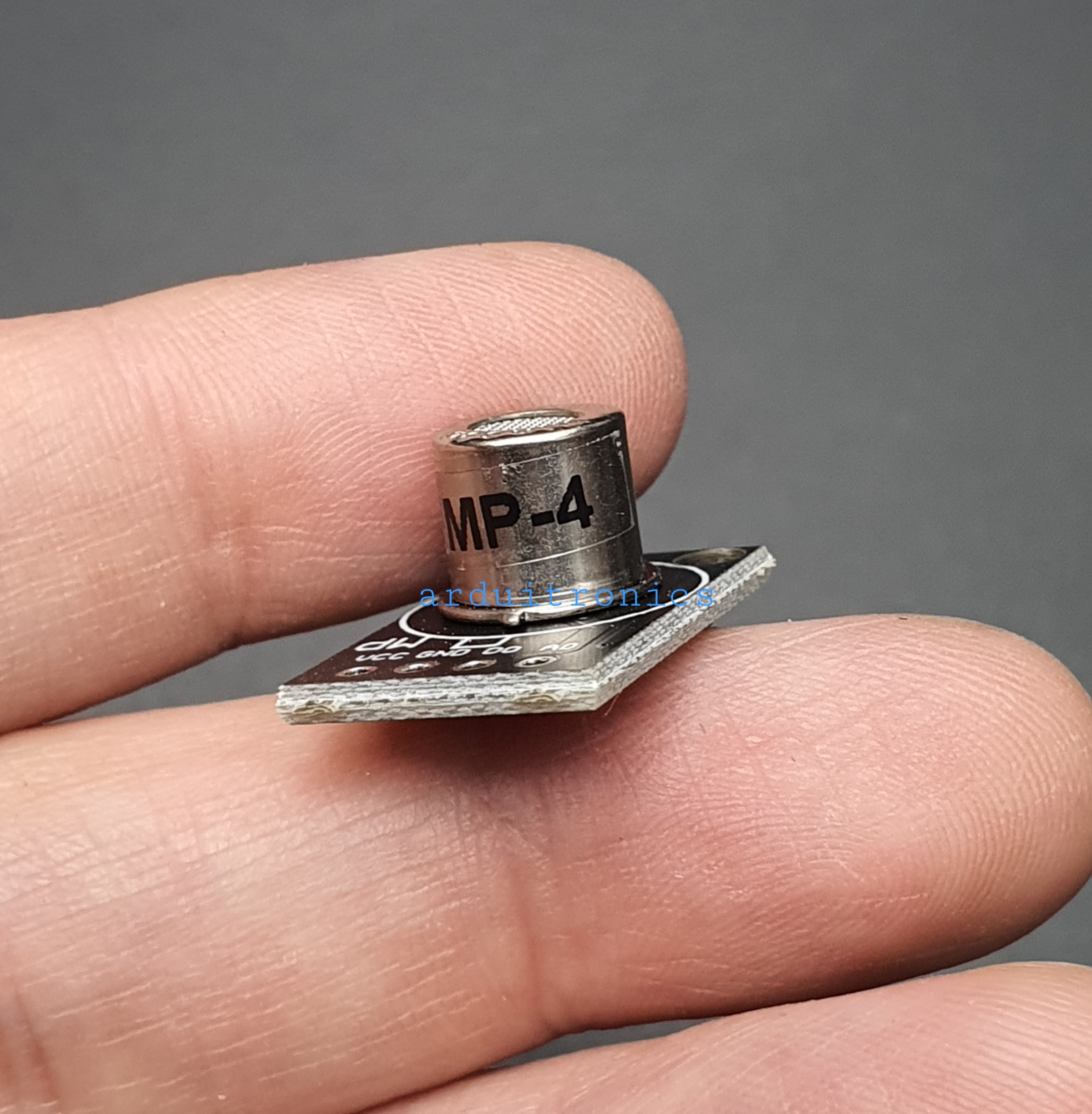

Name: MP-4 เซ็นเซอร์ตรวจจับก๊าซที่ติดไฟได้ Combustible Gas Sensor MP4
SKU: AS00501
Price: 160 THB
Availability: InStock

Model			MP-4
Sensor Type			Flat surfaced
Standard Encapsulation			Metal cap
Target Gas			CH4, Nature gas,
Detection range			300-10000ppm
Standard Circuit Conditions	Loop Voltage	Vc	≤24V DC
	Heater Voltage	VH	5V±0.1V AC or DC
	Load Resistance	RL	Adjustable
Sensor character under standard test conditions	Heater Resistance	RH	85Ω±15Ω (room tem.)
	Heater consumption	PH	≤350mW
	Sensitivity	S	Ro(in air)/Rs(5000ppm CH4)≥5
	Sensitive resistance	RS	1KΩ～20KΩ (in 5000ppm CH4)
	Concentration Slope	α	≤0.6(R5000ppm/R1000ppm CH4)
Standard test conditions	Tem. Humidity		20℃±2℃；55%±5%RH
	Standard test circuit		Vc::5V±0.1V VH: 5V±0.1V
	Preheat time		Over 48 hours
