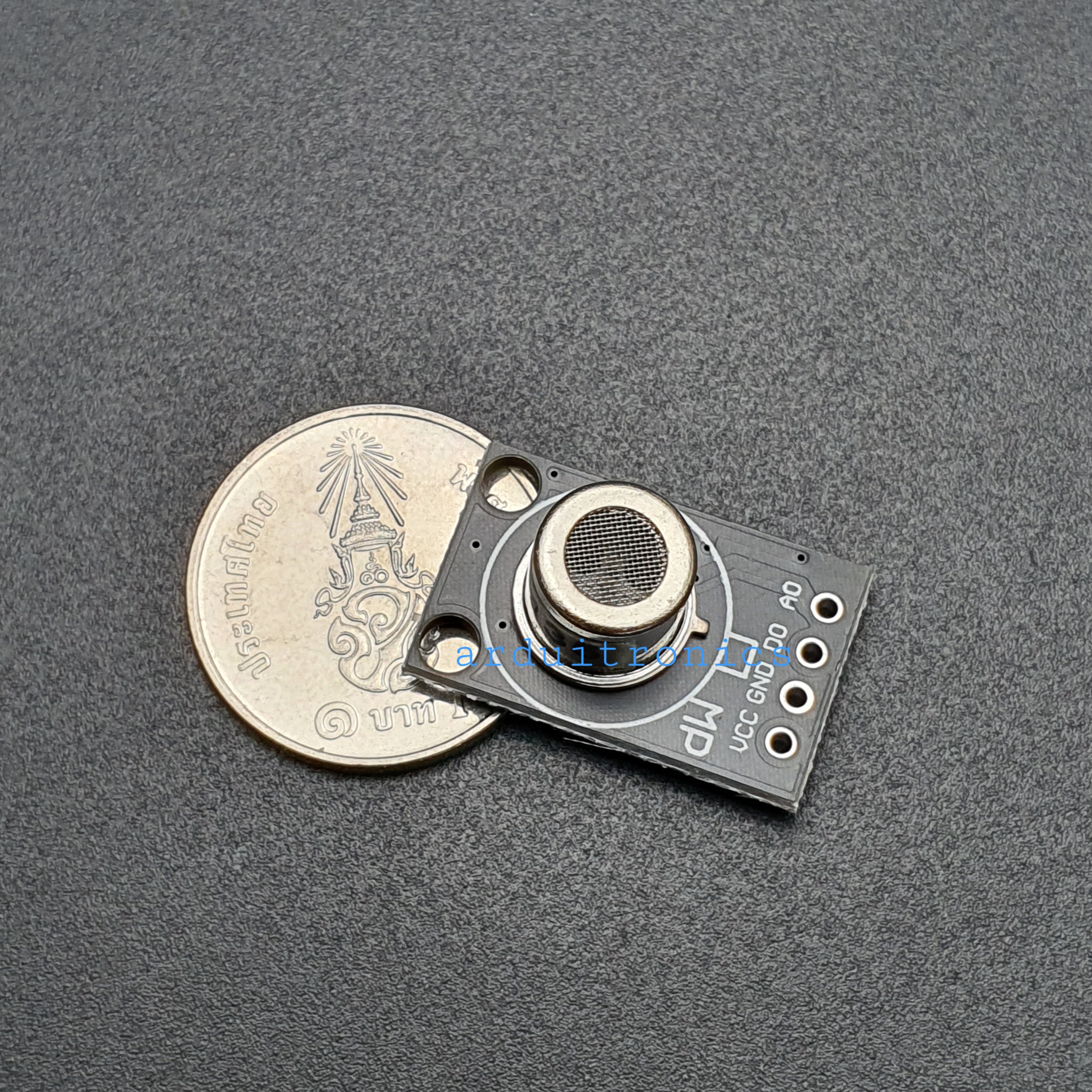

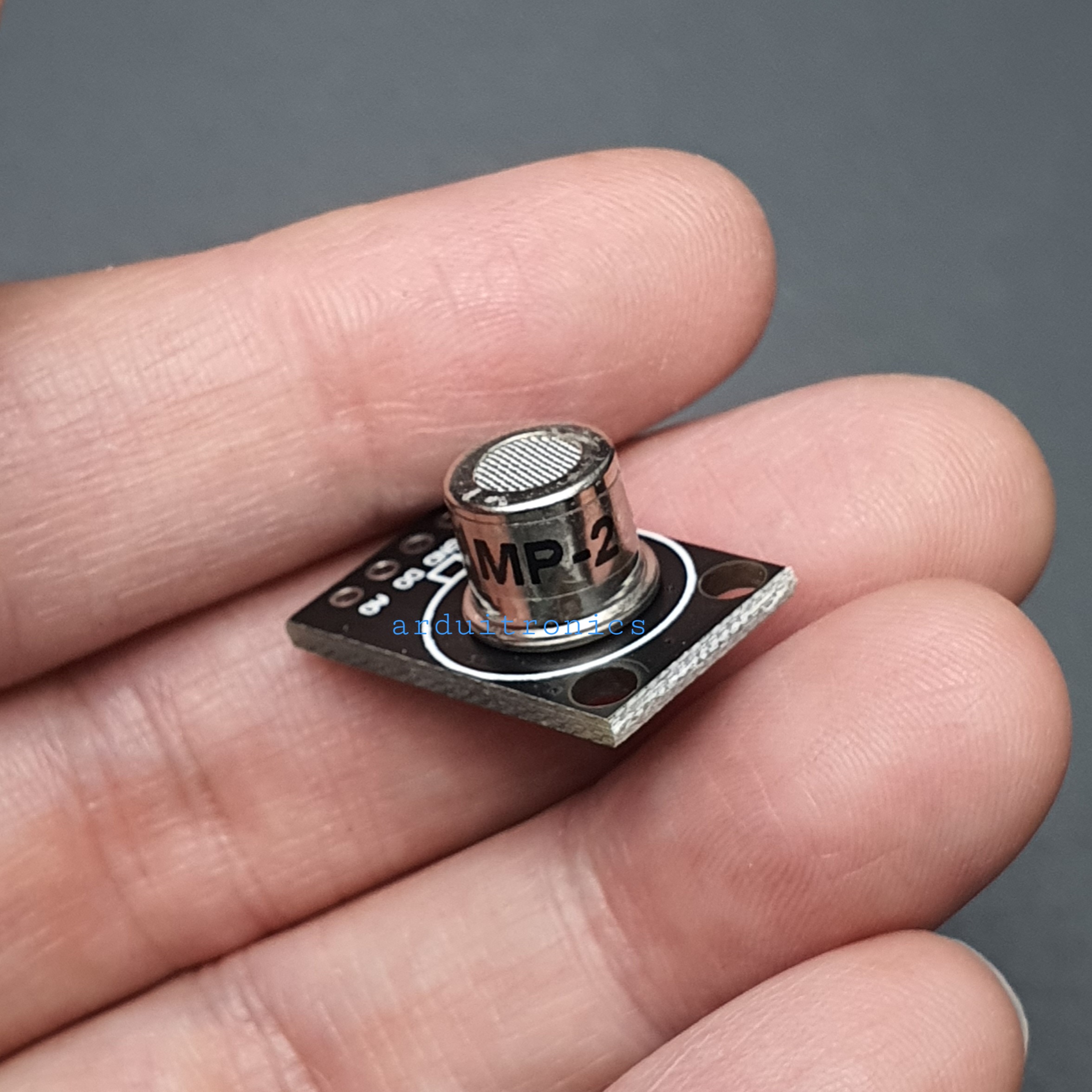

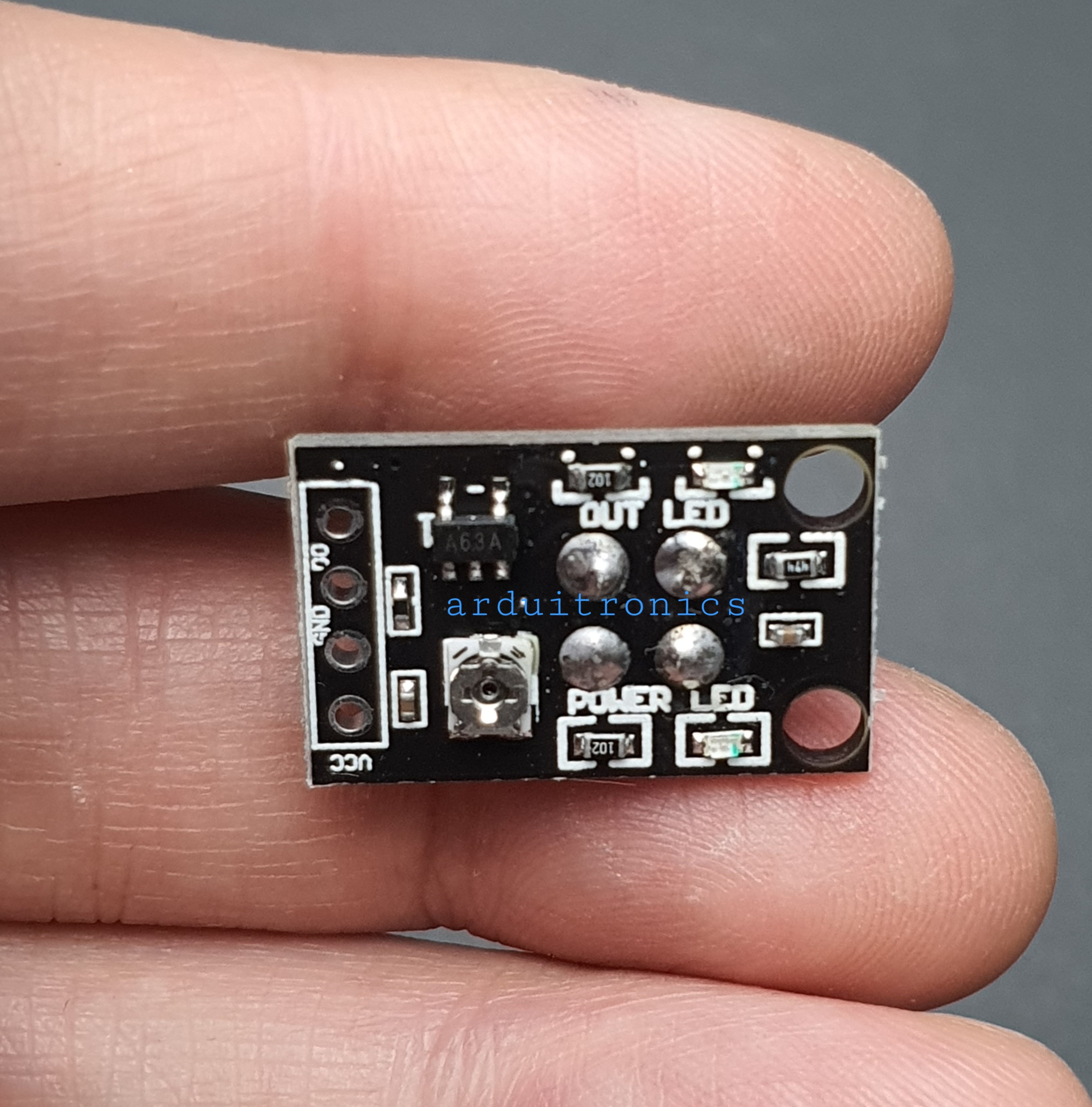

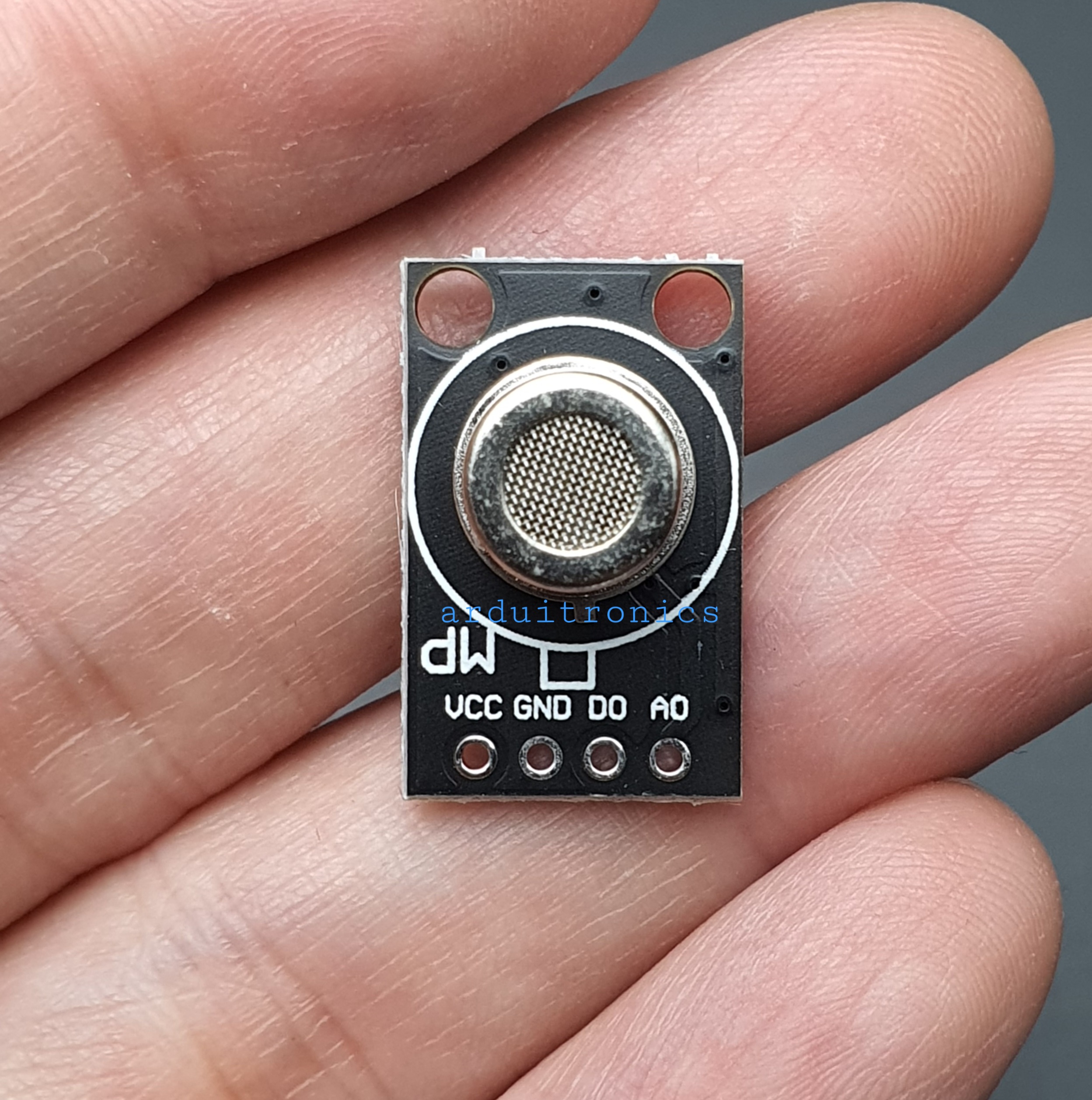

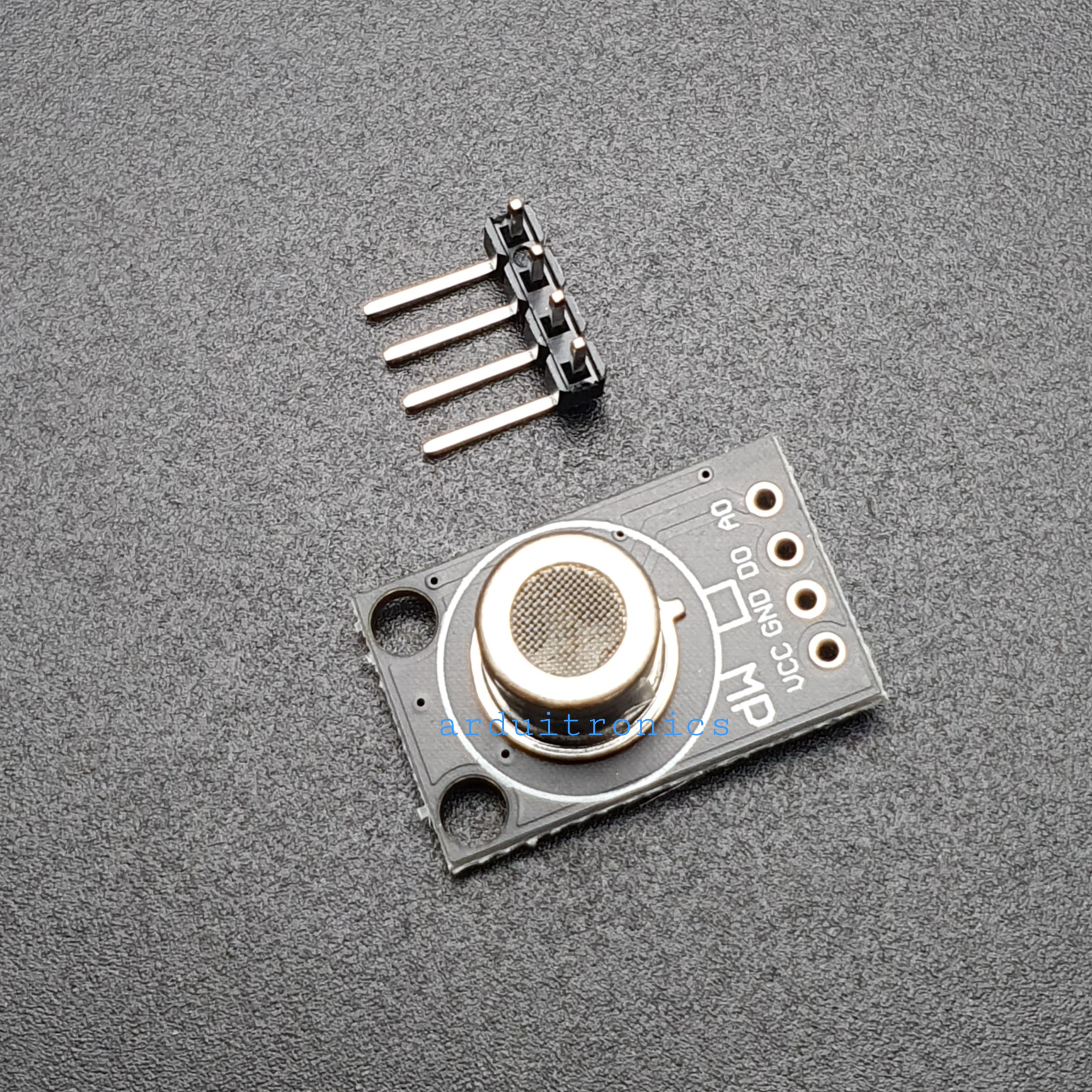

Name: MP-2 เซ็นเซอร์ตรวจจับควัน Smoke Gas Sensor - MP2
SKU: AS00500
Price: 160 THB
Availability: InStock

Model			MP-2
Sensor Type			Flat Surfaced Semiconductor
Standard Encapsulation			Metal Cap
Target Gas			C3H8, smoke
Detection range			200~10000ppm C3H8
Standard Circuit Conditions	Loop Voltage	Vc	≤10V DC
	Heater Voltage	VH	5V±0.1V AC or DC
	Load Resistance	RL	Adjustable
Sensor character under standard test conditions	Heater Resistance	RH	105Ω±10Ω (room tem.)
	Heater consumption	PH	≤240mW
	Sensitivity	S	Ro(in air)/Rs( in 2000ppm C3H8)≥3
	Output voltage	Vs	2.5V~4.0V (in 2000ppm C3H8)
	Concentration Slope	α	≤0.6(R3000ppm/R500ppm C3H8)
Environment Conditions	Operation Temp.	Tao	-10℃~50℃
	Storage Temp.	Tas	-20℃~70℃
	Relative Humidity	RH	Less than 95%RH
	O2 concentration	O2	21%±1%(can’t less than 18%) O2 concentration effects sensor’s performance.
	Preheat time		Not less than 48 hours
